High accuracy long distance AD-10 backpack drill rig Portable hydrological survey drilling rig
Water well drilling rig
Product Description
Technical parameters of High accuracy long distance AD-10 backpack drill rig \\portable hydrological survey drilling rig\\water well drilling rig:
| Drilling type | diamond and alloy high speed rotary and twist spiral drilling |
| Circulation medium | water, slurry |
| Hole diameter (mm) | 46-60 |
| Drilling depth (m) | ≤10M |
| Spindle speed (r/min) | 500,900(2-gear transmission) |
| Power (HP) | 5.5P |
| Tower | Single frame with tilt brace,1.65m height |
| Feed stroke | 1.5m |
| Handle pressure ratio | 1:35 |
| Total weight (kg) | 86 |
| Max. single weight (Kg) | 40 |
Characteristics of High accuracy long distance AD-10 backpack drill rig \\portable hydrological survey drilling rig\\water well drilling rig:
AD-10 is a kind of portable drilling rig optimized constantly by us, it use gasoline engine as power, to achieve the mechanical transmission rely on gearbox with 2-gear transmission design, you can change the speed from 200 to 900r/min, to meet diamond (alloy) drilling and spiral twist drilling, to meet the borehole sampling and other requirements, it is currently the most advanced and portable multi-function drilling rig.

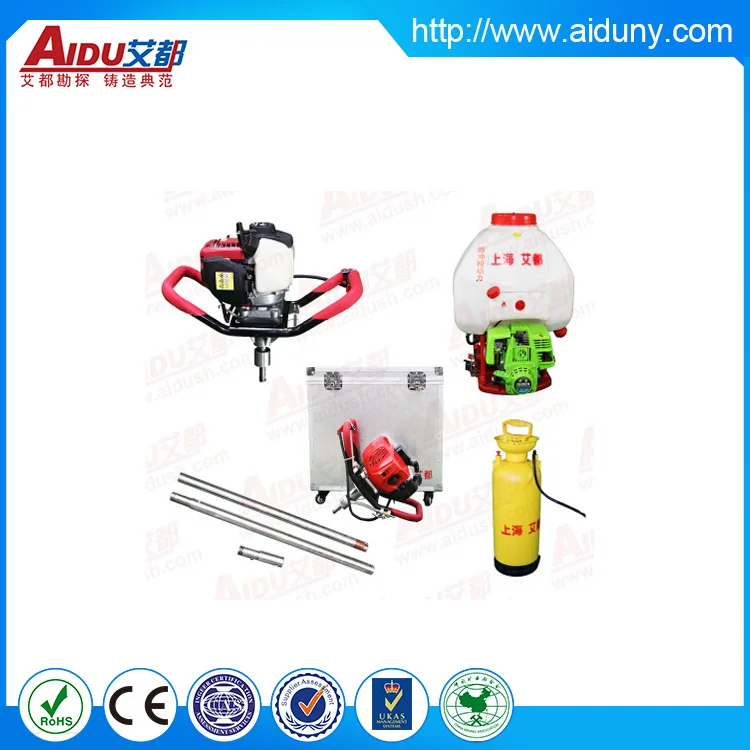

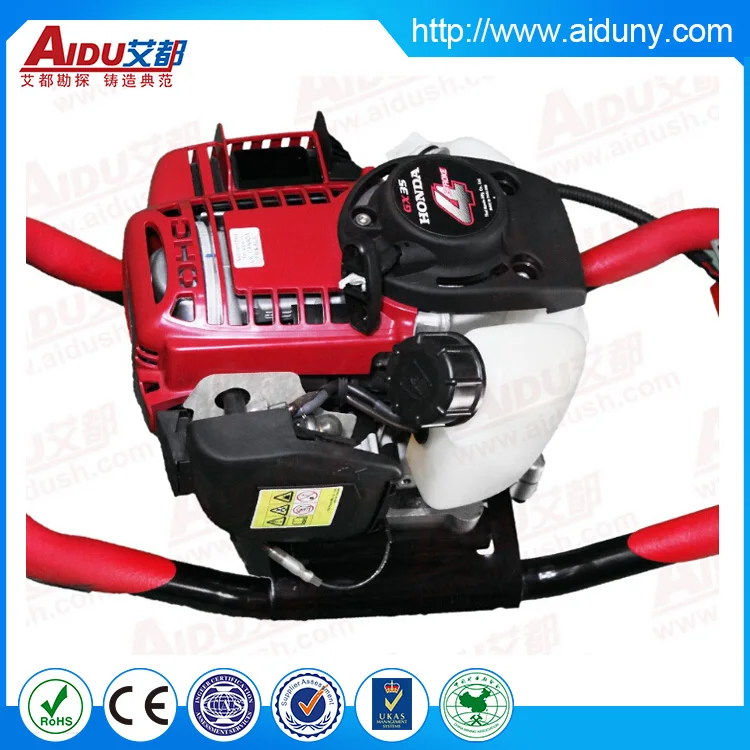

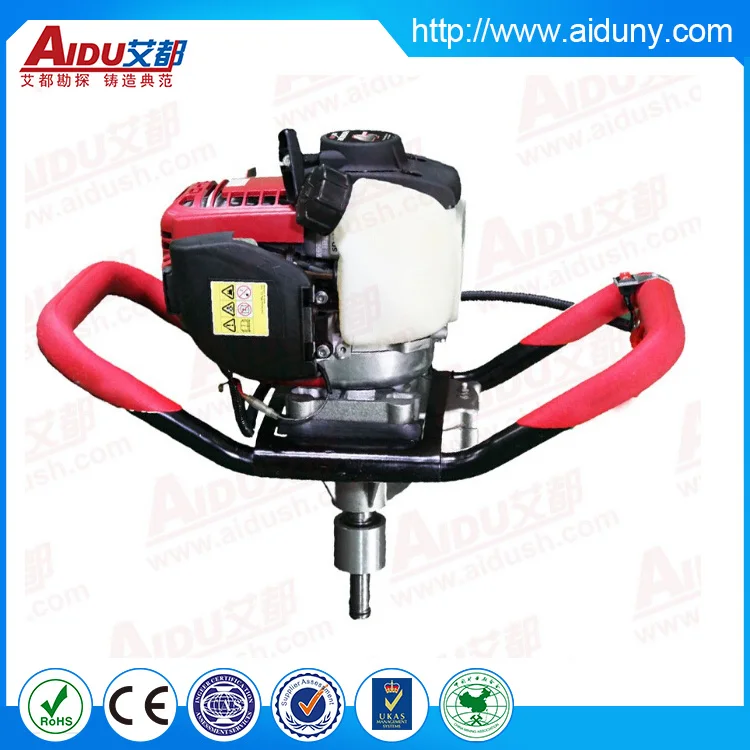

Pictures of High accuracy long distance AD-10 backpack drill rig \\portable hydrological survey drilling rig\\water well drilling rig:
Main Application of AD-10 backpack drill rig hydrological well drilling rig\\water well drilling rig:
Widely used in geological survey sampling and mapping, seis hole construction, geochemical rock sampling, road foundation exploration and geotechnical engineering etc.
You can customize different rigs with different depth and diameters based on your actual demands.
