Product Overview

Description


Product Description

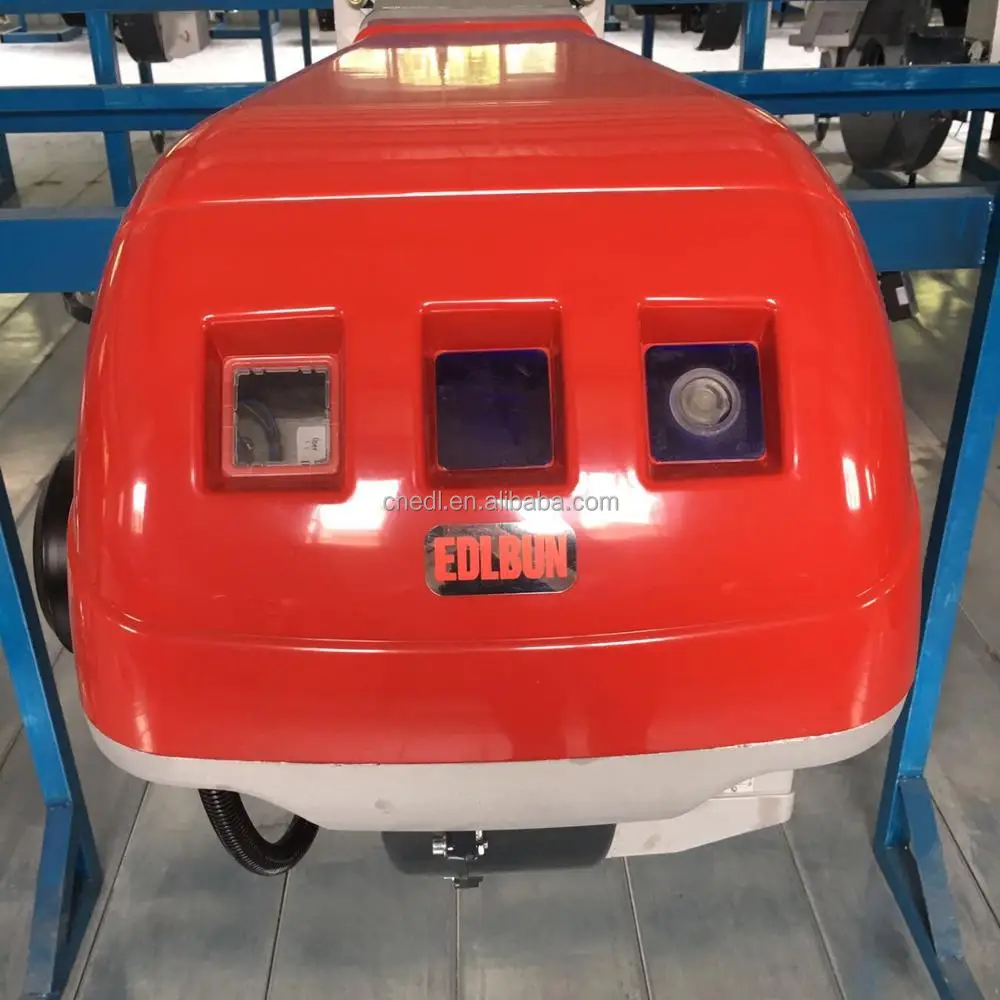

Model: RS190

Thermal output: 470-2290KW

Electrical supply: 3ph, 380V/50Hz

control method: dual-stage fire control

Absorbed electrical power: 5.5KW

Fuel: natural gas, coal gas, liquefied petroleum gas, etc.

FS series is mainly used for light industry, while RS series are mostly suitable for low temperature and medium temperature hot boiler, hot wind generator or steam boiler, oil guiding heating boiler, etc.

\t
Power table
\t
Series
\t
Model
\t
Heating value(KW)
\t
Control Means
\t
GAS
\t
Power source
\t
Power
（W）
\t
Min
\t
Max
\t
RS
\t
190
\t
470
\t
1279-2290
\t
Sec fire
\t
liquefied gas/ natural gas
\t
3ph*380v*50hz
\t
5500
\t
MODEL
\t
RS 190
\t
OUTPUT           2nd stage
\t
 KW
 Mcal/h
\t
1279-2290
1100-1970
\t
                        min. 1st stage
\t
 KW
 Mcal/h
\t
470
405
\t
FUEL
\t
NATURAL GAS :G20 - G21 - G22 - G23 - G25
\t
\t
G20                     G25
\t
net calorific value
\t
kWh/Sm3
Mcal/Sm3
\t
10                        8,6
8,6                       7,4
\t
absolute density
\t
kg/Sm3
\t
0.71                    0.78
\t
max delivery
\t
Nm3/h
\t
230                       267
\t
pressure at max. delivery
\t
mbar
\t
15                          22
\t
OPERATION
\t
Intermittent (min. 1 stop in 24 hours)
Two- stage (high and low flame)and one-stage(all-nothing)
\t
STANDARD APPLICATION
\t
\t
Boilers:water , steam , diethermic oil
\t
AMBIENT TEMPERATURE
\t
°C
\t
0 - 40
\t
COMBUSTIVE AIR TEMPERATURE
\t
°C max
\t
60
\t
ELECTRICAL SUPPLY
\t
V
Hz
\t
230 - 400 with neutral ~ +/- 10%
50 - three phase
\t
ELECTRICAL MOTOR
\t
rpm
W
V
A
\t
2800
4500
400
9,1
\t
IGNITION TRASFORMER
\t
V1 - V2
I1 - I2
\t
230v - 1 * 8kv
1 A - 20 mA
\t
ELECTRICAL POWER CONSUMPTION
\t
W max
\t
5500
\t
ELECTRICAL PROTECTION
\t
IP 44
\t
IN CONFORMITY WITH EEC DIRECTIVES
\t
2004/108 - 2006/95 - 2006/42
\t
NOISE LEVELS
\t
dBA
\t
83,1

（1）Reference  conditions:Ambient temperature 20°C - Barometric pressure 1000 mbar - altitude 100 m a.s.l.

（2）Pressure at test point16(A)p.3 with zero pressure in the combustion chambre ,with open gas ring2 (B) p.7 an maximum burner output.

（3）Sound pressure measured in manufacturers combustion laboratory ,with burner operating on test boiler and at maximum rated output.

\t
GAS CATEGORY
\t
COUNTRY
\t
CATEGORY
\t
IT- AT- GR- DK- FI- SE
\t
||2H3B/P
\t
ES- GB- IE- PT
\t
||2H3P
\t
NL
\t
||2L3B/P
\t
FR
\t
||2Er3P
\t
DE
\t
||2ELL3B/P
\t
BE
\t
|2E(R)B,|3P
\t
LU- PL
\t
||2E3B/P

Main features

1,Easy operation;
2,Convenient assembly for all parts;
3,Efficient maintenance, cleaning and inspection;
4,Critical spare parts adopt renowned brand;

Control process:

Our gas burners can be divided into two types which are single-stage and dual-stage according to regulating control method.


After single stage gas burner is ignited, only one stage heating power works, which cannot be adjusted. The heating power of four models ranges from 470kw to 1279KW.

The dualstage gas burners have two stages heating power. When ignited, the 1st stage starts working; as the load keeps increasing, the 2nd stage starts working, too, whose heating power ranges from 1279kw to2290kw.

Performance

1 Unibody design with aluminum shell

2 Sliding flange can locate the nozzle according the status in boiler furnace

3 Superior design of the nozzle make sure the best consumption when the burner working

4 Electrical devices to control the procedure and the safe protection

5 Delivering in assemble, out of the box

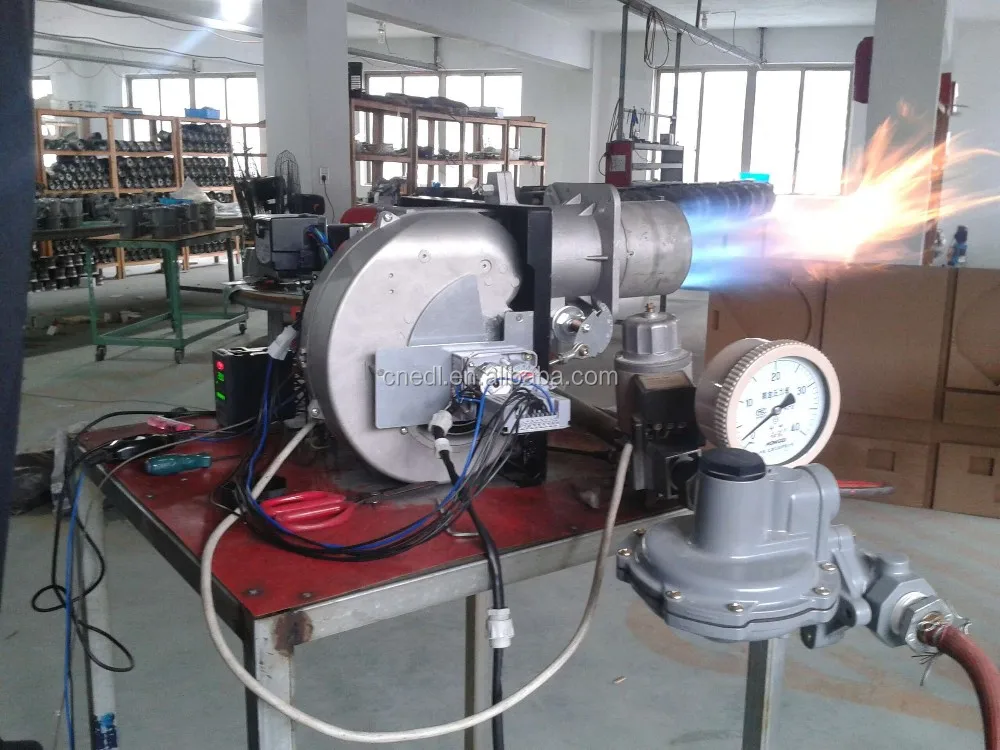

Working time

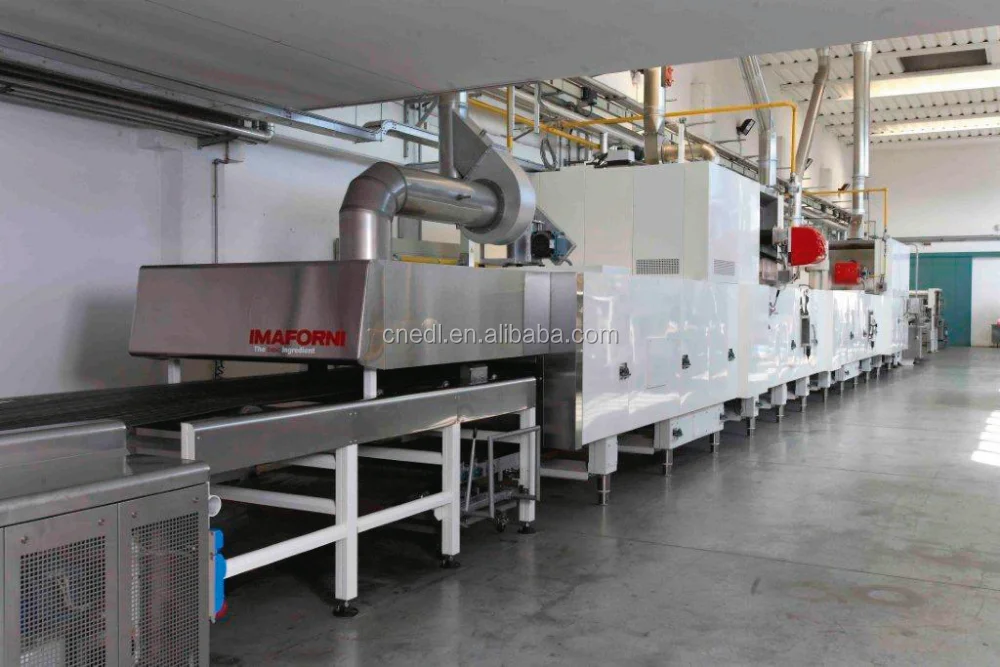

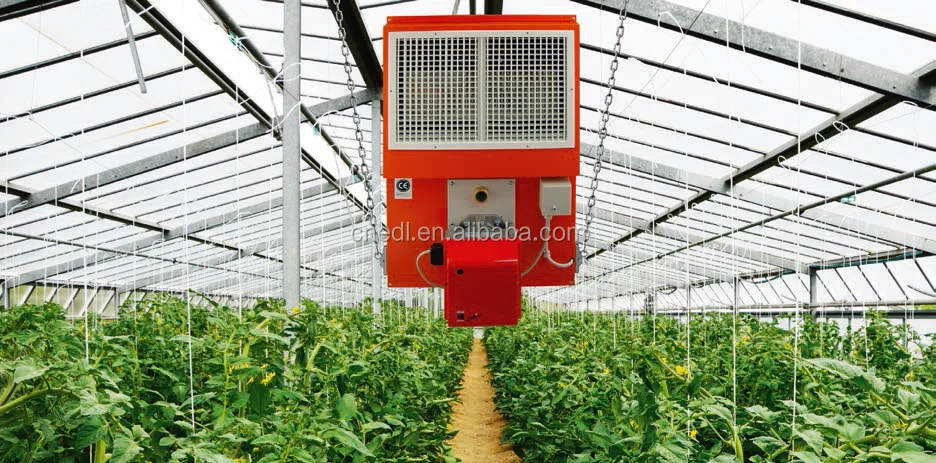

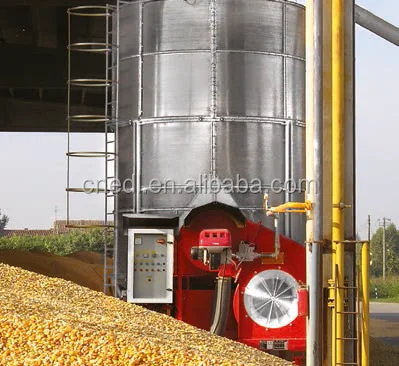

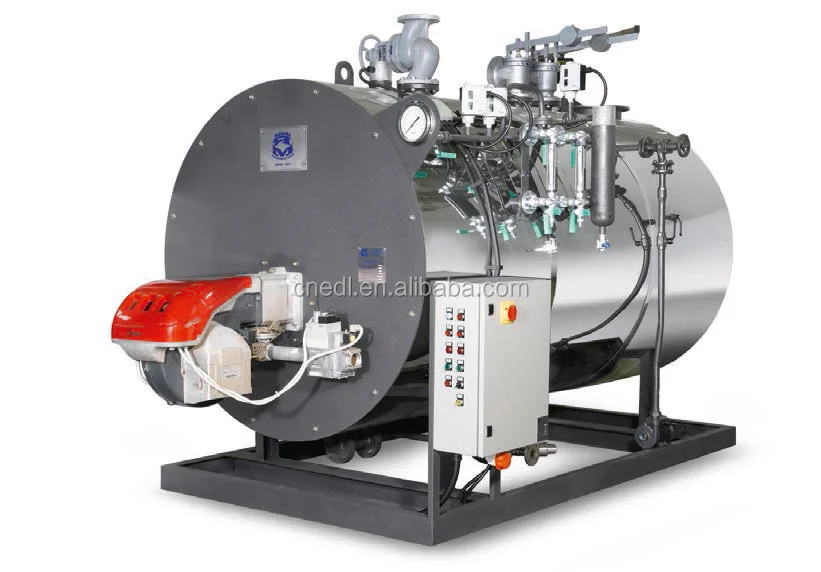

APPLICATION


Fuel




The FS and RS series gas burners are driven by natural gas, coal gas, liquefied petroleum gas, etc.


Certification

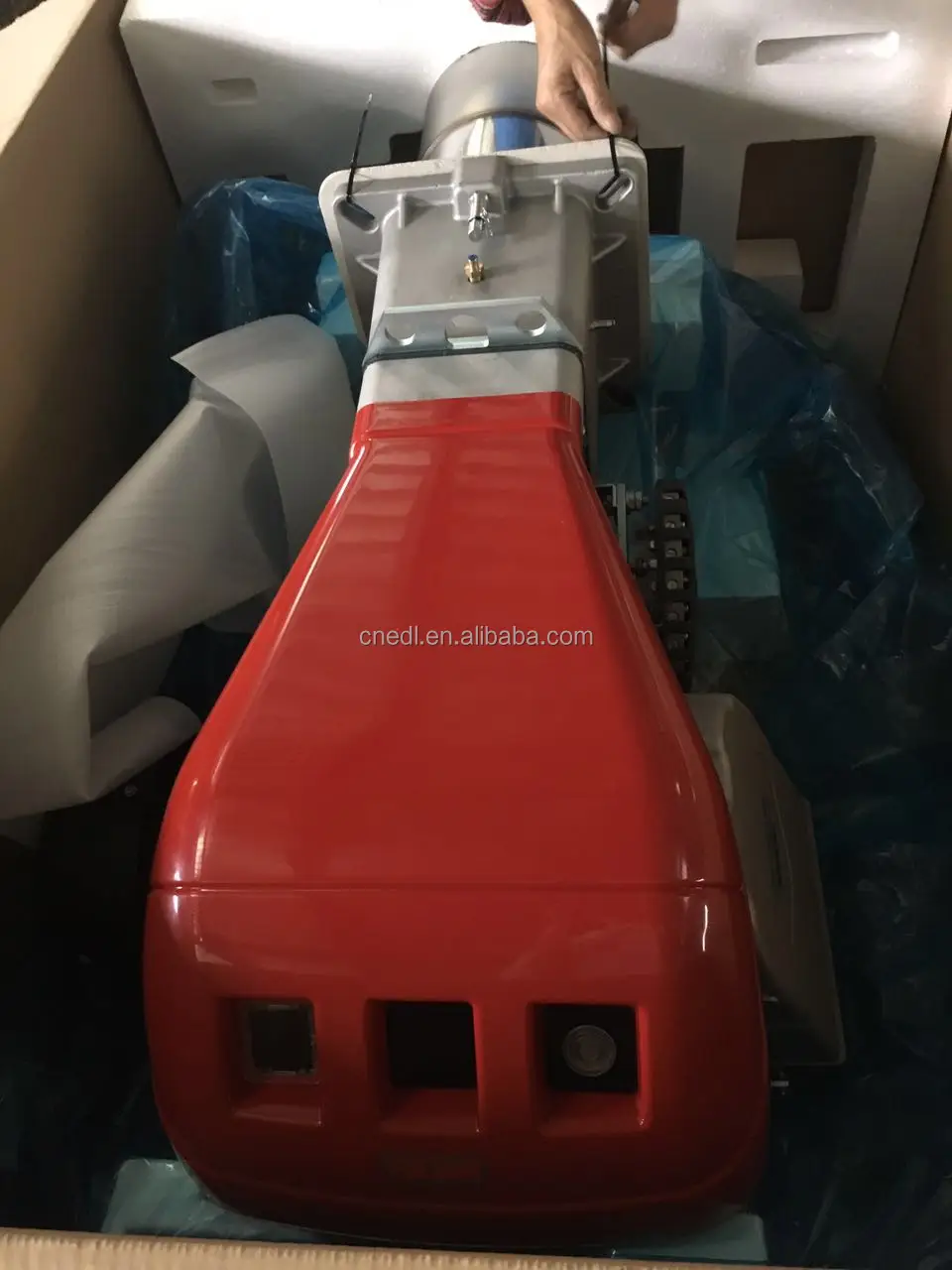

Packing & Delivery
\t
Packaging
\t
Size
\t
139*70*66.5
\t
Weight
\t
100kgs
\t



Packaging Details
\t
The compact size and light-weighted is very easy for the installation and adjustment, and long distance Express shipment.
Board case or wooden case package, around 100kgs per case, easy for DHL express shipment or LCL sea shipment

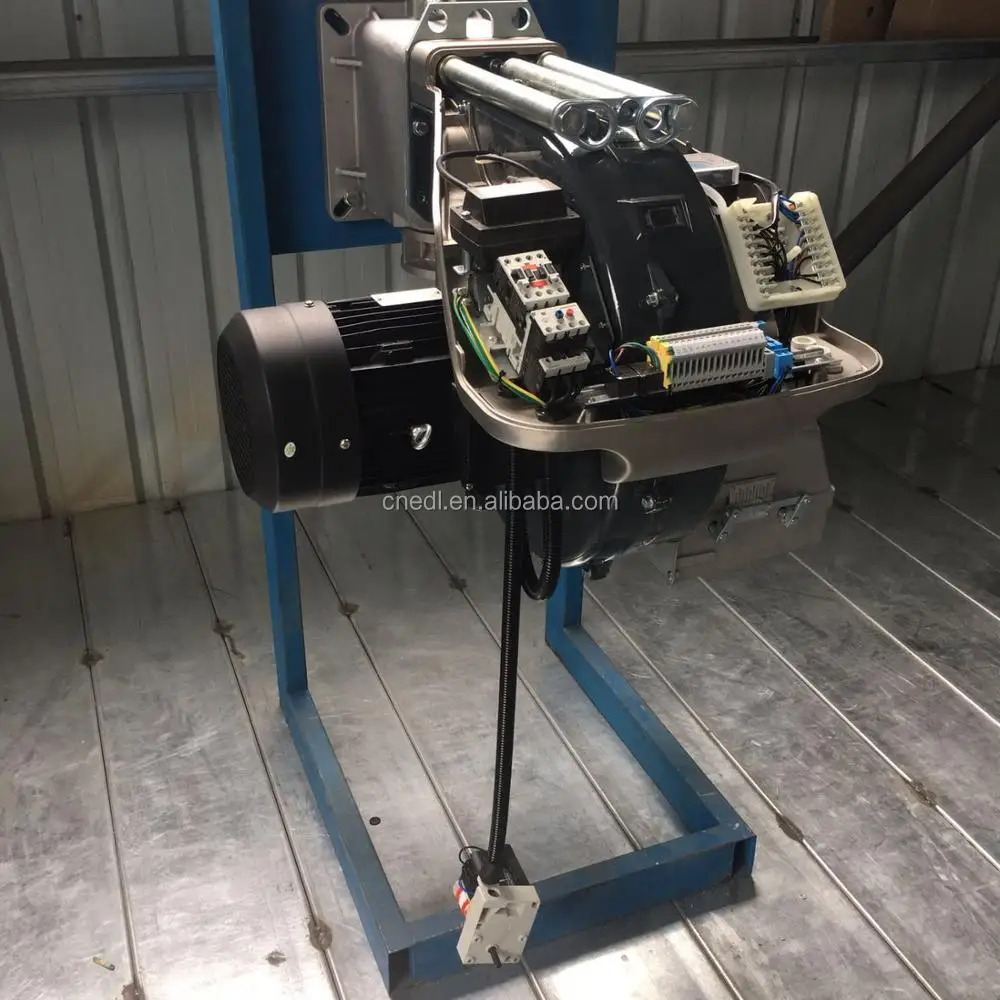

Devices and Components:
key parts and components are imported from original supplier, top quality devices to match the design and cost down.

Delivery time and Payment term:
For sample orders, 10 days after receiving payment; for bulk order larger than 10 pieces, 7-15days after receiving initial payment, based on different item size.
Western Union payment or T/T in advance for sample orders;
For bulk orders, 30% T/T down to start production, while 70% balance before shipment.
