1kg 2kg Portable Precious Metal Melting Furnace for Copper Bronze
1kg 2kg Portable Precious Metal Melting Furnace for Copper Bronze

1kg 2kg Portable Precious Metal Melting Furnace for Copper Bronze

Share on (60670545933):


Price:$315.00 - $349.00

Quantity:


Product Overview

Description


Product Description

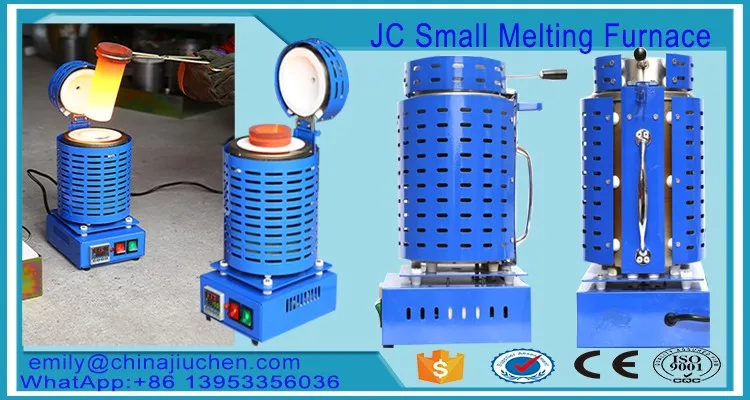

1kg 2kg Portable Precious Metal Melting Furnace for Copper Bronze

Metal Melting Furnace meets the needs for individuals who are melting small to medium jobs.

The unit is light and compact for easy travel.


Pour non-ferrous alloys for casting and ingot-making in one smooth motion with fewer spills and far less heat loss in this tilt-pour furnace.
•One furnace package comes with one piece of Graphite crucible 1kg 2kg
  One same furnace can melt 2kg 3kg 4kg,which is extra optional
•Automatic shut off/on.
It comes with durable construction and made of double walled stainless steel.
For enhanced thermal efficiency ceramic fiber is used between outer and inner chambers.
The temperature is regulated by a microprocessor based digital controller which ensures temperature stability of +/-1°C.
For safe operation of the equipment, over temperature controller protects the heating elements.

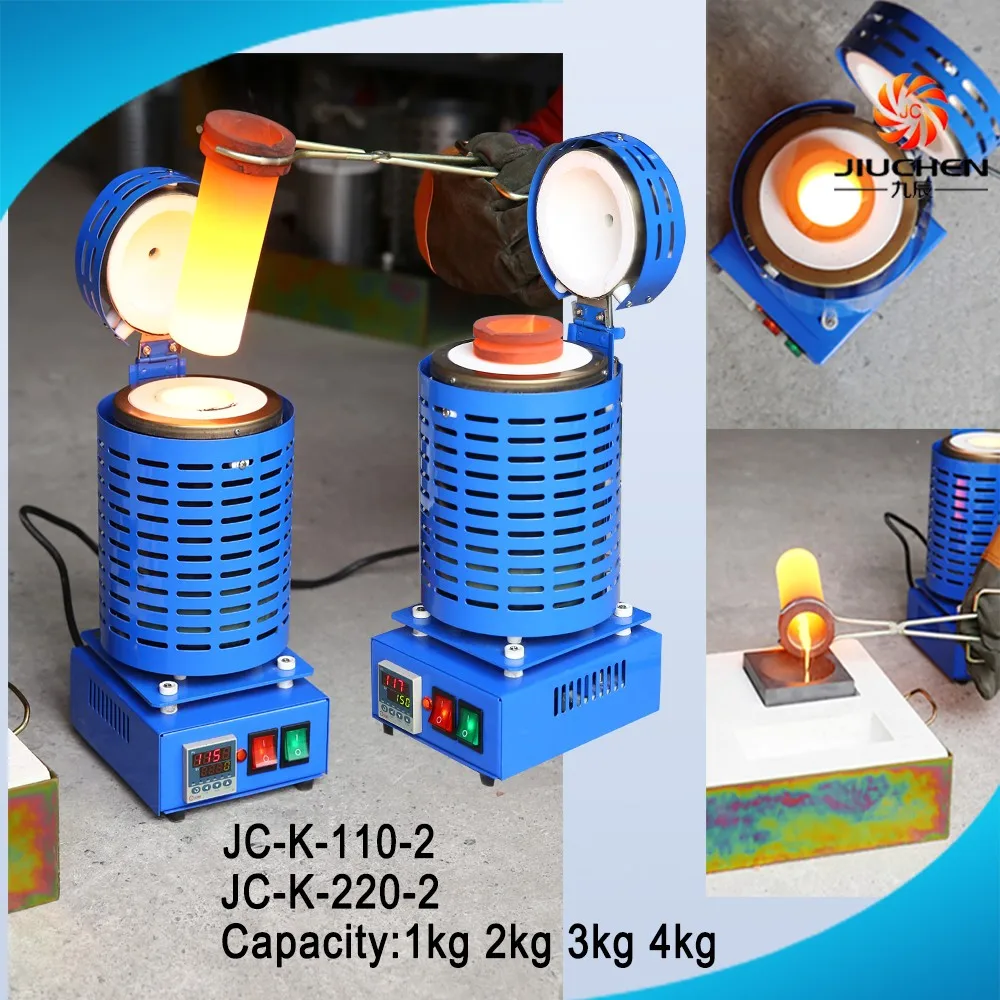

Model JC-K-110-2(110V 1.5kw) Red,Blue ,Gray color is optional

1-1kg 2kg graphite crucible.1-crucible tongs.
1-stirring rod.1-replacement fuse.1-insulating heat glasses.1- gloves.

\t

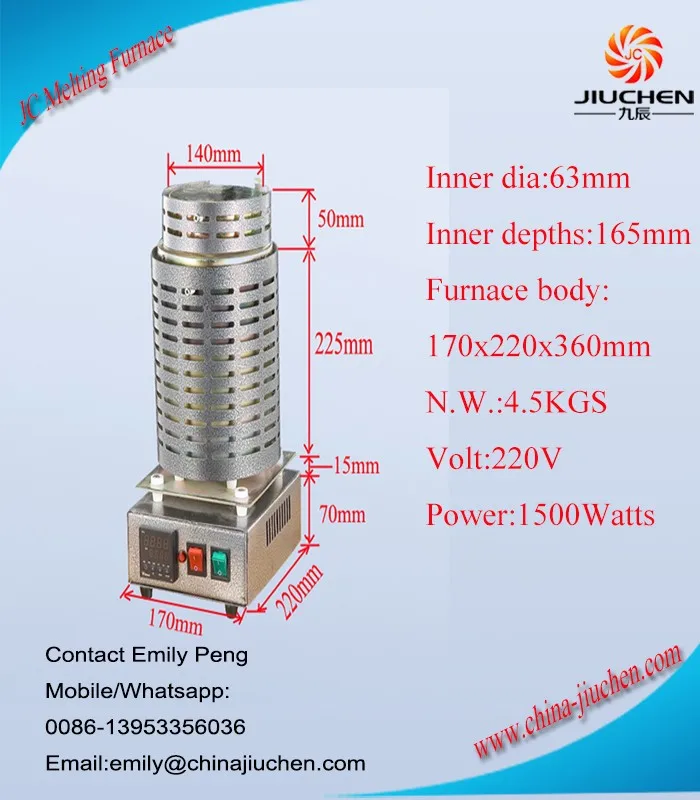

                                                               Specifications for Metal Melting Furnace
\t
                     Model
\t
JC-K-110-2(110V 1500W)  1kg 2kg capacity
\t
Use
\t
Removable crucible furnace for melting or maintaining melted state of non-ferrous metals.Handling the crucible with tongs.
\t
Construction
\t
Access to crucible from top,manual cover closing
\t
Insulation
\t
Multilayer insulation with double thickness of ceramic fiber
\t
Electricity
\t
110V AC single phase 50/60Hz
\t
Heating
\t
Silicon Carbide chamber with no crack,no distortion,comparied with other traditional ceramic fiber chamber and quartz chamber
\t
Working temp
\t
2102F (1150C) Temperature controlled with an accurate digital thermostat
\t
Melting Speed
\t
15-20mins heat up to 1150 Degrees Celsius
\t
Furnace Specification

High Quality Heating Elements

It comes with durable construction and made of double walled stainless steel.

For enhanced thermal efficiency ceramic fiber is used between outer and inner chambers.

The temperature is regulated by a microprocessor based digital controller which ensures temperature stability of +/-1°C.

 For safe operation of the equipment, over temperature controller protects the heating elements.

 Heating elements are easy to replace, made of international standard quality material and fluxes resistant.

Product Details

JIUCHEN Furnace Adopts new advanced SIC material with no crack no distortion under normal temp 1-1250℃,which prevents disadvantage of short work life with traditional ceramic fiber, quartz chambers.

Other similar furnace adopts traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.

Metal Melting Furnace Main Features

•\tFaster gold melting              •\tCompact design\t•\tHigh temperature heat treating
•\tStainless steel construction   •\tEnergy efficient
•\tStandard and custom designed   •\tDelivers safe operation
•\tMaximizing quality of work   •\tOptional accessories
•\tLow maintenance required  •\tCE Marked
•\tDigital Operating controls    •\tAvailable up to 1150°C temperature
Graphite Crucibles

Note: One furnace standard package including one 1kg crucible.

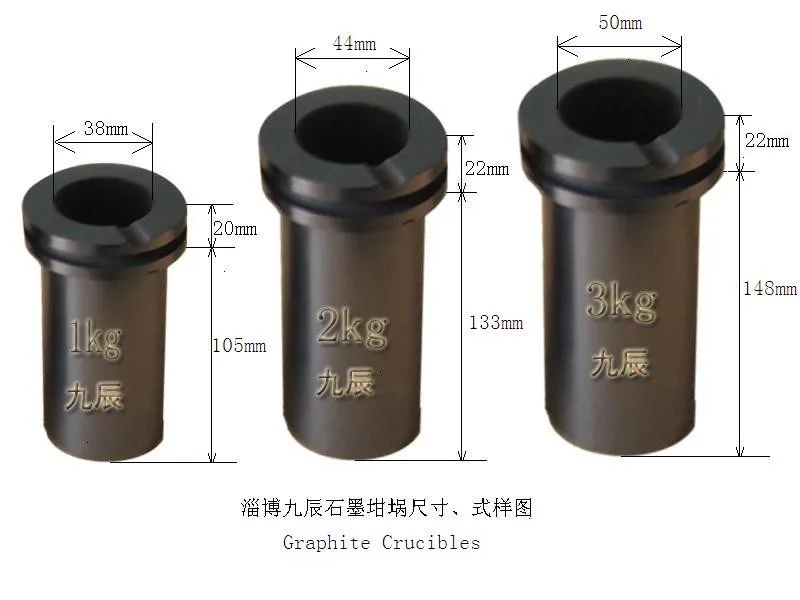

 Dimension Drawings for 1kg 2kg 3kg crucible

One furnace can use 1kg 2kg 3kg 4kg crucible

If you need more crucibles, price is extra.

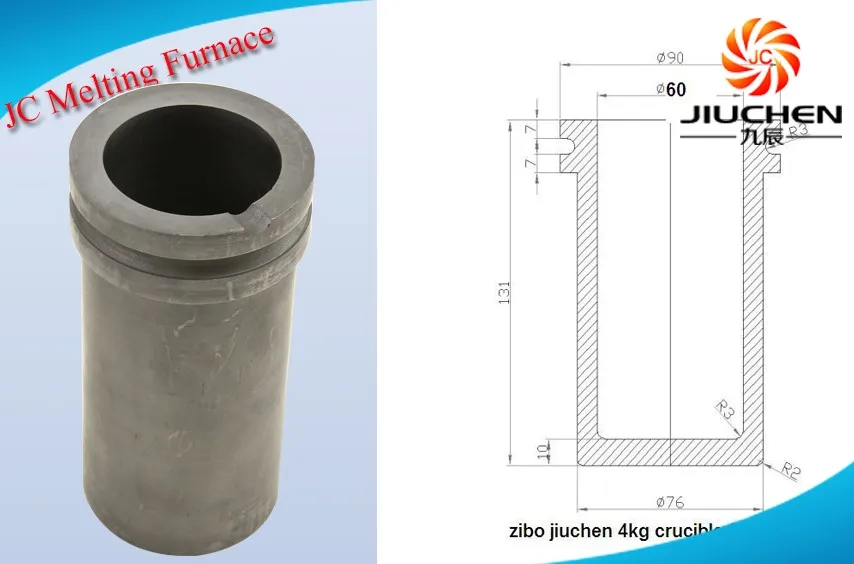

Dimension Drawings for 4kg crucible

Use JIUCHEN high-quality graphite 1-kilo crucible with the1kg Gold Smelter.This crucible has a groove in the rim to accept the specially designed crucible tongs for added safety Use this high-quality graphite 1-kilo crucible with the Mini 1kg Gold Smelter. This crucible has a groove in the rim to accept the specially designed crucible tongs for added safety.

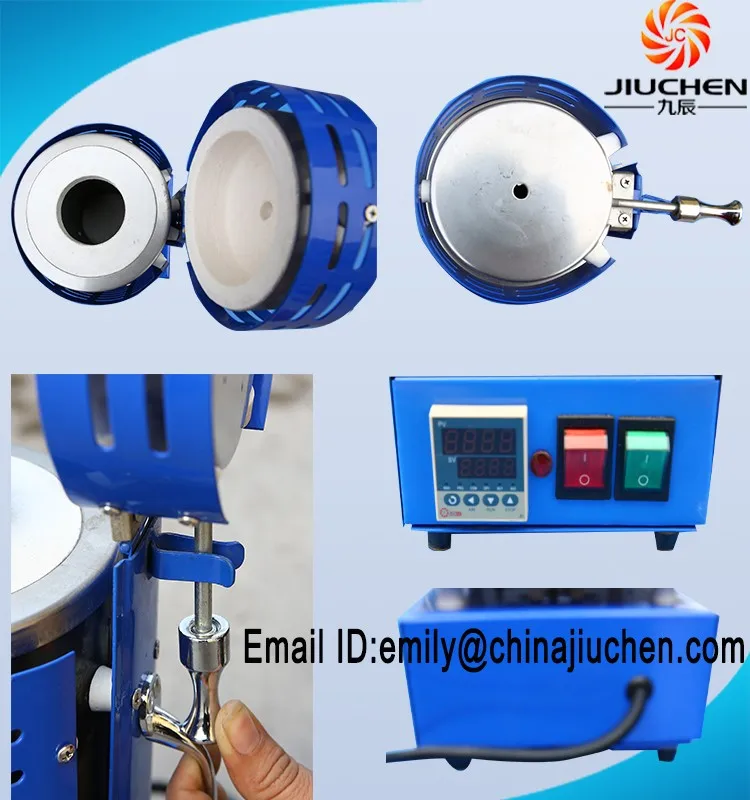

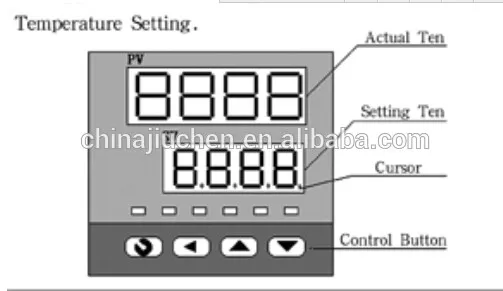

Setting the required temperature

Be sure the front power switch is in the OFF position, green switch for power supply switch, red switch for heating switch.
2. Connecting the furnace to your electrical supply, turn on the green switch, the top read-out (PV) displays the actual temperature inside the crucible during operation. The bottom readout (SV) displays the setting temperature 1100℃/2192F you enter into the furnace.
The setting temperature suits melting gold, silver, copper etc. The temperature thermostat allows you to set the desired melting temperature between room temperature to 1150℃/2192F.

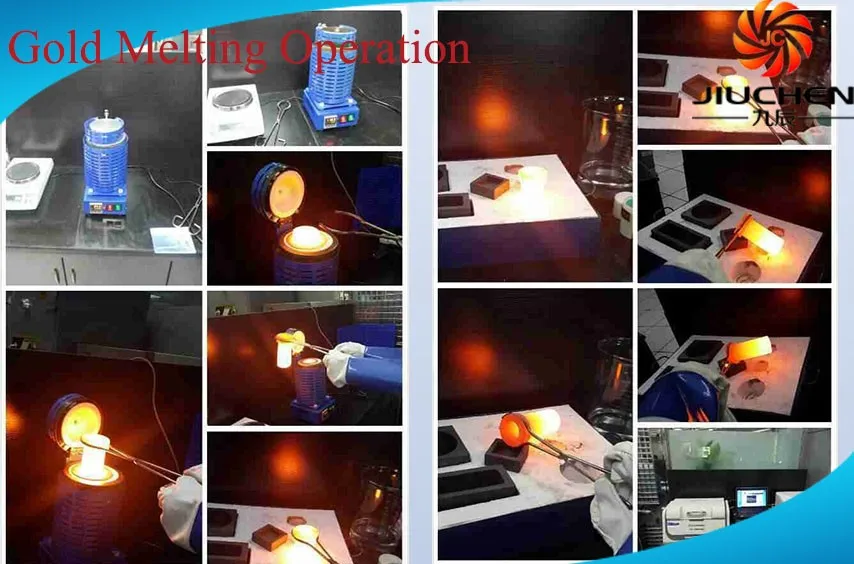

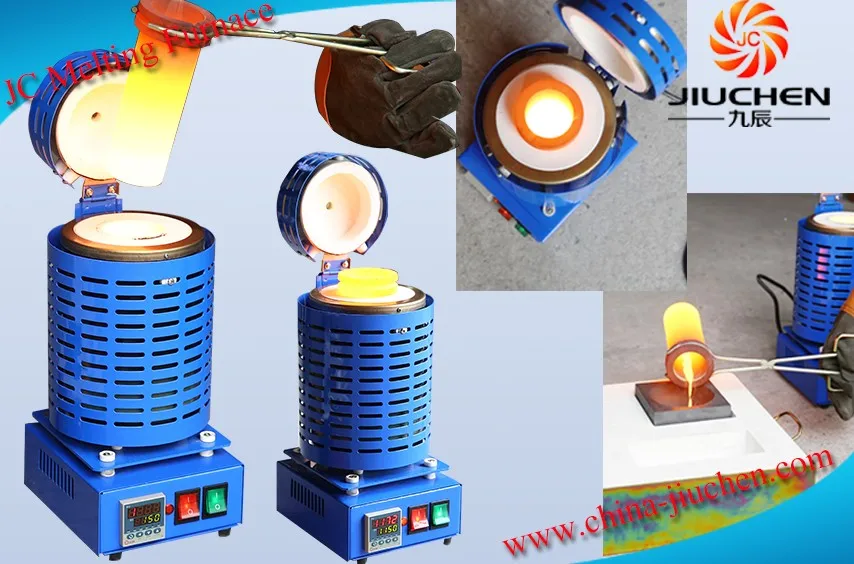

Operation Process

Smelting
1. Open furnace cover, put the crucible by tongs with melting materal into the furnace, close Lid.
2. Turn on the red switch, press the red button to start the melting process, the round indicator light will be light. Then the thermostat control melting automatically.

Pour metal liquid process

1. After 15minutes, setting temperature is reached.
2. Wait for 5minutes, open the lid with insulating gloves and glasses to check
3. If melted, metal liquid will appear, it not melted, go on melting.
4. Put it on the insulating tray, wait for cooling with 10 second.

Packing List
\t
Packaging
\t
Size
\t
30 (L) * 33 (W) * 48(D)CM
\t
Weight
\t
10KGS
\t



Packaging Details
\t
The normal package is Carton box(Size: 30L*33W*48H CM). If order above 10 units ,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Note:Plug type is normal International type,you can choose other plug type
Contact Way

Contact Person

Ms.Emily Peng
Mobile &Whatsapp:86-13953356036



Welcome to contact me on WeChat Sweep

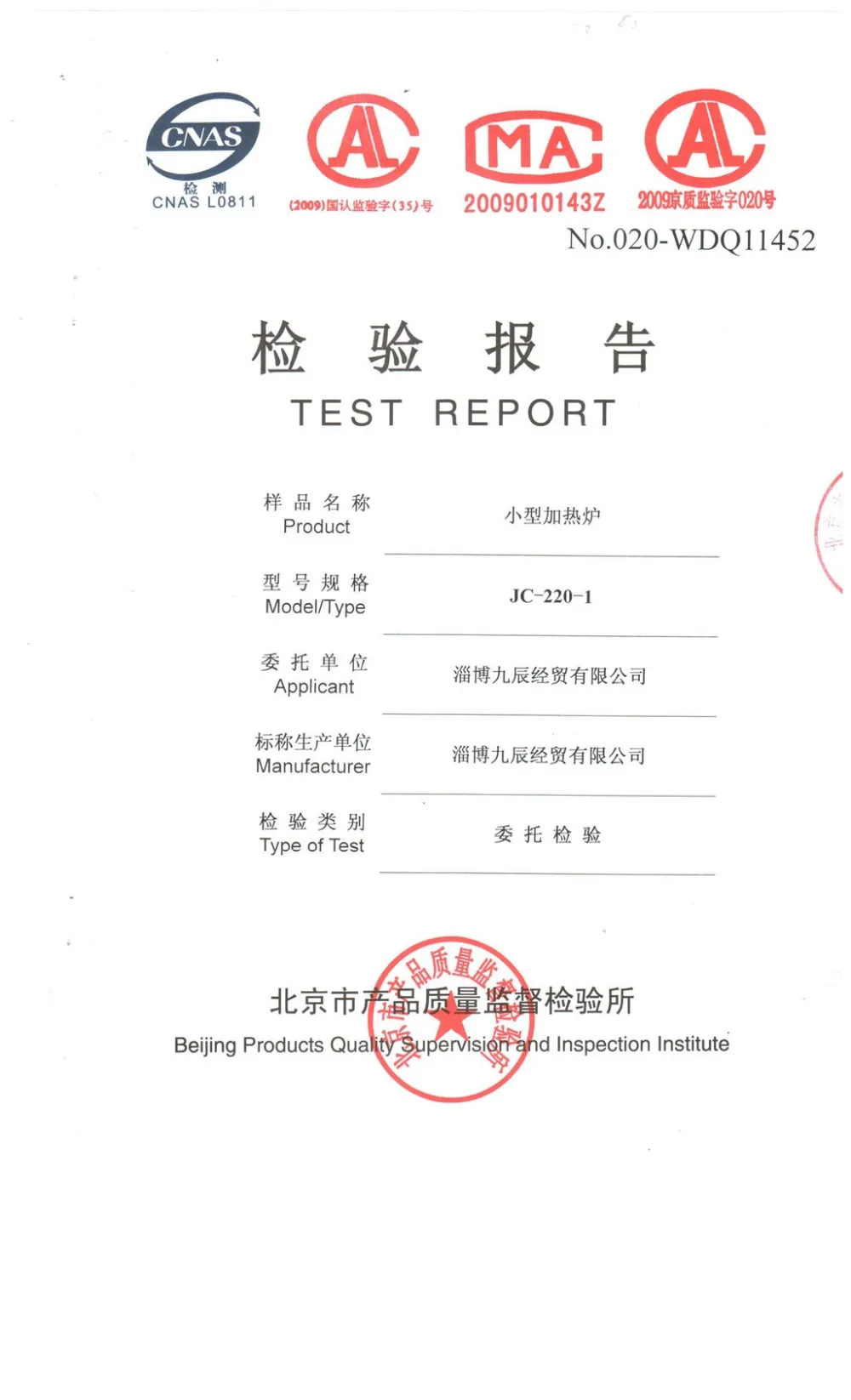

Certificate
Warranty&Instruction

Warranty:One year for temperature controller including temp display,Relay,etc.
Six month for heating elements including chamer,heating coil etc.
Instruction:1.Connecting switch power supply,electricity,light switch is,
2.temperature controller with the digital furnace is slowly rising,
3. in the process of operation,the furnace temperature degrees will spread,user shall not move and
collision,avoid scald and damage,
4.When the temperature reached gold and gold rains melting point,user according to demand will continue to increase.When the maximum temperature reached 1,150 degrees,it will stop work or in cooling condition.
