Chemical Pipe PTFE Hose Stainless Steel 304 Braided Metal Hose

Product Overview

Description

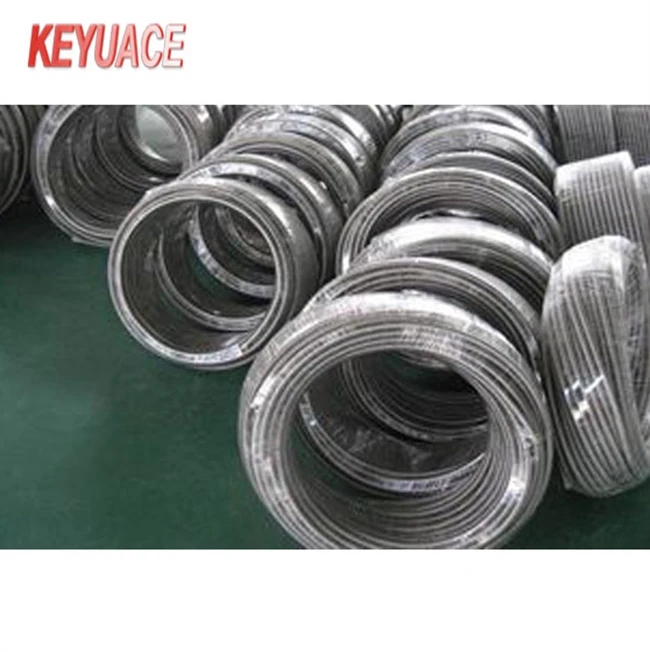

Chemical Pipe PTFE Hose Stainless Steel 304 Braided Metal Hose





Product Introduction:

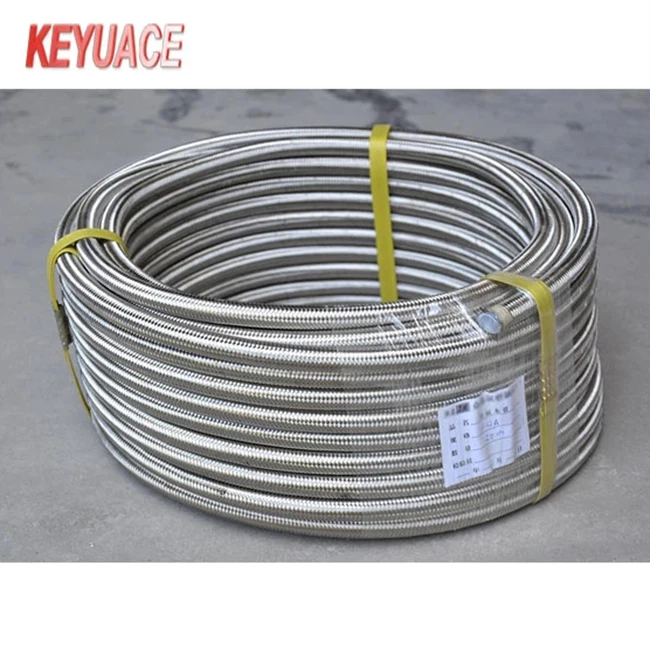

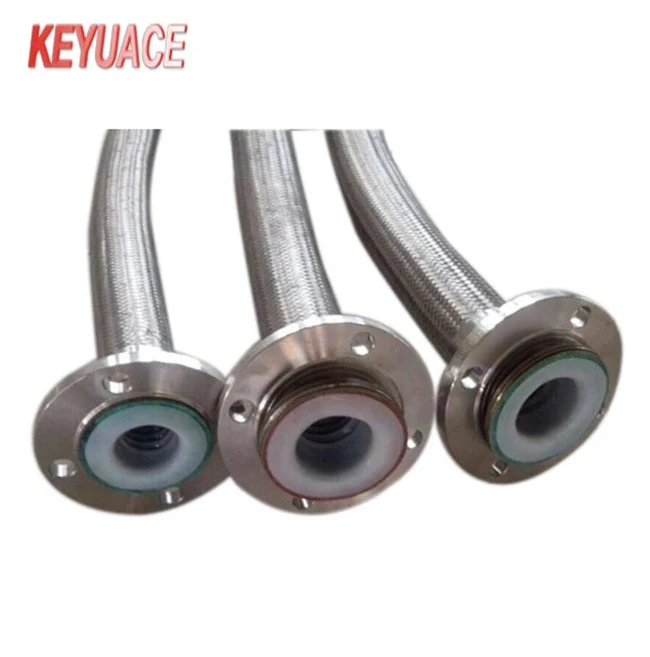

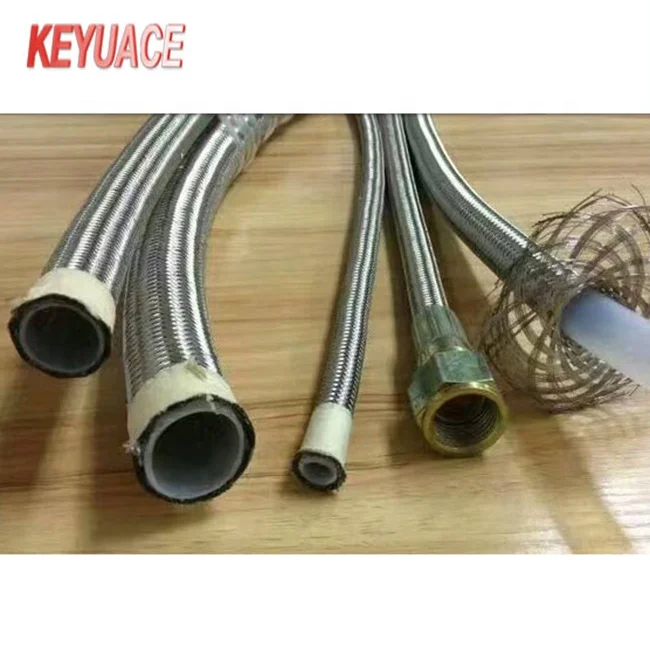

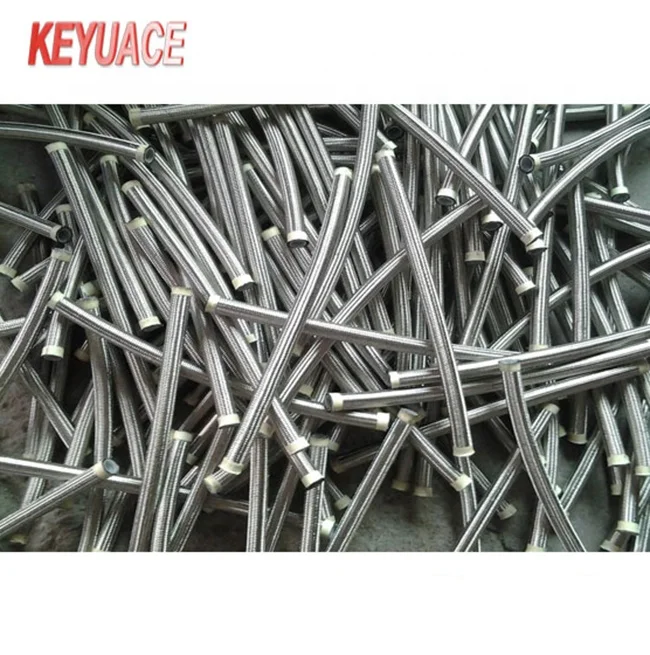

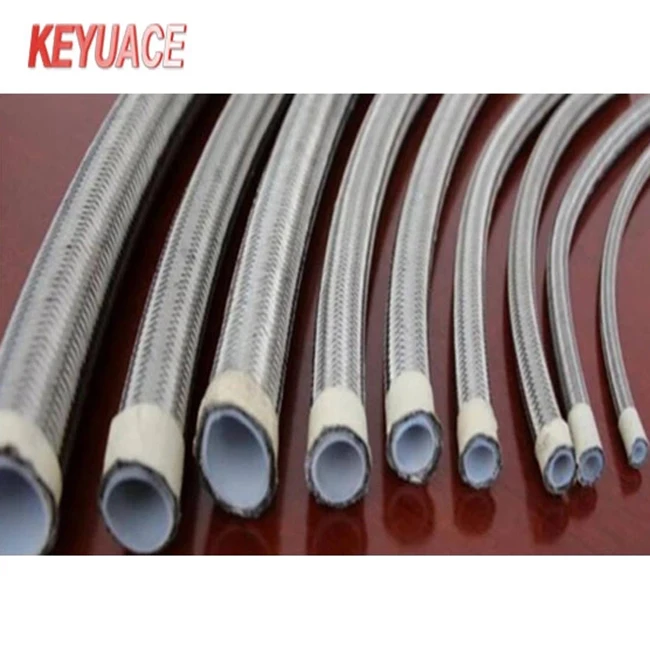

PTFE Braided hose is made of stainless steel 304 braided hose lined with Polytetrafluoro ethylene(PTFE)  hose, inner lining PTFE have excellent high temperature resistance and chemical resistance properties. Outer SS 304 braided mesh reinforce the pressure resistance, can be used with all kinds of connector. It’s PTFE Braided tube widely used for hydraulic machinery, vehicle brake oil hose, high-pressure steam, chemical industry, etc.





Feather & Benefit:



1, Resistance to all kinds of  chemicals

2, Low surface friction coefficient, anti-sticky.

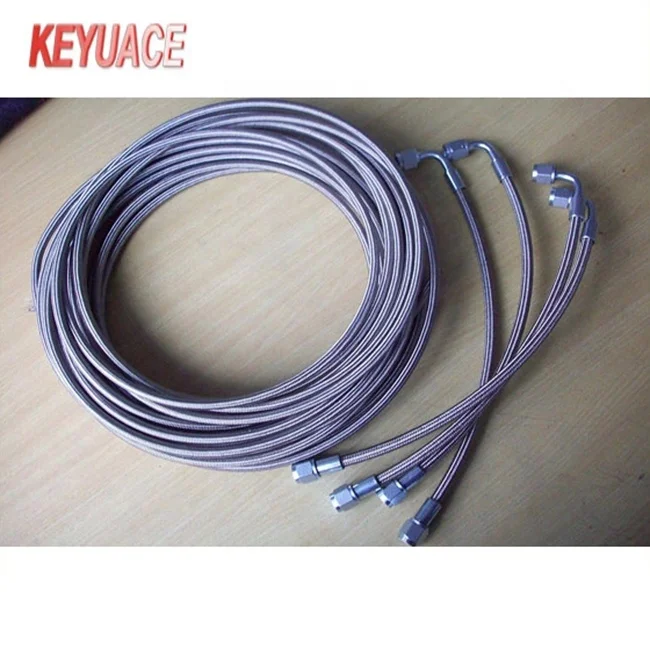

3, Can be used with all kinds of connectors.

4, Usage temperature: -50℃~210℃



Product Properties:



Item	Unit	Value	Test method
Physical Properties
Density		2.16+/-0.03	ASTM D 792
Refractive index		1.35	ASTM D 542
water absorption	%	<0.01	ASTM D 570
Machinary Properties
Tensile Strength	N/mm2	25~30	ASTM D 638
Elongation	%	25~40	ASTM D 1708
Tensile Modulus	N/mm2	750
Bending Modulus	N/mm2	44~52
Hardness (Shore D)		D50~D60	ASTM D 2240
Heat Properties
rate of flame propagation		No
coefficient of linear expansion	10-5/℃	10	ASTM D 635
Thermal conductivity	Cal/S/cm/℃	5~11.10-4	ASTM D 696
specific heat capacity	Cal/℃/g	0.25	ASTM C 177

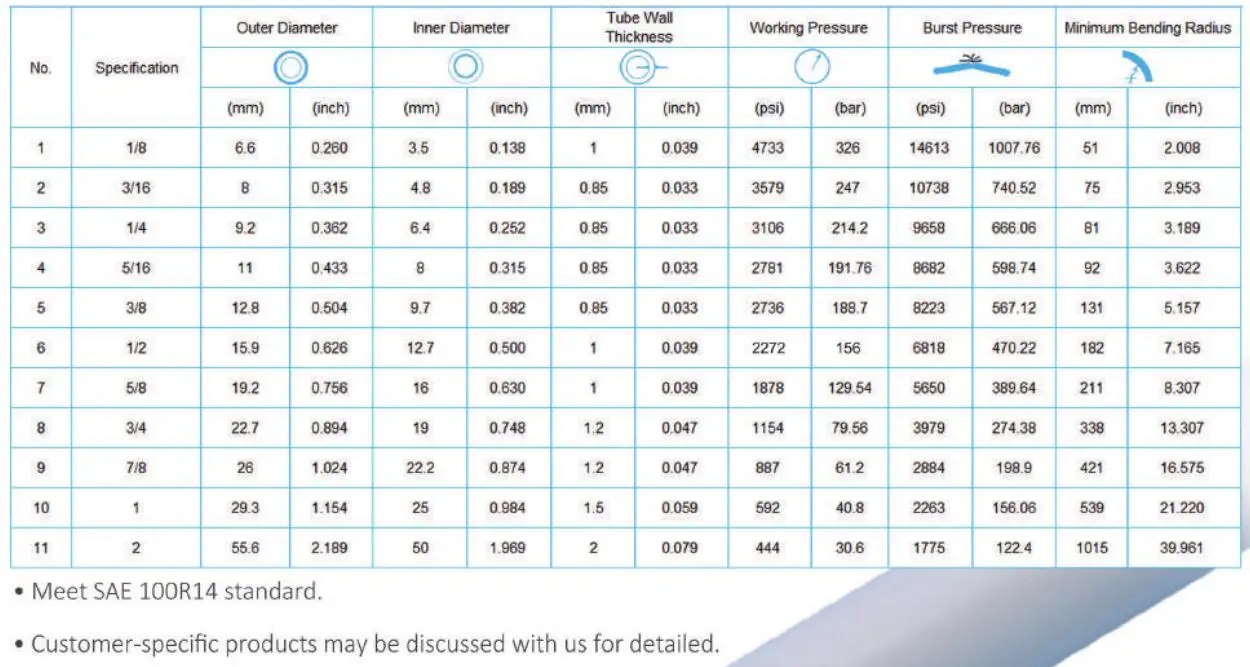

Product dimension:
