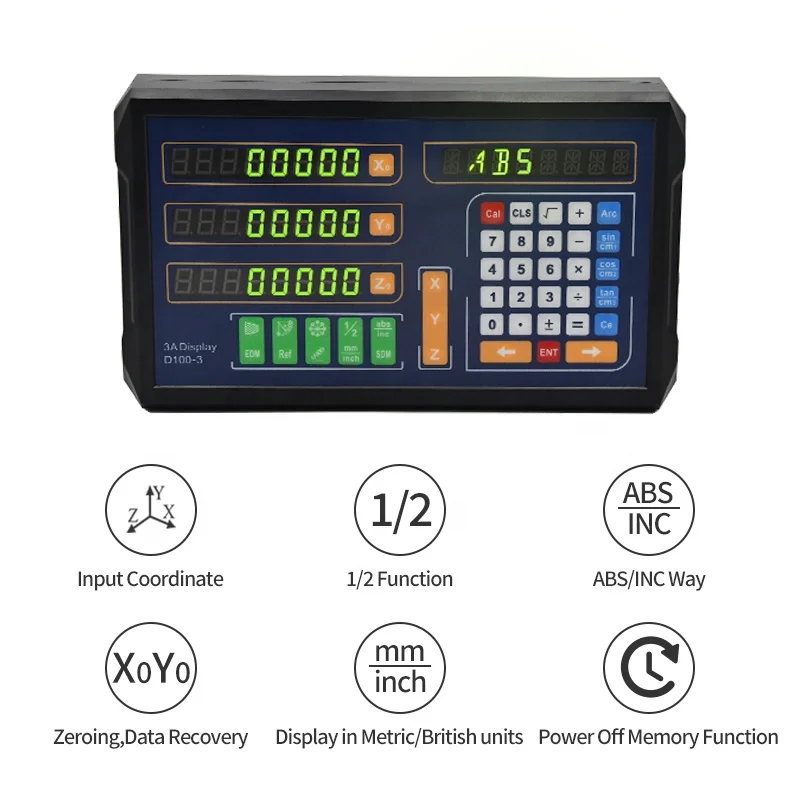

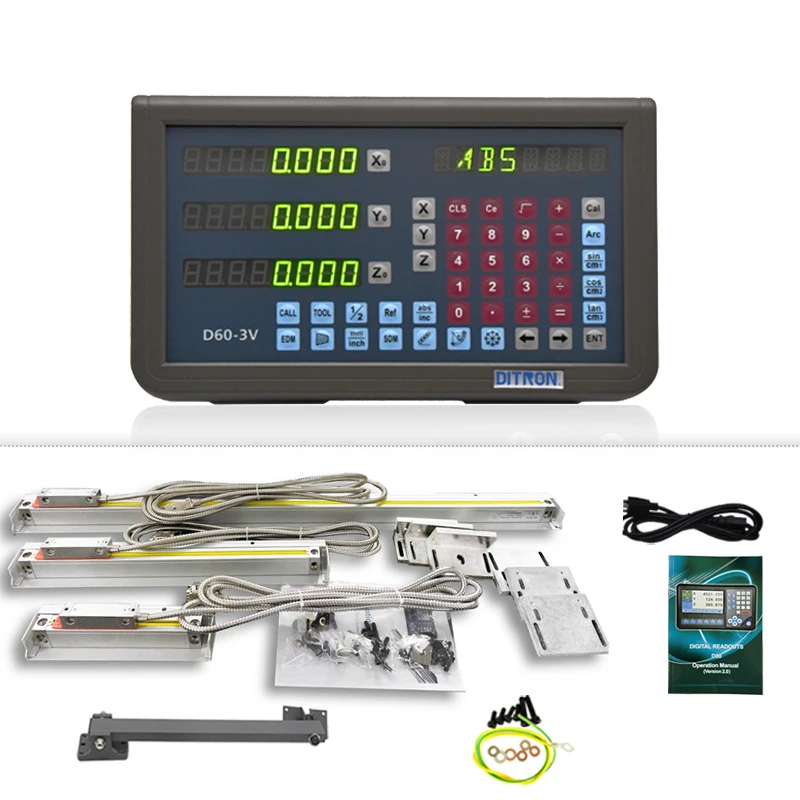

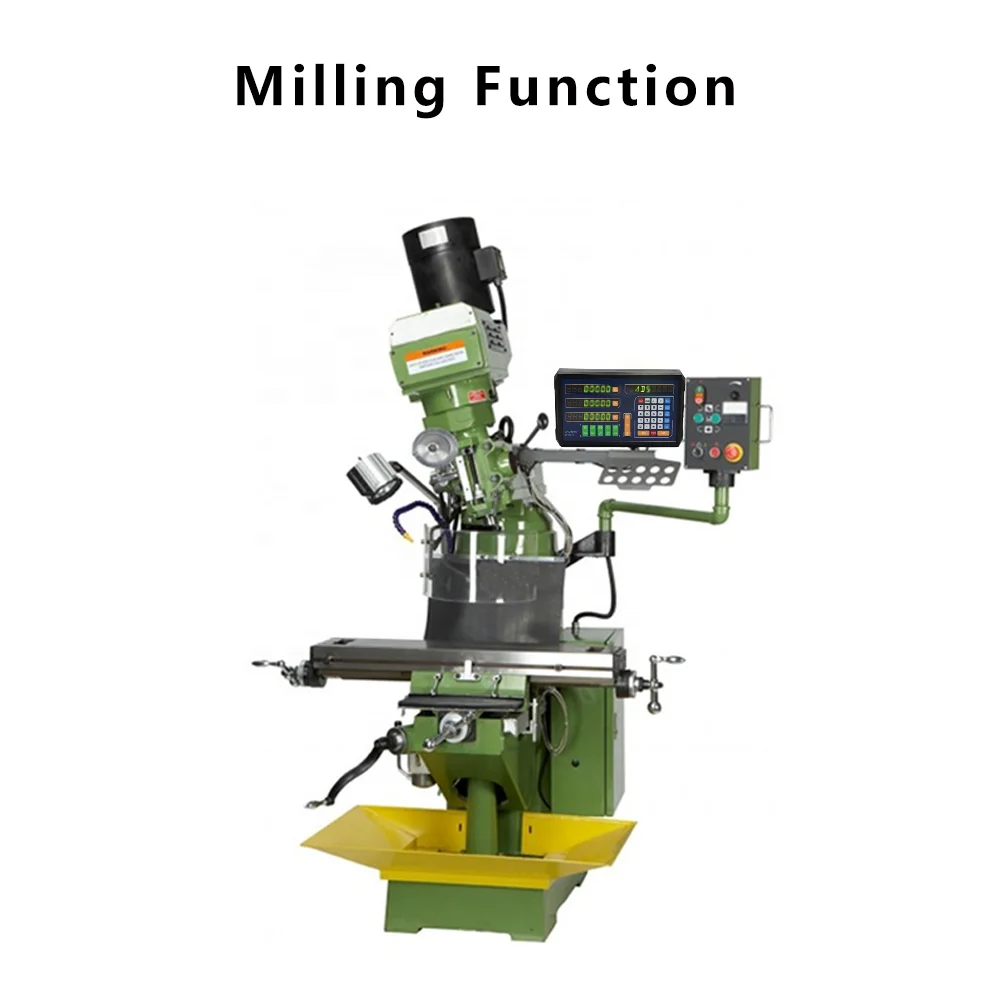

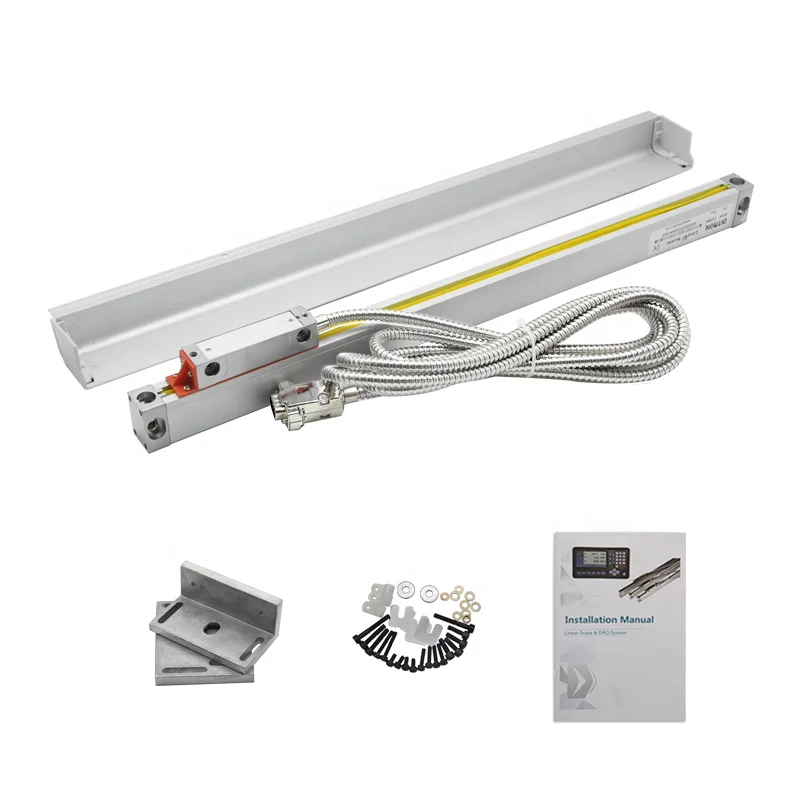

DITRON 2/3 Axis Dro Digital Readout Display with Linear Scale Optical Grating Ruler for Milling Lathe Machine

1.Voltage Range:AC80V-260V/50HZ-60HZ

2.Power Dissipation:15W

3.Working Temperature:-10C-60C

4.Coordinate Display:2/3 Axis

5.Input Signal:5VTTL/RS422

6.Input Frequency:≤4MHZ

7.Resolution:0.1um,0.2um,0.5um,1um,2um,2.5um,5um,10um

• Displaying as 8 digits with green LED


• Unique film makes covering on the windows makes the displaying much more stable.


• Switching on&switching off can meet more than 100000 times


• High integration makes the performancce be stable


• Adopting the advanced digital filtering makes the counting be more accurate and stable.

1)Zeroing and data recovery

2)Value Inputting

3)Metric and Imperial Switching

4)Power off memory

5)Encoder Selection(Rotary or Linear)

6)Linear Compensation

7)Non-linear Compensation

8)Calculator

9)Counting Direction Setting

Special Function:

1)ABS/INC Coordinate

2)200 Sets of SDM Coordinate

3)REF

4)Centering

5)PLD Function

6)PCD Function

7)Simple R Function

8)Smooth R Function

9)Radius/Diameter switching

10)Axis summing

11)Digital Filtering Function

12)Taper Measuring Function

13)RS232 Interface

14)EDM Function

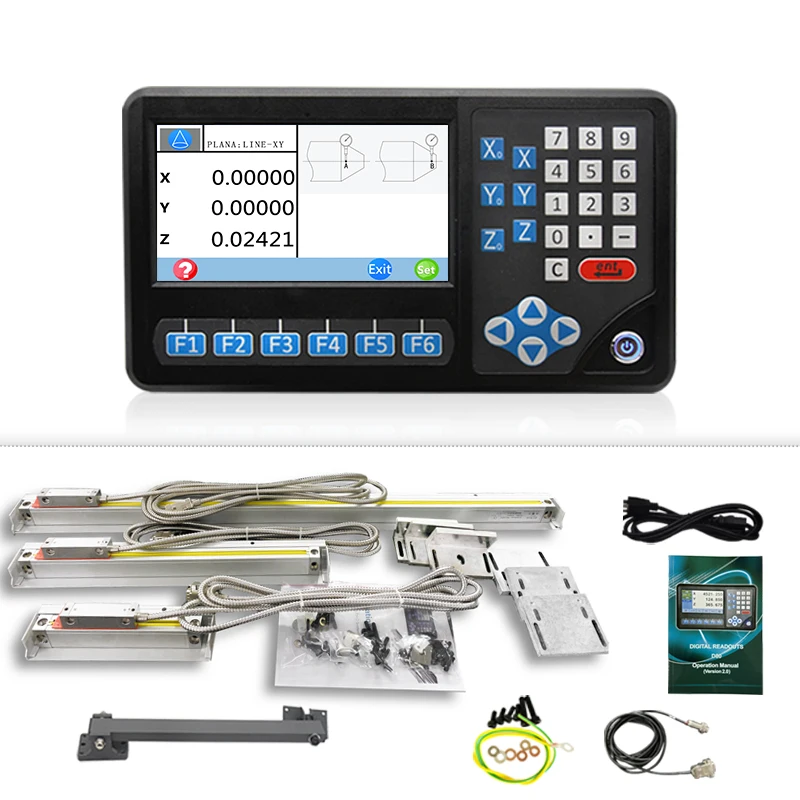

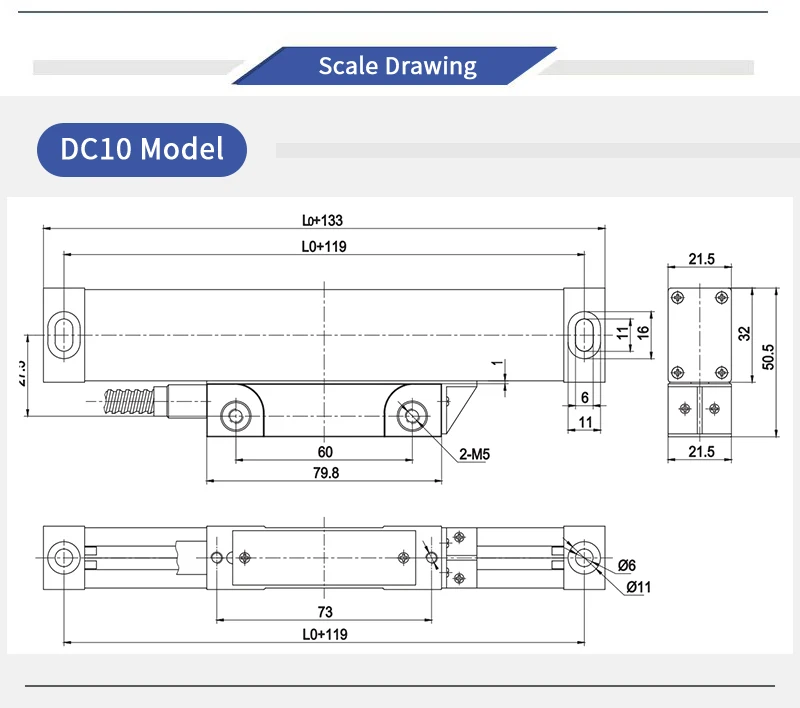

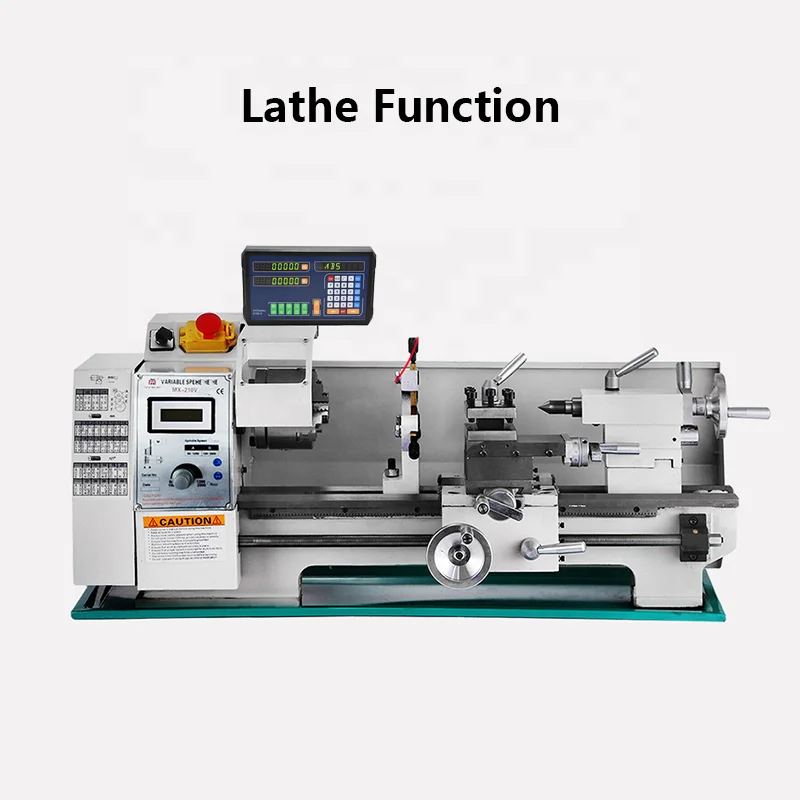

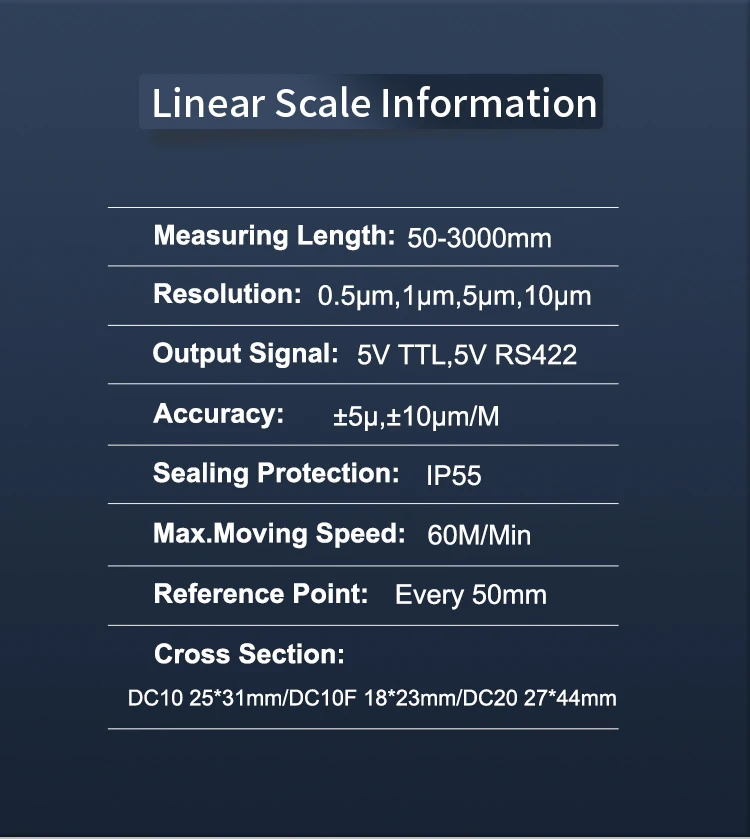

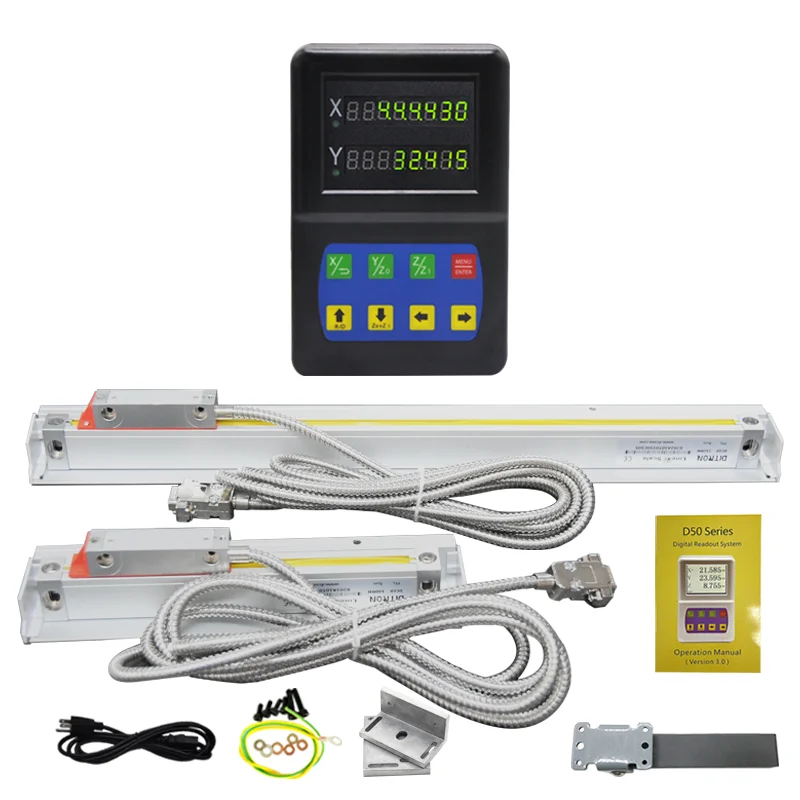

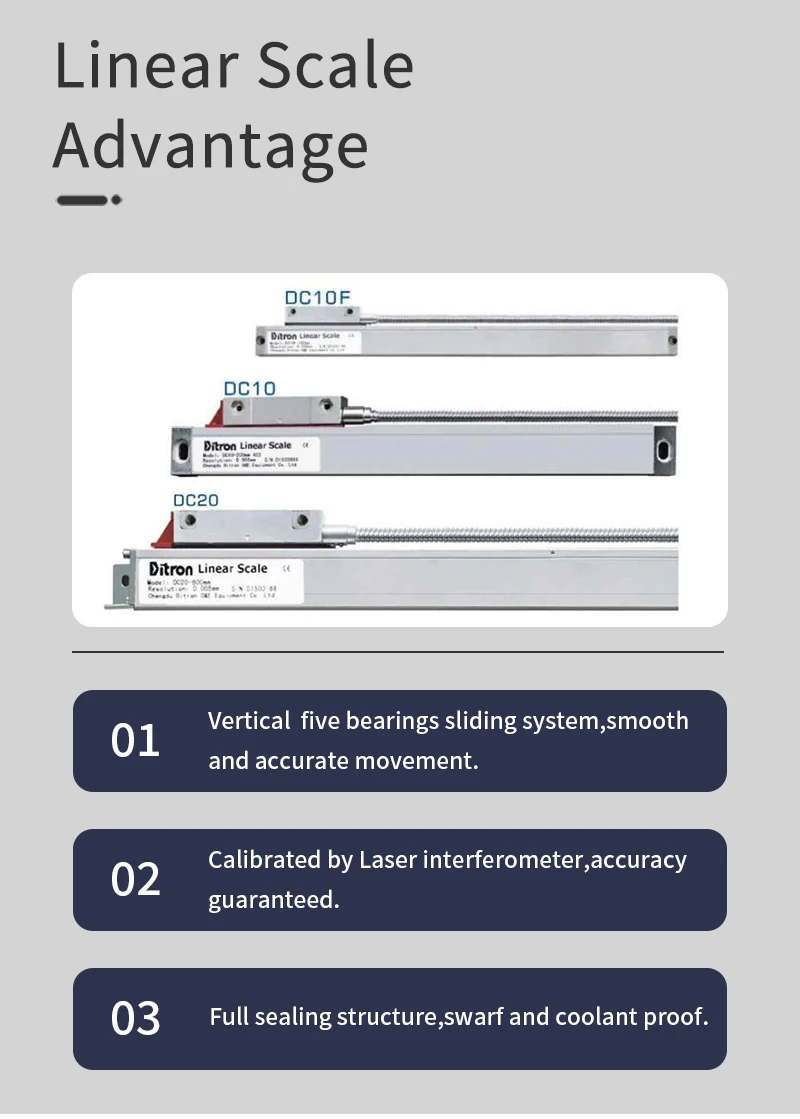

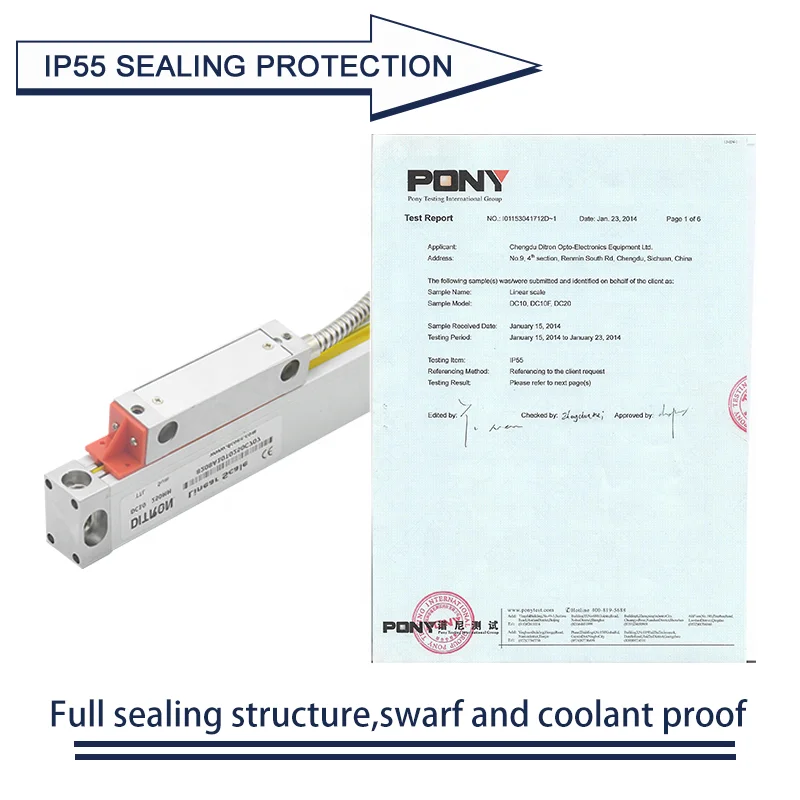

 DC10 Standard Linear Scale:

Eg:If the trave length is 200mm, so the total length is 200mm+133mm=333mm

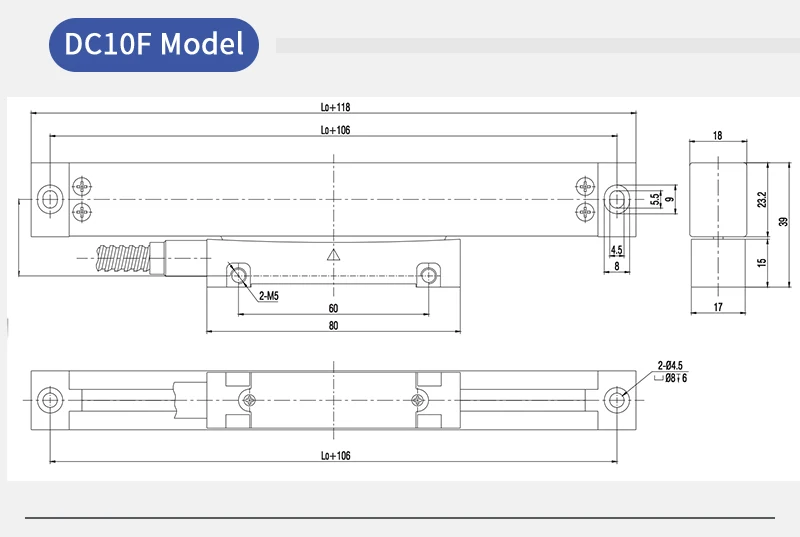

DC10F Slim Linear Scale:

Eg:If the travel length is 200mm, so the total length is 200mm +118mm=318mm

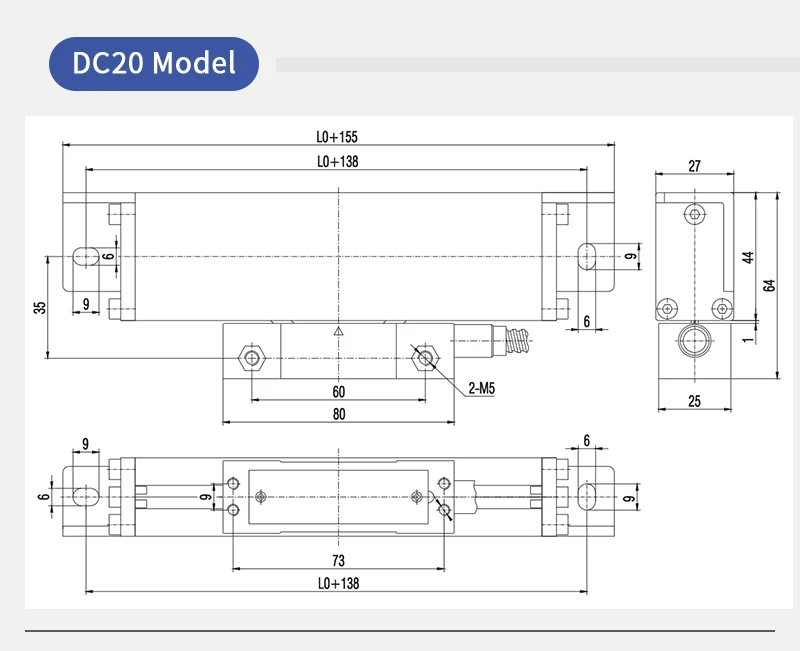

DC20 Large Size Linear Scale:

If the trave length is 200mm, so the total length is 200mm+155mm=355mm
