REL0 REL1, ROL0, ROL1 Resin/Rosin Flux Cored Solder Wire Dia 0.3 3.0mm Soldering Wire Sn99.3Cu0.7

Product Overview

Description

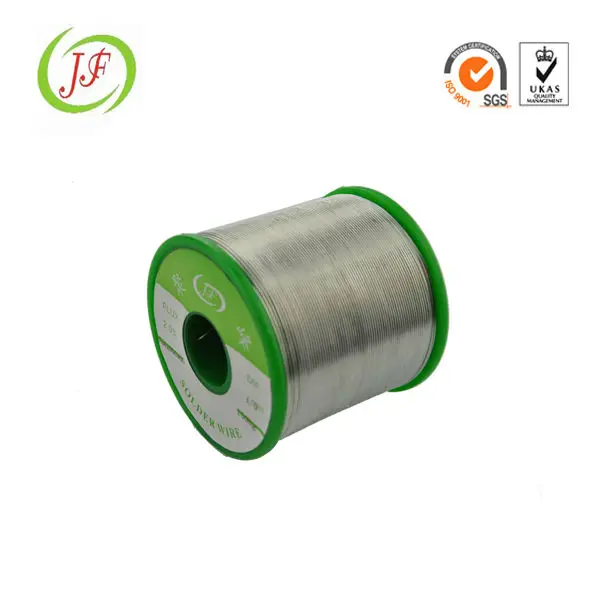

No clean Sn99.3Cu0.7 pb free solder wire, lead free solders

1. Introduction:

The Sn99.3Cu0.7 lead free solder wire is made up of 99.7% tin and 0.7% copper. It is desirable for use in common metal equipment, copper tubes, and copper plates. This product is a conventional type of environmentally-friendly solder by adoption of lead-free soldering technology. Its wire diameter can reach more than 0.2mm.

As a typical type of high-temperature lead free tin wire, our Sn99.3Cu0.7 lead free solder has the melting point of approximately 227 degrees Celsius. It is suitable for both wave soldering and dip soldering processes, which call for environmental protection. During the soldering process, this product features nice liquidity. It can substantially reduce various technical problems, such as bridging, icicle, solder spatter, and more.

This product gives wide applications in the eco-friendly electronics assembly industry. It can be also used to fix the silicone toys.

2. Chemistry Component Data Sheet :

Specification		Sn99.3Cu0.7
Appearance		Lucent, no dirt on surface
Weight		(L×W×T×W):32cm×1.8cm×1.5cm×0.7kg/pc 20kg/carton
Chemistry component
Sn	Cu	In	Ag	Sb	Bi	Zn	Fe	Al	As	Cd
99.3±0.1	0.7±0.1	<0.01	<0.0001	<0.02	<0.01	<0.005	<0.02	<0.02	<0.03	<0.002

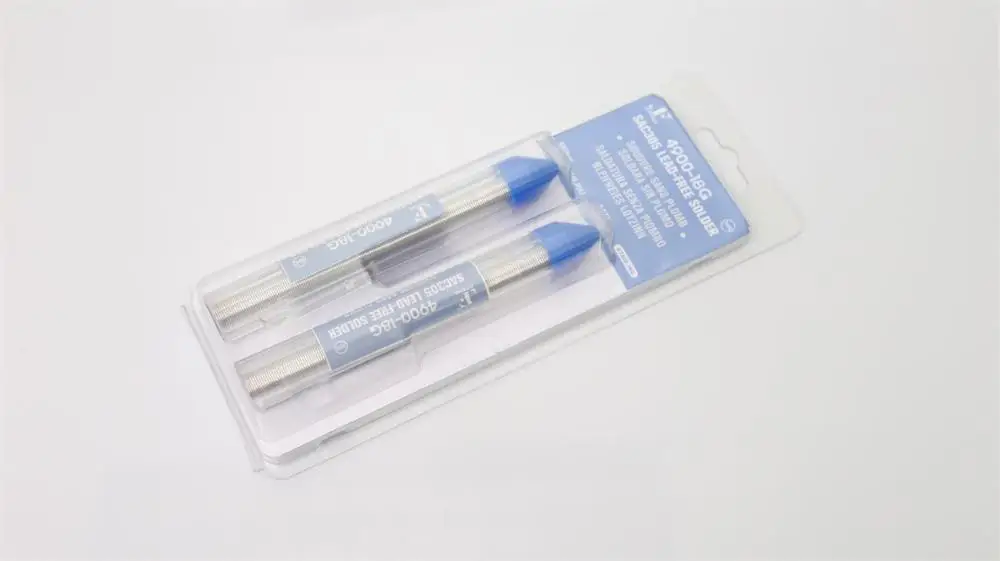

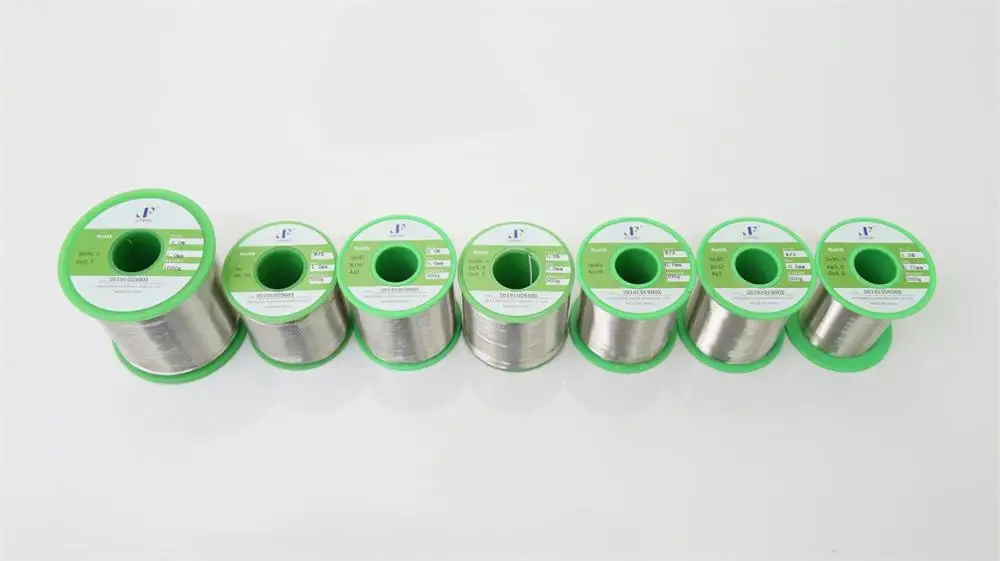

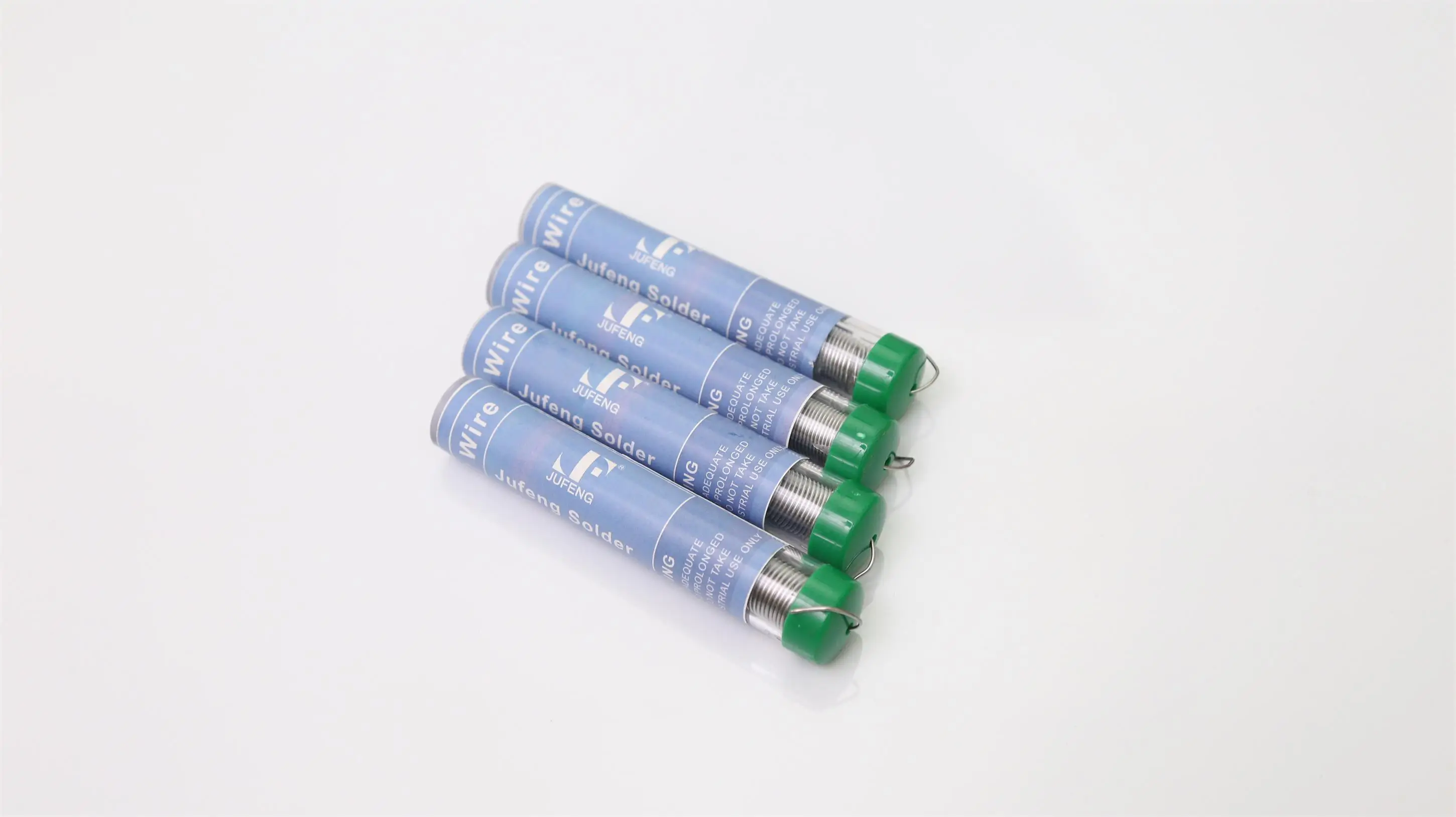

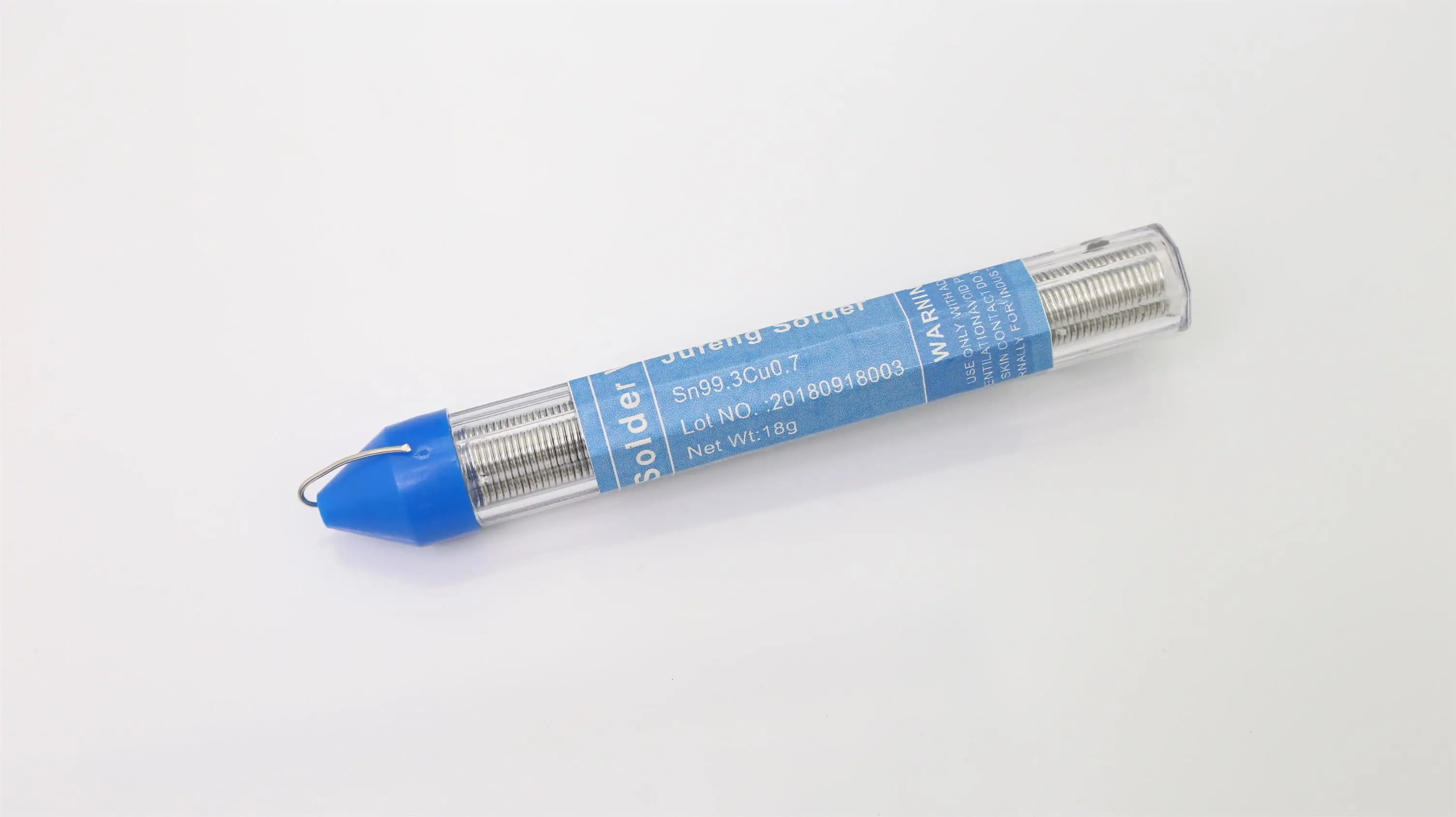

3. Product display:

                      SOLDER PASTE                                  SOLDER BAR                                    SOLDER POWDER



8. Cetification:
