Industrial chemical mineral inorganic fertilizer powder auger pre compress double roller compacting briquet machine manufacturer

Product Overview

Description

We are a tiny company but factory and dedicated in only roller compactor for granulating and briquetting

1.SG-500B briquette machine technical parameter:

a).roller diameter: 504      width: 300mm

b).roller speed:14-20rpm.

c).screw feeder: 11kw motor with VFD

d).accumulator pre-pressurization: 6-10Mpa

e).linear pressure: 55kN/cm

f). pellet size: 41*28*22mm

g).power of compactor: 75kw

h).installed capacity: about 88kw

i).dimension (L×W×H) : 3650×2250×2500mm

j).weight: about 18t

k).pellet output:6-8t/h

l). pellet shape: oval/oblate/almond

2.SG-650B briquette machine technical parameter:

a).roller diameter: 650            available width: 330mm

b).roller turning speed:10-16rpm.

c).screw feeder: 15kw motor with VFD

d).accumulator pre-pressurization: 8 - 12Mpa

e).linear perssure: 55kN/cm,

f). pellet size: 44*28*22mm

g).power of compactor: 110kw

h).installed capacity: about 129kw

i).dimension (L×W×H) : 4000×2600×3300mm

j).weight: about 28t

k).pellet output:10-12t/h

l). pellet shape: oval/oblate/almond

Note: It takes desulferization gypsum for example, varies in accordance with the material to be pelletized

Steel slag briquettes

Briquette machine applications

Briquette machine (“A” produces small angular (irregular) granules)

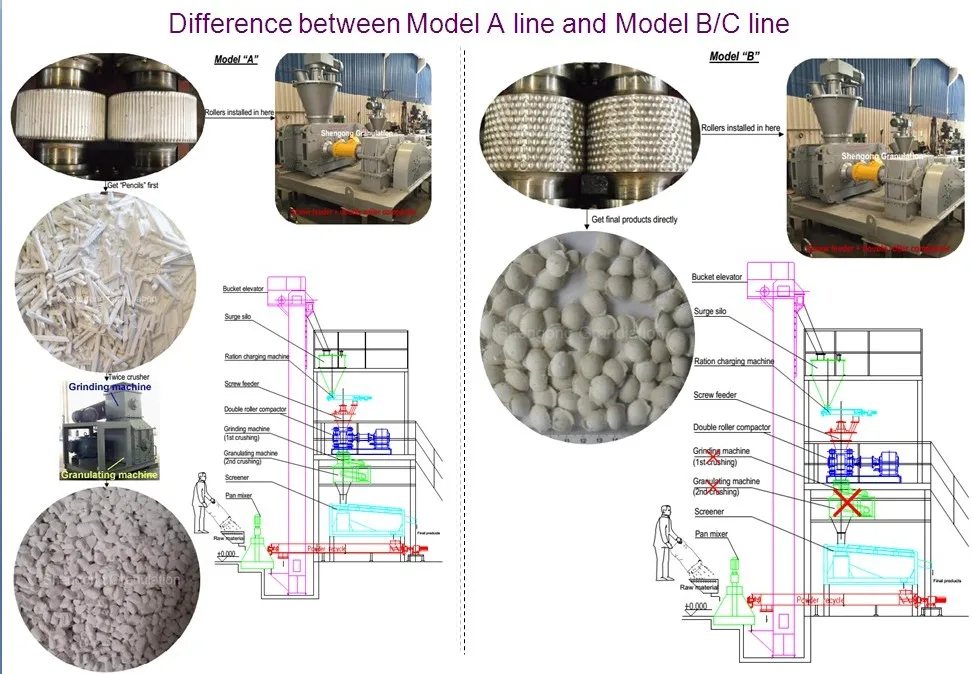

Differences of Briquette machine  A and B.

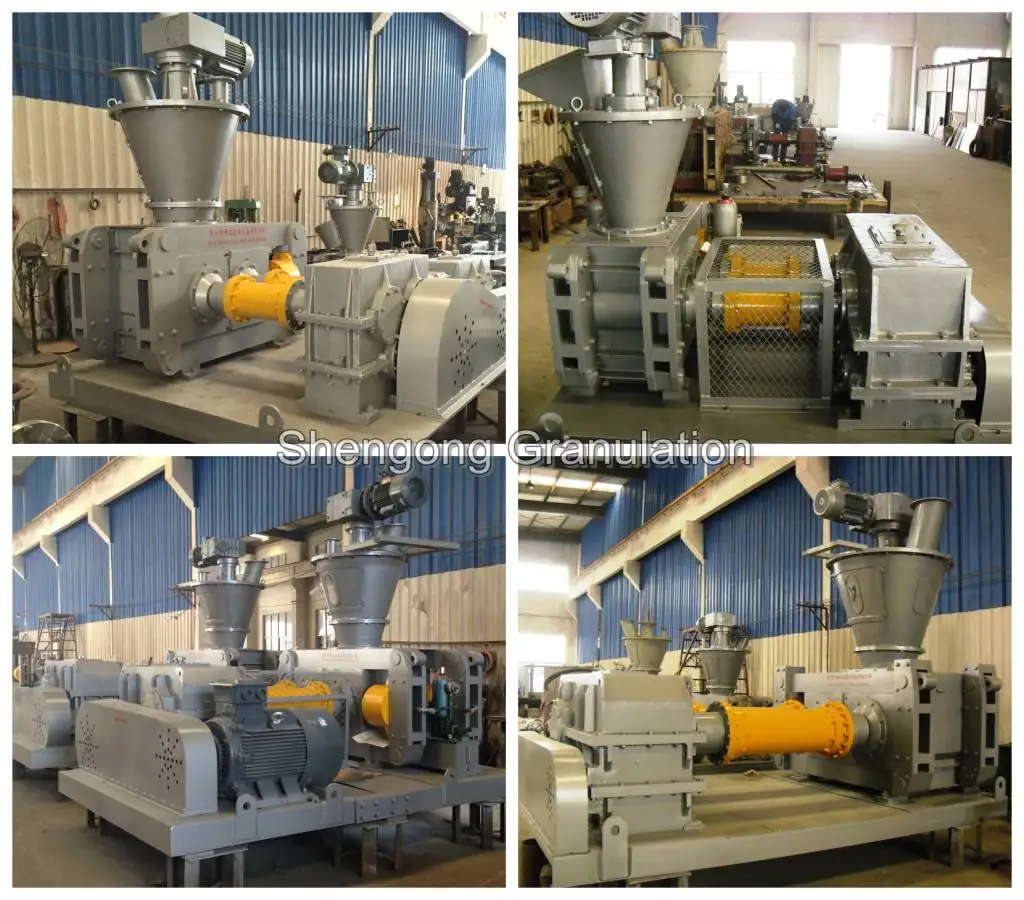

Briquette machine consists of screw feeder (upper taper) and double roller compactor

Briquette machine 's peripheral equipments

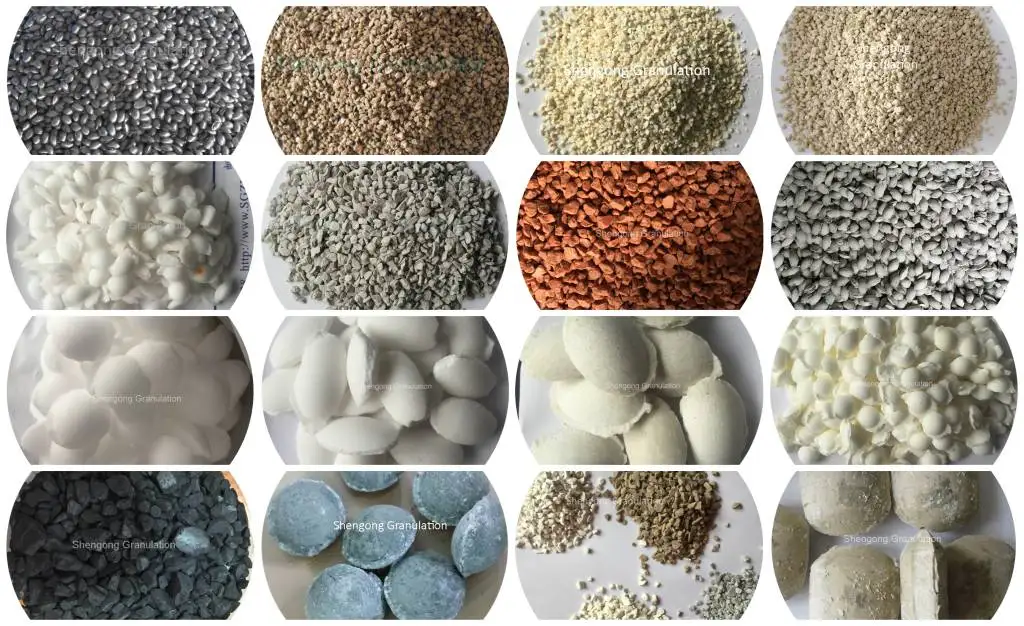

Variable shapes of final products

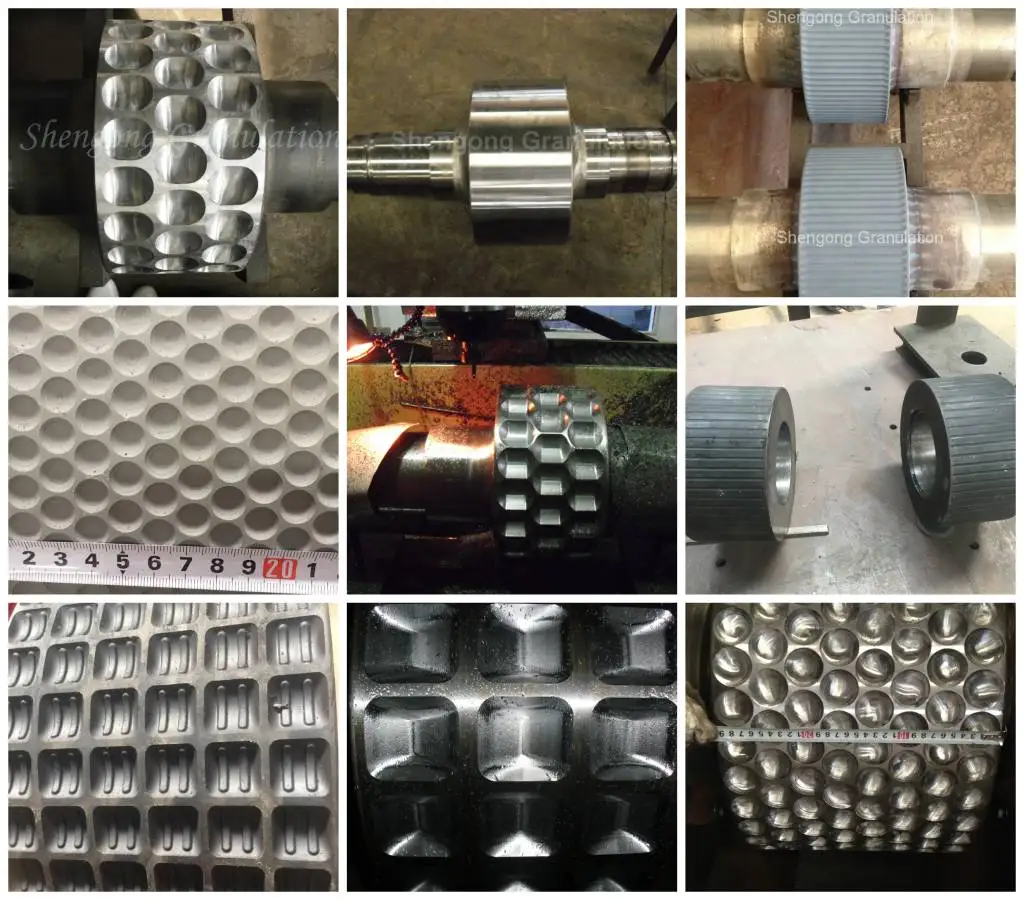

Rollers

Briquette machine and its peripheral equipments are being loaded in one 40ft. container
