Машина для приготовления консервированного мяса, оборудование для наполнения мясом
- Category: >>>
- Supplier: Shijiazhuang Borui Food Machinery Co. Ltd.
Share on (60670628432):
Product Overview
Description
Product Description
Tinned Luncheon meat making machine Canned Luncheon Meat filler equipment
1. Frozen Meat Block Cutting-off Machine
Function | Cut Big Block Frozen Meat into Cubes |
Cut Speed | 41times/min |
Access width | 460/500mm |
Access height | 220mm |
Power | 5.5KW |
Productivity | 4-6tons/H |
The machine can be directly used for cutting Frozen meat (-18℃--12℃). It reduces unfreeze time and save nutrient contents. It is researched and developed combining foreign advanced technology with domestic meat processing technics, which has reliable performance, low investment and high work efficiency. The Whole machine is made of stainless steel, and the blade made of superior alloy steel which is very sharp, easy to cut.
Function | Ground meat, Mince meat |
Output capacity | 1000kg/H |
Power | 5.5KW |
Knives diameter | 120mm |
Hole diameter of the knife hole plate | 4mm-30mm |
Dimension | 350kg |
It adopts high quality stainless steel as the material. It is rational designed and easy to clean It is accord with the HACCP
standard. Bigger leading and input part makes the material in-out easy and smooth. The production ability is large. It can
directly mince raw meat such as frozen and fresh meat into different size of granules.
standard. Bigger leading and input part makes the material in-out easy and smooth. The production ability is large. It can
directly mince raw meat such as frozen and fresh meat into different size of granules.
3. High speed Meat Bowl Cutter
Function | Emulsify Meat, Cutting minced meat into meat paste |
Pot Volume | 80/125 Liters |
Blade Qty | 6pcs |
Knives Speed | 750/1500/3000/4200rpm |
Rotation Speed of output | 88rpm |
Output capacity | 70-110kg/pot (420-660kg/H) |
The machine adopts the high-quality stainless steel. The key components are from machining center, ensure the machining accuracy. Through special processing treatment, appearance is coordination. The machine design ingenuity, the noise is small, little vibration. Machine adopts imported bearing. The pot is made of stainless steel with special processing. The reasonable combination makes exquisite degree of the cut products higher, small warming. This makes the emulsification degree, flexibility and exquisite degrees of the meat to the max. It is used for cutting and mixing all kinds of meat. It is the main equipment of meat production.
4. Vacuum Double Axis Mixer（With lifter）
Function | Mixing the meat and seasoning |
Volume | 650 Liters |
Mixing speed | 42rpm |
Output capacity | 500-1000kg/H |
Power | 7.1+2KW |
Dimension | 1553*1300*1700mm+230*190*2650mm |
This machine is made of good quality stainless steel material, with double shaft elliptical ration screw-arranged fan shape
impeller. It can homogenize various kinds of material of porridge state or viscous state with certain fluidity and create vacuum, and accomplish axial reflux. Thus, material is uniformly mixed sufficiently achieving ideal mixing effect. It is especially suitable for large-medium scale meat processing enterprise.
impeller. It can homogenize various kinds of material of porridge state or viscous state with certain fluidity and create vacuum, and accomplish axial reflux. Thus, material is uniformly mixed sufficiently achieving ideal mixing effect. It is especially suitable for large-medium scale meat processing enterprise.
5. JYZJ Vacuum filler（with Lifter）+ GTFF Luncheon meat can portioning-type filler
Function | Filling Meat paste into Luncheon meat cans. |
Dosing weight Range | 10-9999g |
Filling portioning speed | 30pcs/min |
Volume of hopper | 200 Liters |
Canned shape | Square and Round |
Application Materials | Meat paste and small meat cube |
This machine is developed, designed, and produced independently by the company. It is characterized by reasonable design, compact structure, convenient operation, as well as simple mold replacement. This machine adopts high-quality stainless-steel material in compliance with the requirements of food industry. This machine fill luncheon meat paste or meat grain into tin or cans. The weight can be adjusted. The vacuum feeding function avoids air holes and defects. That ensure the shape and firmness of meat products. The speed can be adjusted. It is high efficiency and low consumption, practical and economical. After working, machine can be easily cleaned. It also has adjustable feet. You can adjust the height of feed. It is suitable for different tins or cans. It is your best choice.

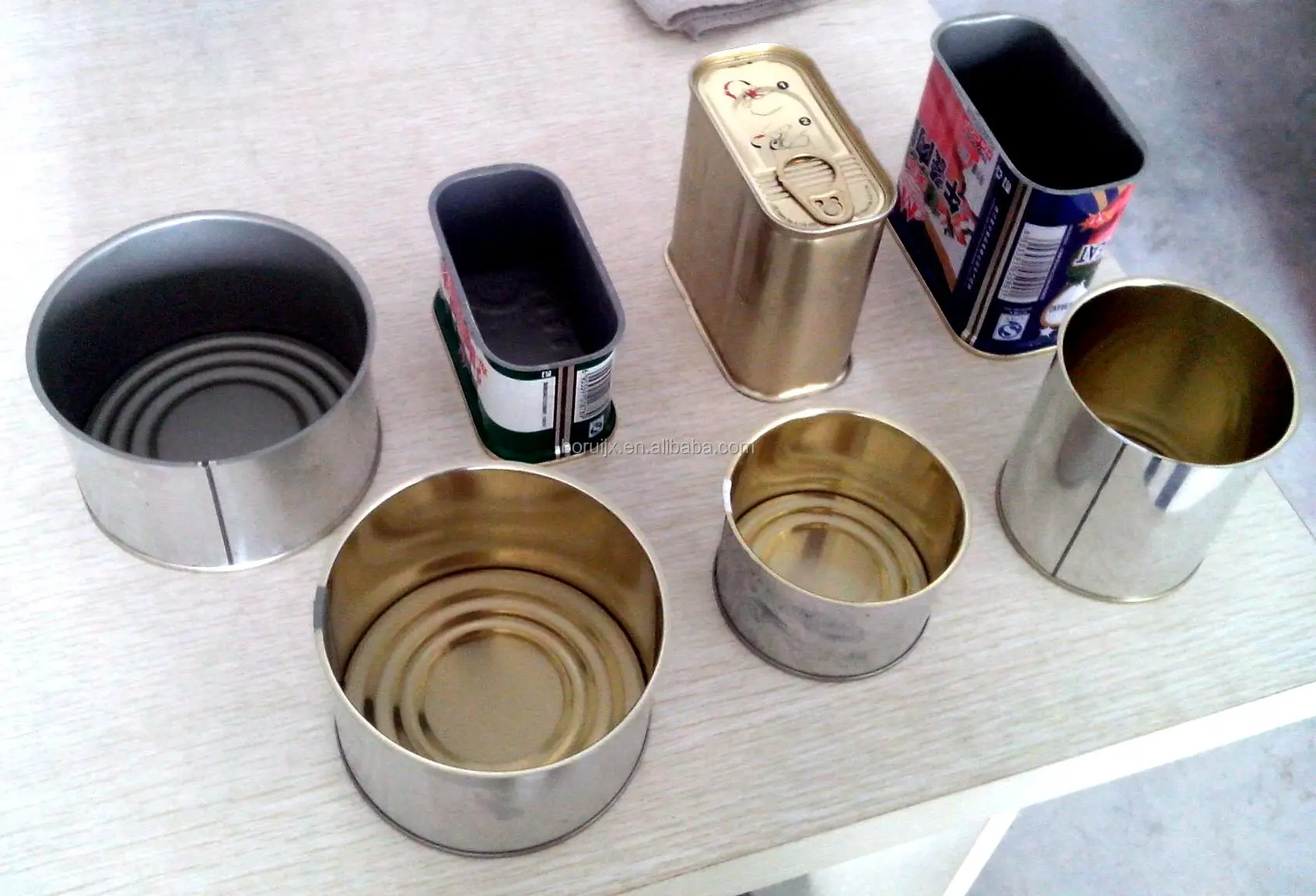

Suitable types of can/tin
Round and Square cans/tins
Our can filling machine can fill different shapes of cans/tins in different weight and diameter or size.
We have customized the filling mould of 50g, 100g, 150g, 200g, 300g, 340g, 500g and etc for customers.
Product packaging
Packaging and Shipping
Plywood case package
Shipping by sea.
Company Profile
Our company was founded in the early 1990 s, the predecessor is Shijiazhuang chang’an stainless steel equipment factory and Bo'an stainless steel equipment ltd company. In April 2008, Shijiazhuang Borui Food machinery Co., Ltd was formally established in Shijiazhuang City, Hebei Province. Borui company is the meat processing machinery of professional production enterprises, has a strong technical force, rich practical experience of the staff team, and a new sophisticated machining equipment. We develop and produce quantitative filling machine, aluminum wire double clipping machine. In 2013, the luncheon meat filling equipment was granted three national utility model patents. And these machines are widely used in the processing industry of meat products, such as luncheon meat and shrimp slime seafood and have been well received by customers. Currently, Borui company has frozen meat cutting series, pneumatic filling punching machine series, series of saline injection machine, meat grinder, mixer, chopping machine series, Vacuum quantitative filling series, luncheon meat filling machine series and so on as the leading series of finished goods, and intensify the meat processing machinery research and development of science and technology.
Borui company will be adhering to the "integrity to treat people, forge ahead" business philosophy, do our equipment better step by step, more refined. Borui is willing to do a contribution for all food customers!
Borui company will be adhering to the "integrity to treat people, forge ahead" business philosophy, do our equipment better step by step, more refined. Borui is willing to do a contribution for all food customers!
