WS2812B SK6812 5050 smd RGB built in WS2811 IC LED
- Category: >>>
- Supplier: Shenzhen Ipixel Led Light Co. Ltd.
Share on (60670751890):
Product Overview
Description

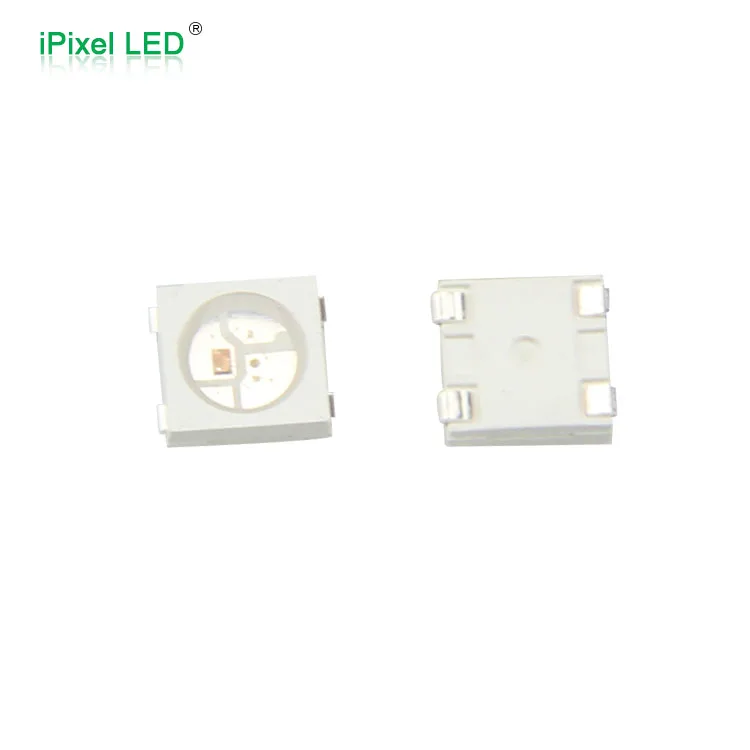

SMD 5050 RGB LED WS2812B
Product Description
- The control circuit and the LED share the only power source.
- Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel
point. - Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not
accumulate. - Built-in electric reset circuit and power lost reset circuit.
- Any two point the distance more than 5m transmission signal without any increase circuit.
- When the refresh rate is 30fps, cascade number are not less than1024 points.
- Send data at speeds of 800Kbps.
- The color of the light were highly consistent, cost-effec
Specifications
| Prameter | Symbol | Ratings | Unit |
| Power supply voltage | V DD | +3.5~+5.3 | V |
| Inputvoltage | V 1 | -0.5~VDD+0.5 | V |
| Operationjunction temperature | Topt | -25~+80 | ℃ |
| Storage temperature range | Tstg | -40~+105 | ℃ |

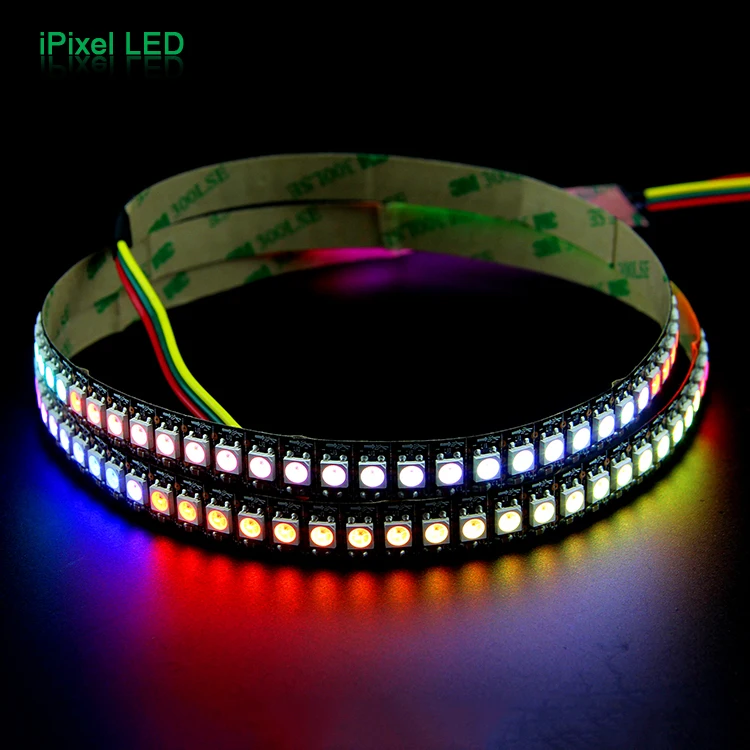

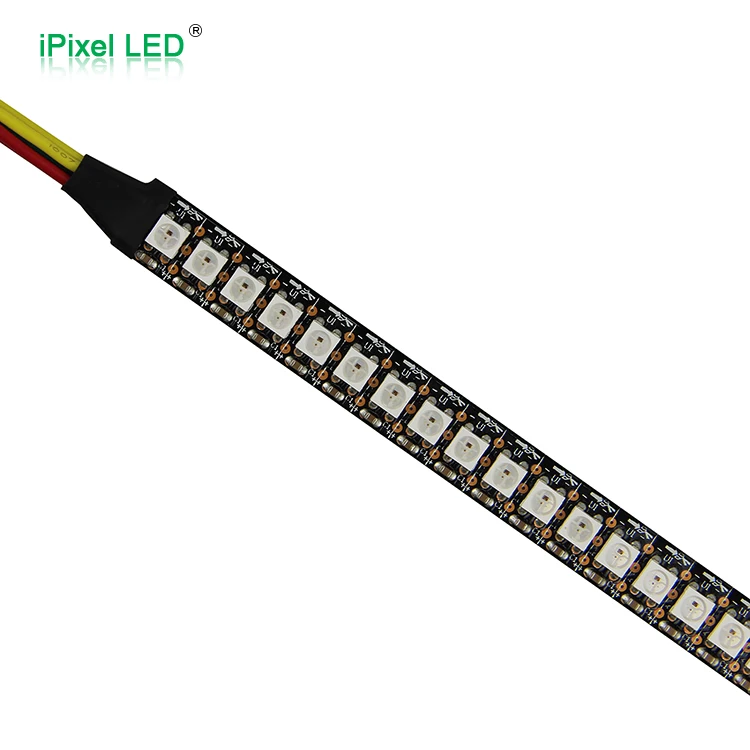

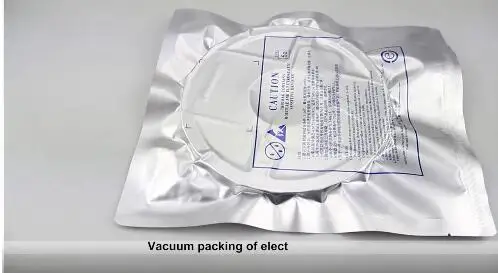

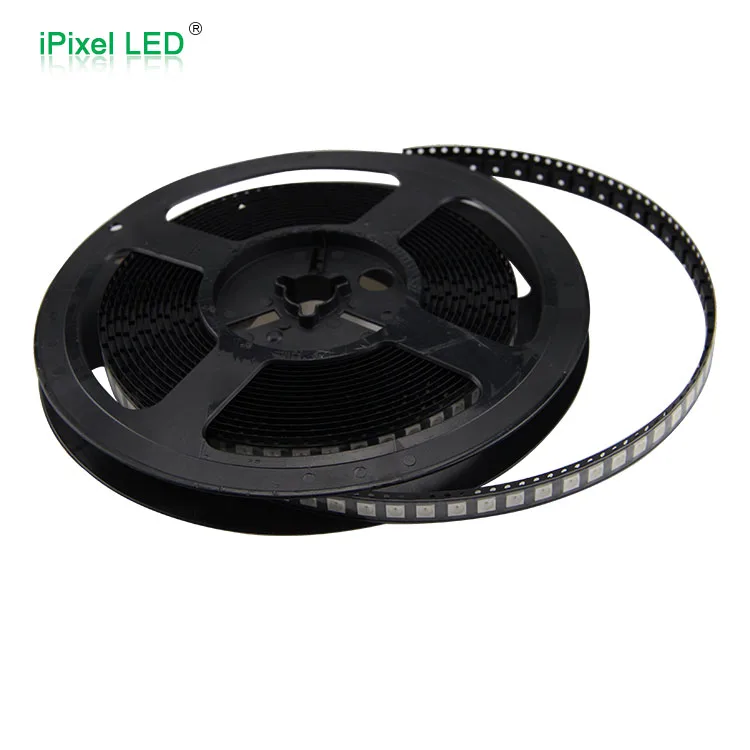

Product Pictures
