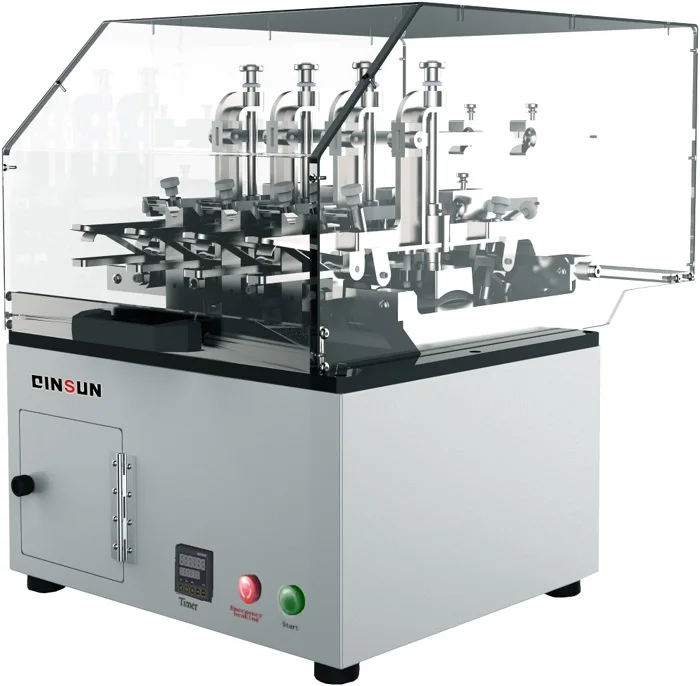

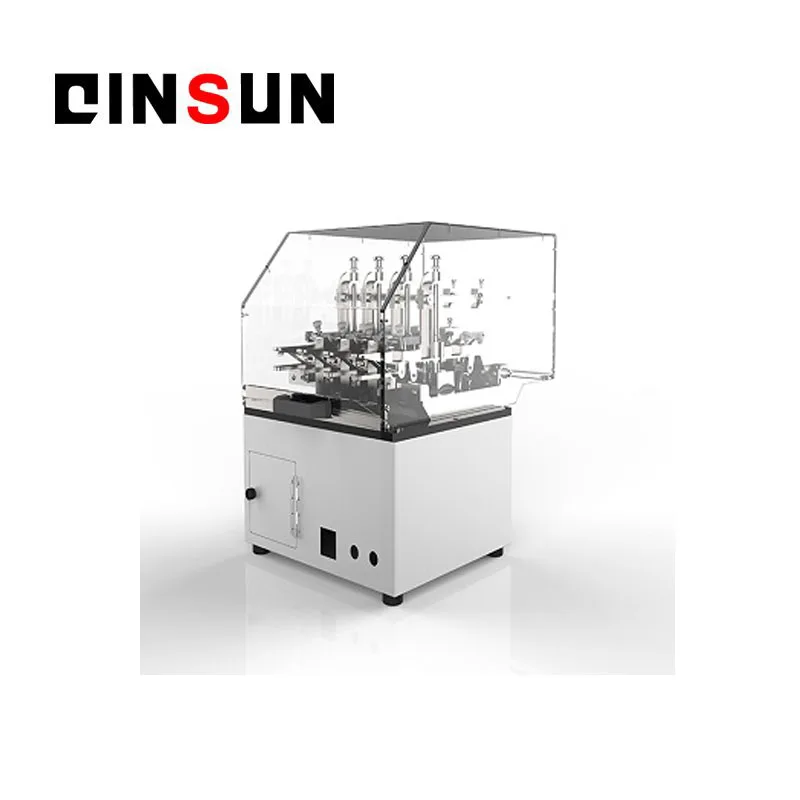

G278 Oscillatory Abrasion Tester and Wyzenbeek Abrasion Test machine
- Category: >>>
- Supplier: Qinsun Instruments (shanghai) Co. Ltd.
Share on (60670784302):
Product Overview
Description
Product picture
Brief Introduction:
Oscillatory Abrasion Tester Motor driven with 4 abrasion heads and electronic digital counter to control the number of cycles.
Testing Standards: ASTM D4157
Applications:
Oscillatory Abrasion Tester is used to determine the abrasion resistance of fabrics when rubbed against a standard abradant or a wire mesh screen with a backward and forward motion over a curved surface. Particularly it’s suitable for?automotive and furniture industry fabric manufacturers working to US standards.
Work Principle

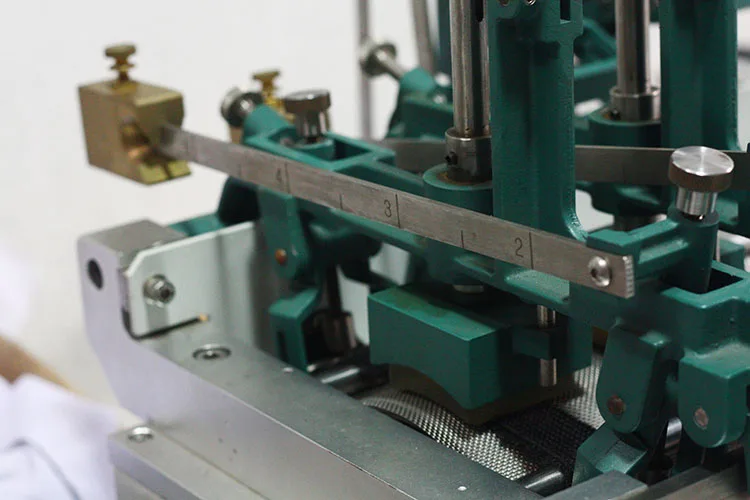

The long strip sample fabric is mounted on the front and rear fixtures of the friction head with a certain tensioning force applied.The friction medium is installed on the circular grinding platform. Make the sample contact with the friction medium and apply a certain load on the sample.The friction platform moves forward and backward to abrade the sample.After a certain number of friction, assess the change of sample's fracture strength.
Features
1. Modern efficacy design.
2. The suction device is connected to an auxiliary vacuum cleaner.
3. Sealed gear actuator ensures quiet operation.
Technical Parameters
The long strip sample fabric is mounted on the front and rear fixtures of the friction head with a certain tensioning force applied.The friction medium is installed on the circular grinding platform. Make the sample contact with the friction medium and apply a certain load on the sample.The friction platform moves forward and backward to abrade the sample.After a certain number of friction, assess the change of sample's fracture strength.
Features
1. Modern efficacy design.
2. The suction device is connected to an auxiliary vacuum cleaner.
3. Sealed gear actuator ensures quiet operation.
Technical Parameters
| Test number | 4 |
| Abrasion table | Cambered surface -R100mm,Length-400mm |
| Test stroke | 76±2 mm |
| Abrasion velocity | 90±1 /min(double friction) |
| Tension adjusting weights | 340g (The force applied to the sample can be adjusted from 4.45 to 26.7 N) |
| Load weight | 150g (adjusted from 4.45 to 15.575N) |
| Tension of sample | 17.8N(adjustable) |
| Sample loading | 13.4N(adjustable) |

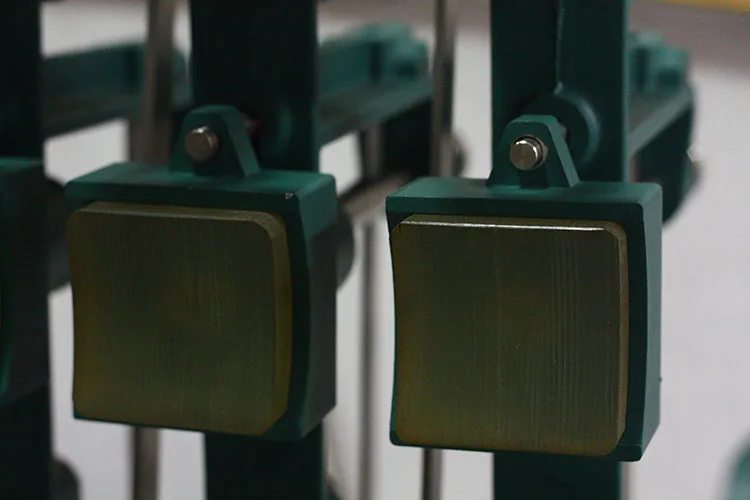

| Sponge rubber pressure pad | 50×50mm(±1mm) |
| Instrument material | Stainless steel |
| Surface treatment | Paint spraying |
| Sample size | 245×73 mm |
| Dimension | 50L× 50W × 60H cm |
| Weight | 75kg |
| Power supply | 220V,50Hz,0.05A |
Accessories and Consumables:
Rubber pad (8 / bag)

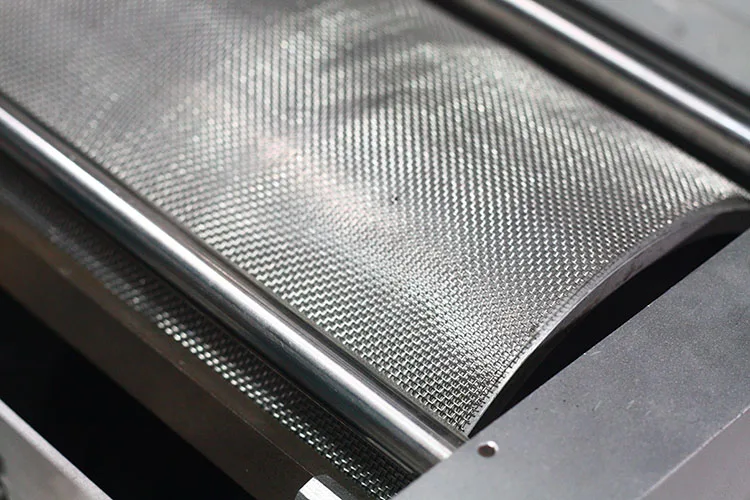

Metal mesh - Wyzenbeek (4 / bags)
Standard abradiant #10 cotton canvas - 60 inch x 5 yards
Fine sandpaper for cleaning rubber pad
Nylon brush, soft fur
