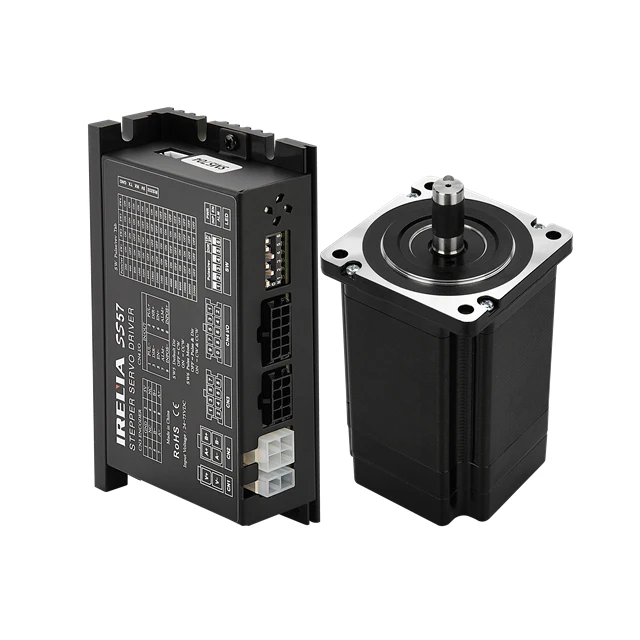

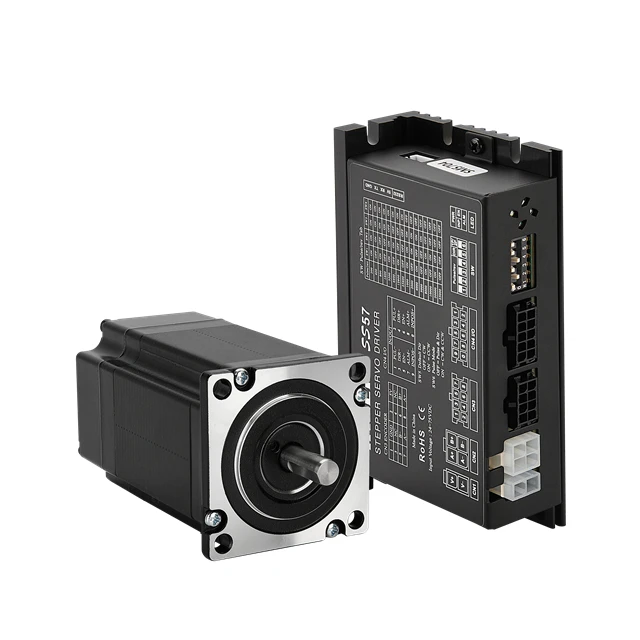

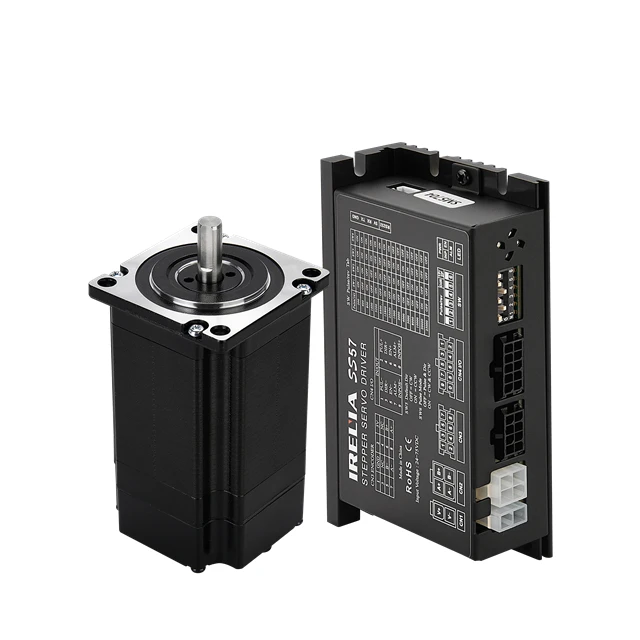

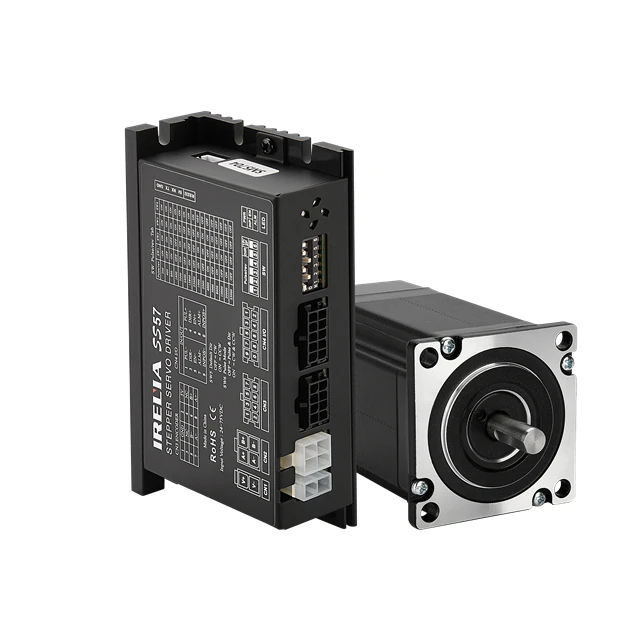

Высокопроизводительный шаговый двигатель с замкнутым контуром nema 23 1,2 нм и драйвер, комплект шагового двигателя с замкнутым контуром nema 23
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (60670885500):
Product Overview
Description
high performance nema 23 1.2nm closed loop stepper motor and driver, kit nema 23 closed loop driver stepper motor
Product Description
Features
| ♦ Closed loop with encoder ♦ Fast response ♦ Low heating&high efficiency | ♦ Smooth&Accurate ♦ High resolution 25600 ♦ In position output signal |
Indexes
Electrical indexes
| Driver parameters | Minimum value | Rated value | Maximum value | unit |
Output current | - | - | 7 | A |
| Input voltage | 24 | - | 75 | VDC |
| Input Pulse Width | 250 | 5E+8 | ns | |
| Input Pulse Frequency | 1 | 1M | V | |
| Input signal voltage | 3.6 | 5 | 24 | VAC |
Environmental indexes
| Environmental factors | Environmental indexes |
| Use occasion | Avoid dust, oil stain and corrosive gas |
| Operating temperature | 10℃~+50℃ |
| Environment humidity | 40-90%RH (no condensation) |
| Vibration | 5.9m/s2 Max |
| Storage temperature | -20℃~+125℃ |
| Cooling mode | Natural cooling or forced cooling |

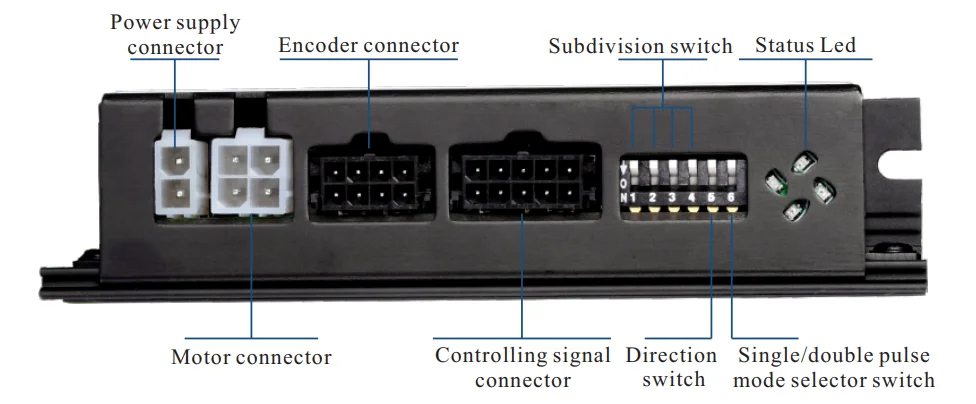

Driver interface and wiring diagram

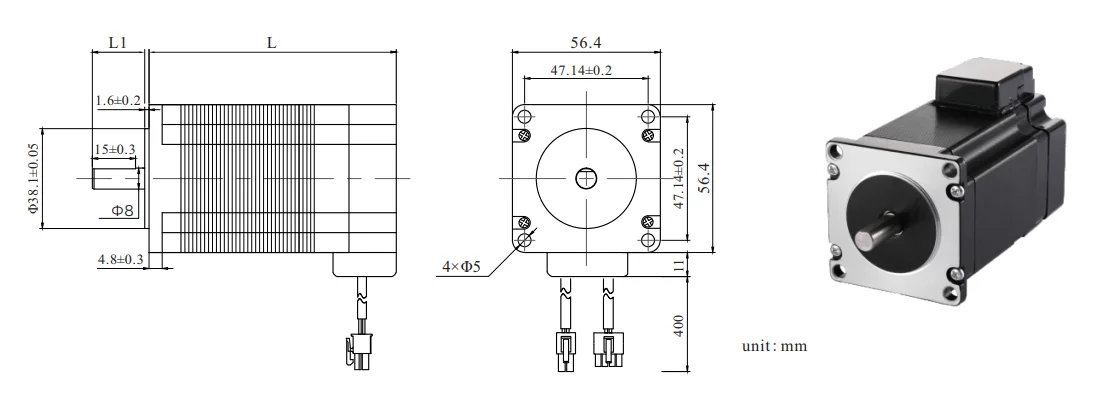

Motor parameters
| Model No | Step Angel (°) | Holding Torque (Nm) | Current/phase (A) | Motor Length L (mm) | Matched driver |

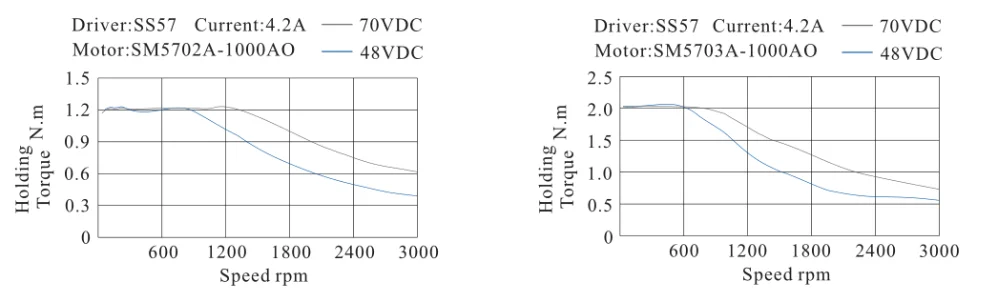

| SM5702A-1000AO | 1.8 | 1.2 | 4.2 | 74 | SS57 |
| SM5703A-1000AO | 1.8 | 2.2 | 4.2 | 94 | SS57 |

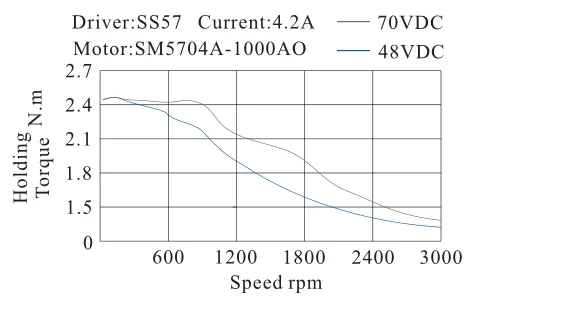

| SM5704A-1000AO | 1.8 | 3.0 | 4.2 | 116 | SS57 |
Our advantages
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you.
3. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
5. How long is your delivery time?
Normally 3~5 working days after payment. Special requiment orders are negotiable according to actual situation.
