ZCT1K0J-LNQ is a low cost one axis tilt sensor which is researched and produced by Shanghai Zhichuan. It is single-axis structure, vertical installation. Internal sensor adopts MEMSIC devices, micro-processor control technology and digital design. Combined with appropriate ASIC circuit, finally output analogy voltage.
SPECIFICATIONS FOR ZCT1K0J-LNQ
Item
Test condition
Min value
Typical value
Max value
Unit
Supply voltage①
4.8
5
5.2
V（DC）
Operating current
VCC=5V
30
40
45
mA
Operating temperature
-40
+85
℃
Test range
One axis
0
180
°
Resolution
0. 1
°
Non-linearity②
VCC=5.00V
±0.4
%/FS
Zero output voltage
0.48
0.5
0.52
V
sensitivity③
VCC=5.00V
22
22.2
22.4
mV/°
Sensitivity
VCC=5.00V
1
％
tolerance
VCC=5.00V
1
％
repeatability
0. 3
°
Zero temperature drift
－20～60℃
±1.5
°
size
52*52*30
mm
Main Features
Industrial devices entirely, high stability and reliable performance; Shockproof, anti-vibration; High cost performance; Protection class IP67

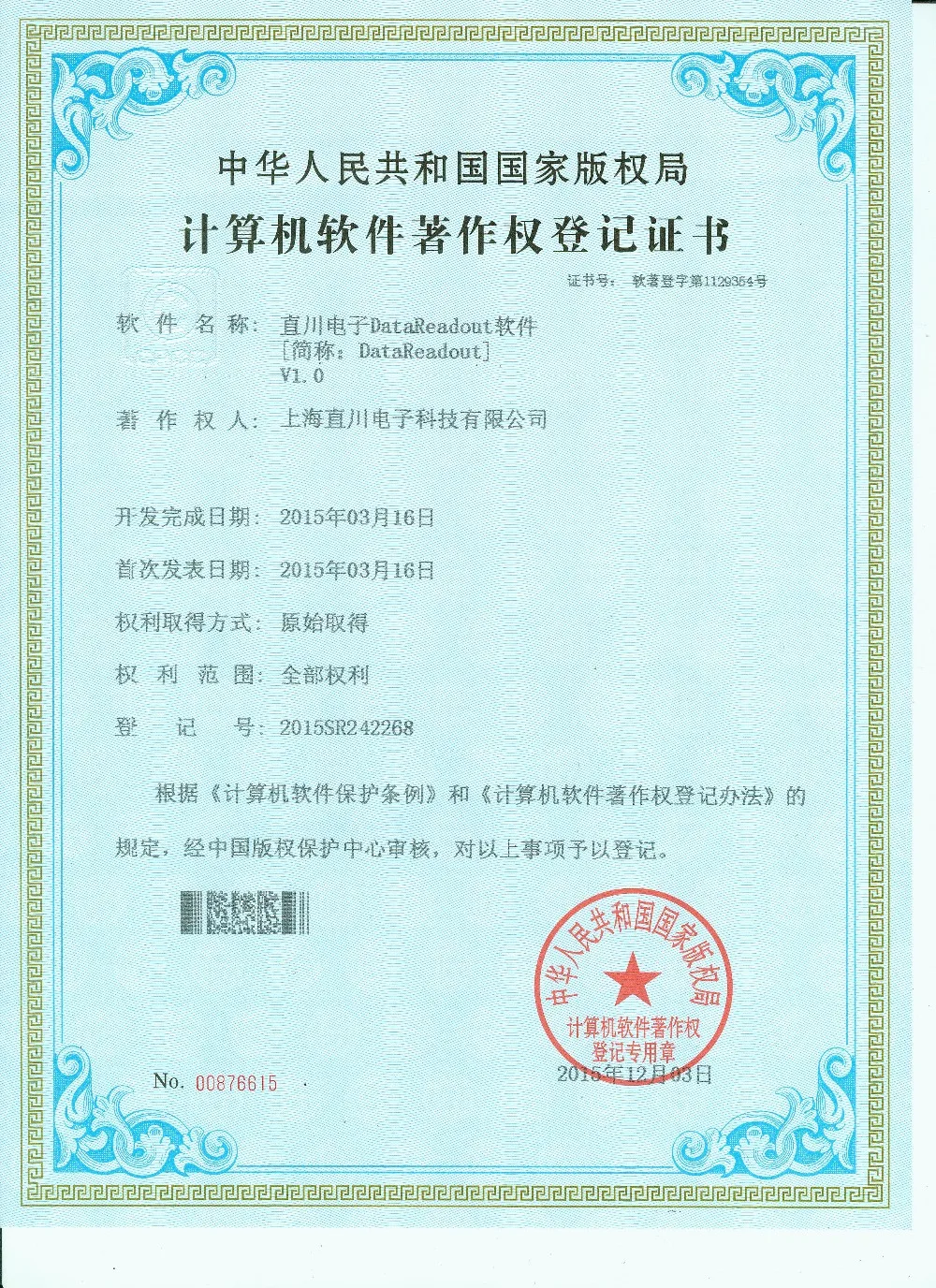

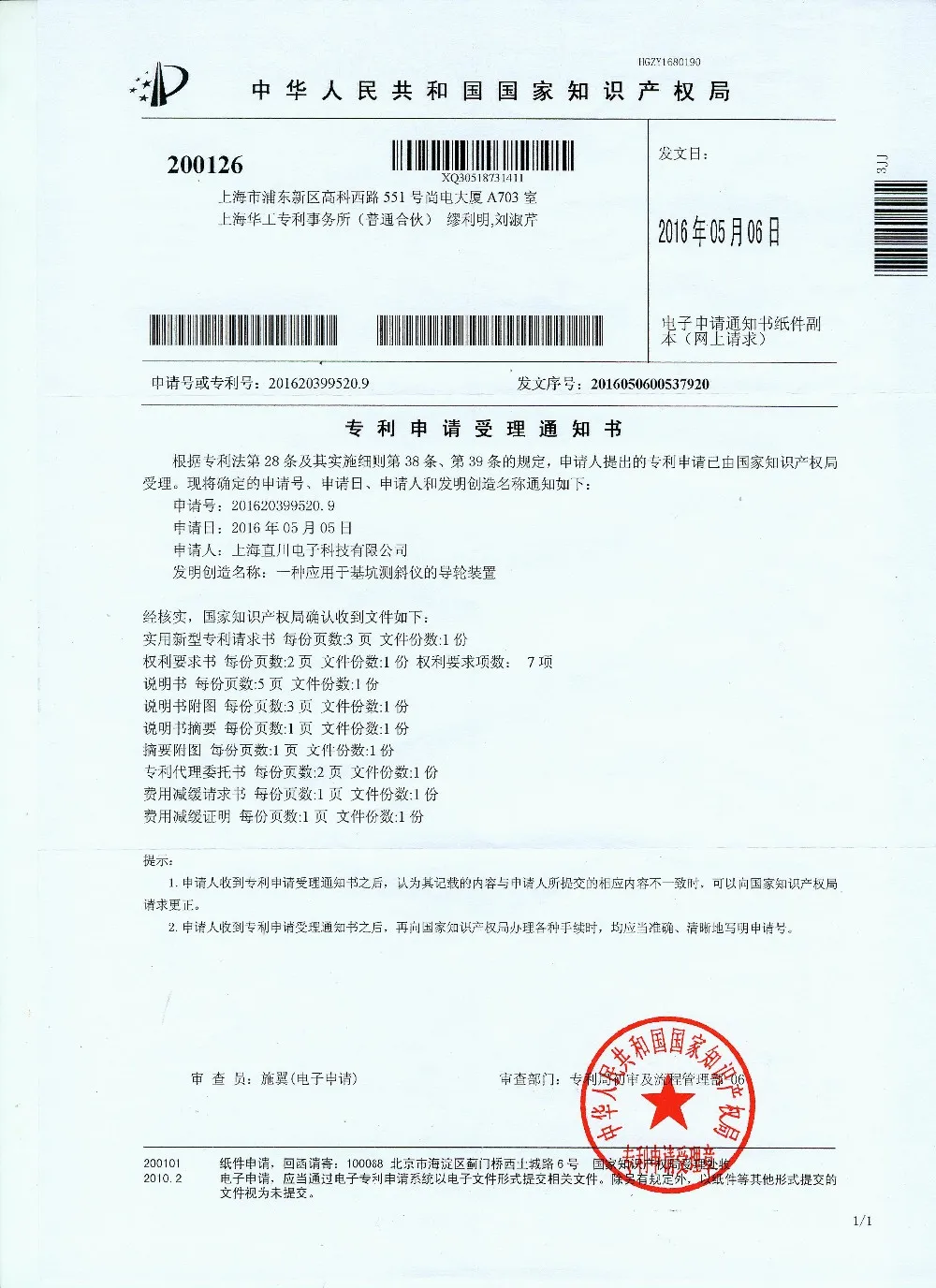

Certifications

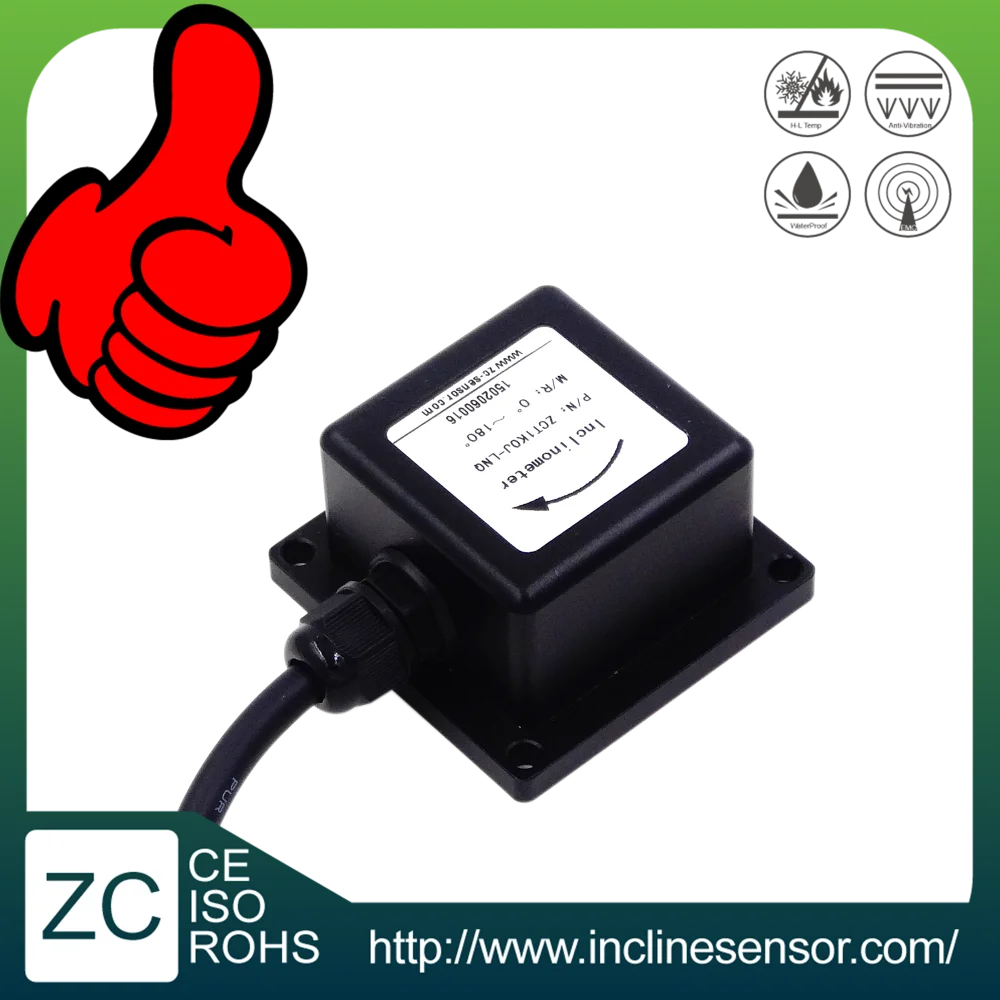

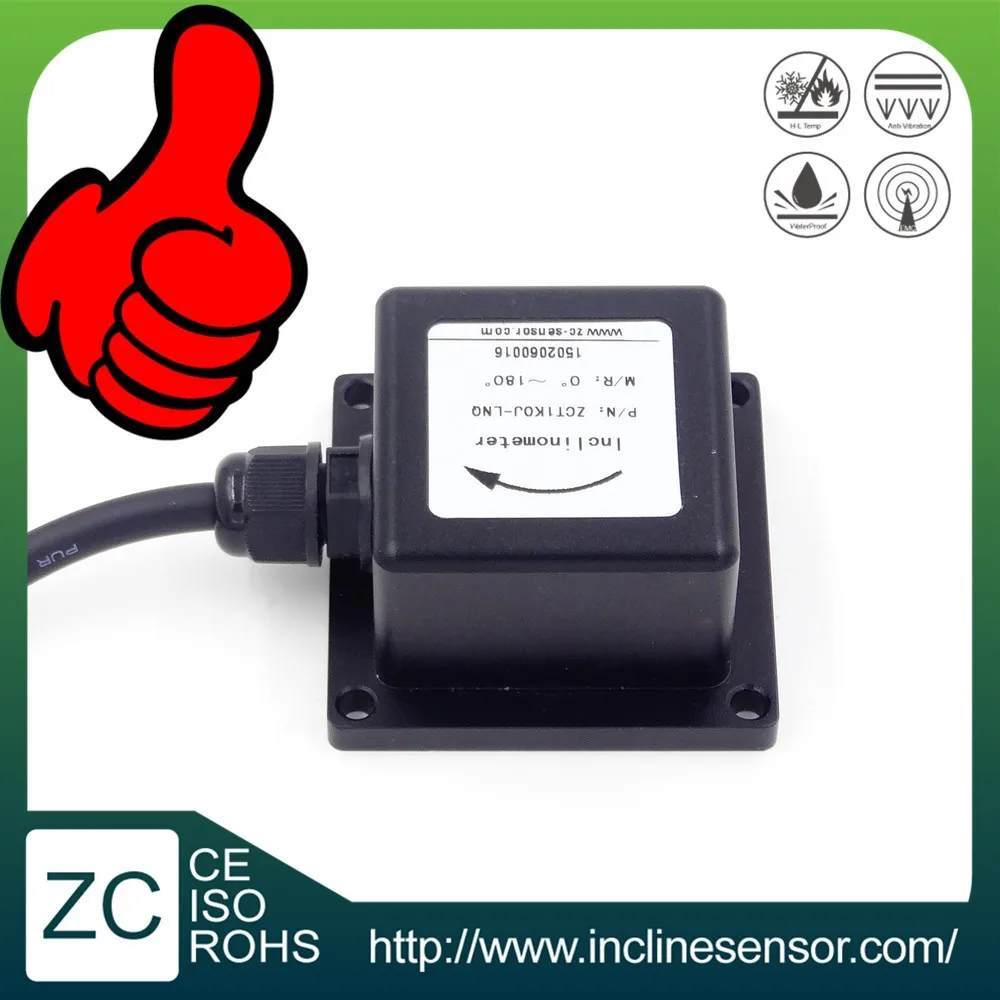

Detailed Images
Company Info.
Time: Founded in the year of 2002. Location：3F compositive building,No.1128 Denghui Rd,Minhang,Shanghai,201109,China Employee：50~100 person R&D Engineer：8-10 person Main Products: Inclinometer , tilt switches, inclinometer system【 more than 400 models 】 Annual production: 100,000pcs (2016) Sales : Domestic and Oversea sales, totally around US$4.5million (2016)

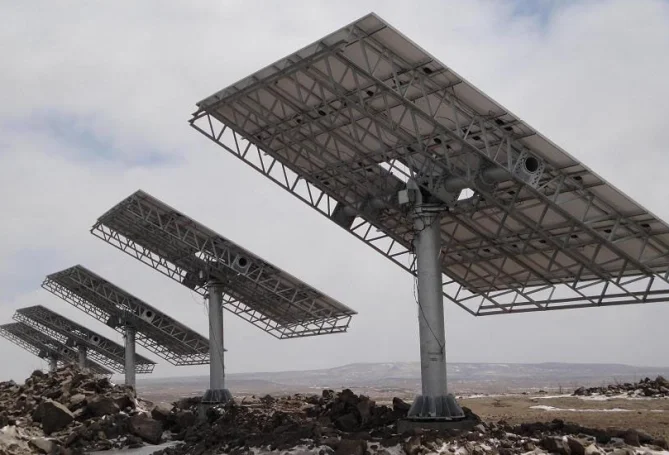

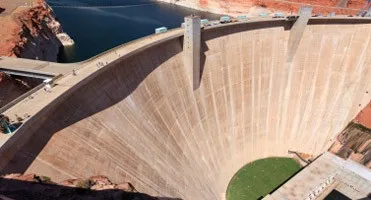

Product Application
Torque limiter, angle measurement of high altitude operating machinery arm
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Inner Package
Inner package with bubble plastic bag packing to get good shock absorption, impack resistance, heat resistance, non-toxic, odoriess, moisture, corrosion resistance and good transparency. etc.
Outer Package
Three layers corrugated paper (paper backing + UV type corrugated + paper backing) is used as the lining board, to avoid crash during the transportation.
