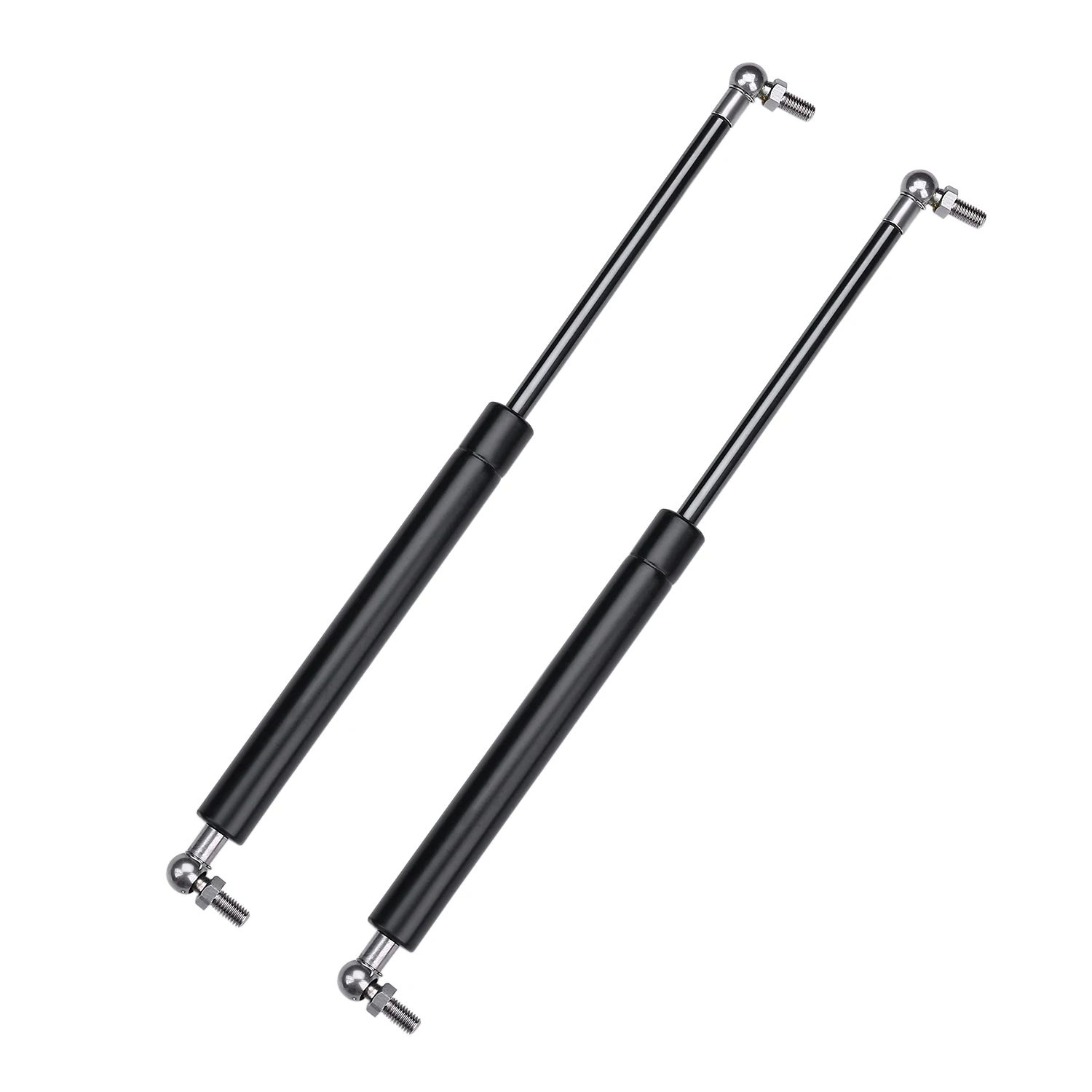

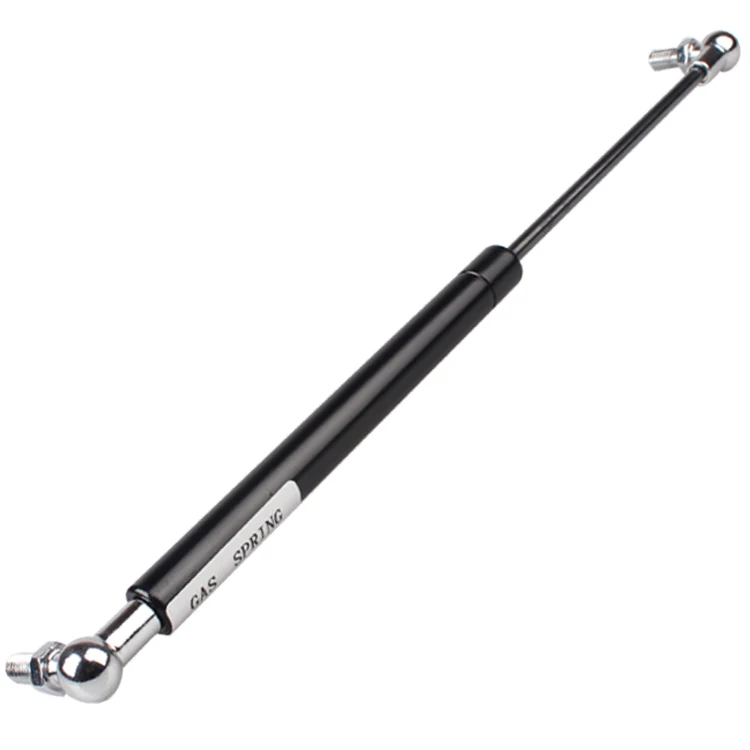

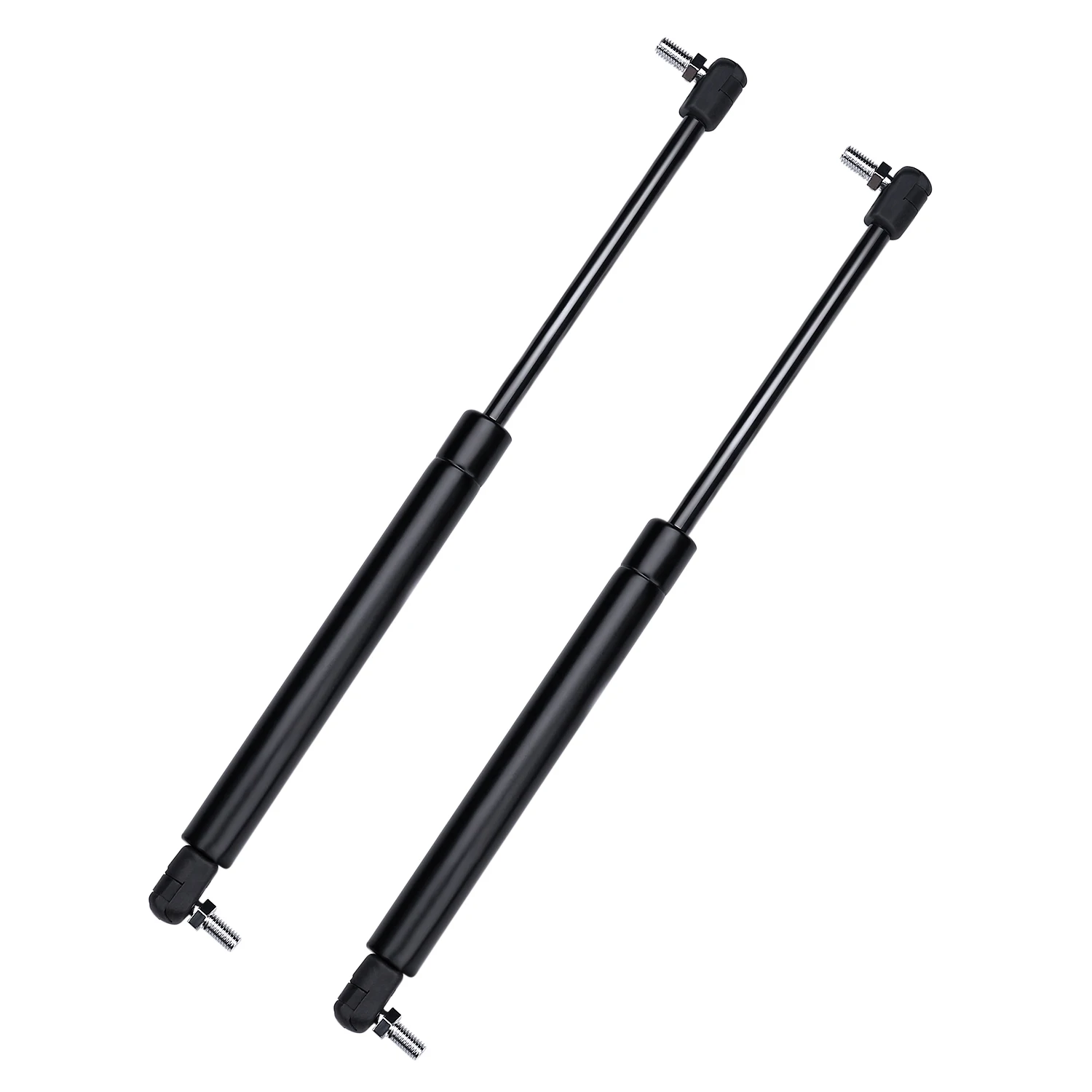

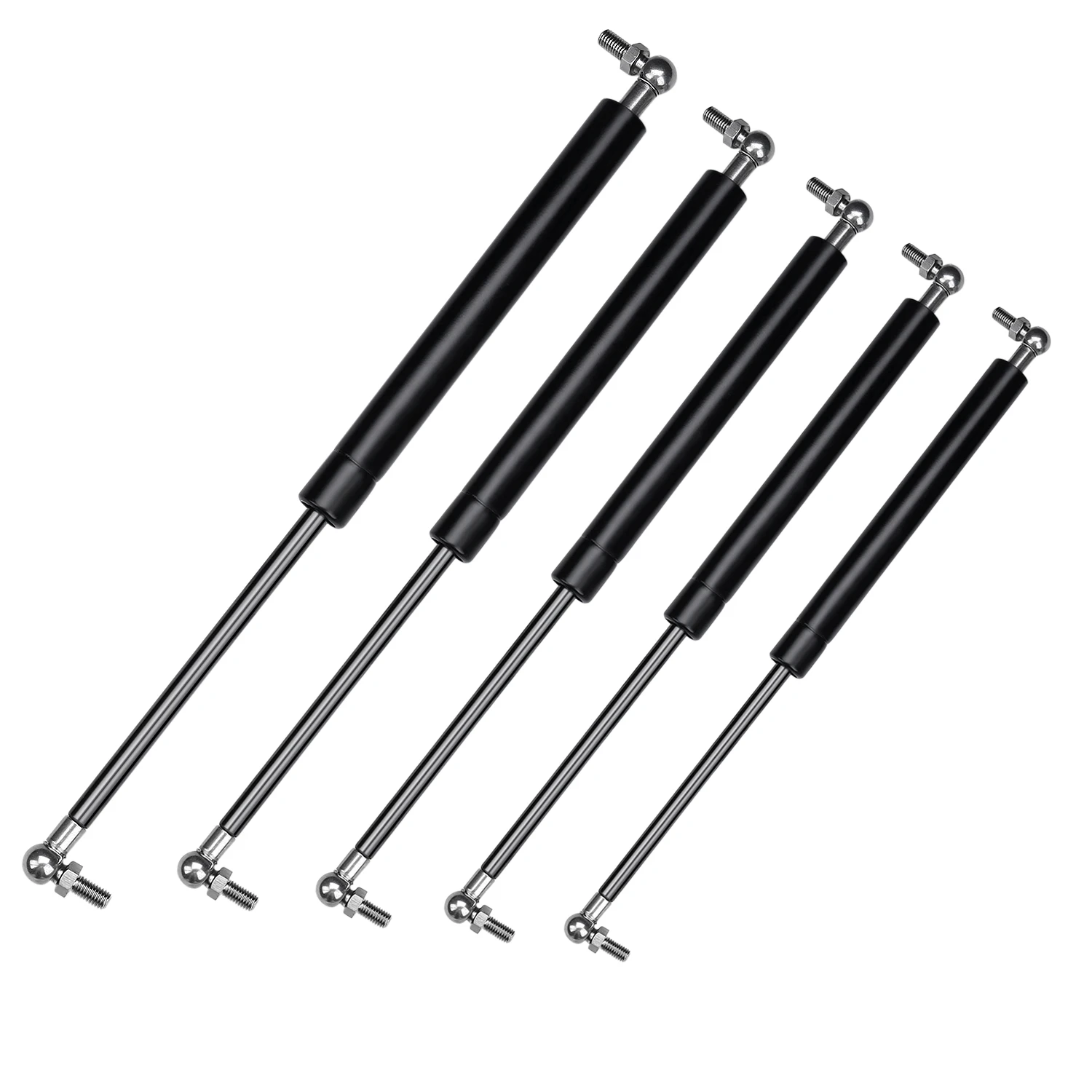

Stainless steel Gas spring struts
US $6.00-$9.00
Gas spring gas lift gas piston 600n ga strut
- Category: >>>
- Supplier: Changzhou Double Spring Machinery Co. Ltd.
Share on (60670912805):
Product Overview
Description
Product Description
Note:above are a portion of specifications,please choose what suitable connector,the size and force what we can produce according to the customer's need.
Specification of YQL Lift Gas Spring
| MODE | EXTENDED LENGTH /MM | STROKE /MM | CYLINDER DIA/MM | PISTON ROD DIA /MM | MIN FORCE /N |
| YQL015 | 247 | 80 | 18 | 8 | 250 |
| YQL016 | 280 | 100 | 18 | 8 | 150/250 |
| YQL017 | 300 | 100 | 18 | 8 | 200 |
| YQL017-1 | 315 | 115 | 18 | 8 | 150 |
| YQL017-2 | 320 | 115 | 18 | 8 | 150 |
| YQL018 | 350 | 130 | 18 | 8 | 150 |
| YQL019 | 380 | 140 | 18 | 8 | 70 |
| YQL020 | 400 | 150 | 18 | 8 | 150 |
| YQL021 | 435 | 170 | 18 | 8 | 130 |
| YQL022 | 450 | 180 | 18 | 8 | 340 |
| YQL023 | 510 | 210 | 18 | 8 | 130/200 |
| YQL024 | 550 | 220 | 18 | 8 | 300 |
| YQL025 | 700 | 290 | 18 | 8 | 150/350 |
| YQL026 | 200 | 40 | 22 | 10 | 500 |
| YQL027 | 310 | 110 | 22 | 10 | 400 |
| YQL028 | 350 | 130 | 22 | 10 | 200 |
| YQL029 | 380 | 140 | 22 | 10 | 180 |
| YQL030 | 450 | 170 | 22 | 10 | 700 |
| YQL031 | 500 | 200 | 22 | 10 | 300 |
| YQL032 | 600 | 240 | 22 | 10 | 400 |
| YQL033 | 730 | 300 | 22 | 10 | 430 |

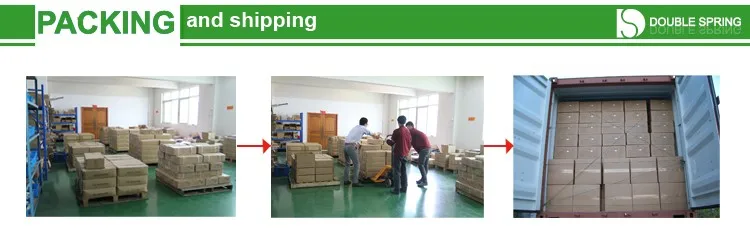

Packaging & Shipping
Our Services
Company Information
FAQ
Q1: What is our factory product range?
A1: Furniture Gas Spring; Stainless Gas Spring;Office Chair Gas Lift; Locking Gas Spring; Auto Gas Spring; Any stop Gas Spring; Traction Gas Spring; Hydraulic Damper; Kitchen door buffer; End Fittings etc
Q2: What’s your MOQ of this gas spring?
A2: 100pcs.Small quantity is available .
Q3: Is it all right to make customer’s own brand name?
A3: that’s all right. if customer required, we’ll make customer’s brand name. otherwise we make our own brand name
Q4: So how is the lead time of our order?
A4: Normally 3-5days, the lead time is according to the quantity.
Q5: Can we visit your factory before we order from you ?
A5: Yes,welcome ! That is our pleasure to be visited.
Q6: Do you provide samples ? is it free or extra ?
A6: Yes, some product can offer the sample for free charge, and some product sample is not free, but do not pay the cost of freight.
