Price:$200.00

Quantity:


Product Overview

Description


Product Introduction

Copper Coil Heat Exchanger Pre-heated Solar


Water Heater DIY Trade in China

\t
Description
\t
Copper Coil Heat Exchanger Pre-heated Solar Water Heater DIY Trade in China
\t
Material of outer tank
\t
Stainless Steel/Galvanized Steel
\t
Thickness of outer tank
\t
0.31mm-0.5mm
\t
Diameter of outer tank
\t
Normally 460mm
\t
Material of inner tank
\t
SUS304-2B (food grade) Stainless Steel
\t
Thickness of inner tank
\t
0.4mm-0.5mm
\t
Diameter of inner tank
\t
Normally 360mm
\t
Insulation Layer
\t
Polyurethane Foaming
\t
Thickness of Insulation Layer
\t
50-65mm
\t

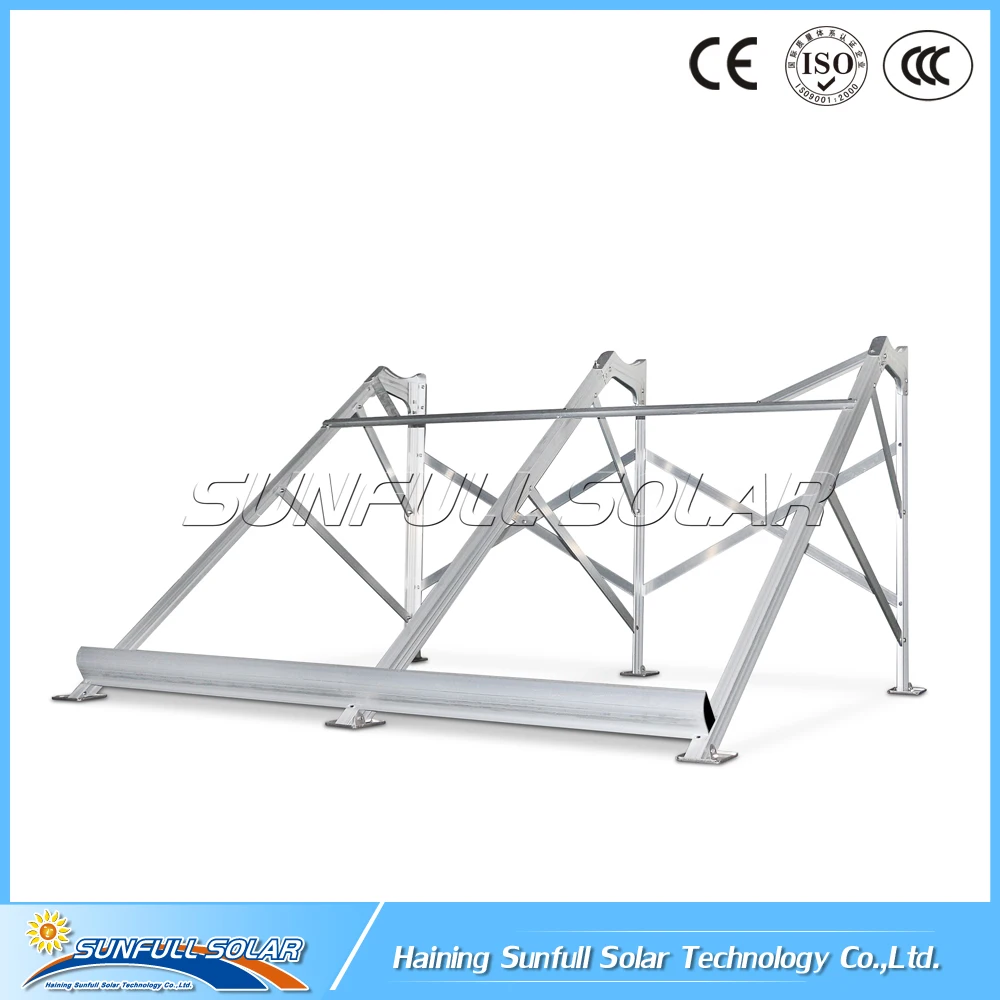

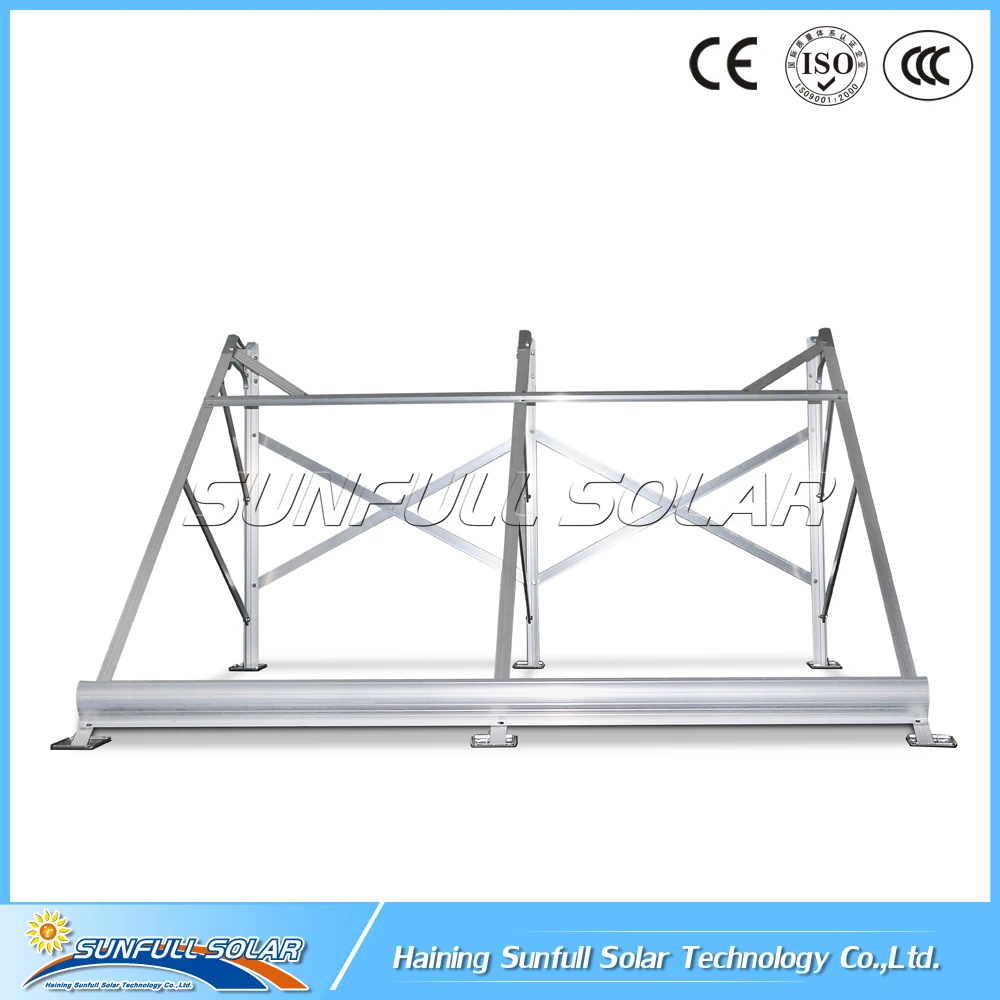

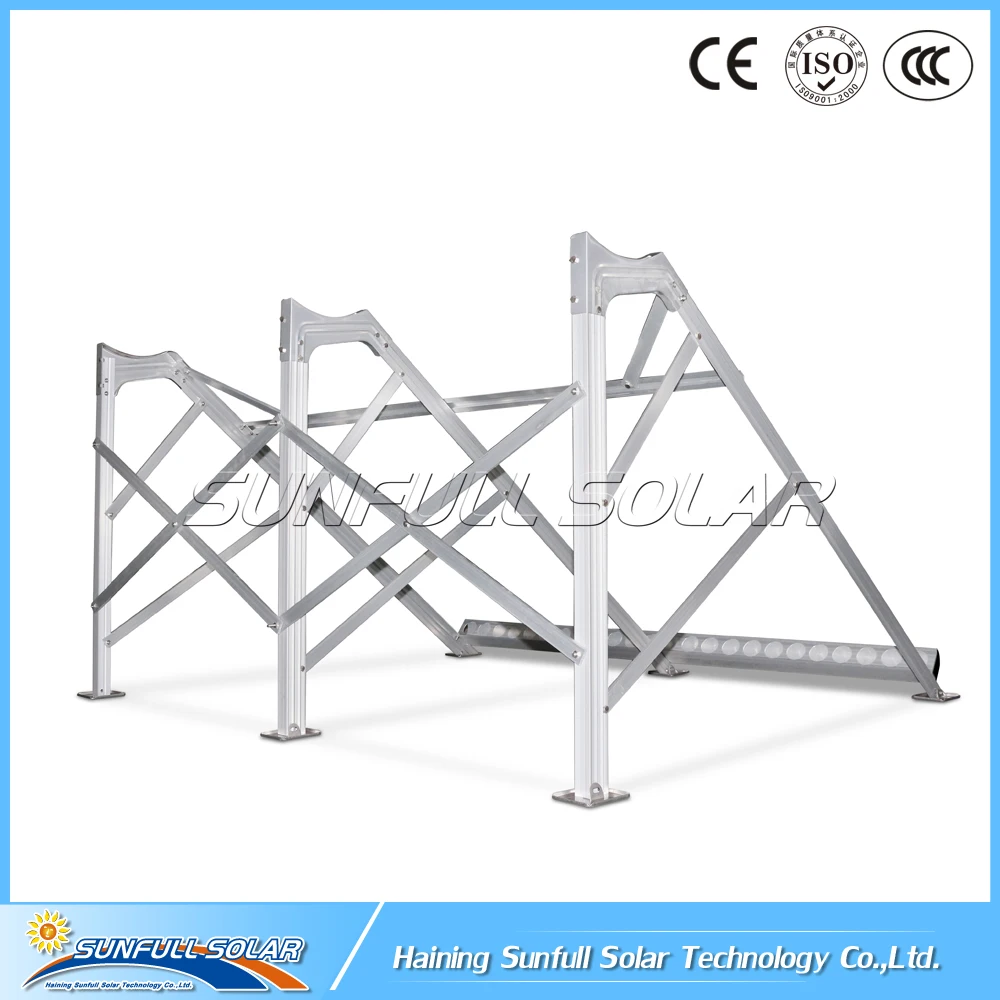

Bracket
\t
Aluminium Alloy
\t
Angle of Frame
\t
0-45 degree
\t
System Capacity
\t
200L
\t
Heat Preservation
\t
72 hours
\t
Hail Resistance
\t
25mm
\t
Optional Accessories
\t
Assistant Tank, Electric Heater, Controller, Magnesium Anode, etc.
\t

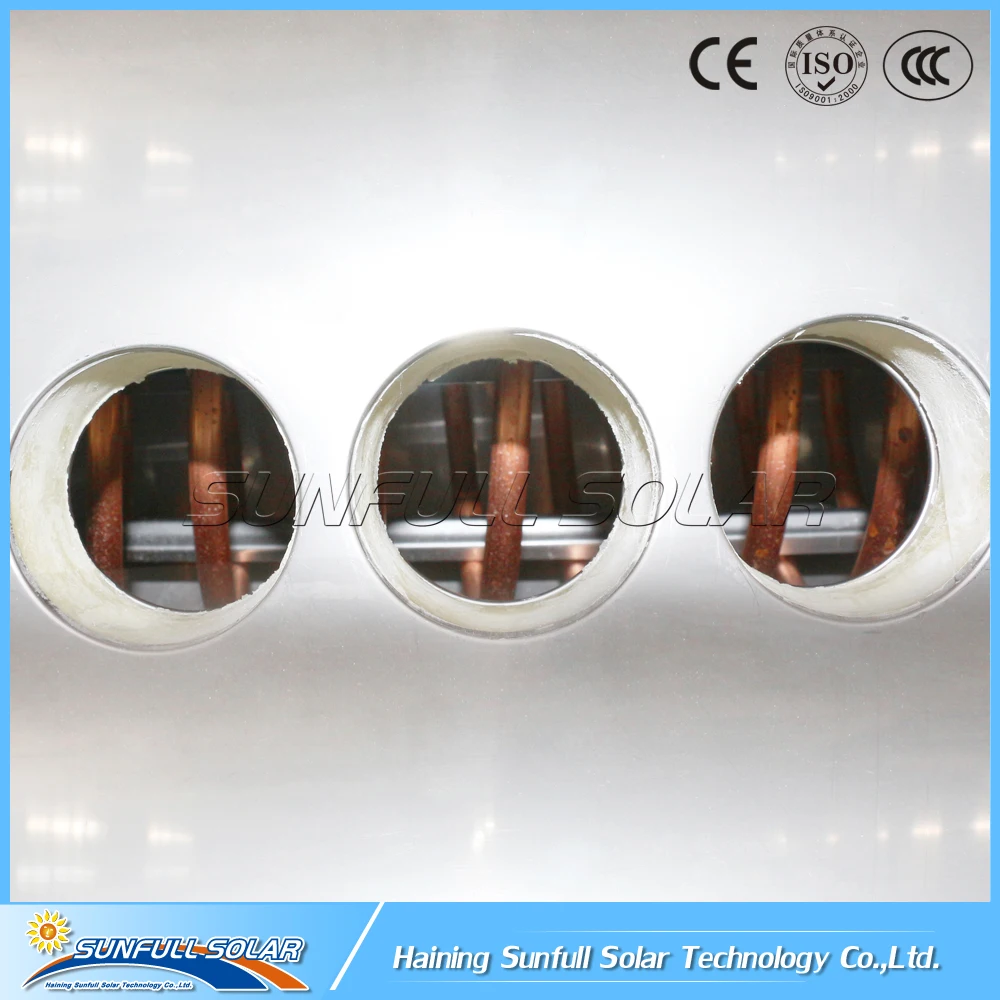

Cooper Coil
\t
Diameter
\t
12mm
\t
Thickness
\t
1.0mm
\t
Length
\t
20m to 40m for different capacity
\t
VACUUM TUBES SPECIFICATION
\t
Tube structure
\t
All-glass double deck co-axial structure
\t
Glass material
\t
Borosilicate 3.3 glass
\t
Outer tube diameter & thickness
\t
Ø58±0.7mm;
Glass thickness 1.6±0.15mm
\t
Inner tube diameter & thickness
\t
 Ø47±0.7mm;
Glass thickness 1.6±0.15mm
\t
Tube size
\t
Ø58mm *1800mm
\t



Absorptive coating material
\t
Structure
\t
 Cu/SS ALN(H)/SS-ALN(L)/ALN
\t
Sediment method
\t
 Three targets - magnetron sputtering plating
\t
Absorption
\t
  0.93-0.96(AM1.5)
\t
Emission
\t
0.04-0.06(800C±50C)
\t
Solar irradiation for obtaining a preset water temperature
\t
Φ=58 H≤4.7MJ/m²
\t
  H=4.1-4.4MJ/m² / H=3.7-4.2MJ/m²
\t
Vacuum tightness
\t
5.0×10¯³ Pa
\t
Idle sunning property parameters
\t
260-300 m².C/KW
\t
Average heat loss coefficient
\t
ULT=0.4~0.6W/(M2.0C)
\t
Model
\t
Capacity(Liter)
\t
Tube Specification
\t
Tube Quantity
\t
Packing Size(CBM)
\t
Loading Quantity(Set)
\t
20'GP
\t
40'GP
\t
40'HP
\t
SF-NPS58-12
\t
120L
\t
Ø58*1800mm
\t
12
\t
0.432
\t
66
\t
136
\t
160
\t
SF-NPS58-15
\t
150L
\t
Ø58*1800mm
\t
15
\t
0.540
\t
53
\t
109
\t
128
\t
SF-NPS58-18
\t
180L
\t
Ø58*1800mm
\t
18
\t
0.648
\t
45
\t
91
\t
106
\t
SF-NPS58-20
\t
200L
\t
Ø58*1800mm
\t
20
\t
0.720
\t
40
\t
82
\t
96
\t
SF-NPS58-24
\t
240L
\t
Ø58*1800mm
\t
24
\t
0.864
\t
32
\t
68
\t
80
\t
SF-NPS58-30
\t
300L
\t
Ø58*1800mm
\t
30
\t
1.080
\t
26
\t
55
\t
64
\t
SF-NPS58-32
\t
320L
\t
Ø58*1800mm
\t
32
\t
1.152
\t
24
\t
51
\t
60
Product Feature

Copper Coil Heat Exchanger Pre-heated Solar Water Heater DIY Trade in China

1. Hot water inside copper coil is fresh without secondary pollution; it can be used as portable water

2. Copper coil inside tank can take pressure and connect tap water directly.

3. Working principle is more advanced than thermosyphon solar water heater.

4.We adopt special exchanging heat mode, it avoids mixed effect, so cold water can be heated at any moment.

5.Strong hydraulic pressure: The hydraulic pressure is same as tap water; it is very suitable for tired person.

6. There is no pollution when it is working since it depends on sunshine. Green and economical.

7.Easy operation: It can supply water automatically, you can take it easy and enjoy good time.

8.Instant water heating ensures more clean and convenient hot water use.

9. Long service life, can be used over 15 years.
Working Principle

The working principle of pre-heating compact pressurized solar water heater.

Copper Coil Heat Exchanger Pre-heated Solar Water Heater DIY Trade in China

“Pre-heating” solar water heater provide mains pressure via a high efficiency copper coil heat exchanger which located in the tank.

1. For water in the main tank, principle is the same as the non-pressure solar water heaters:
All-glass evacuated tubes absorb and transfer sun energy into heat energy, then heat water in the vacuum tubes. Depend on the different density between the hot water and cold water; a cycle can be created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank becomes hotter and hotter.

2. For water in the copper coil:
When cold water flows through the coil it absorbs heat from the water inside the pre-heating tank. And the water we actually use is the water in the copper coil, it means it is the fresh water (there is no pollution in the water).

Accessories
Service

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign

trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater,

we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.

FAQ

1. what is your delivery time?


· Sample in one week after payment.
· Twenty-Foot container order 10-15 days after deposit.

2. what is your Guarantee time?


· 3 years, and 1 years for accessories
· Provide you with some extra accessories for free

3. Can you accept OEM?

· Yes

4. What is your MOQ?

· 1 Twenty-Foot container

5. What is your Payment Term?

· We accept T/T or Western Union
