48V 100Ah LiFePO4 Battery Pack Lithium Ion 4.8Kwh Storage Battery With BMS For Solar

Share on (60671010936):


Price:$1,077.00 - $1,145.00

Quantity:


Product Overview

Description

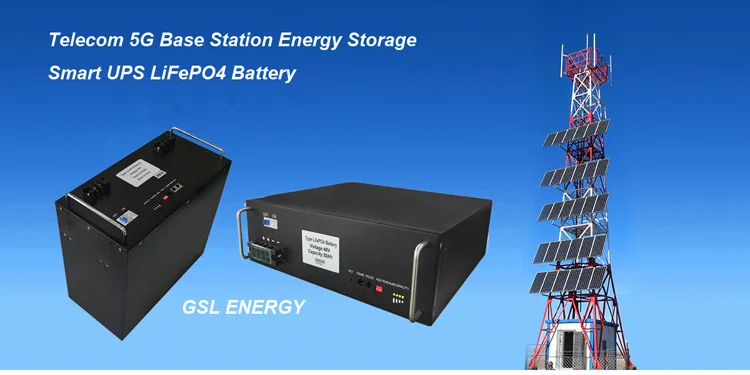

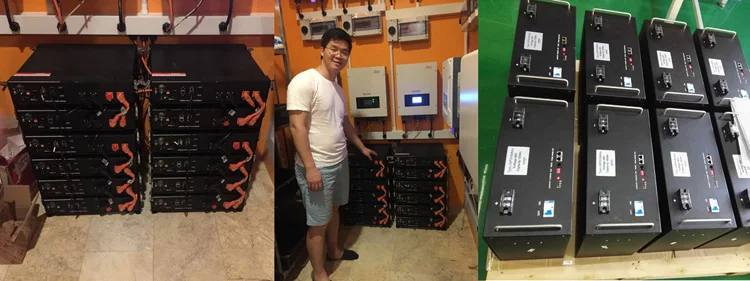

telecom lithium battery .jpgstorge battery 750.jpg








GSL lithium ion battery is new environmentally friendly backup power system focus on short-time andhigh-rate discharge scenarios.The environmentally friendly lithium ion battery configured withhigh-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications.






Product Description

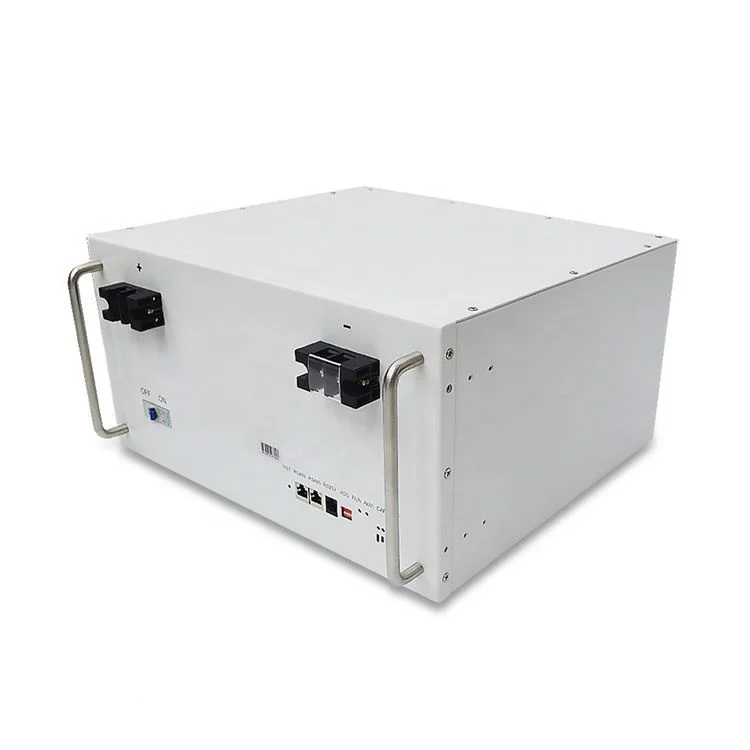

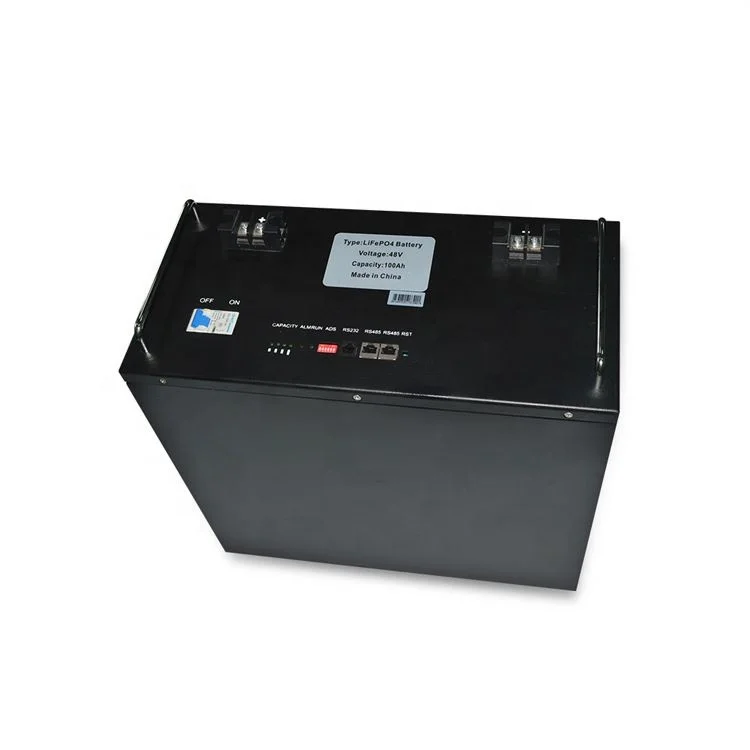

48V 100Ah LiFePO4 battery pack lithium ion 4.8Kwh Storage Battery with BMS for solar

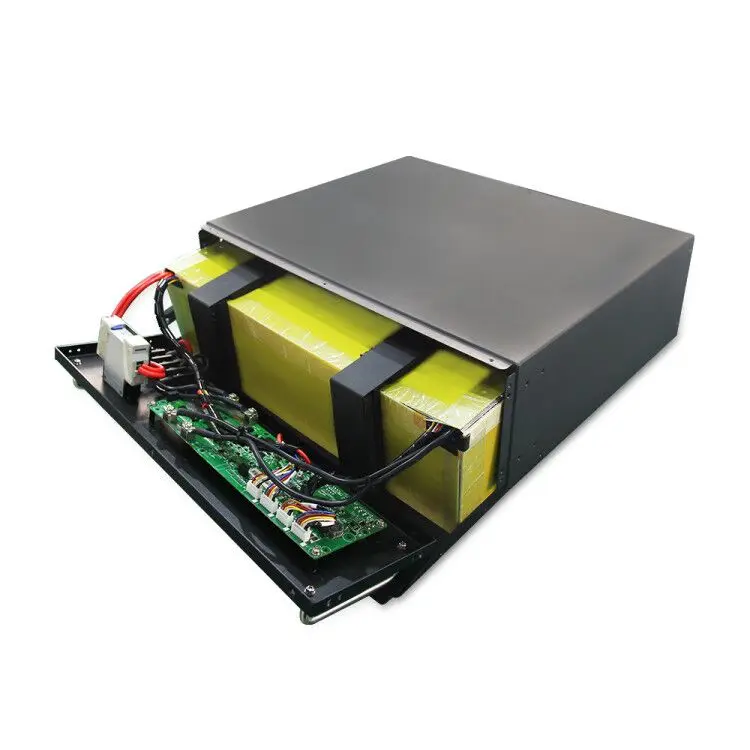

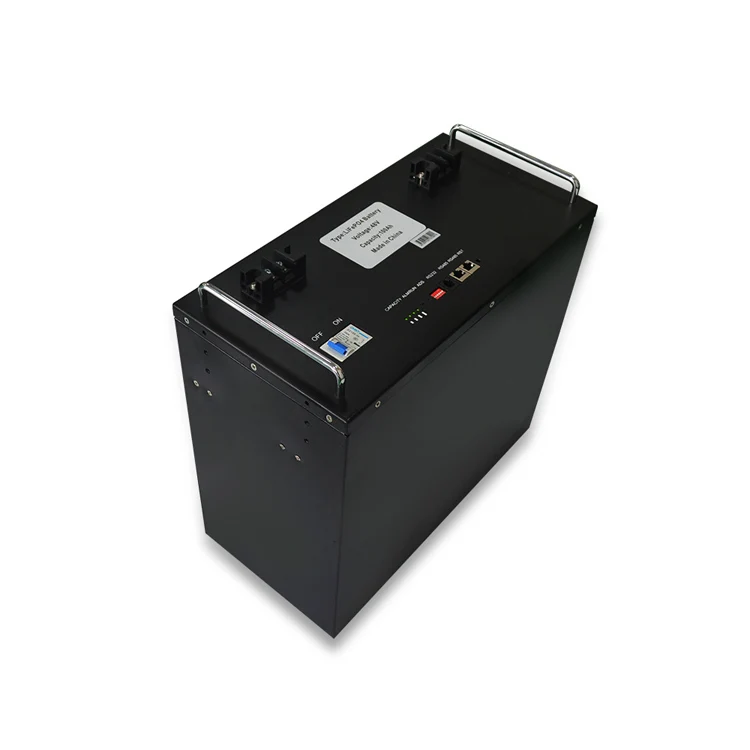

48v 100ah li ion battery.jpgtelecom battery.jpgBasic Specification










































































































































NOItemsItemsMODEL : GSL48100-5U
1Cell TechnologyLifepo4
2Battery Pack Capacity (kWh)5120
3Battery pack Voltage (Vdc)48
4Battery pack Capacity (AH)100
5Battery pack Cell Quantity in Series (pcs)16S
6Battery pack Charge Voltage (Vdc)58.4
7Battery System Charge Current (Standard)10A
8Battery pack Charge Current (Normal)20A
9Battery pack Charge Current (Max.)50A
10Battery pack Discharge lower-Voltage (Vdc)46V
11Battery System Discharge Current (Standard)20A
12Battery pack Discharge Current (Normal)100A
13Battery pack Discharge Current (Max.)250A
14Efficiency98%
15Depth of Discharge100%
16Dimension (L*W*H, mm)440*480*220
17CommunicationOption of CANBUS OR RS485, SMbus
18Protection ClassIP54
19Weight65.5KG
20Operation Life10+ years
21Operation Cycle LifeOver 4000 times
22Operation Temperature0-50°C
23Storage Temperatureminus 20 -- 60 °C
24Products certificatesTÜV (IEC62619), CE
25Transfer CertificatesUN38.3 , MSDS




 Click here to send us an inquiry








Telecom Partners


telecom partners.png





ADVANTAGES


1.It is high integrated with less installation space.


2.Long life cycle, >3000 times at 80% DOD.


3.It without heavy metals and environment friendly.


4.Maintenance free,there is no memory effect.


5.Internal BMS with full protection,battery has high voltage protection with higher reliability.








SAFETY


Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



lithium ion battery.jpg








APPLICATIONS lithium battery 12v.jpg





1.Energy Storage
   --Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
   --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
   --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
   --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
   --LED Backup / Engine Starting Battery,etc.











WHY CHOOSE US ?


1.Experience--More than 12 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.


lifepo4 battery





 Click here to send us an inquiry








Company Information


KS ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS.  Striving to grow into a global leading lithium battery supplier, KS ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.


As a sub-factory of GSL GROUP, KS ENERGY is specializes in clean and new energy on lithium ion battery products.





lithium battery supplier.jpg











Welcome To Visit





factory








Through years development and experienced international sales team in Shenzhen, KS ENERGY green solar and lithium battery products have been sold to clients all over the world.





Lithium battery Exhibition.jpg








Since 2006, KS ENERGY has maintained a corporate philosophy that is characterized by entrepreneurship, innovation, competition and transcendence. Today KS has established a solid foundation in two major industries: photovoltaic and Lithium, with its four production bases in Shangdong, Zhejiang, Sichuan, Guangdong.





Lithium battery factory.jpg





 Click here to send us an inquiry











Our Services


KS ENERGY partners with customers to provide complete energy storage solutions that enable the rapid development and delivery of innovative products that meet demand in both existing and emerging markets.


--Professional pack module design on cylindrical and Prismatic design.


--Fast Production and Delivery time.
