Price:$7,800.00

Quantity:


Product Overview

Description







Product Description






*Usage and Characteristics*

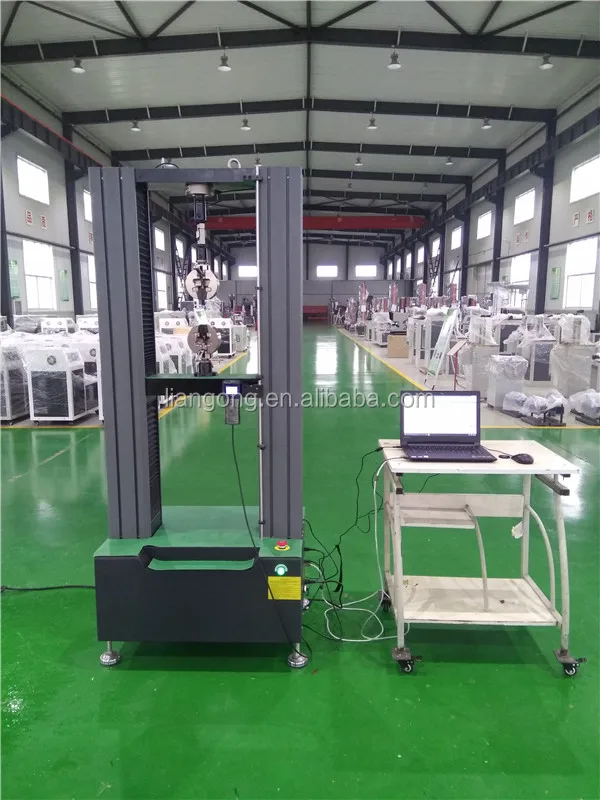

CMT series electronic universal testing machine is used for metal and nonmetal(including composite materials) for the normal and high,low temperature tensile, compression, bending, shear, striping, tear, load, relaxation, reciprocating and other static mechanical property test and analitycal investigation,which can calculate the test parameters automatically like ReH,ReL,Rp0.2,Fm,Rt0.5,Rt0.6,Rt0.65,Rt0.7,Rm,E and so on,and can test and provide data according to GB,ISO,DIN,ASTM,JIS and other international standard.


Regarding the electronic tensile testing machine: The single column series electronic universal testing machine is composed of base, three columns and one light bar; the portal frame electronic universal testing machine is composed of base, two fixed crossbeam, one movable crossbeam, four columns and two light bar.

This series machines is with good appearance and stable performance, high stiffness, high control precision, high work efficiency, low noise, and energy saving. It provides a perfect security for from load nonmetallic biomaterials to big load high strength metal building materials test. It can realize repeated high precision testing, especially in the low speed control high speed returns performance.

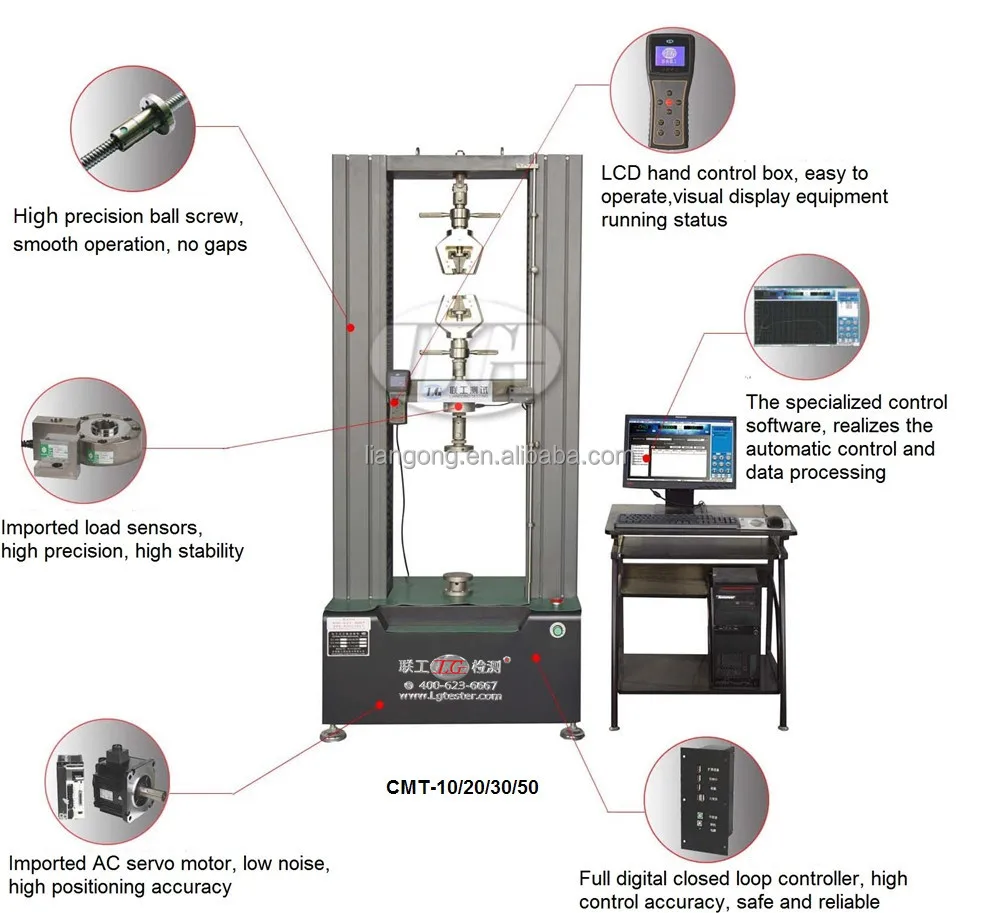

*Advantages*
1.DSC Controller, connect with the computer through USB, with stable performance, safety and easy maintain and update.
2.Controller independent acquisition and control testing machine, it can realize three loop and polynuclear control, which can easily control tensile stress, deformation and displacement, synchronous realize high resolution and high acquisition frequency. It can realize the collection of load and deformation at the same time,to ensure the high frequency acquisition speed, even the any change in the material testing.
3. Easily use control handle to adjust space and test
4. It can show the real-time data of force value, displacement and deformation, the total data zero, test starting, the fast and slow movements of beam up and down. Free your time and improve your efficiency.
5. Multiple layer protection, let test zero accident In addition to set overload limit, over-current, overvoltage scram protection, and also increased the sensor’s anti-shock protection, and to make sure that the sensor data can be monitored timely in order to make adjustment in advance. Another suggestion with customers with sample splash guard.
6. Multi-channel expansion, meet the rich extension test range, also it can equip with more force value sensor. In addition to the commonly used analog quantity acquisition channel outside, according to the customer need, acquisition channel can be extended to more than 10, meet all kinds of harsh test requirements




*Main Technical Parameters*

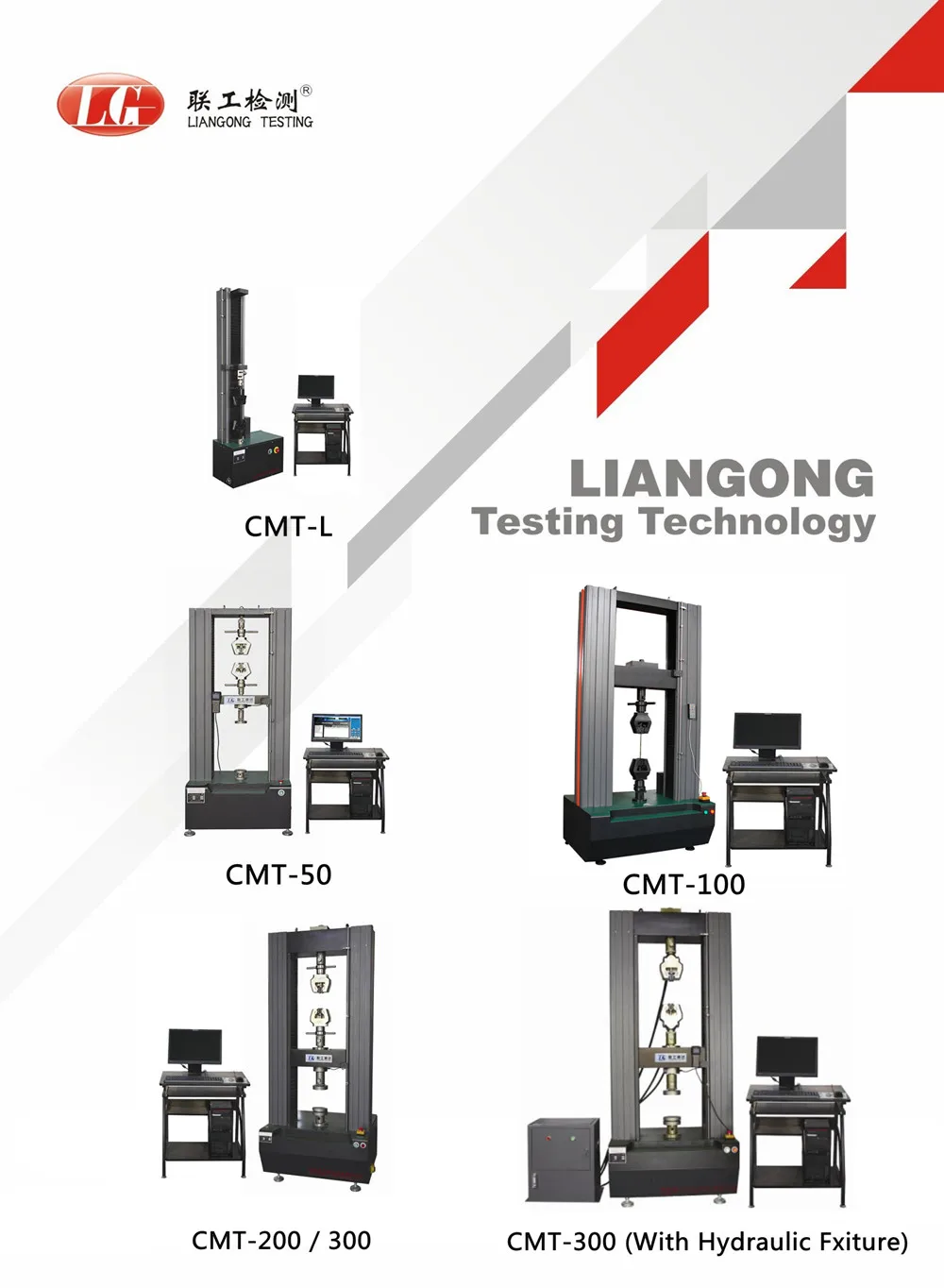

Model
CMT-01L. 02L. 05L. 1L. 2L. 5L
CMT-10. 20. 30. 50
CMT-100
CMT-200. 300
Measurement parameters
Max.Test force (kN)
0.1 0.2 0.5 1 2 5
10. 20. 30. 50
100
200. 300
Accuracy class
0.5 Class
Measuring range of test force
0.2%~100%FS (full scale)
Indicating error of test force
within ±0.5% of indicating value
Resolution of test force
±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process
Deformation measuring range
0.2%~100%FS
Deformation indicating error
within ±0.5% of indicating value
Resolution of deformation
1/200000 of maximum deformation, up to 1/300000
Large deformation measurement range
10-800mm
Large deformation indicating error
within ±1% of indicating value
Large deformation Resolution
0.008mm
Displacement indicating error
within ±0.5% of indicating value
Resolution of displacement
0.025μm
Control parameters
Tuning range of force control rate
0.005~5%FS/s
Control accuracy of force control rate
When rate is less than 0.05%FS/s, within ±2% of setting value
When rate is no less than 0.05%FS/s, within ±0.5% of setting value
Tuning range of resolution rate
0.2~100%FS
Control accuracy of resolution rate
When rate is less than 0.05%FS/s, within ±2% of setting value
When rate is no less than 0.05%FS/s, within ±0.5% of setting value
Tuning range of replacement rate
0.001~500mm/min
Control accuracy of movement rate
When rate is less than 0.5mm/min, within ±1% of setting value
When rate is no less than 0.5mm/min, within ±0.2% of setting value
Constant force,constant strain (deformation),constant displacement control range
0.2~100%FS
Other parameters
Crosshead stroke (customizable)
1120mm
970mm
1250mm
1000mm
Effective compression stroke
800mm
700mm
700mm
600mm
Effective width space
/
440mm
600mm
550mm
Power supply
220V, 50Hz, 0.4kW ~1kW
380V, 50Hz, 2kW ~5kW
Work environment
Room temperature ~ +35°C Relative humidity less than 80%
Host size (mm)
650*330*1730
820*620*1900
1050*855*2180
1070*920*2550
Weight
150kg
350kg
1000kg
1500kg
Remark
1.Equipped fixture can be based on users needs or customer made
2.Alternative transducer is available to extend the measuring range
3.The tensile space can be heighten on users requirement

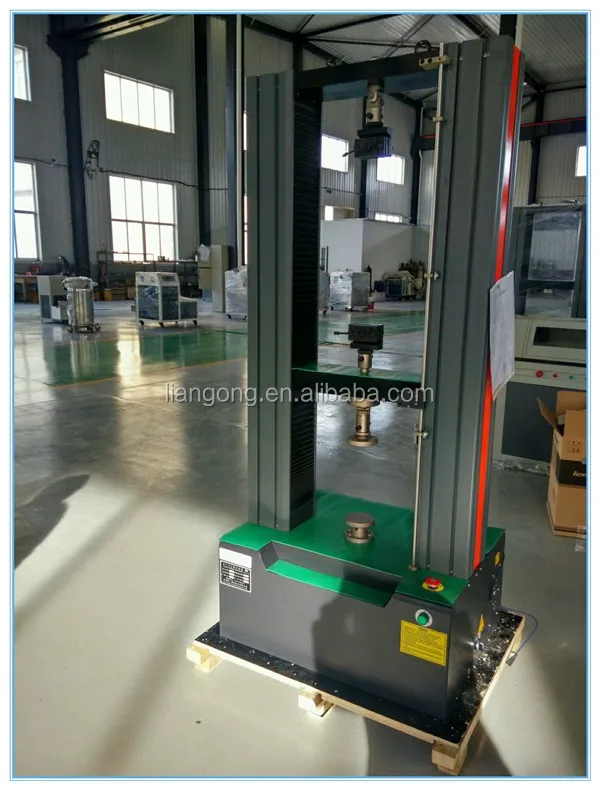

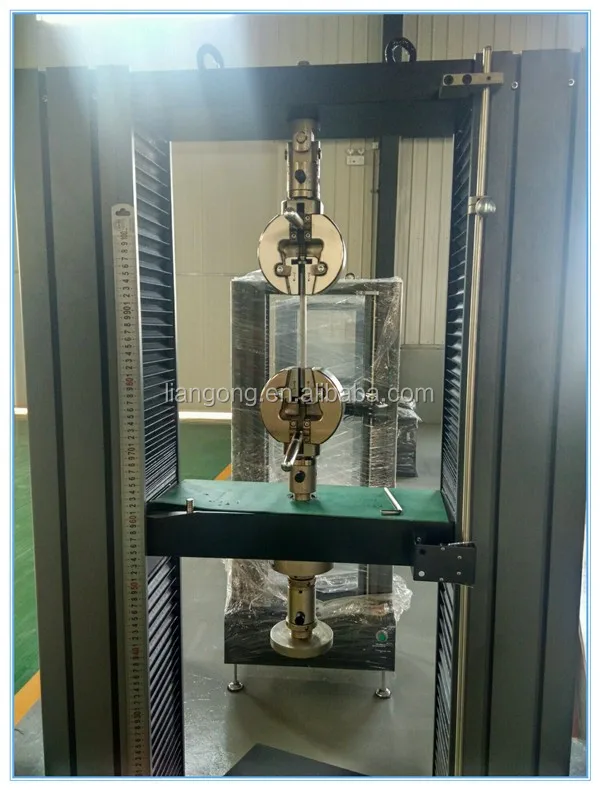

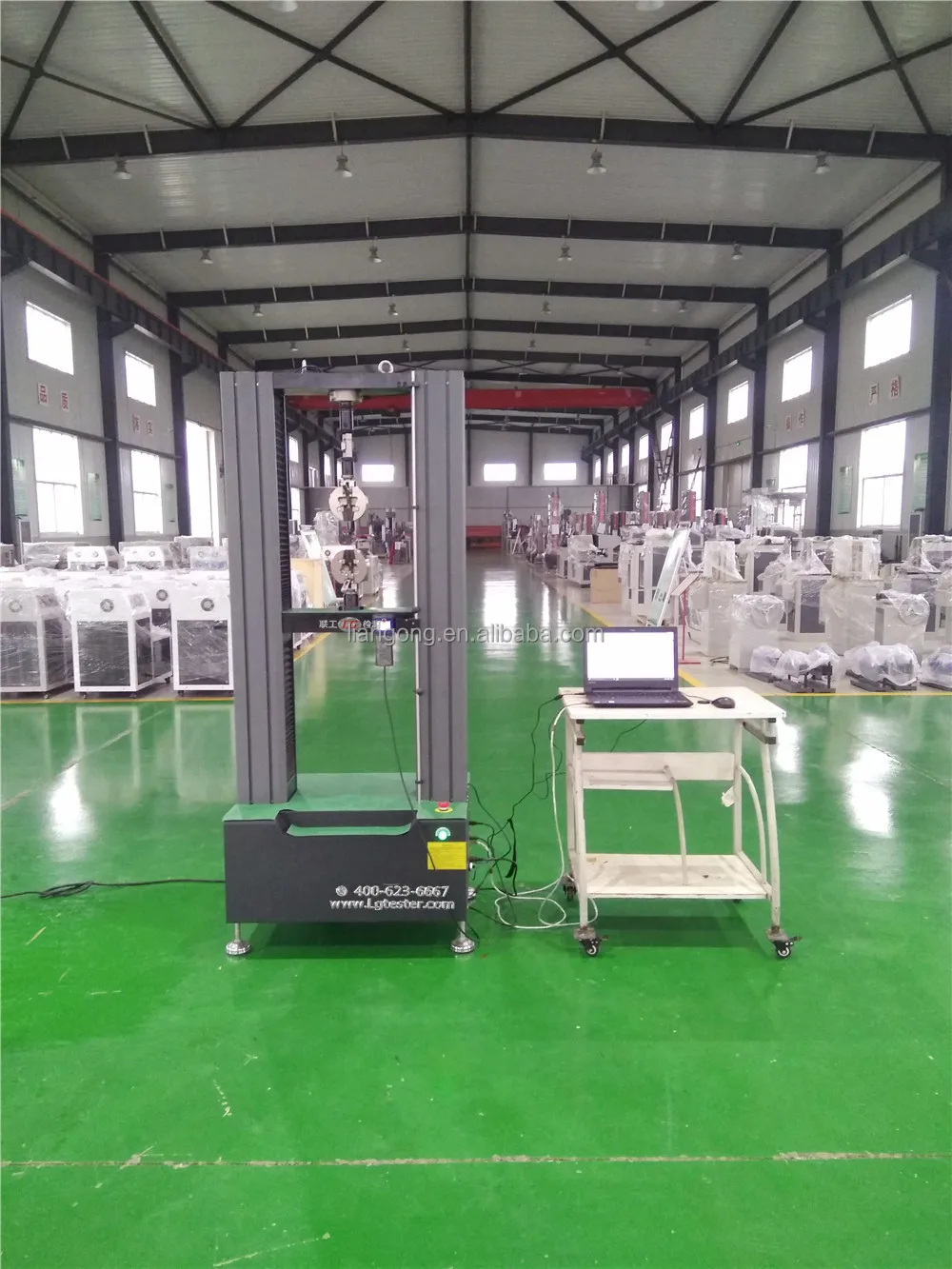

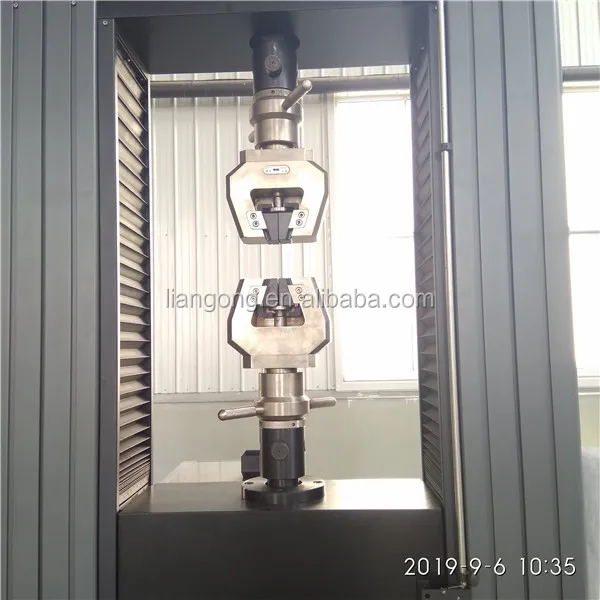

Detailed Images

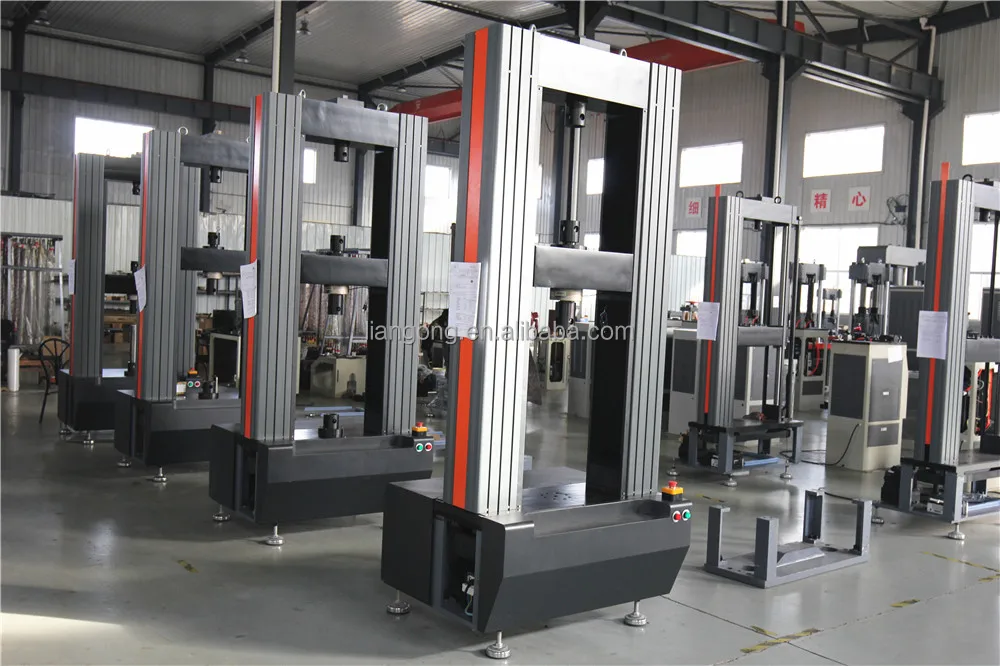

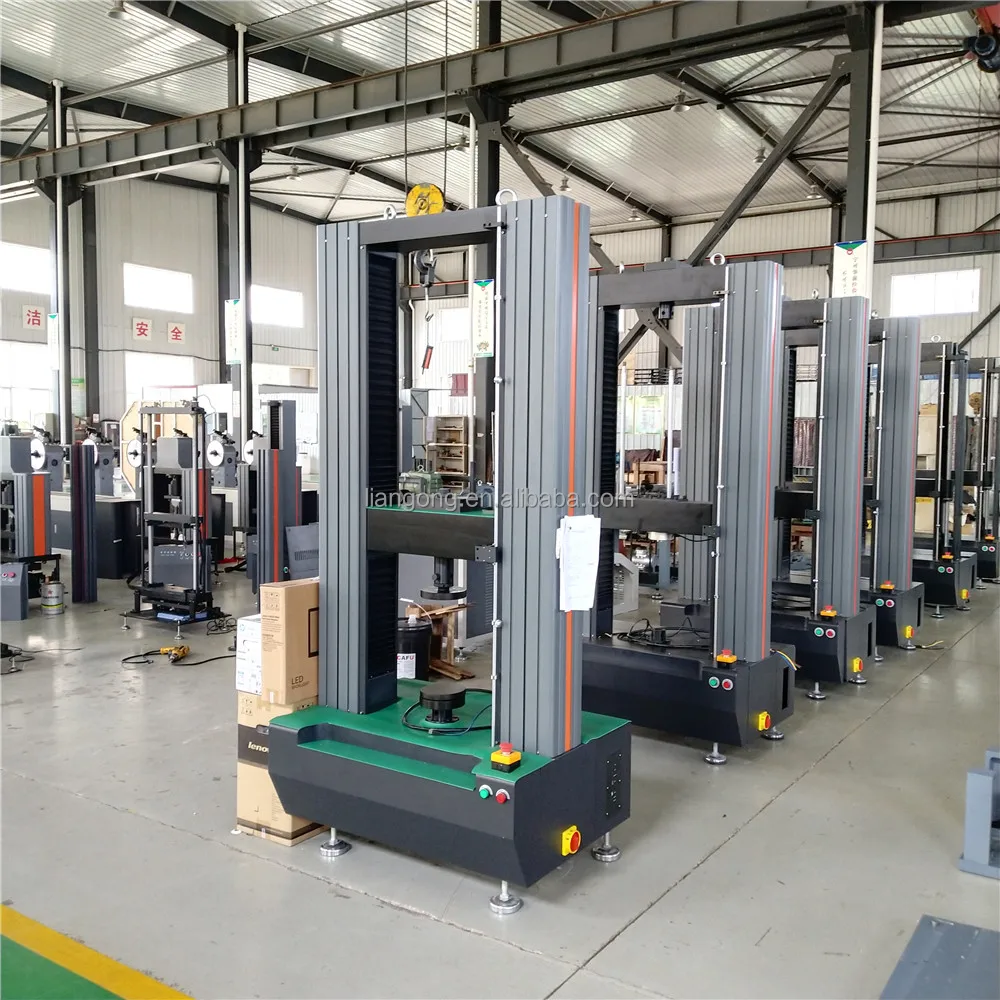

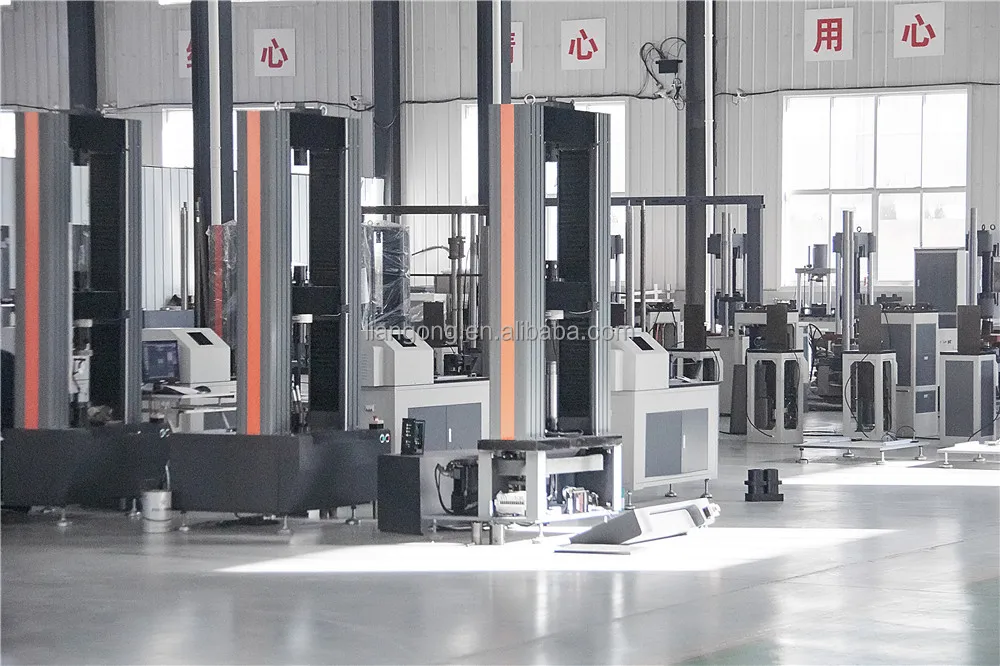

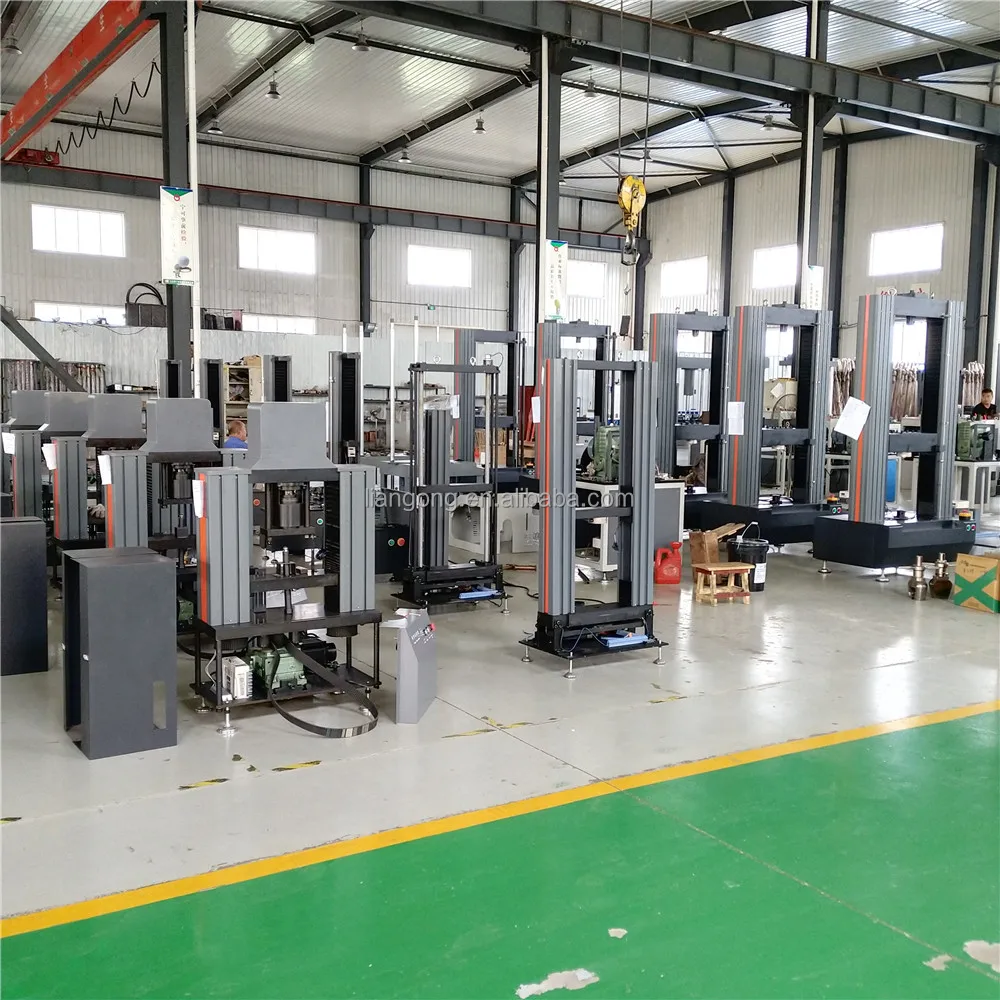

Company Introduction






Certifications

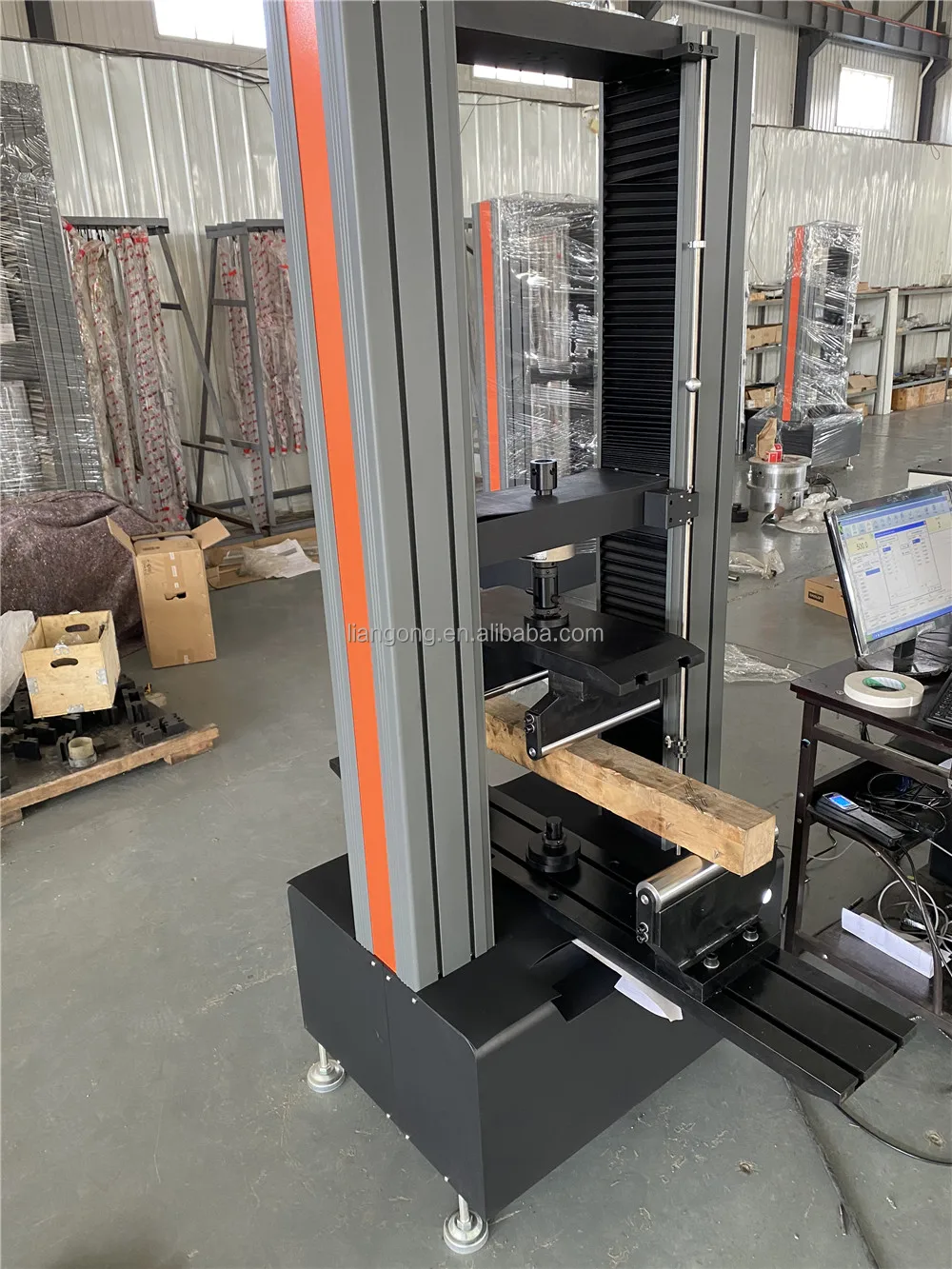

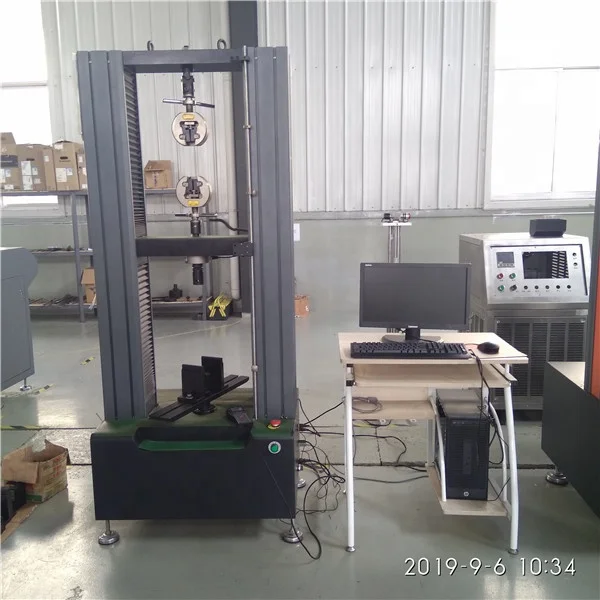

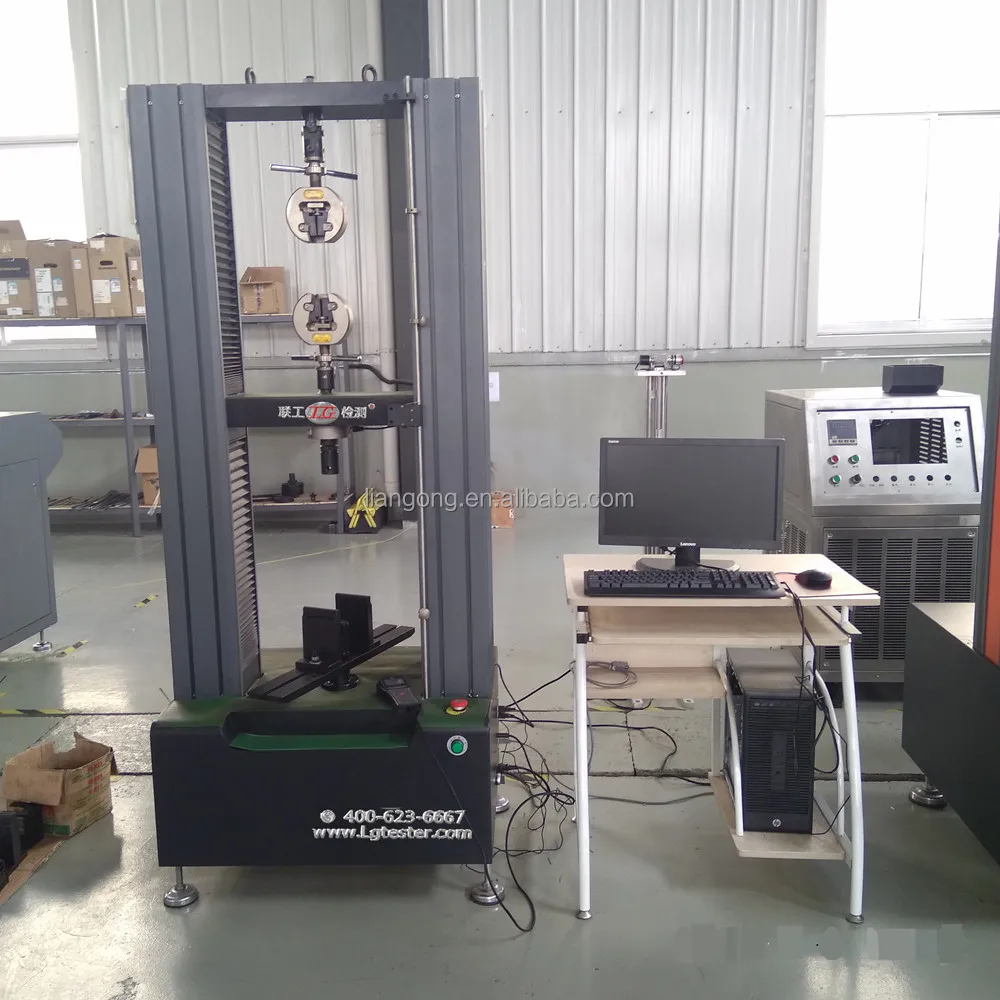

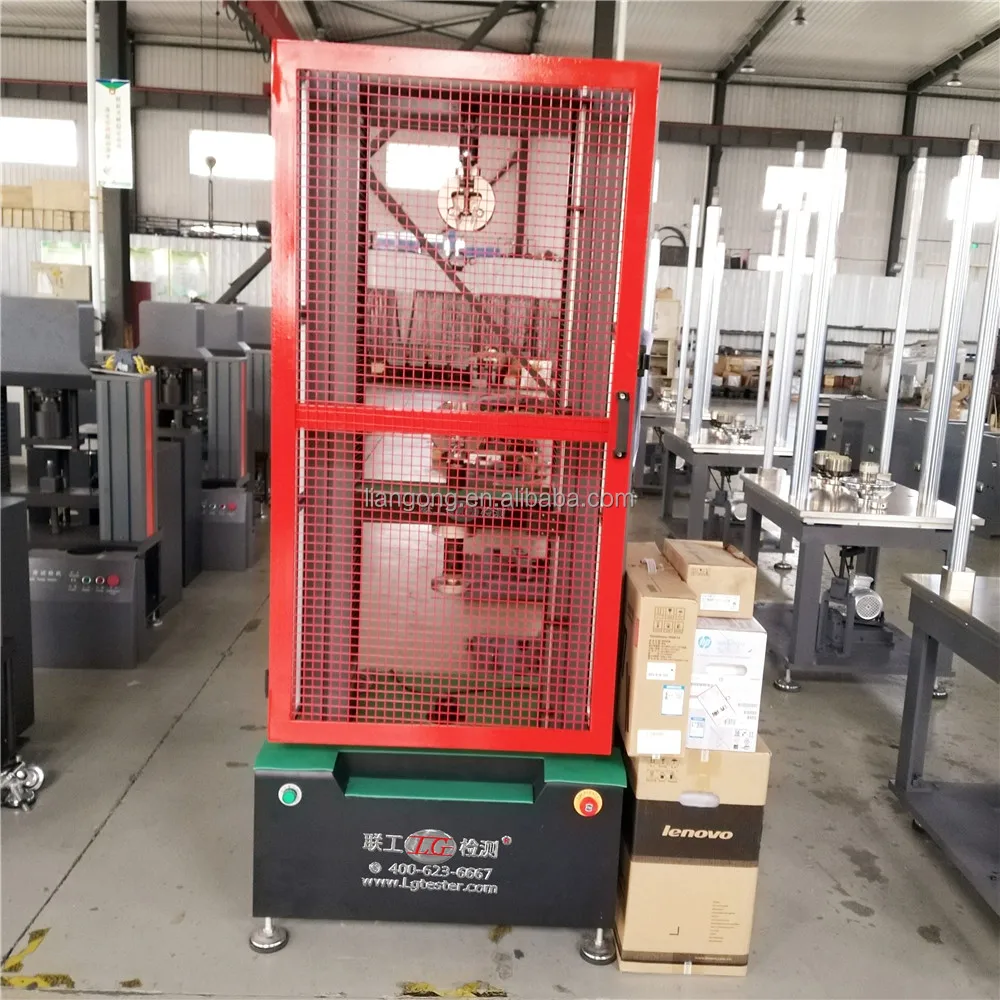

Customer Photos

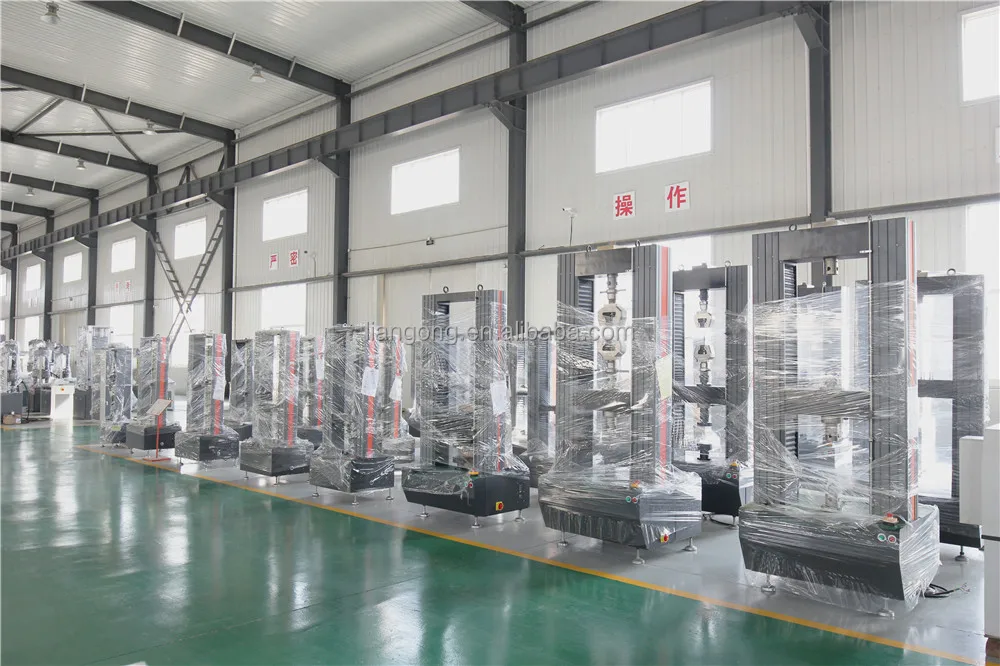

Packing&Shipping


Standard Export Plywood package per set






After Sales Service


Warranty
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance
Consultation services. We answer your question timely via the telephone or email. Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.


Because professional,its leading. We are committed to every customer to provide timely, efficient, high quality service!


FAQ


1. Are you manufacturer or trading company?
We are professional manufacturer for making testing machine, charpy testing machine,broaching machine, temperature champer, etc for many years.

2. What is your payment terms?
We accept TT, West Union, L/C, and other payment terms.

3. What is your delivery time?
Generally is about 10 days for standard testing machine, but for non-standard machines, it needs to be customized.

4. Can you accept customers' inspection or third party inspection?
Yes, we totally accept inspection before shipment. Welcome to our factory.

5. Why choose your company?
We are manufacturing testing machines for more than 10 years, and our products have exported all the world. We constantly study and research new projects, and some of our products have won patents. We also get the CE, ISO certificates. High quality products and service are our main center.
