BW, BZ type apron feeder is for transporting bulk materials, changing from batch feeding to continual feeding. Our company introduce foreign advanced technology to develop BW and BZ type apron feeder. It features strong pull, little leaking, stable operation, long life and easy maintenance.
Product characteristics:

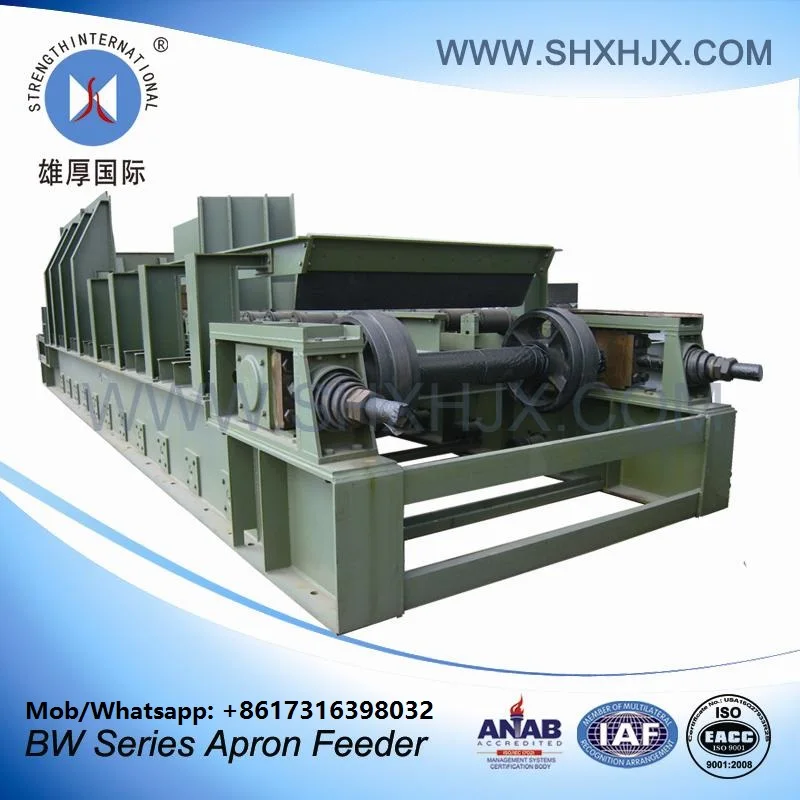

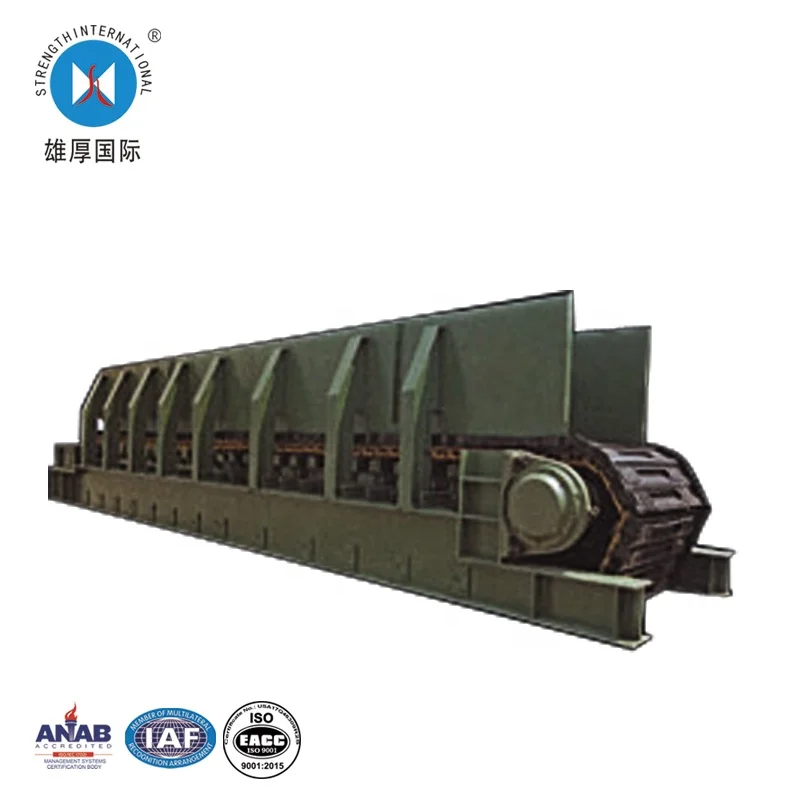

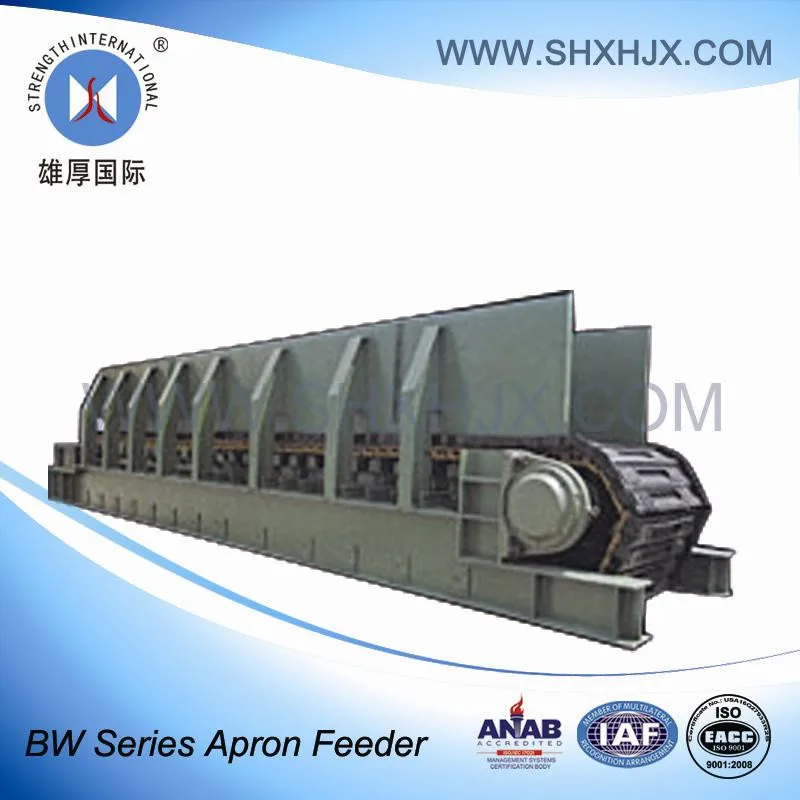

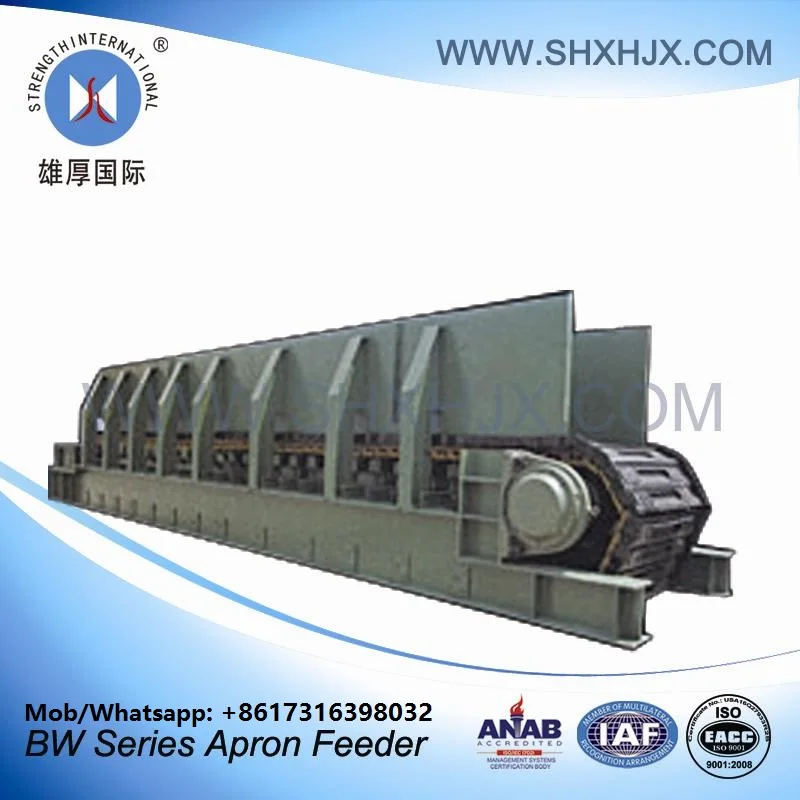

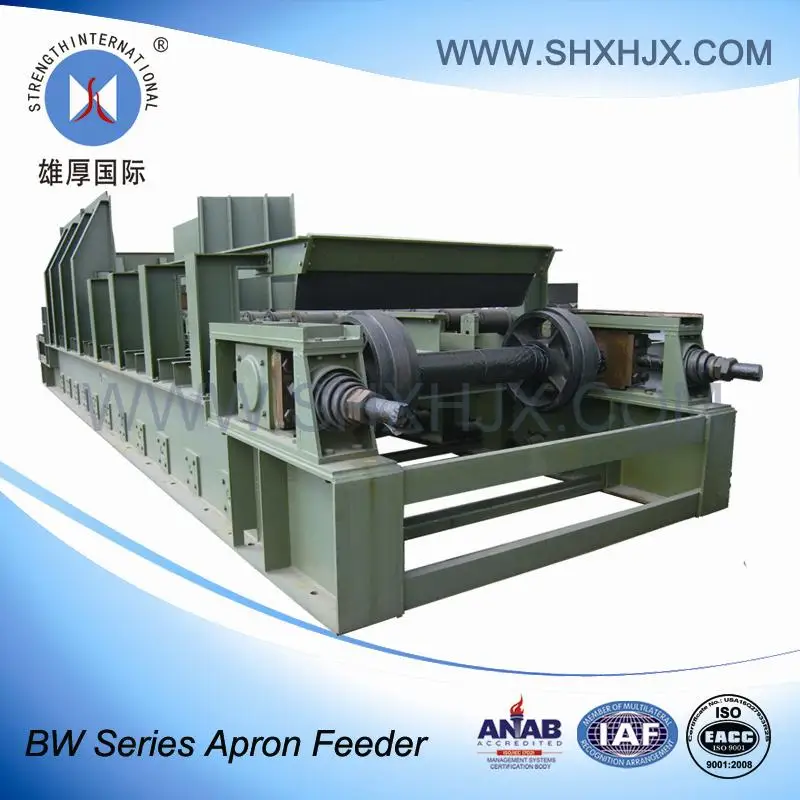

BW Type
☆With the special design of the tail unit , made the feeder suitable for rainy and humid area, "jumping over teeth" can be averted.
☆There is the sleeper for vibration absorption at the tail, and the roller bearing in the middle to increase the operation life of each components.
☆Separate traction chain and the bearing chain, small dynamic load, increase the operation life.
☆The head device is composed of three teeth which can be changed without removing the chain sprocket gear, easy maintained, odd and even number teeth separate transmission,operation life can be doubled.
☆The machine width parameter refers to the F.L.SMLDTH (Denmark) and AUMUND (Germany) company standard design.
BZ Type
☆Dry-type crawler chain is assembled and maintained conveniently without need for lubrication.
☆Key joint parts are linked by clamping and locking apron without influence on shaft diameter and easily assembled and dissembled.
☆Trough apron with punching and welding structure, overlapping, work without material leakage, strengthened groove plate , and with greater carrying capacity.
☆The driven device is supported with hanging single point floating method, which decreases feeder’s assembled size.the radial minimize plate feeding machine radial installation dimension.
\t
Model
\t
Width
(mm)
\t
Center Distance
(mm)
\t
Feed Size
(mm)
\t
Producing Capacity
(t/h)
\t
Power
(kw)
\t
BW80-L
\t
800
\t
3-15
\t
≤350
\t
0.2-75
\t
2.2
\t
BW100-L
\t
1000
\t
3-18
\t
≤600
\t
18-350
\t
5.5-18.5
\t
BW120-L
\t
1200
\t
4-20
\t
≤600
\t
30-220
\t
11-18.5
\t
BW125-L
\t
1250
\t
4-20
\t
<800
\t
40-250
\t
11
\t
BW140-L
\t
1400
\t
5-20
\t
≤900
\t
20-200
\t
22
\t
BW150-L
\t
1500
\t
5-20
\t
≤900
\t
40-300
\t
22-30
\t
BW160-L
\t
1600
\t
6-20
\t
≤900
\t
27-300
\t
22
\t
BW180-L
\t
1800
\t
6-20
\t
≤970
\t
30-350
\t
22-55
\t
BW200-L
\t
2000
\t
8-20
\t
≤1500
\t
300-800
\t
45
\t
BW220-L
\t
2200
\t
8-20
\t
≤1500
\t
150-820
\t
45
\t
BW230-L
\t
2300
\t
8-20
\t
≤1500
\t
200-600
\t
45
\t
BW240-L
\t
2400
\t
8-20
\t
≤1500
\t
220-680
\t
45
\t
BW250-L
\t
2500
\t
10-20
\t
≤1500
\t
1250
\t
45
\t
BZ160-L
\t
1600
\t
6-20
\t
≤800
\t
≤270
\t
30-45
\t
BZ180-L
\t
1800
\t
8-20
\t
≤900
\t
≤500
\t
37-55
\t
BZ200-L
\t
2000
\t
8-20
\t
≤1000
\t
≤700
\t
45-75
\t
BZ220-L
\t
2200
\t
8-20
\t
≤1200
\t
≤800
\t
45-75
\t
BZ230-L
\t
2300
\t
8-20
\t
≤1500
\t
≤850
\t
45-90
\t
BZ240-L
\t
2400
\t
10-20
\t
≤1600
\t
≤900
\t
2×37(45)
\t
BZ250-L
\t
2500
\t
10-20
\t
≤1800
\t
≤1000
\t
2×45(55)
