Шаг 2,54 мм 20 контактный двухрядный прямой Штекерный разъем DIN41612
Шаг 2,54 мм 20-контактный двухрядный прямой Штекерный разъем DIN41612
Шаг 2,54 мм 20-контактный двухрядный прямой Штекерный разъем DIN41612

Шаг 2,54 мм 20 контактный двухрядный прямой Штекерный разъем DIN41612

Share on (60671148432):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Product Name
\t

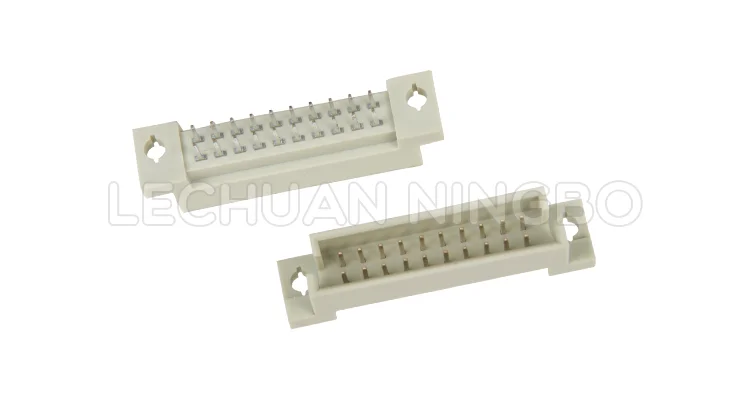

Pitch 2.54mm 20Pin Two Row Straight  male DIN41612 Connector
\t
Material
\t
Insulator:PBT&30%Glass Fiber, UL94V-0



\t
Contact Plating:Male-Brass Female-Phosphor Bronze
\t
Contact Area:Gold plated over Nickel
\t
Soldering Area:Tin plated over Nickel

\t
Electrical
\t
Contact Resistance:30mΩ max.at DC 100mA
\t
Insulator Resistance:1000MΩ min.at DC 500V
\t
Withstanding Voltage:AC 1000V for 1 minute
\t
Environment
\t
Operating Temperature:-55℃~+105℃

\t
Storage Temperature:-40℃~+85℃
\t
Constant Moisture:95%RH,40℃for 96Hrs
\t
Solderability:After flux 230±5℃for 5±0.5 seconds, 95%coverage
\t
Sodering Temperature:260±5℃for 5±1 seconds

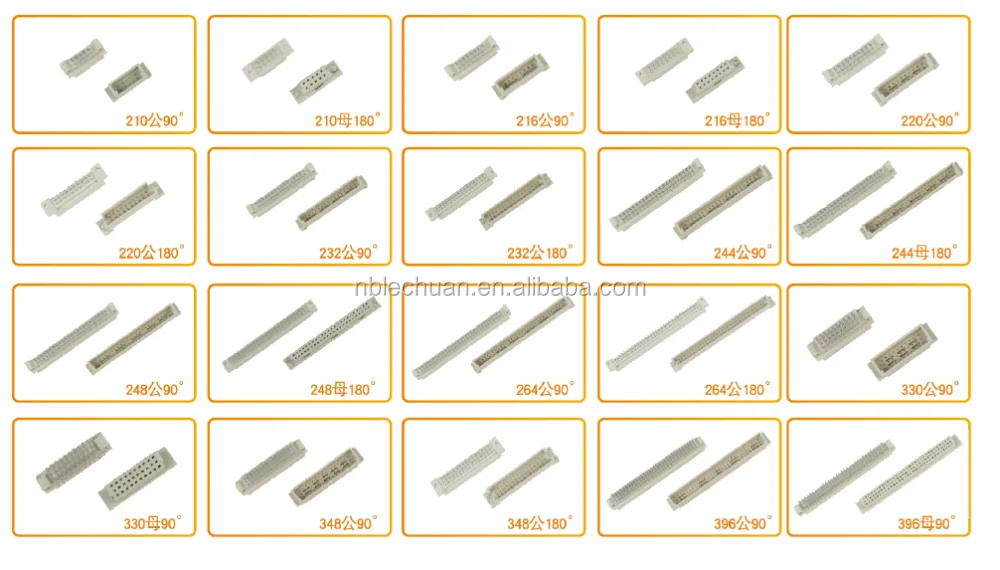

Products Show
Our Factory

Workshop

Automation Assembling line

Workshop

Automation Assembling line

Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and trade

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but  freight cost will be collected .

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
