Free Shipping VC678 1 Black Plastic Electronic Hot Automatic Sensor Toilet Flush Valve Toilets Magnetic Water Flow Switch

Free Shipping VC678 1 Black Plastic Electronic Hot Automatic Sensor Toilet Flush Valve Toilets Magnetic Water Flow Switch

Category: Flow Switches >>>
Supplier: Ningbo,Vic.S,Import,&,Export,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Free Shipping VC678-1 Black Plastic Electronic Hot Automatic Sensor Toilet Flush Valve Toilets Magnetic Water Flow Switch

Hot Sale

Product Description

Specifications

item	technical parameters
Max contact power	10W	50W
Max switch voltage	100VDC/100VAC	350VDC/300VAC
Min break down voltage	150VDC	600VDC
Max switch current	DC0.5A	DC0.7A/AC0.5A
Max carry current	1.0A	2.5A
Max contact resistance	100mΩ	100mΩ
Min insulation resistance	109Ω	1010Ω
Contact life	107times
Operating temperature	-1~+85℃
Applicable environment temperature	-40~+125℃
Min flow rate	≥1.5L/MIN
Max operating flow rate	15L/MIN,30L/MIN,50L/MIN(optional)
Max carry pressure	1.2 MPa

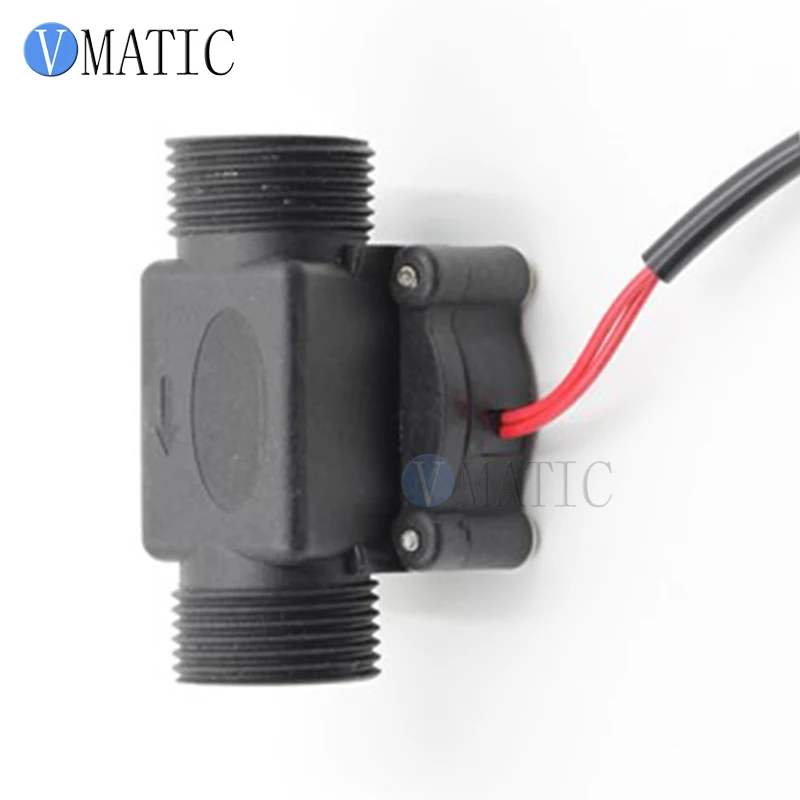

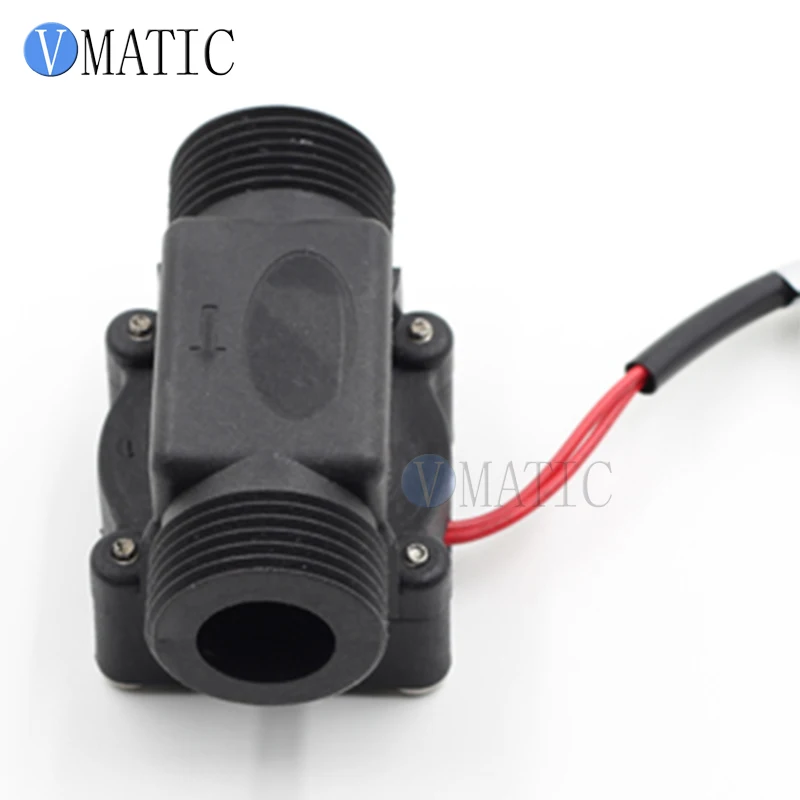

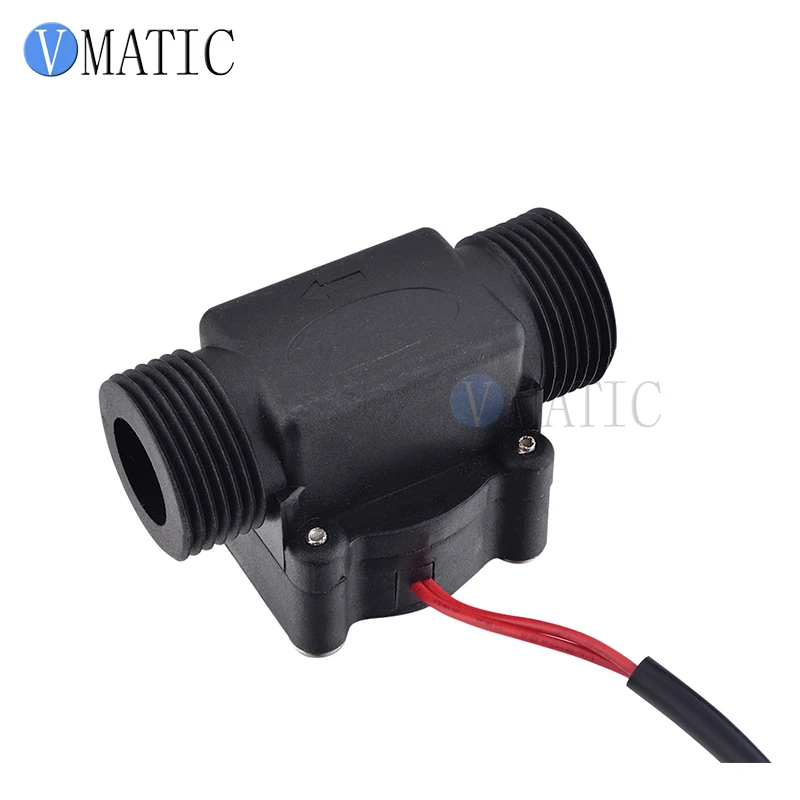

Electronic Water Flow Switch

Introduction: flow sensor consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor activates the magnetic core to trigger switch action, with signal output.

Features: imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.

Applications: it is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Fluxostato

Descrição: o interruptor de escoamento do núcleo, e um alojamento do sensor, quando o líquido por condução da operação do núcleo, fazendo com que a operação de comutação, o sinal de comutação de saída.

Características: Importado elemento de comutação magnética, o princípio de funcionamento é simples, confiável e barato.

Aplicações: aquecedor elétrico de água, aquecedores de água solares de controle de circulação de água, condicionadores de ar e outros sistemas de água, fora do controle da água, interruptor de controle da bomba, controle de válvula solenóide on-off ou a força da água, controle da água alimentado.

Electronic Water Flow Switch
