Product Overview
Description
Products Description
Touch screen battery crush tester is suitable for simulating the use of batteries in the use,
transportation, storage or disposal of household waste, the battery is squeezed in the case
transportation, storage or disposal of household waste, the battery is squeezed in the case
of the battery does not explode without fire for qualified.
Specification
Product Model | RT-2102 |
Force Range | 0~20KN(Adjustable, customized) |
Tester Architecture | Free Stand & Vertical extrusion |
Force Deviation | ≤±1% Full-scale Range |
Unit Shift | Kgf,lbf,n,kn,kpa,mpa |
Crushing Velocity | 1~ 900mm/min(controllable) |
Crushing Velocity Accuracy | ≤±1% Full-scale Range |
Crushing Travel | 350mm |
Crushing Motion Accuracy | ≤±1% Full-scale Range |
Working Chamber Dimension | W400 X D450 X H400 mm |

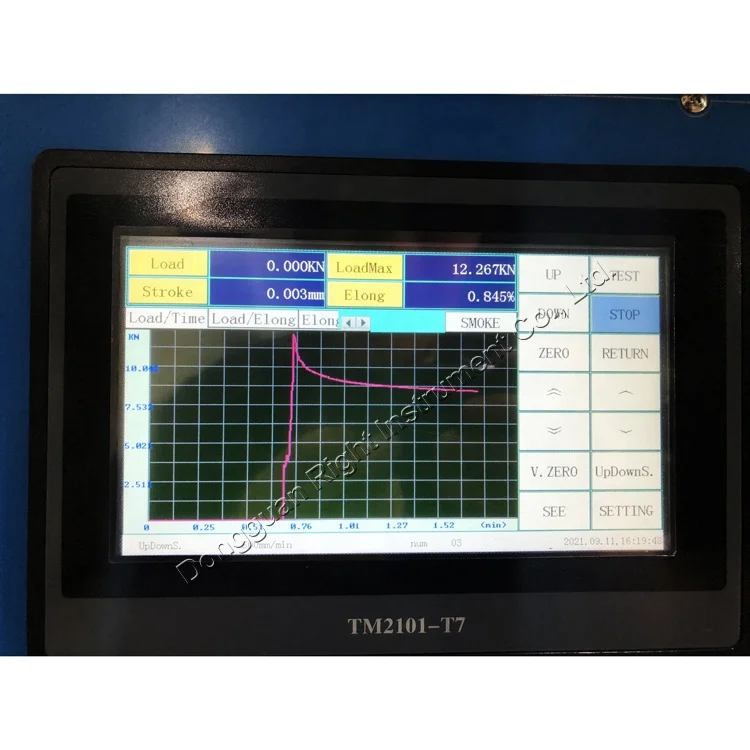

Test Terms | Force, Displacement (Deformation), Voltage, one from three projects or all three projects |
Crushing Time Maintaining | 0~99 Hours 99 Minutes & 99 seconds, time can be controllable to control the deformation and stop if test fulfilled. |
Industrial Communication | PLC Computer Control,ensure stability and real-time of remote sampling, with explosion-proof function, all data can be store and print through computer with Excel format. |
Voltage Acquisition System | One channel(customized) Resolution:1mv Acquisition Range:0-100V |
Temperature Acquisition system(option) Resolution | 0.1 degree Acquisition Range:0~1200 degree No. of channel:2(customizable) |
Auxiliary Function | Explosion-proof Pressure Release System, Exhaust System, fire-extinguish device |
Driving Method | Servo Motor Driving |
Voltage Resolution | 1mv |
Power Input | 220V 50 Hz |
Overall Dimension | W750 X L720 X H1710 mm |
Product Feature
1. The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.

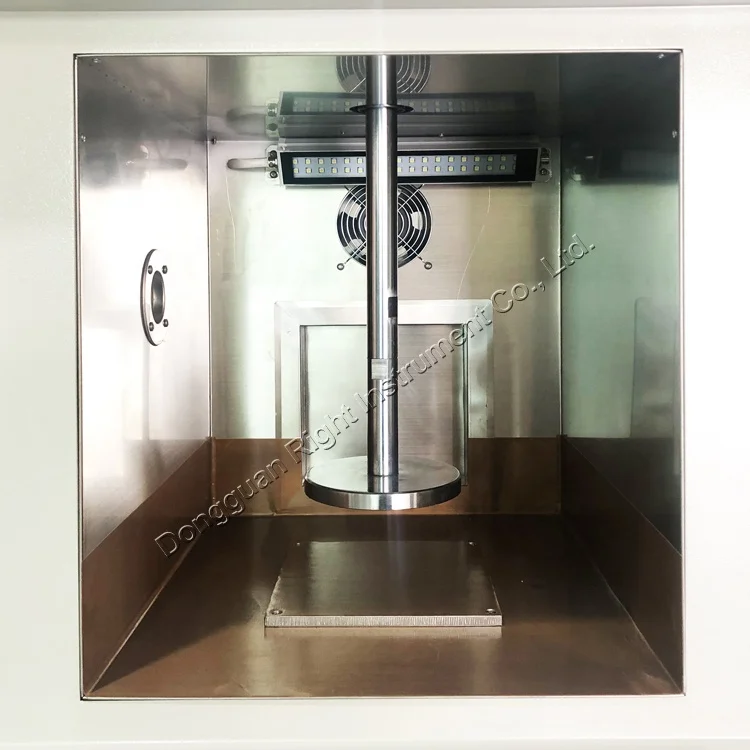

2. Lighting system is designed to observe the internal testing process;
3. Nail Penetration/Crush Force controllable within range from 250N to 13KN ,meet different standards;

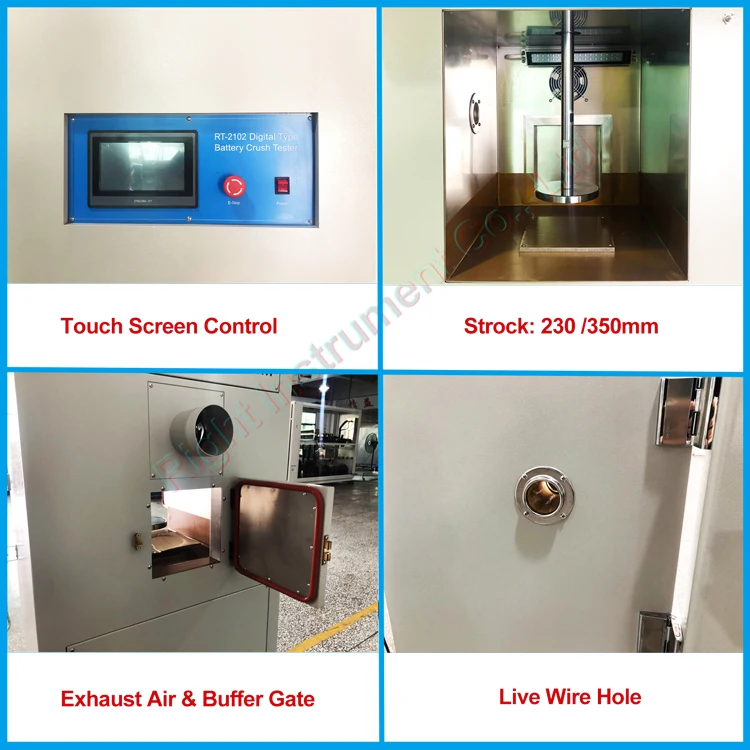

4. Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.
5. Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.
2. Lighting system is designed to observe the internal testing process;
3. Nail Penetration/Crush Force controllable within range from 250N to 13KN ,meet different standards;
4. Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.
5. Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.
Product Advantages
Standard Compliance:
4.1.GB/T 8897.4-2002(IEC 60086-4:2000)Primary batteries: Safety of lithium batteries
4.2.UL1642:2006 Safety standards (lithium battery) extrusion test
4.3. SN/T 1414.1-2004 Safety inspection of import and export secondary cells and batteries--Part 1: General
4.4. SN/T 1414.3-2004 Safety inspection of import and export secondary cells and batteries--Part 3: Secondary lithium cells
4.5.SJ/T 11169-1998 Standard for lithium batteries;
4.6.YD 1268- 2003 The safety specification and test method for lithium batteries and charger;
4.7.SJ/T 11170-1998 Standard for household and commercial batteries;
4.8. IEC62133-2012
4.9. UN 38.3
4.10. MT/T 1051-2007 Lithium-ion batteries for cap lamp
Standard Requirements:
5.1- UN 38.3 Standard Requirement:
38.3.4.6.3 Test Procedure – Crush (applicable to prismatic, pouch, coin/button cells and cylindrical cells not more than 20 mm in diameter)
A cell or component cell is to be crushed between two flat surfaces. The crushing is to be gradual with a speed of approximately 1.5 cm/s at the first point of contact. The crushing is to be continued until the first of the three options below is reached.
(a) The applied force reaches 13 kN ± 0.78 kN;
Example: The force shall be applied by a hydraulic ram with a 32 mm diameter piston until a pressure of 17 MPa is reached on the hydraulic ram.
(b) The voltage of the cell drops by at least 100 mV; or
(c) The cell is deformed by 50% or more of its original thickness.
Once the maximum pressure has been obtained, the voltage drops by 100 mV or more, or the cell is deformed by at least 50% of its original thickness, the pressure shall be released.
A prismatic or pouch cell shall be crushed by applying the force to the widest side. A button/coin cell shall be crushed by applying the force on its flat surfaces. For cylindrical cells, the crush force shall be applied
perpendicular to the longitudinal axis.
Each test cell or component cell is to be subjected to one crush only. The test sample shall be observed for a further 6 h. The test shall be conducted using test cells or component cells that have not previously been
subjected to other tests.
5.2- 38.3.4 6.4 Requirement
Cells and component cells meet this requirement if their external temperature does not exceed 170 °C and
there is no disassembly and no fire during the test and within six hours after this test.
4.1.GB/T 8897.4-2002(IEC 60086-4:2000)Primary batteries: Safety of lithium batteries
4.2.UL1642:2006 Safety standards (lithium battery) extrusion test
4.3. SN/T 1414.1-2004 Safety inspection of import and export secondary cells and batteries--Part 1: General
4.4. SN/T 1414.3-2004 Safety inspection of import and export secondary cells and batteries--Part 3: Secondary lithium cells
4.5.SJ/T 11169-1998 Standard for lithium batteries;
4.6.YD 1268- 2003 The safety specification and test method for lithium batteries and charger;
4.7.SJ/T 11170-1998 Standard for household and commercial batteries;
4.8. IEC62133-2012
4.9. UN 38.3
4.10. MT/T 1051-2007 Lithium-ion batteries for cap lamp
Standard Requirements:
5.1- UN 38.3 Standard Requirement:
38.3.4.6.3 Test Procedure – Crush (applicable to prismatic, pouch, coin/button cells and cylindrical cells not more than 20 mm in diameter)
A cell or component cell is to be crushed between two flat surfaces. The crushing is to be gradual with a speed of approximately 1.5 cm/s at the first point of contact. The crushing is to be continued until the first of the three options below is reached.
(a) The applied force reaches 13 kN ± 0.78 kN;
Example: The force shall be applied by a hydraulic ram with a 32 mm diameter piston until a pressure of 17 MPa is reached on the hydraulic ram.
(b) The voltage of the cell drops by at least 100 mV; or
(c) The cell is deformed by 50% or more of its original thickness.
Once the maximum pressure has been obtained, the voltage drops by 100 mV or more, or the cell is deformed by at least 50% of its original thickness, the pressure shall be released.
A prismatic or pouch cell shall be crushed by applying the force to the widest side. A button/coin cell shall be crushed by applying the force on its flat surfaces. For cylindrical cells, the crush force shall be applied
perpendicular to the longitudinal axis.
Each test cell or component cell is to be subjected to one crush only. The test sample shall be observed for a further 6 h. The test shall be conducted using test cells or component cells that have not previously been
subjected to other tests.
5.2- 38.3.4 6.4 Requirement
Cells and component cells meet this requirement if their external temperature does not exceed 170 °C and
there is no disassembly and no fire during the test and within six hours after this test.

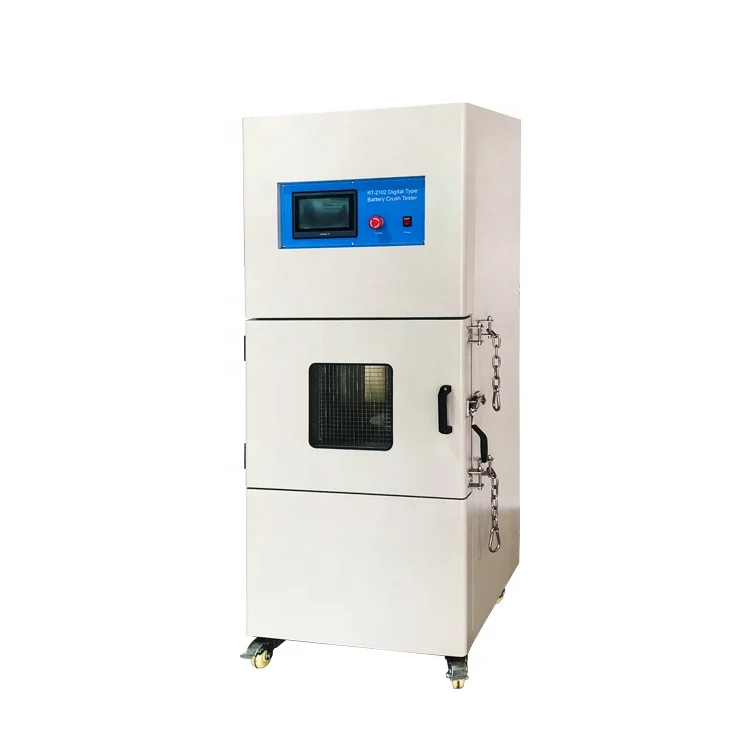

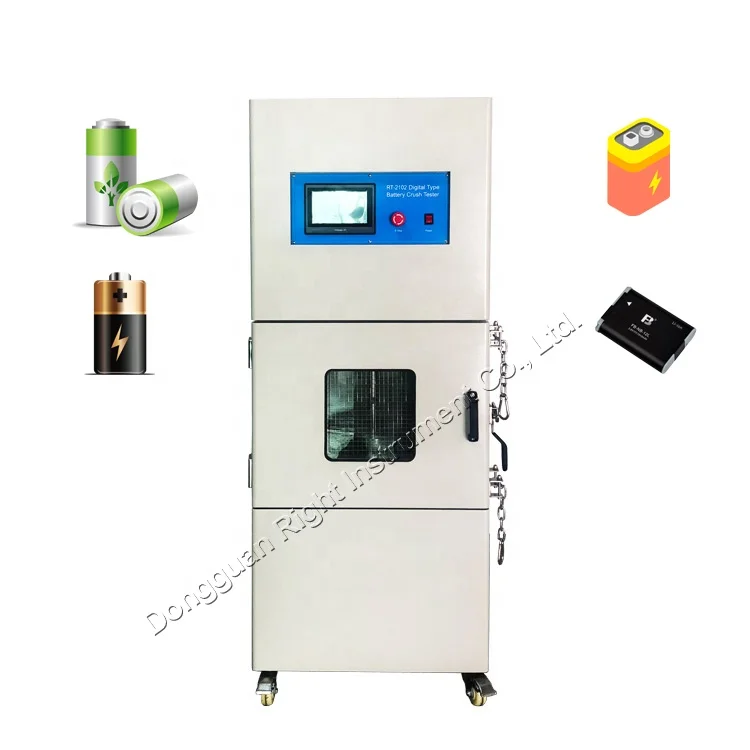

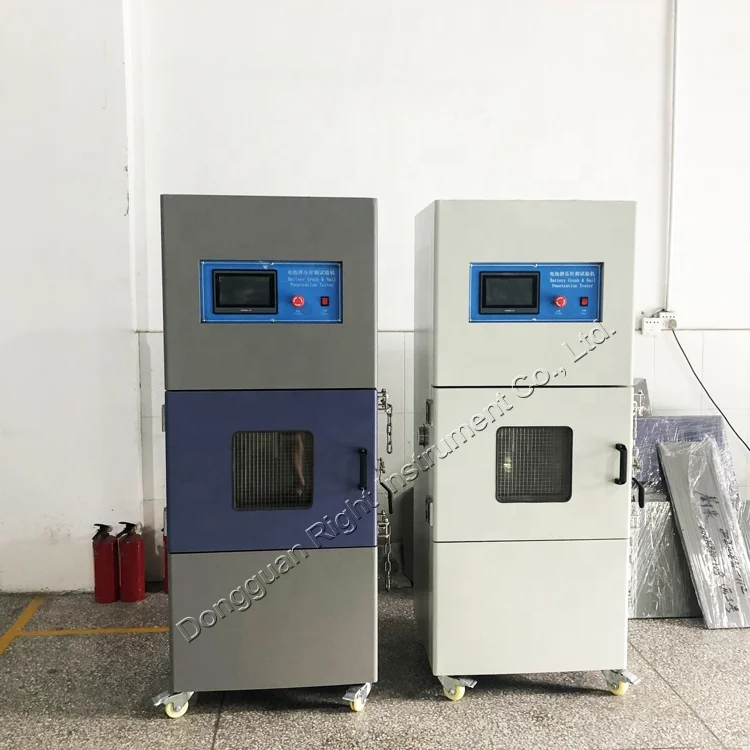

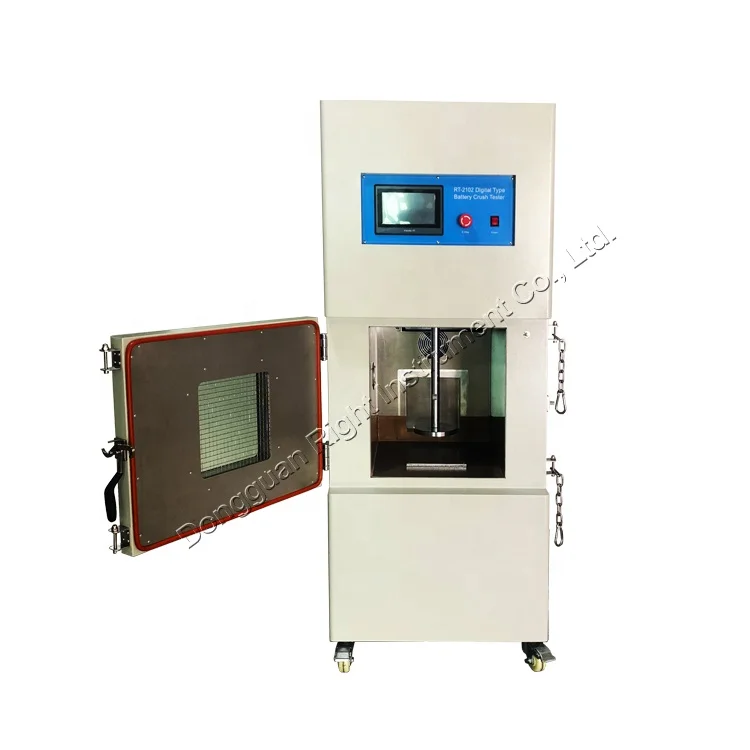

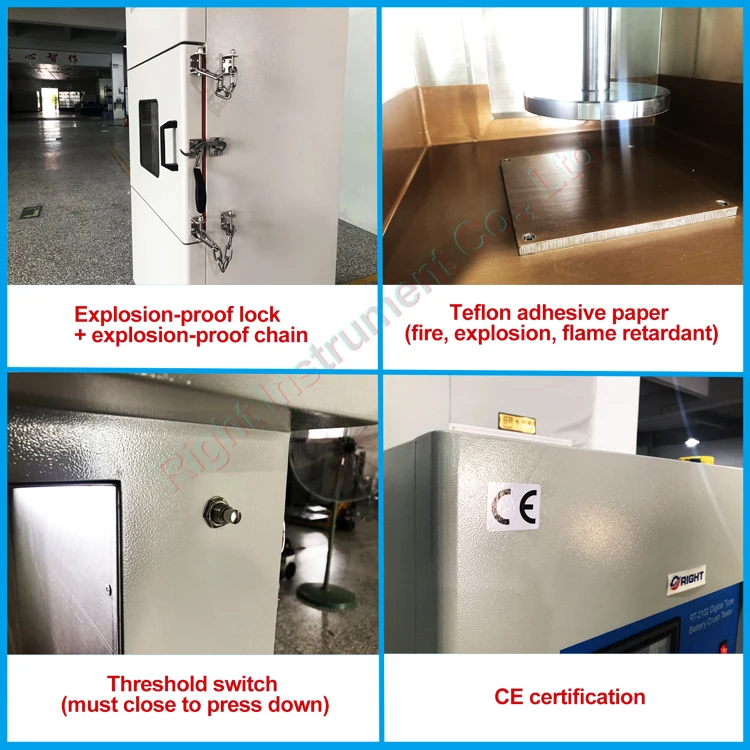

Product Picture
