XL Multi span Greenhouse With Hydroponic Growing Systems
- Category: >>>
- Supplier: Myxl Greenhouse Tech And Dev Co. Ltd.
Share on (60671320235):
Product Overview
Description
XL Hot Galanized Pipe Multi-span Hydroponic Growing Systems Greenhouse
XL Hot Galanized Pipe Multi-span Hydroponic Growing Systems Greenhouse frame is made by the materials of galvanized steel, connected by screws, bolts or suitable connecters. Door, gutters, etc. can be equipped and the roof can be pitched roof (supported by rectangular tubes) or arched roof (supported by circular tubes). The uprights of greenhouse is made by the rectangular tubes.
Film GH specs
Name: | XL Hot Galanized Pipe Multi-span Hydroponic Growing Systems Greenhouse |
Model: | XL-G26 |
Type: | Dome,Top sawtooth,Single sawtooth,.etc. |
Frame structure: | Aluminum /hot dipped galvanized steel pipe |
Cover material: | anti-uv ,anti-drip PE film |
Film: | 80/100/120/150/180/200 micron |
Span: | 6-12m |
Width(m): | 6, 7, 8, 9…(customized) |
Length(m): | 10, 20, 30... (customized) |
Height(m): | 2.5-12…(customized) |
Wind load(KN/m2); | 0.35 |
Snow load(KN/m2): | 0.25 |
Rainfall(mm3/h): | 140 |
Ventilation: | Side/roof ventilation |
All the specification of index can be customized.
Film GH features
· Good heat preservation performance;
· Wind-resistance feature;
· Good ventilation by rolling up film in the side walls ;
· Easy to installation;
· Economical and Low cost.
Complementary system
Ventilation system Shading System
1. Side open window roll ventilation and insect net; 1.shade rate:30-90%
2. Manual or electrical control; 2.color:any color is available
3. The ventilation is realized by the film rolling up and down

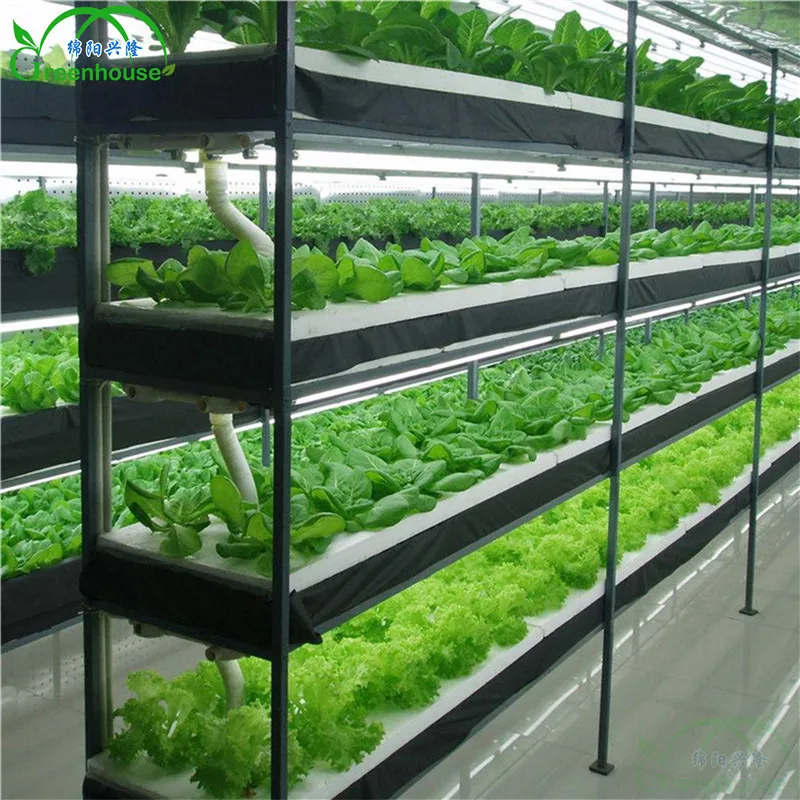

Hydroponic system Heating system
1.design for different kinds of planting 1. Electric warming: only has electric warming blower.
2.System supervision 2 . Boiler and warming blower
………….
All the system can be customized.

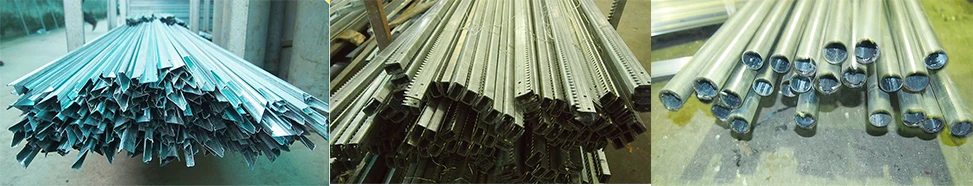

Pipe&Fitting
As frame system,galvanized steel round pipe and galvanized hollow section pipe producted by us with advantages such as hot dip galvanized steel structure;stable sructure,high intensity;assembly style without welding points;excellent anti-corrosion effectiveness;customized design and high quality material;good aging resistence;long service life,assemble easily;etc.
>>view more

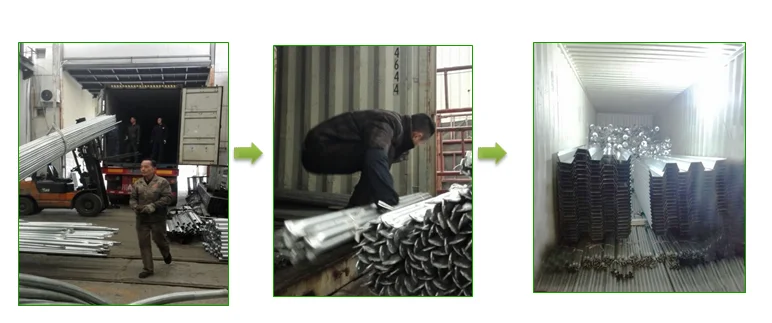

PackingShipping
step 1: engineer the greenhouse drawing and plan
step 2: the greenhouse cover material is packed in woven bag
step 3: provide English greenhouse introduction
step 4: checking the waterproof index to fit for suitable and practical package
step 5: communitcate with the logistic to check the suitable details
step 6: control each line of shippment .
According to customer's requirement.

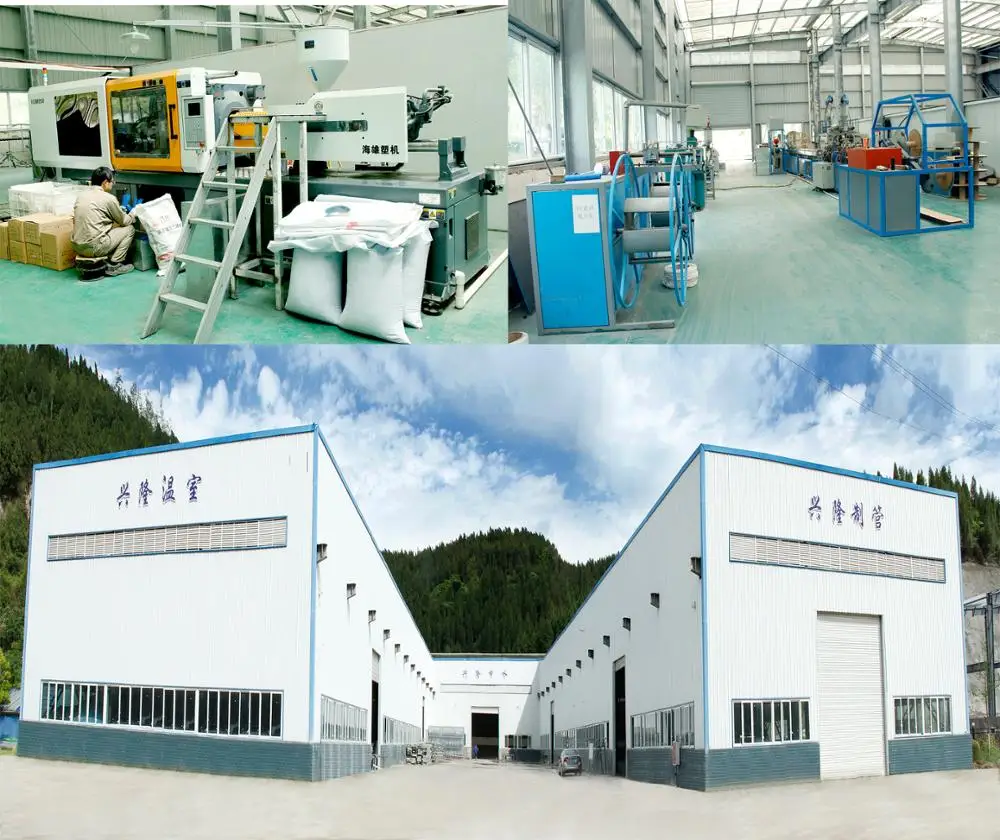

About us
Mian Yang Xing Long Technology and Develepment Co.,Ltd is located in Sichuan China which is a professional engaged in greenhouse technology development , engineering design,production and processing,product sales,installation and service as one stop solution.Company registered captial of 5,000,000 with modern production equipment, professional production technology and first-class production plant,high-quality designers,R&D personnel,production and construction personel.
