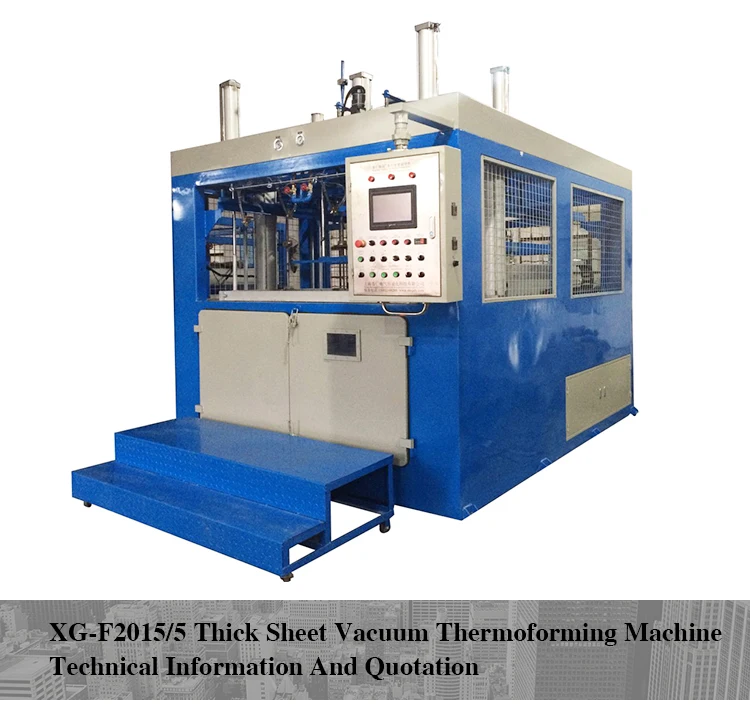

Stored Program Control Thick Sheet Vacuum Forming Machine
- Category: >>>
- Supplier: Shanghai Xiangguang Technology Co. Ltd.
Share on (60671344702):
Product Overview
Description
Product Description
| Item | Stored Program Control Thick Sheet Vacuum Forming Machine |
| Sheet Thickness Range | 2-10mm |
| Certificates | CE/ISO9001 |
| Color | Customized |
| Power Supply | 3×380V + N + PE, 50Hz |
| Dimensions(L×W×H) | 4600mm×2230mm×3200mm |
| Applications | For the vacuum forming of ABS, PS, PVC, PE, PP, PC, PMMA and many kinds of alloy plastic sheet. It is widely used in producing car interior parts, motorcycle trim panels, electric scooter shell, medical apparatus and instruments, refrigerator liner, bathroom facilities, trays, pallets, lamps. |
| Model Item | Max Forming Area(mm) | Max Height of Mold(mm) | Power(kw) | Weight(kg) |
| XG129/40/60 | 1200×900 | 400/600 | 80 | 4000 |
| XG1510/40/60 | 1500×1000 | 400/600 | 110 | 5000 |
| XG1512/40/60 | 1500×1200 | 400/600 | 130 | 5500 |
| XG1515/40/60 | 1500×1500 | 400/600 | 160 | 7500 |
| XG2010/40/60 | 2000×1000 | 400/600 | 160 | 7500 |
| XG2015/40/60 | 2000×1500 | 400/600 | 180 | 8500 |
| XG2020/40/60 | 2000×2000 | 400/600 | 240 | 10000 |
| XG2515/40/60 | 2500×1500 | 400/600 | 240 | 10000 |
| XG2520/40/60 | 2500×2000 | 400/600 | 280 | 12000 |
| XG3020/40/60 | 3000×2000 | 400/600 | 300 | 13000 |
| XG3525/40/60 | 3500×2500 | 400/600 | 350 | 15000 |

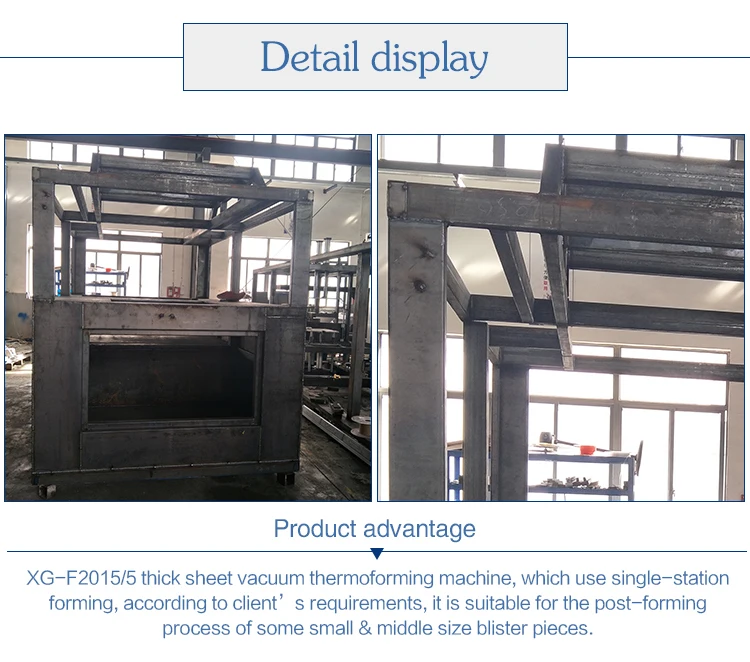

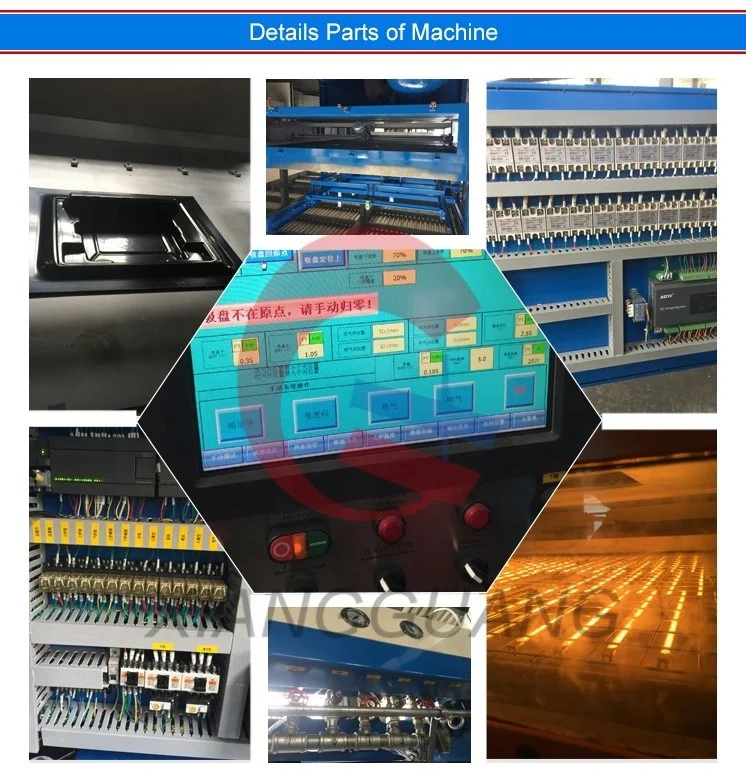

Product Images

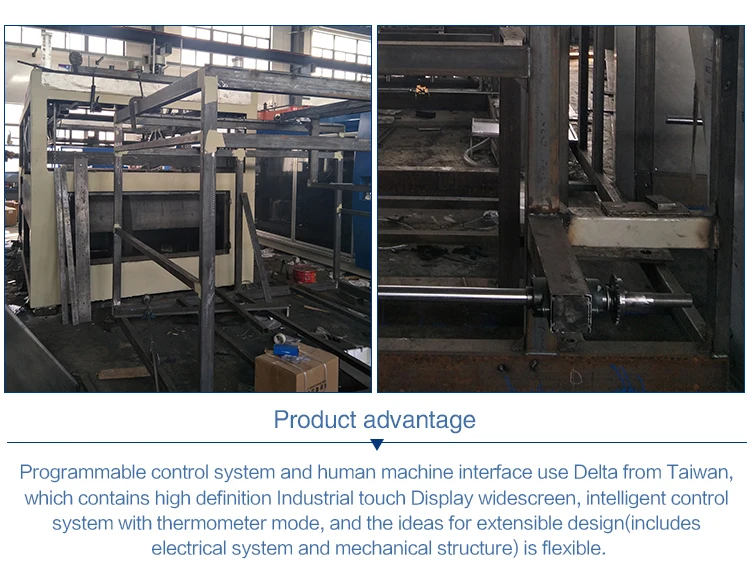

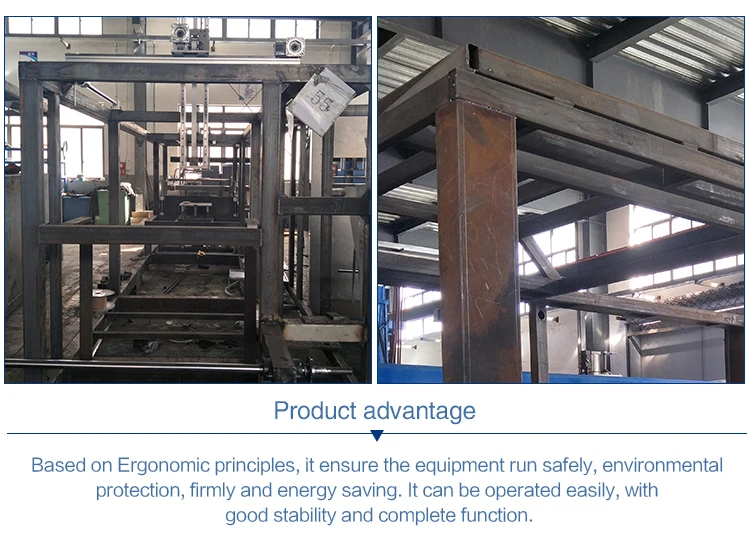

Advantsges

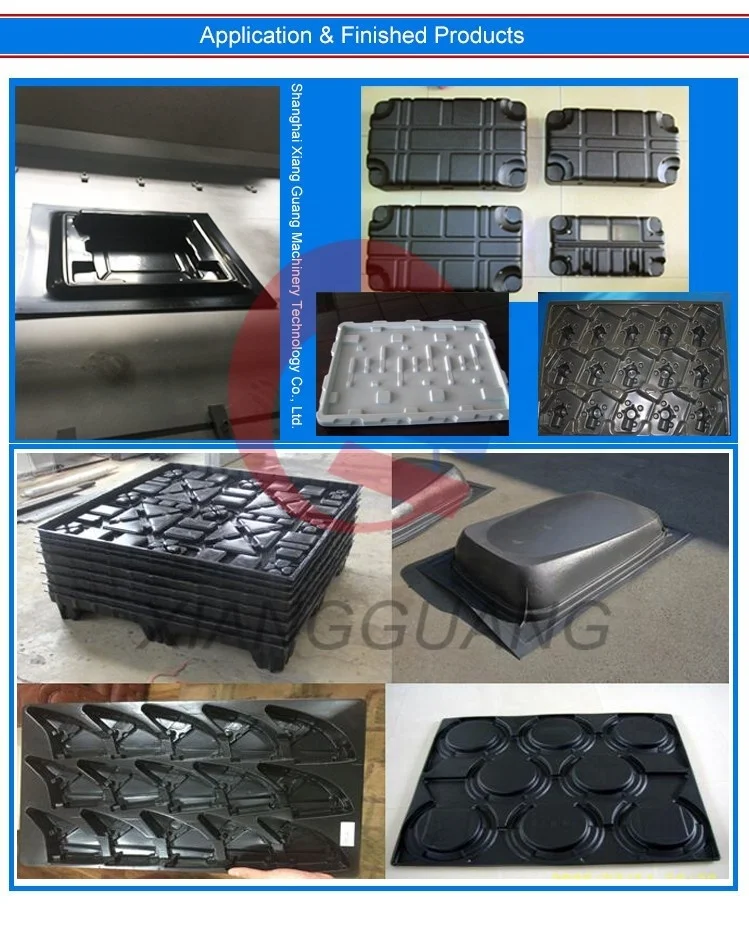

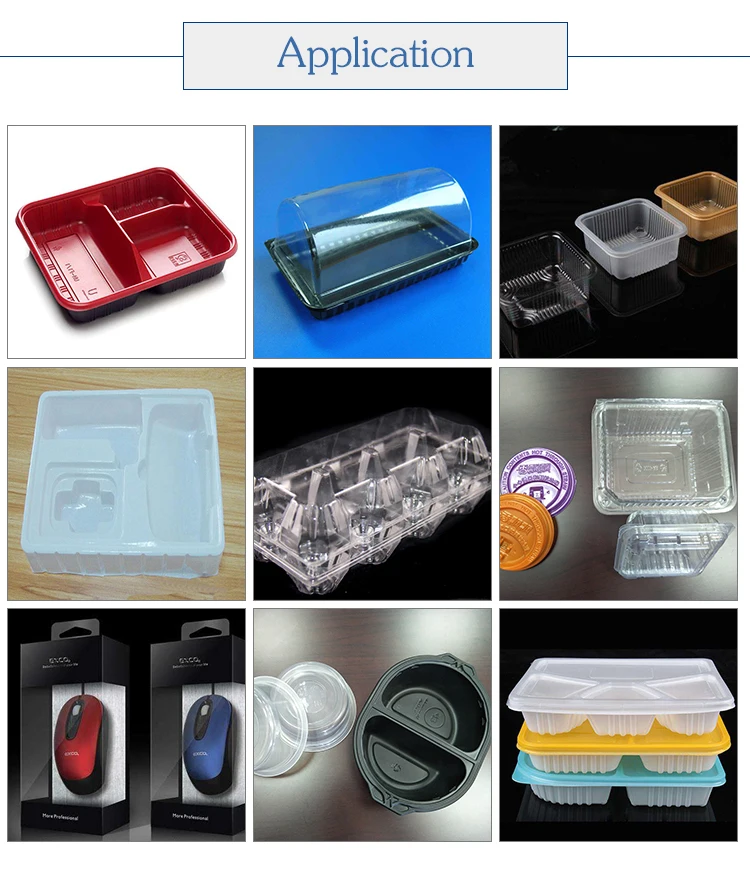

Applications

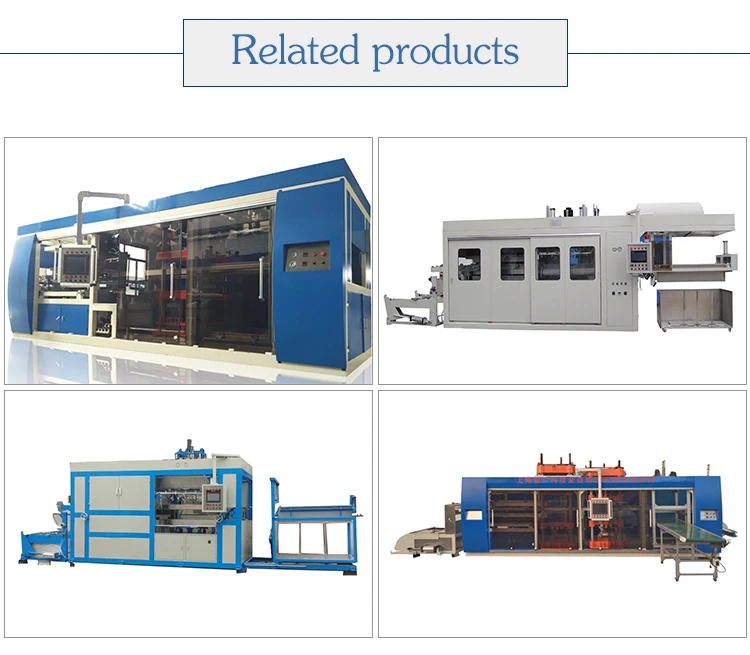

Related Product
