Silent type cheap price 10kva 15kva 20kva 30kva diesel generator
- Category: Generators >>>
- Supplier: Fuzhou,Jet,Electric,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Detailed description
The novel design for gensets
Output:6.5kw-1600kw
Reliability quality and performance
Famous diesel engine
Warranty on global

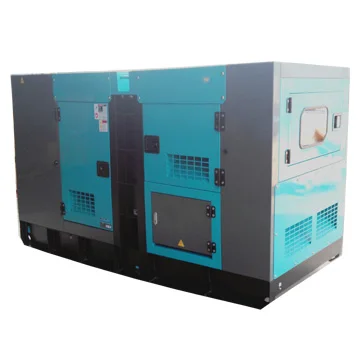

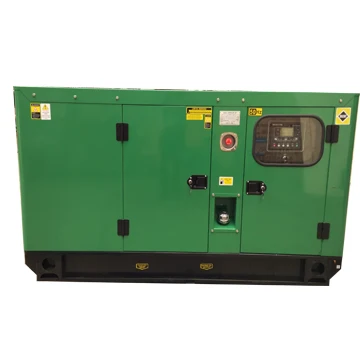

Diesel generator set Silent / Soundproof type – Open type
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine – Deutz, Perkins, Weichai, MTU

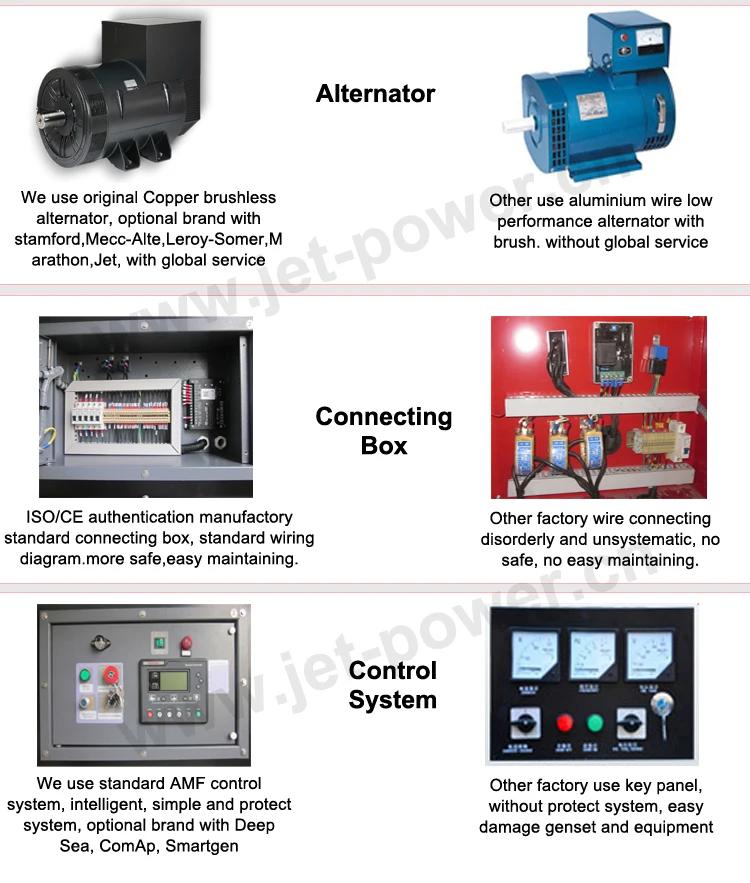

2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. Solid steel outer skin – 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.
Diesel generator set Silent / Soundproof type – Open type
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4
standards
Prime output power: 8kw-1600 kw (10kva-1600kva)
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Technical Data
Model | 400V / 50Hz / 1500RPM | Diesel Engine | Silent type Dimension (L*W*H)(mm*mm*mm) | ||
Standby | Prime | Model | Brand | ||
(KVA/KW) | (KVA/KW) | ||||
YD-12 | 12/9.6 | 11/8.8 | YSAD380G | YANGDONG | 1860*900*1000 |
YD-15 | 15 /12 | 13.5/10.8 | YD480G | 1900*900*1000 | |
YD-25 | 25/20 | 22.5/18 | YSD490G | 2100*950*1100 | |
YD-30 | 30/24 | 27.5/22 | Y4100G | 2200*990*1250 | |
YD-38 | 37.5/30 | 35/28 | Y4102G | 2200*990*1250 | |
|
|
|
|
|
|
Model | 120V - 240V 60Hz / 1800RPM | Diesel Engine With EPA tire 4 | Silent type Dimension (L*W*H)(mm*mm*mm) | ||
Standby | Prime | Model | Brand | ||
(KVA/KW) | (KVA/KW) | ||||
YD-18 | 17.5/14 | 16/13 | YD385ZLD (EPA) | YANGDONG | 1860*900*1000 |
YD-25 | 25/20 | 22.5/18 | YD480ZLD (EPA) | 1900*900*1000 | |
YD-30 | 30/24 | 27.5/22 | YND485ZLD (EPA) | 2100*950*1100 | |
YD-44 | 44/35 | 40/32 | YSD490ZLD (EPA) | 2200*990*1250 | |
YD-46 | 46/37 | 42.5/34 | YSD490ZLD (EPA) | 2200*990*1250 | |
Controller syste
1. PLC-800 model Standard control panel, including digital genset control model:HGM170, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker
2. PLC-8000 (AMF) model Standard control panel, including digital LED genset control model:HGM6120, key switch, fuel level meter, Power indicator lamp, circuit breaker
Optional: Automatic transfer switch (ATS)
Automatic parallel operation system
Accessories
Standard accessories: Standard 40 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and document
Manufacturing Standard
GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34
Warranty policy
JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.
FUZHOU JET ELECTRIC MACHINERY CO., LTD
