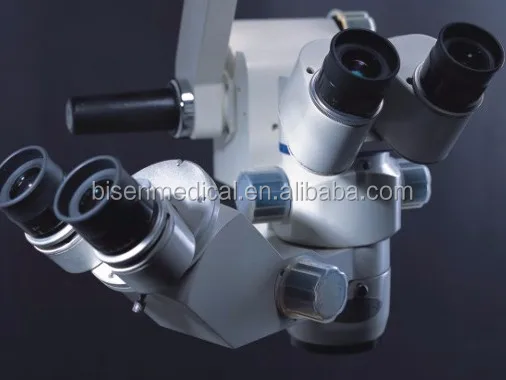

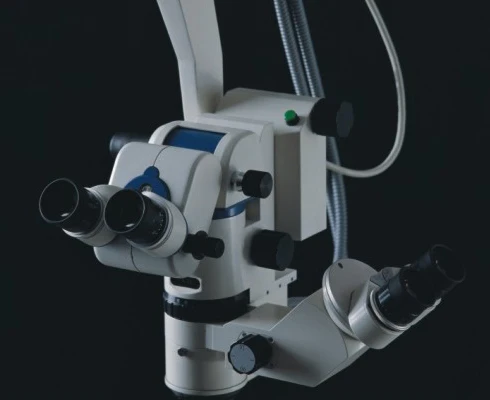

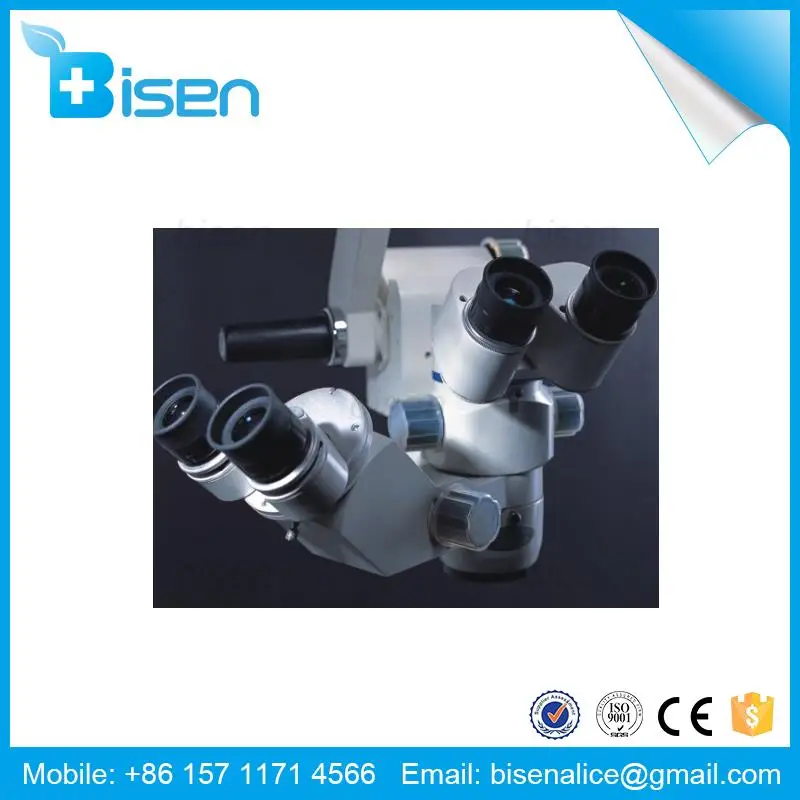

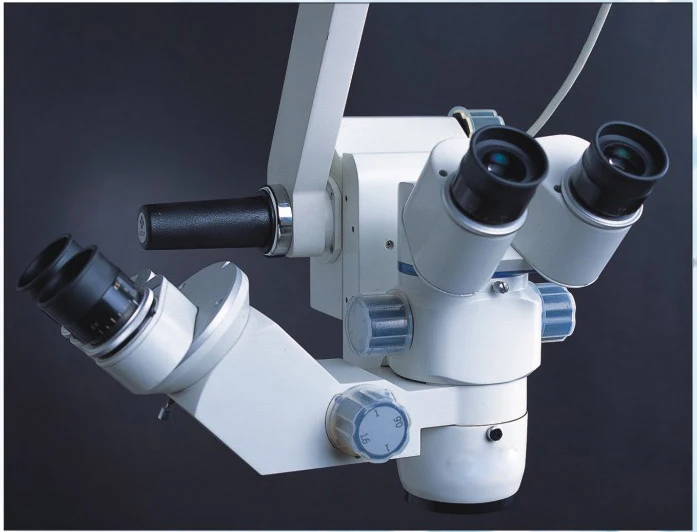

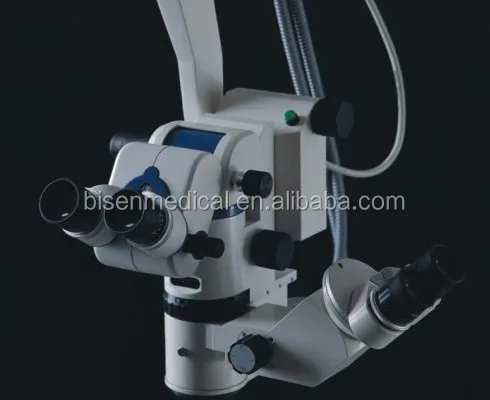

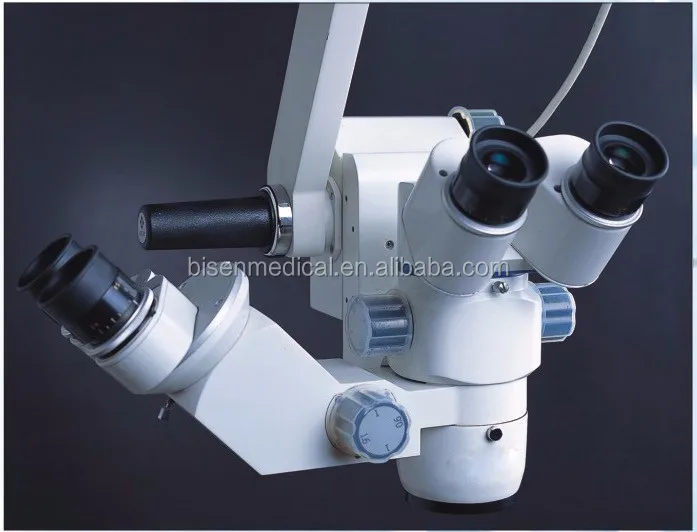

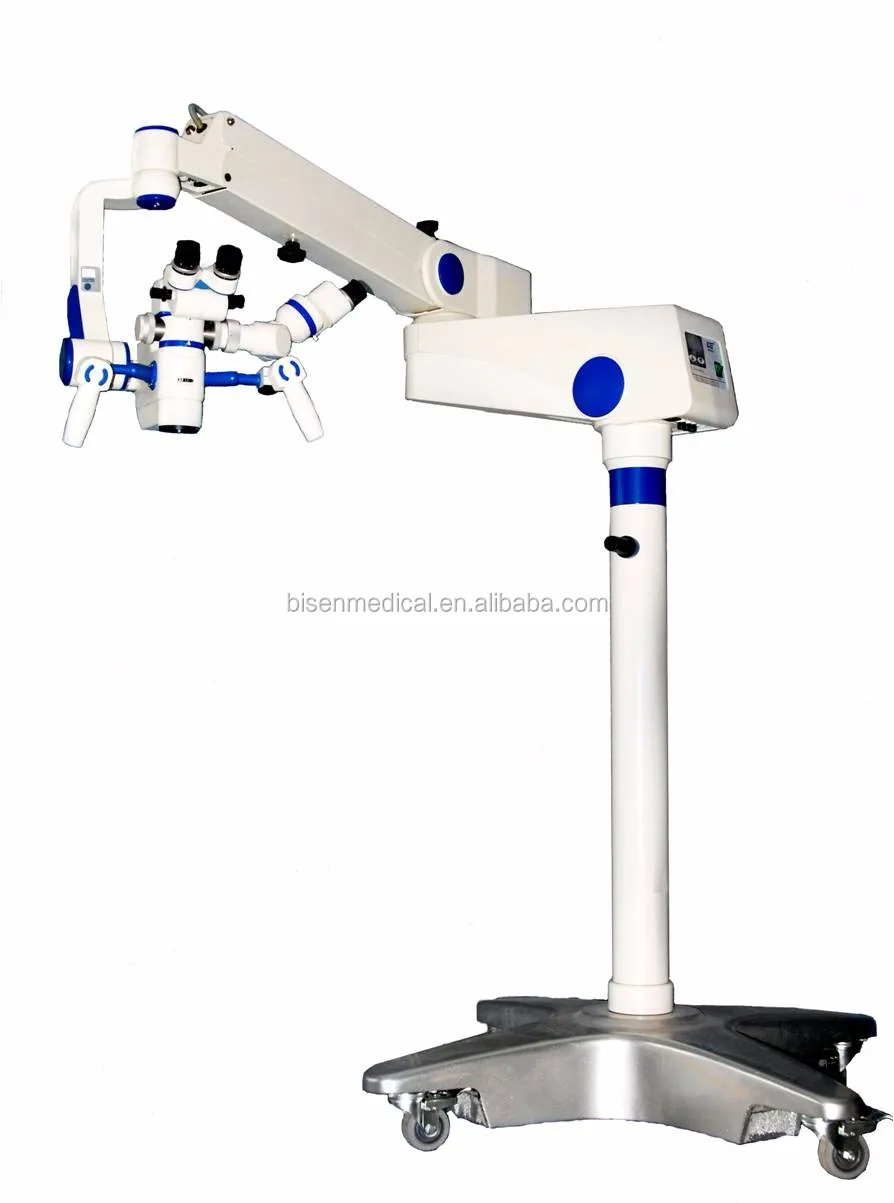

Mobile Ophthalmic Surgical Huvitz Ent Operating Microscope For Sale

Features

BS-5C operation microscope adopt high resolution and HD optic system,have strong stereoscopic impression and large depth of field,Xenon lamp,continual adjustable brightness,multi-funcutional handles for focusing and magnification morized,one button is able to control whole banlanced system,6 degree of freedom movement and locked,

BS-5C operation microscope can be used in brain and ENT surgery and so on.

Specification

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.

Binocular tube

30°~90°variable angle binocular tube, add new pupil distance adjustment

Magnification

manual and morized continuous, magnification 3x~16x; field of view Φ74~Φ12mm

Coaxial assistant's binocular tube

Free-rotatable assistant stereoscope,all direction circumvolve freely, magnification 3x~16x; field of view Φ74~Φ12mm

Coaxial illumination

illumination diameter of light spot Φ78mm,illumination intensity≥100000lux(Xenon lamp)

Objectives

f300mm (200mm, 250mm,350mm,400mm etc )

Focusing

motorized, range +/-22.5mm, speed 33s/whole distance

X-Y swing

The head can swing in X direction 0-90°

motorised, and in Y direction +-45°,and can stop in any angle

Maximum length of arm

1200mm

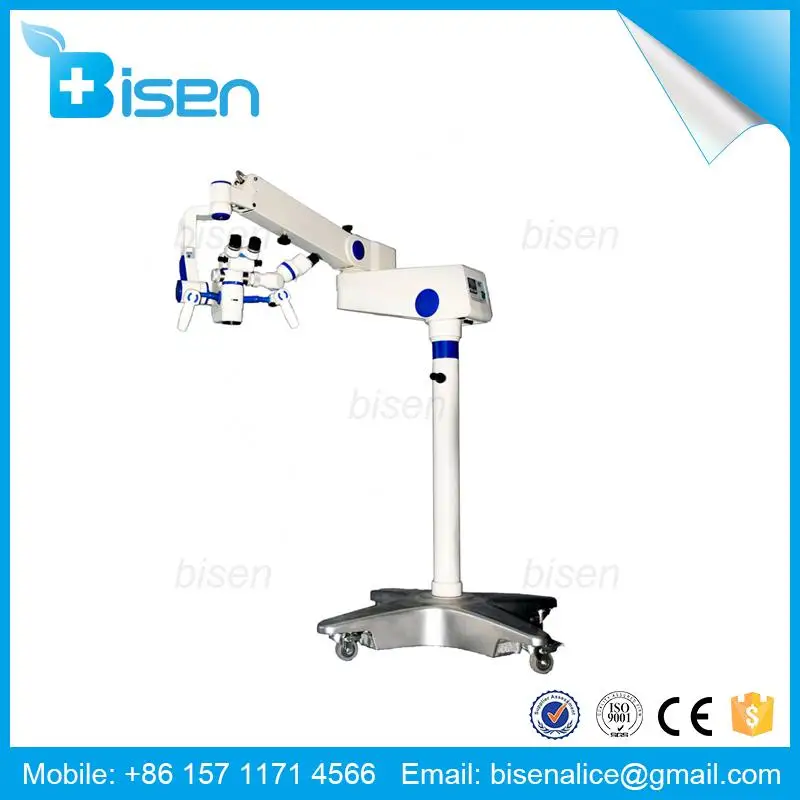

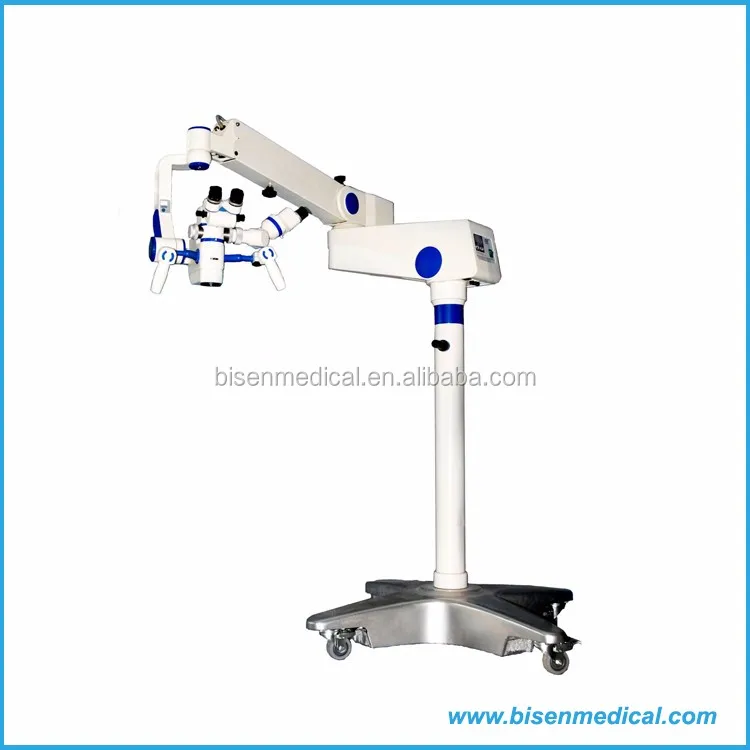

New stand

swing angle of the carrier arm 0 ~300°,height from objective to floor

800mm

Handle control-switch

10 function(motorized focusing,motorized magnification,brightness adjustment and movement in XYZ three-dimensional space.
