fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54

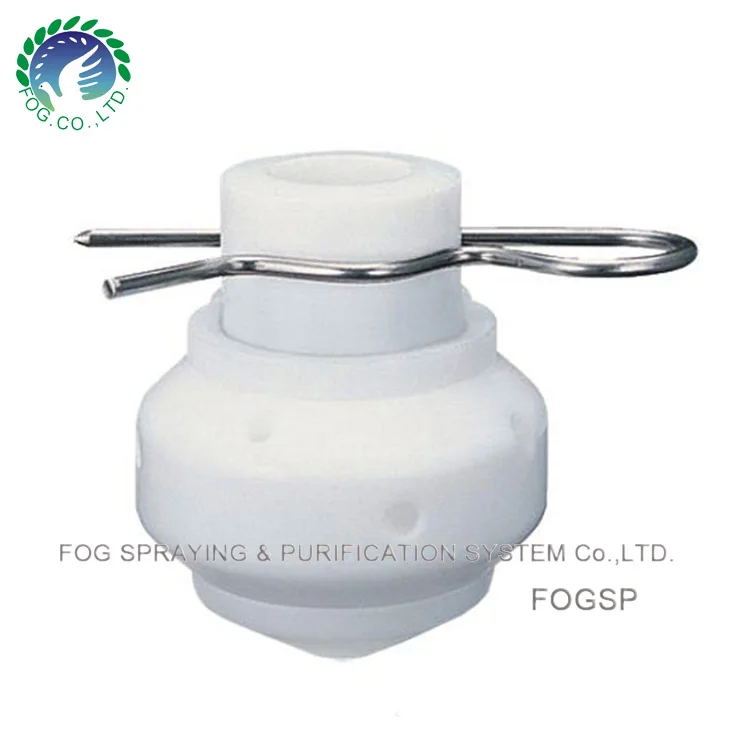

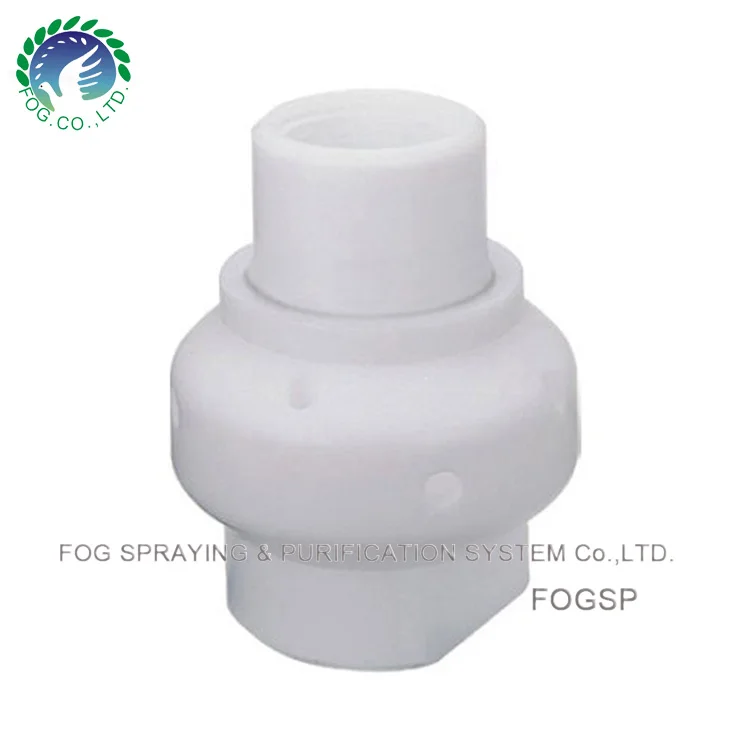

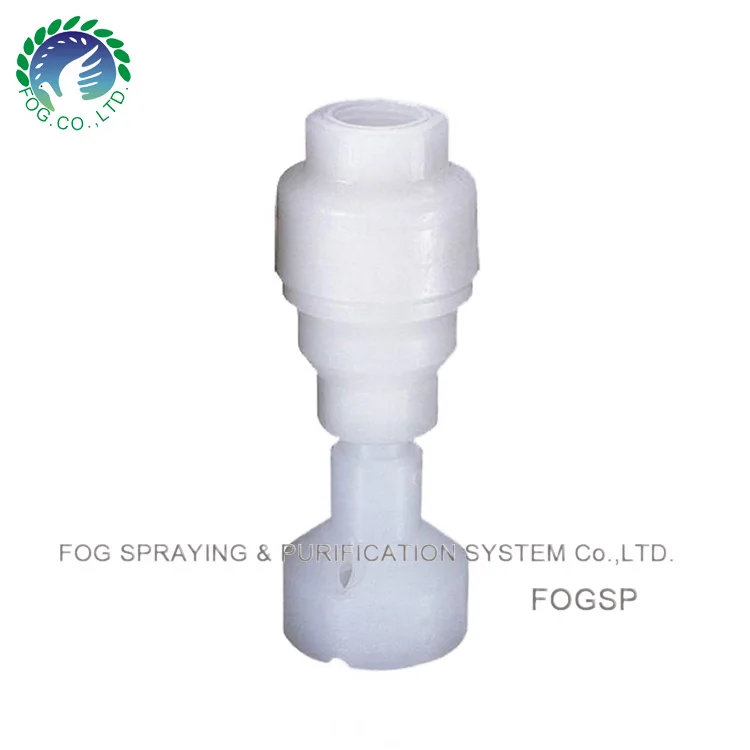

Carbon filled PTFE Plastic Fluid Driven Tank Cleaning Nozzles
- Category: >>>
- Supplier: Kunshan Fog Spraying& Purification System Co. Ltd.
Share on (60671367514):
Product Overview
Description
Product Description
Brand Name | FOG | Place of Origin | Jiangsu, China (Mainland) |
Port | Shanghai | Certificates | ISO 9001, ISO14001 |
Model Number | 27500 | Material | PTFE, Plastic |
Thread type | BSPP/ BSPT / NPT | Inlet Dia. | 3/4'' to 3'' |
Usage | Cleaning tanks | Application | Tanks rinsing and sterilization |
1. Idea for rinsing tanks, vessels, barrel in Dia. up to 7.6 meters (25 inches)
2. Especially suited for CIP systems – no motor source is needed due to the reactionary force of the cleaning liquid to rotate the spray head
3. Idea for washing, rinsing and low pressure clean
4. Long-life material of construction – corrosion- and chemical-resistant PTFE fluoropolymer resin
5. Available in carbon-filled PTFE for improved thermal characteristics and higher mechanical strength over standard PTFE
6. Spray angles range from 180° to 360°; can clean certain areas or entire tank interior
7. Flow rate range: 15 to 1490 l/min
8. Pressure range: 0.7 to 3.5 Bar
9. Max. operating temperature: 93℃（200℉）
10. Min. tank opening size: 51 to 178 mm (2" to 7" ) depending on capacity size
11. Spray coverage: 180° spraying up or down, 270° spraying up or down and 360°
Related Products
Spray coverage:180° to 360°;
Pressure range: 1 to 12 bar
Tank opening size: 26 mm (1-1/32"), 32 mm (1-1/4" ), 60 mm (2-7/32"), 64 to 102 mm (2.5" to 4" )
Inlet conn.: 1/2" to 3” (G/ BSPT/NPT)
Low pressure operation
Spray coverage: 180º，210º, 240º , 270º，360º
Pressure range: 1 to 10 bar
Tank opening size: 254 mm(10"), 152 mm(10"), 51 mm (2"), 19 to 25 mm (0.75" 1")
Inlet conn.: 3/4" to 3” (G/ BSPT/NPT)
Low pressure operation
Specification: Largest Free Passage, Maximum Free Passage
Spray angle: 30°, 60°, 90°,120°
Pressure: 0.2 bar to 5 bar
Material: SS, PP, CPVC, PVC, Brass
Customized manufacture is available
Quick connect nozzles
0 - 120° degree spray angle
Clamp ball eyelet nozzles
Pipe clamp Quick connect
Spiral nozzle
Spiral spraying Full cone
Water mist nozzles
Fine mist, fog spraying
Square nozzles
Square spraying
Tank Mixing Nozzle
Circulate liquids
Other Products
Our Service
OEM Customized manufacture
* Marking and engrave
* Raw mateiral testing
* Spray performance testing
Shipping methods
* Express delivery, Air freight
* Sea freight,
* Land freight
FAQ
Q1：Are you trading company or manufacturer ?
A: We are professional nozzle manufacturer.
Q2: How about your delivery time?
A: Generally, it will take 3 to 7 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can also provide technical support for your applications upon request.
A: Yes, we can produce by your samples or technical drawings. We can also provide technical support for your applications upon request.
Q4: How to contact us?
A: //www.fogsp.com/ , Tel: +86 15200892885, Phone & Fax: 86 0512 50314927
QQ: 1782187153; Wechat: 15200892885
QQ: 1782187153; Wechat: 15200892885
