Product Overview
Description

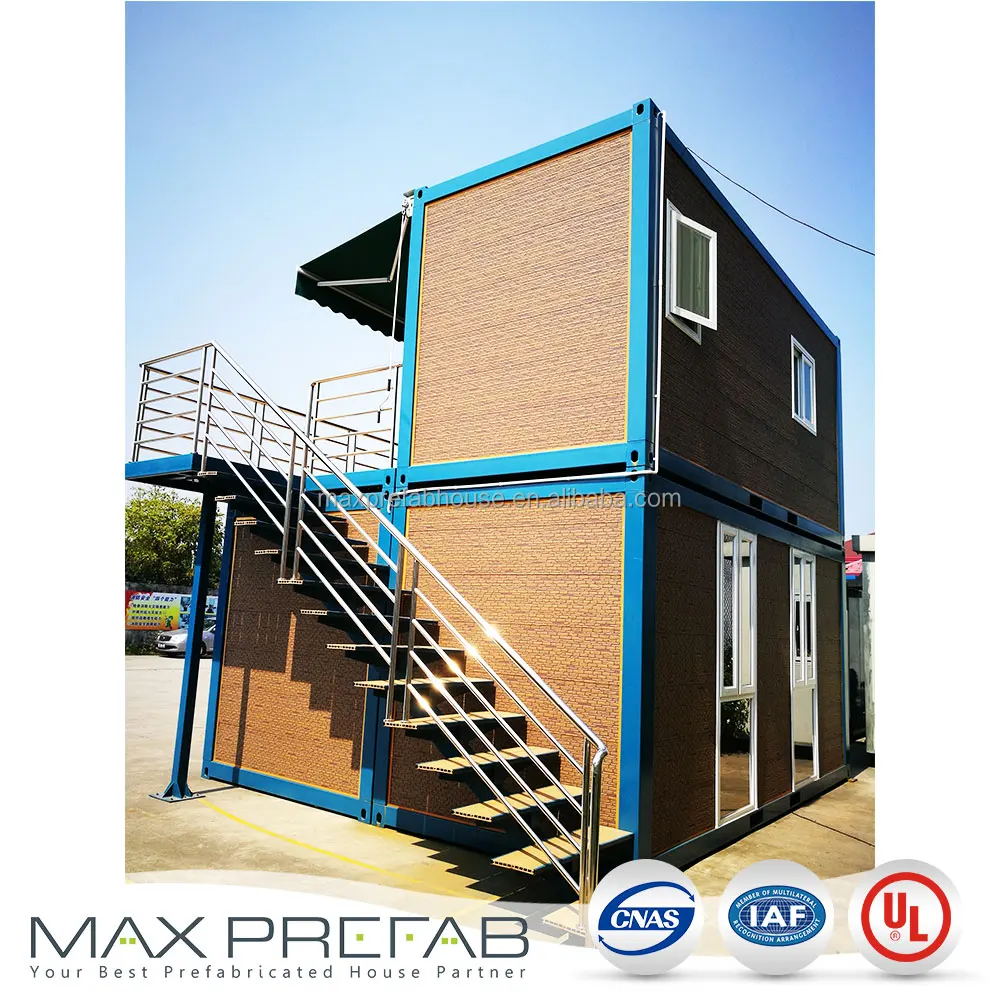

Flatpack Container Coffee Shop Fast Constructed Prefabricated Steel House
Product Description
| Product Parameters |
Dimension (mm) | Exterior size | L6058/5850*W2438*H2896mm |
| Inner size | L5820/5620*W2200*H2680mm |
| Floor load | 2.0KN/m2 |
| Roof load | 0.4KN/m2 |
| Snow load | 0.3KN/m2 |
| Wind-Resistant | 11 grade (wind speed 32.6m/s) |
| Seismic performance | 8 grade |
| Stacking storey | ≤3 storeys >3 storeys(special strengthening method shall be taken) |
| Flammability class B1 – Hardly combustible Smoke density class Q1 – Low smoke emission Wear resistance: T level | |
Fire-proof performance | 1) Rock wool : A grade; 2) EPS: B2 grade ; 3) PU: B1/B2 grade. | |
Insulation performance (R value) | Roof / Floor | 2.56 m2K/W |
| Wall | 1.5/1.8/2.8 m2K/W |
Container Loading Options | 4 sets as 1 bundle in bulk without shipping container | 6 sets loading inside 1X40'HQ shipping container |
Life time | 20 Years | |
Additional Options
| Plumbing, toilet and bath, ceiling, flooring, kitchen, furniture, air conditioner, heater,etc. | |
| Product display |

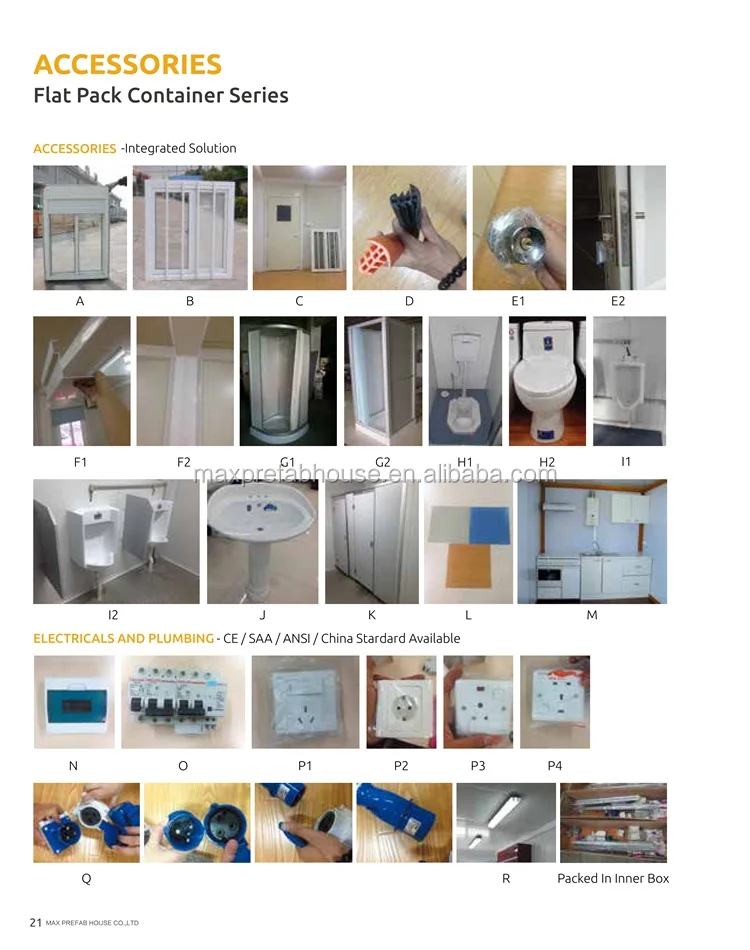

1.Main materials are specified as below specification with photos.
2.Prefabrication extend:
A. All the windows are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
B. All the doors are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
C. The wiring are pre-embedded inside the wall panels by using PVC conduit, the bottom case of switch & socket are pre-installed in the wall panels which are connected with wiring already, buyer just need to connect the wiring connectors all together on site.
3. Furnitures,electric appliances, heating are optional items which are not included in this offer.
4. Interior partitions and interior doors are included in this offer if they are indicated from the drawings.
1.Main materials are specified as below specification with photos.
2.Prefabrication extend:
A. All the windows are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
B. All the doors are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
C. The wiring are pre-embedded inside the wall panels by using PVC conduit, the bottom case of switch & socket are pre-installed in the wall panels which are connected with wiring already, buyer just need to connect the wiring connectors all together on site.
3. Furnitures,electric appliances, heating are optional items which are not included in this offer.
4. Interior partitions and interior doors are included in this offer if they are indicated from the drawings.
| For more product informations | Please click >> |

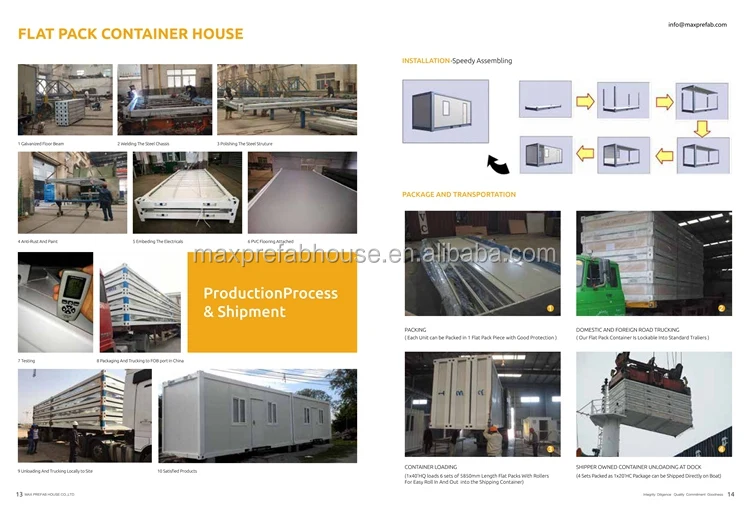

Installation
| Installation |

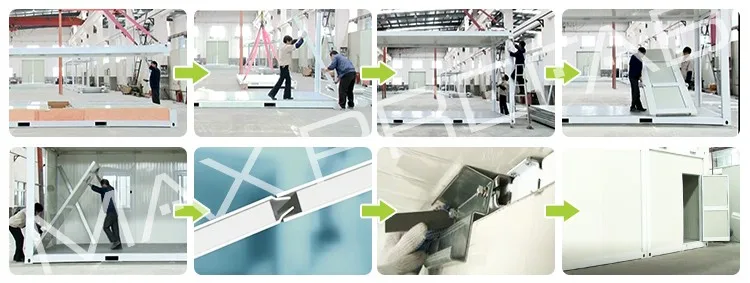

Easy to assemble and transport, foolproof installation can be done:
1. Hang the bottom on the place where you need it to be.
2. Install the four corner columns on the bottom, then fix it with M12 screw bolt.
3. Hang the top on the four corner columns, then fix it with M12 screw bolt.
4. Check with gradienter, make the four corner columns be vertical.
5. Insert the wall panel one by one from the short side clockwise.(14 pieces in total )
6. Install the prefabricated vertex angle and base angle which we call them PVC at the correct position. (Give a good push to it, very convenient.)
7. Then fixing,switch,socket,brushing glue, laying the ground are the last steps. (If the combined house is needed, the container houses should be connected with screw bolt and iron sheet before inserting the wall panel.)
Advantages
| Product Advantage |
1.Container house designed according to ISO 1161 for various purpose.I.e,hospital,dormitory,office,store room etc. Also are suitable for international container transport and stand in the remote area and nature neatly.
2.Save high labor cost, the main structure of container house ---- bottom frame, top frame and side wall panels to form a light weight structure, pre-made good self-drainage system, pre-made electrical, pre-made water-plumbing in factory, quick to fold out, assemble disassemble the components.
3.Flexibility combination, the construction enables compounding of individual container house in transverse or longitudinal directions without limits, and can also be stacked 2~4 stories, to enlarge the space and function. The top, bottom and around the container house used heat insulation, heat preservation materials, providing comfortable temperature for the internal living.
4.Easy transportation and saving high transportation cost, every four units will packed as a standard 20’ HC shipping container size. And each dimension is 6058*2438*720 which can be moved by forklift, but after four units packed as a standard 20’ HC shipping container size, the package can only be moved by crane.
5.All the materials used are green and recyclable.
6.Fast installation, 2 skilled workers can finish one container house in 3 hours.
7.Superior performance: Beautiful appearance, sturdy and durable, and also with good anti-corrosion, heatproof, windproof, earthquake proof, moisture proof, waterproof, and anti-creep functions.
8.Complete functions: With lights, socket, wirings, doors and windows and external power source configured inside the panels.
| For more product informations | Please click >> |
| Quality Control - Quality is Morality |
| For more product informations | Please click >> |

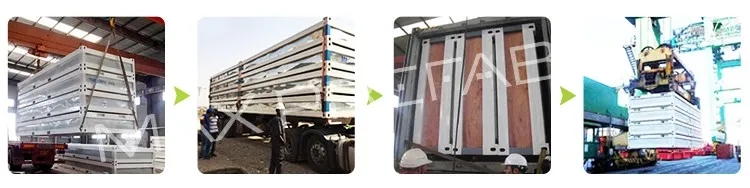

Packaging & Shipping
| Packaging & Shipping |
Company Information
| About Us |
High wind resistant ability - They are used as houses for rent because they are sturdy,Max Prefab House Co.,Ltd is an innovative manufacturing company with great commitment, contribution heart, passion and responsibility.
We are specialized in designing, manufacturing and building high quality environmental prefabricated houses, container houses, foldable containers, portable homes, steel structure warehouses and architectural steel construction. |
| For more product informations | Please click >> |
