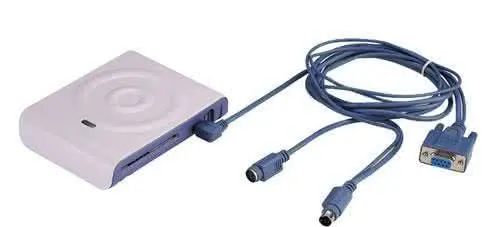

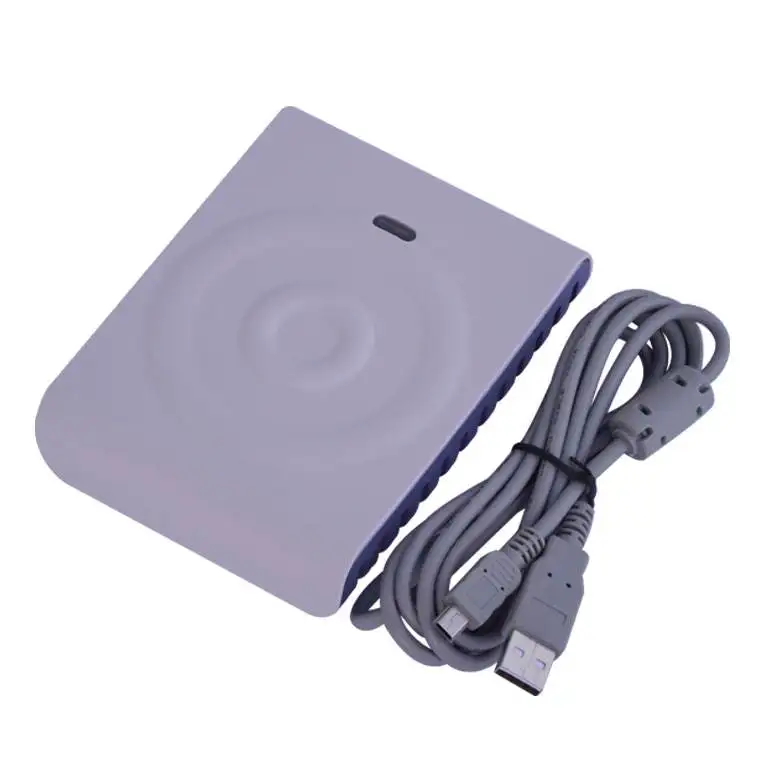

MDR007 Factory Direct Sale 13.56MHZ ISO14443 Type A/B USB Smart Card Reader
- Category: >>>
- Supplier: Chengdu MIND IOT Technology Co. Ltd
Share on (60671486519):
Product Overview
Description
NC8 contactless smart card reader is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed for Near Field Communication (NFC), supporting not only ISO 14443 A and B cards but also NFC and FeliCa contactless technologies, CCID compliance.
Features
l USB 2.0 full speed
n HID compliance
n Firmware upgradable
l Contactless smart card interface
n Mf classic
n ISO14443 Type A
n ISO14443 Type B
n ISO15693 (Optional)
l 2 SAM slots compliant with ISO 7816
l 1 bi-color LED indicator
l Support buzzer indication
l RS232 serial interface (Optional)
Supported Card Types SAM
NC8 operates with SAMcards that follow:
- T=0 or T=1 protocol
- ISO 7816-Compliant Class B (3V)
NC8 supports the following contactlesscards:
- ISO 14443-Compliant, Type A & B Standard, parts 1 to 4, T=CL protocol
- Mf® Classic
- ISO 15693 I-CODE (Optional)
· e-Healthcare
· Transportation
· e-Banking and e-Payment
· e-Purse and Loyalty
· Network Security
· Access Control
Product Description
| Dimensions | 123mm (L) x 95mm (W) x 27mm (H) |
| Case Color | White |
| Weight | 300g |
| USB Device Interface | |
| Protocol | USB HID |
| Type | Four Lines: +5V, GND, D+ and D- |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Supply Voltage | 5 V |
| Supply Current | Max. 300 mA |
| Cable Length | 1.5 m fixed cable |
| Serial Interface (Optional) | |
| Type | Serial RS232 |
| Power Source | From USB |
| Speed | 115200 bps |
| Cable Length | 1.5 m fixed cable |
| Contactless Smart Card Interface | |
| Standard | ISO-14443 A & B part 1-4, ISO-15693 (Optional) |
| Protocol | Mf® Classic Protocols, T=CL, I-CODE(Optional) |
| Smart Card Read /Write Speed | 106 kbps, 26.48 kbps |
| Operating Distance | Up to 50 mm |
| Operating Frequency | 13.56 MHz |
| SAM Card Interface | |
| Number of Slots | 2 ID-000 slots |
| Card Connector Type | Contact |
| Standard | ISO/IEC 7816 Class B (3V) |
| Protocol | T=0; T=1 |
| Smart Card Read /Write Speed | 9,600-115,200 bps |
| Built-in Peripherals | |
| Buzzer | Monotone |
| LED Status Indicators | 1 bi-color LED for indicating status (green and red) |
| Operating Conditions | |
| Temperature | -10°C – 60°C |
| Humidity | 10% to 90%, non-condensing |
| Application Program Interface | |
| PC-linked mode | Vendor Specific |
| Certifications/Compliance | |
| ISO/IEC 7816, ISO/IEC 14443, USB 2.0 Full Speed | |
| Supported Operating Systems | |
| Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux® | |
| Others | Support function library of universal interface, various of operating systems and language development platform, online upgrading is available |
| Simultaneously support ISO 14443, Type A/B contact-less card,like: | |
| Mf S50,Mf S70,MF1ICL10,Mf Pro,Mf df,Mf ultralight,SLE44R31,SLE6-6cl,AT88RF020,HuaHong1102,SHC1108,FuDan FM1208... | |
