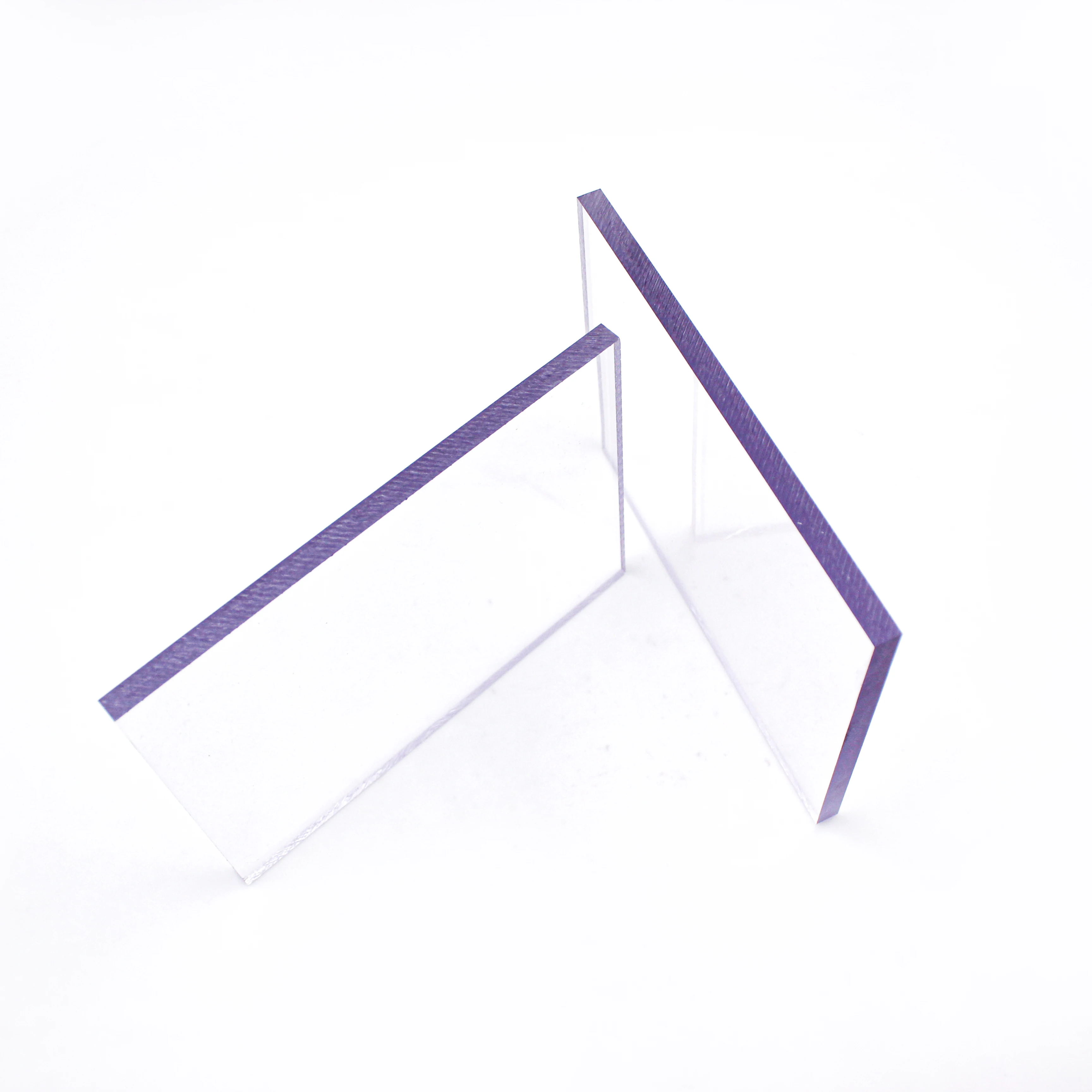

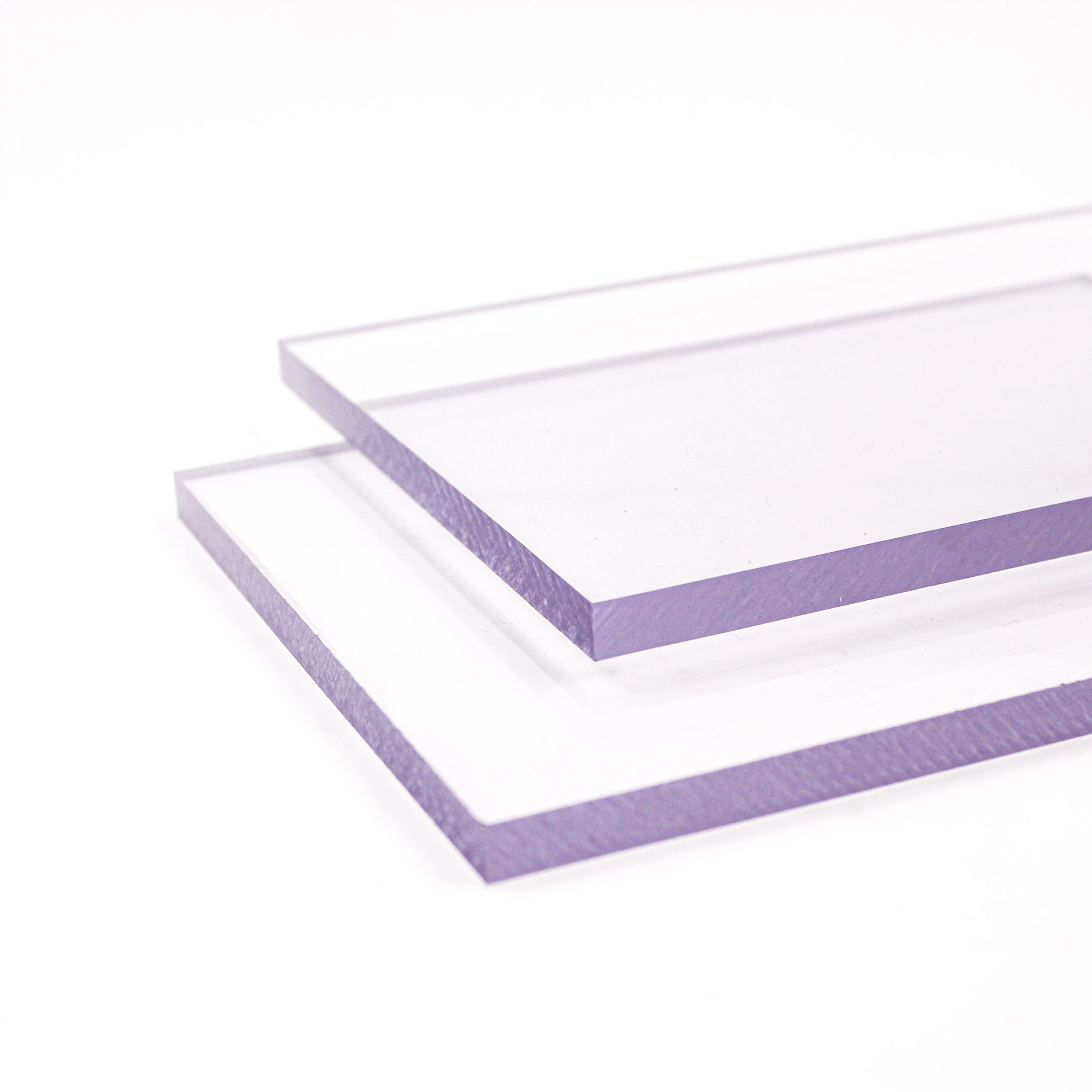

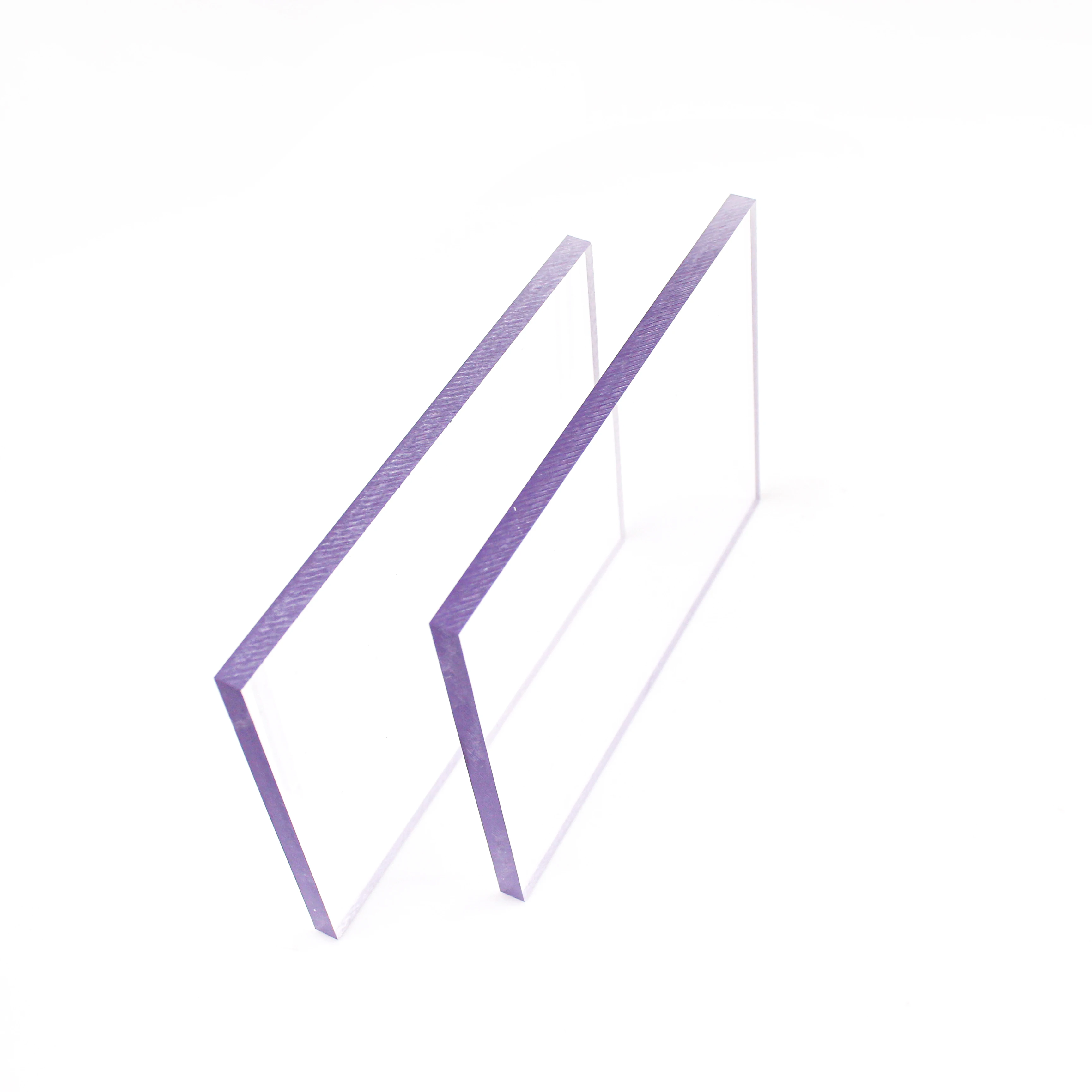

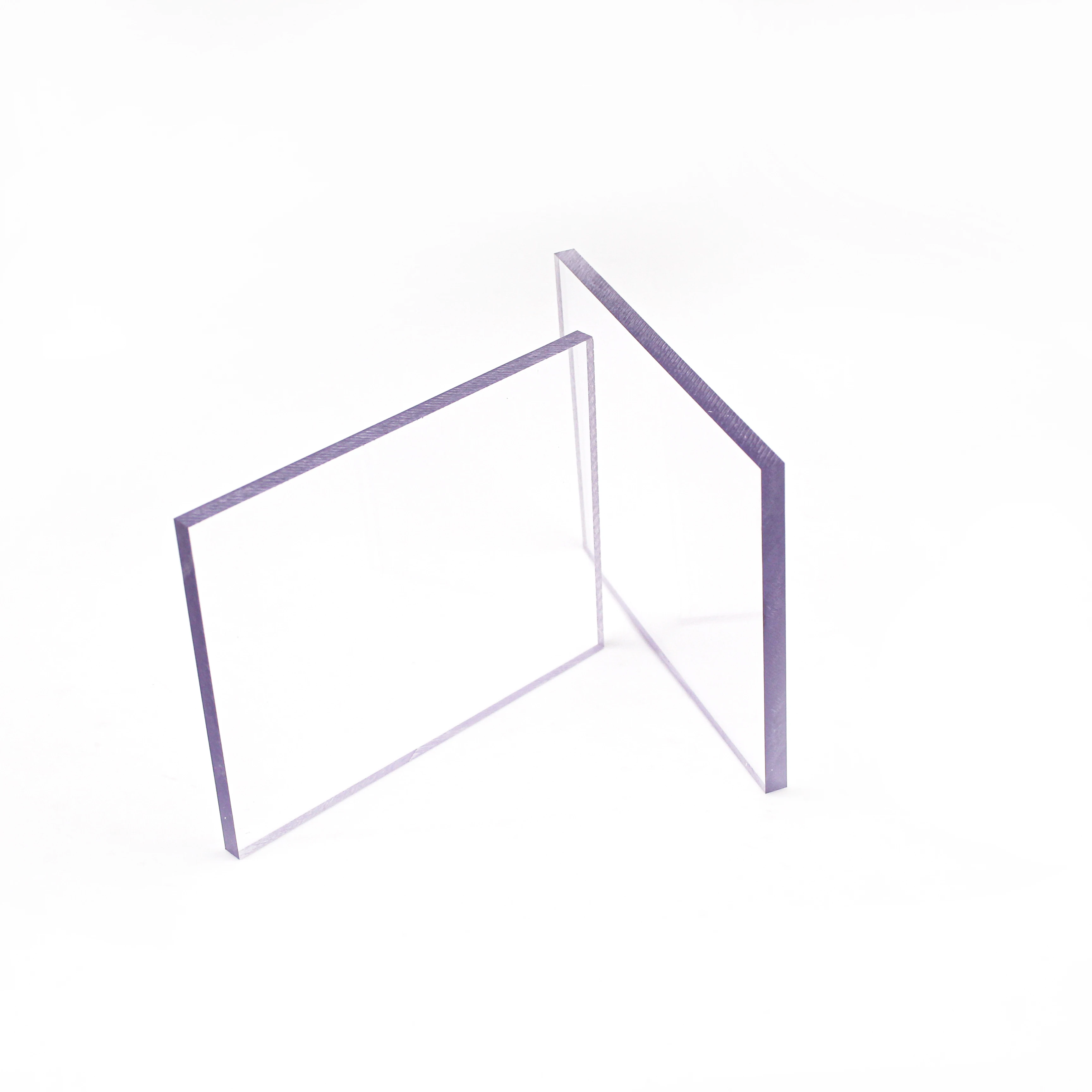

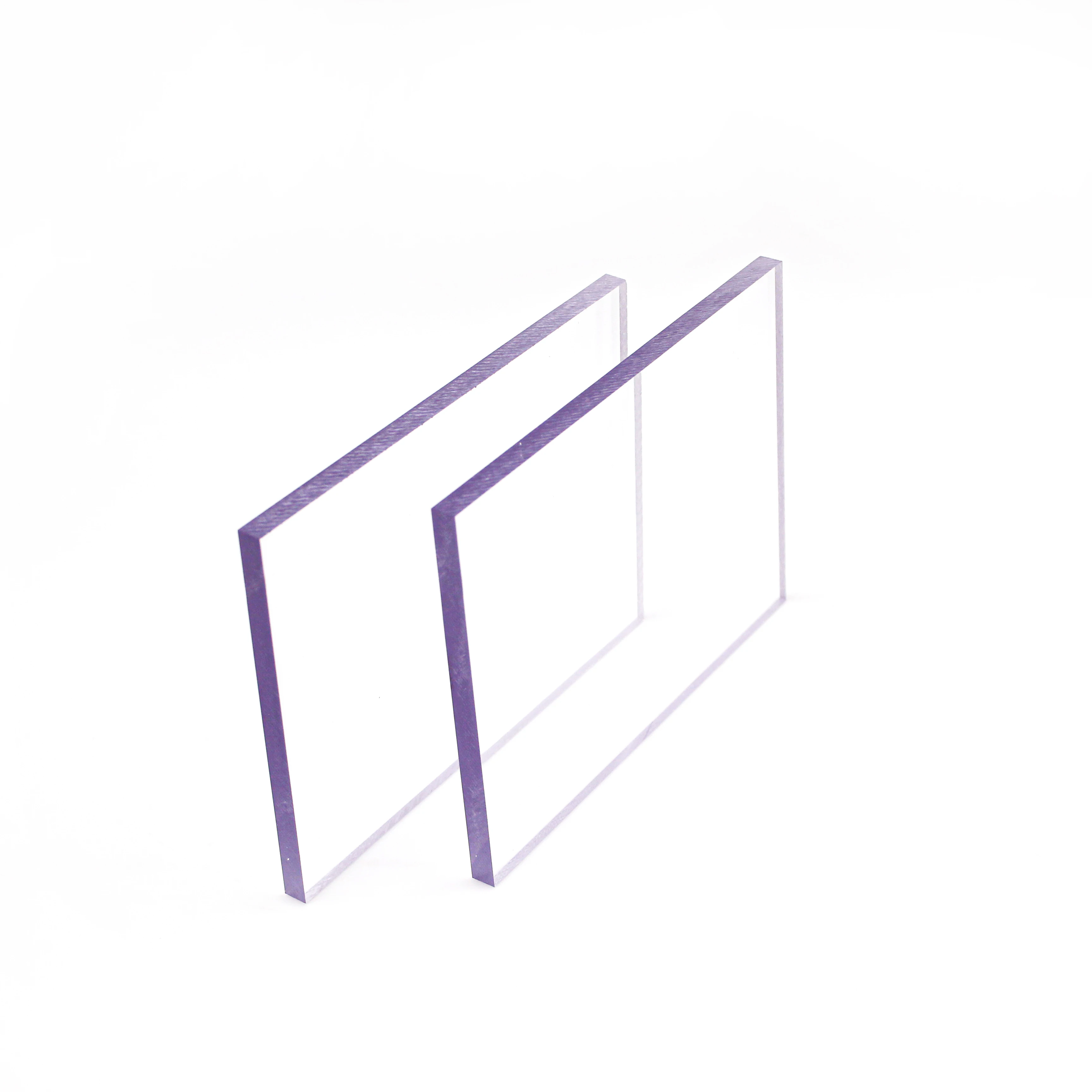

1.5mm to 18mm transparent solid polycarbonate plastic sheet

Share on (60671506420):


Price:

Quantity:


Product Overview

Description


.jpg


 Parameter

























































































Solid pc sheet Properties


Test Method


Average Index


Specific Gravity


ASTM D792


1.20


Tensile Strength


JIS K6735;CNS11335


551 kgf/cm²


Elongation


JIS K6735;CNS11335


50%


Compressive strength


ASTM D695


830 kgf/cm²


Modulus of Elasticity


ASTM D638


345000PSI+/-10%


Flexural Strength


ASTM D790


950 kgf/cm²


Yellowing Index
(UV-Grade apply)


ASTM D1925
(After exposure to sunlight for 3 years)


Below 3.0


Light Transmittance


wave length 500nm(UV/VIS)


88%


UV-Ray Penetrability
(UV-Grade apply)


wave length 500nm(UV/VIS)


2.4%


Weather Resistance
(UV-Grade app)


(Continously exposed to sunlight for 3000 hours)


yellowing index below5


Impact Strength


CNS11335
(1kg iron ball falls from 120cm height)


Unbreakable


Inflammability


UL 94V2
(contact with flame for 10 seconds and move away)


Self-extinguishing


Deflection Temperature


ASTM D648,18.6KG/cm²


135℃(the highest temp is about 120℃ in continuous uses)


Brittle Temperature


ASTM D764


(the lowest temp is about +30℃ in continuous uses)


Coeffcient of Liner Expansion


Pertain to smaller coefficent of synthetic resin


polycarbonate sheet


size




 Benefits and application



Benefits




1)High impact resistance - virtually unbreakable
2)High clarity and light transmission
3)Weather and UV resistant
4)Wide service temperature range
5)Blocks harmful UV radiation
6)Good acoustical insulation
7)Lightweight
8)Easy to handle and install
9)Versatile, formable, and machinable










Applications




1)Architecture: Transparent acoustic barriers, Sport venues, Skylights, Shopping centers, Covered walkways
2)Construction: Sun rooms and conservatories, Pergolas and covered patios
3)Safety and Security Glazing: Safety glazing, machine guards,
Bus stops and telephone booth
4)Shields for police and security forces, Glazing in public transportation,
Safety windshields for cars, Eye protection visors for  helmets
5)Sign & Display: Signs, public sign guards, Displays, P.O.P stands, Illuminated signs, light fixtures
6)Fabrication: Thermoformed, vacuum formed, bent and fabricated items








 About us.jpg


FAQ


How about the sample rule?

We offer you free samples as your requirements. If you are the first time to cooperate with us, the postage should be paid by you. When you place the order, we will return it back to you. In the next cooperation, we will be in charge of it.

What's the order process?

a. Inquiry---The more information you provide, the suitable product we can provide for you!
b. Quotation---official quotation form with all clear specifications.
c. Sample confirmation---sample will be shipped out in 2 days.
d. Payment terms-- T/T 30% in advanced, balanced against copy of Bill of Lading. L/C, D/P, T/T, D/A, or Trade Assurance are also available!
e. Production---mass production
f. Shipping---by sea, air or courier. Detailed picture of package will be provided.


What terms of payment do you use?

We accept TT and L/C at sight, other payment terms (D/P, D/A, Western Union, OA, Trade Assurance) can be negotiated.
