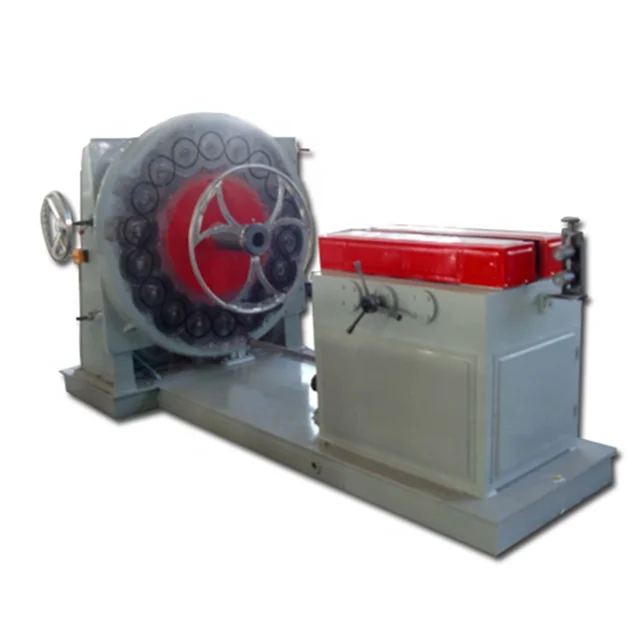

Stainless steel/copper wire braiding machine

Product Overview

Description

Hydraulic hose/ rubber hose /metal hose horizontal steel hose making machine



Machine description



Wire braiding machine

The wire braiding machines we can make as follows:

Wire diameter:0.3mm to 0.8mm

No.of spindles:16 to 112 spindle braiding machine

ID of the braids:4mm to 600mm

Material of wires:stainless steel,galvanized carbon steel, copper wire



Technical data



 Single decker steel wire braiding technical data



Wire Braiding Machine
Type No.	Braid ID(mm)	rotation speed of spindler/min	braiding angle	Pitch(mm)	pulling speed(m/h)	no.of carriers	Motor power(KW)
BG-16	4-10	24.8	54°44'	9-22	13-33	16	Y132M1-6  4.0KW
BG-20	6--13	19.8	54°44'	13-29	15-34.5	20	Y132M1-6  4.0KW
BG-24	10--31	14.25	54°44'	22--69	21--66	24	Y132M1-6  4.0KW
BG-36	15--45	10	54°44'	33--100	22--66	36	Y132M1-6  5.5KW
BG-48	30--75	7.25	54°44'	66--166	29--72	20	Y132M1-6  7.5KW
BG-64	51--110	4.56	54°44'	67--240	18.6--102	64	Y160L-6  11KW
BG-72	80--150	4.25	54°44'	170--330	44--83	72	Y160L-6  11KW
BG-96	150--400	2.75	54°44'	240--750	50--120	96	Y160L-6  11KW





Double decker steel wire braiding technical data



Description	Braiding Diameter (mm)	Carrier Rotation Speed (r/min)	Braiding angle	Braiding Pitch (mm)	Pulling Speed M/H	Carrier NO.	Motor Power KW
GBG-2S16	4-10	24.8	54°44"	9-22	13-33	32	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S20	6-16	19.8	54°44"	13-29	15-34.5	40	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S24	10--31	14.25	54°44"	22-69	21-66	48	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S36	15--45	10	54°44"	33-100	22-66	72	Y100L2-4 3.0KW Y100L2-4 3.0KW
GBG-2S48	30--75	7.25	54°44"	66-166	29-72	96	Y132M2-6 5.5KW Y112M-4 4.0KW



Machine showing

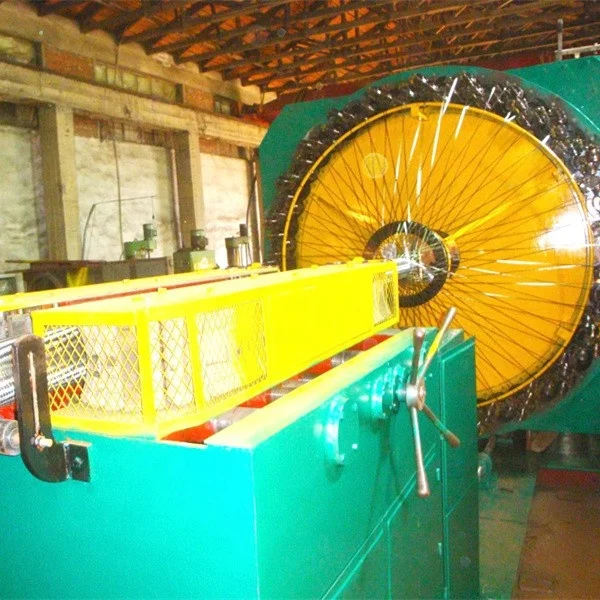

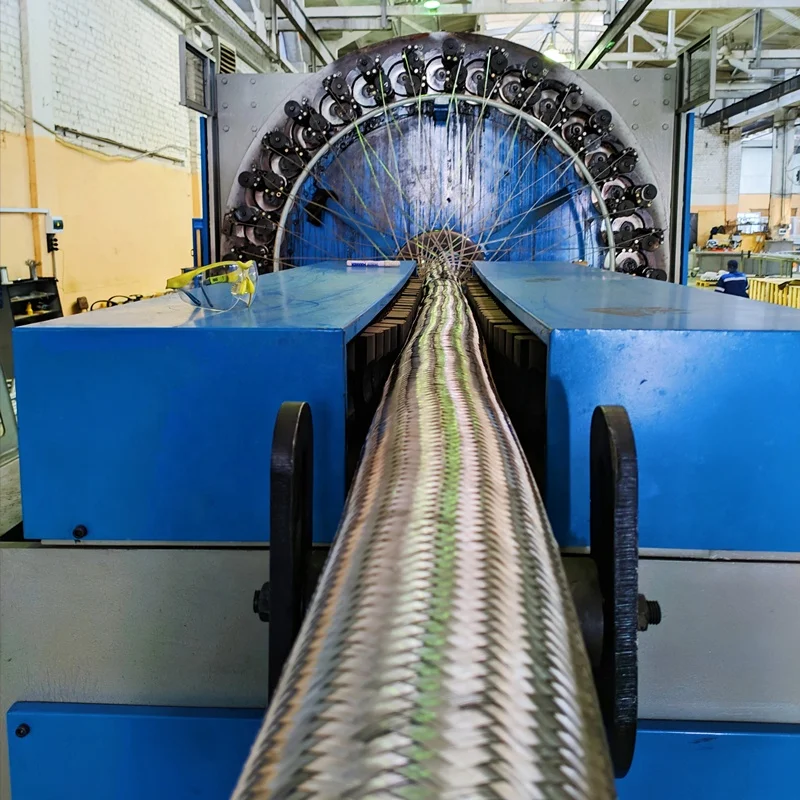

24 carriers steel wire braiding machine

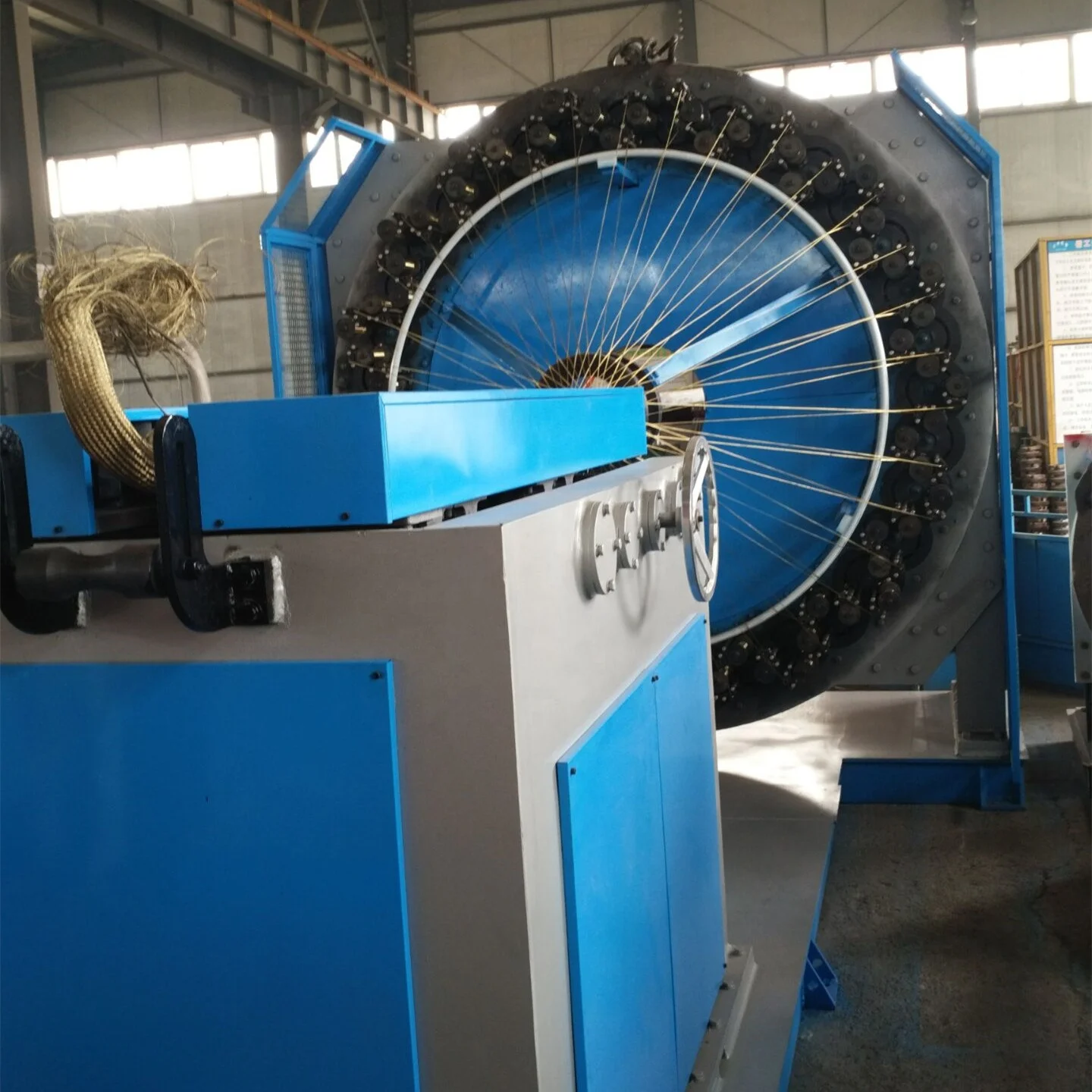

48 carriers steel wire braiding machine

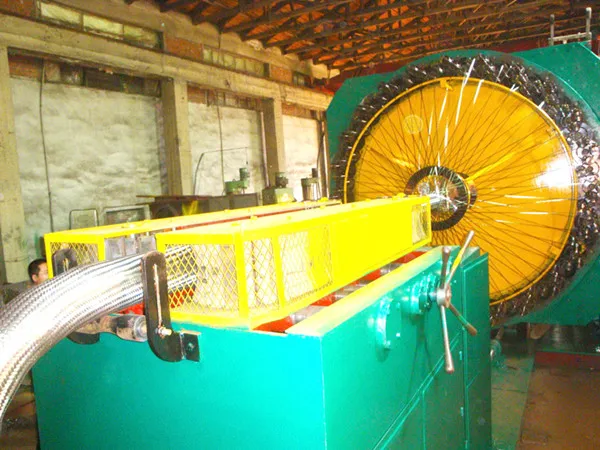

96 carriers steel wire braiding machine

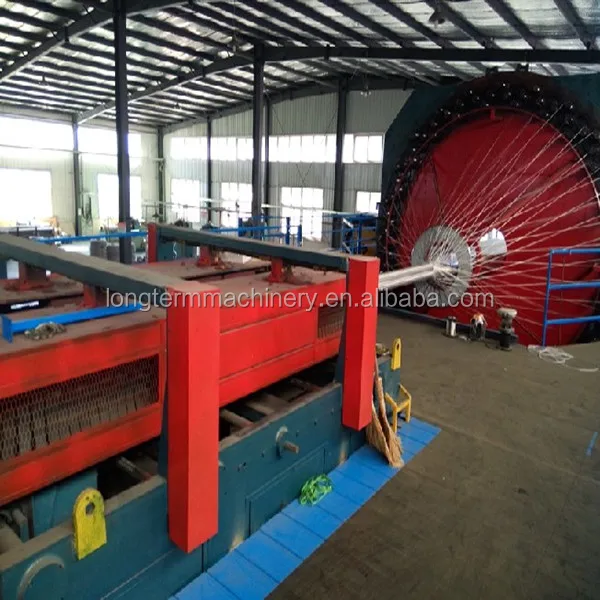

128 carriers steel wire braiding machine

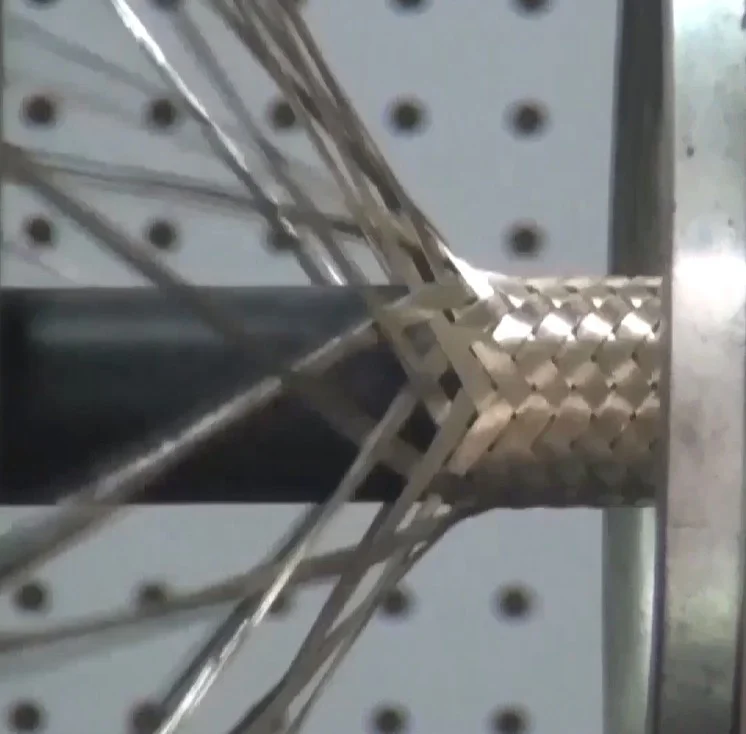

Braiding type details

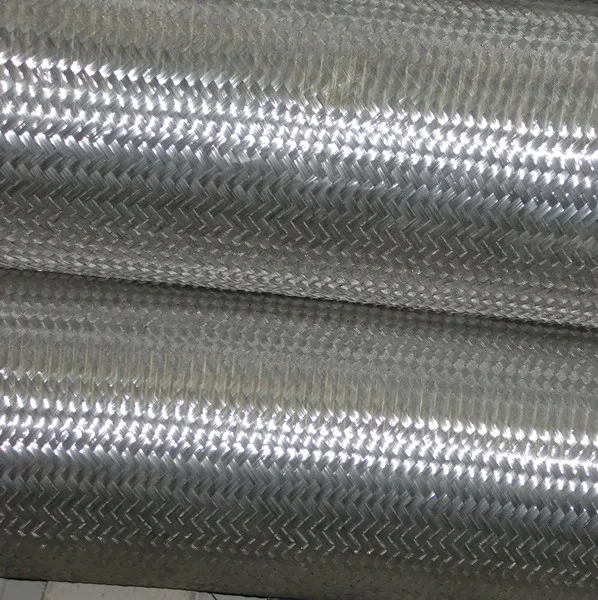

Braiding products

Packing and shipping







FAQ for Steel Wire Braiding Machine



1.  Why choose us as your supplier?



    We are most professional in steel wire braiding machine with more than 30



    years of experience



2.  What wires can you machine braid?



A. Stainless steel wire



B. Copper lad steel wire



C. Copper wire



3. What application of your braiding machine?



Popular for both rubber hose and metal hose manufacturing







  We need to know the following information to quote you correct machineries:



1.What outer diameter of the hose you want to braid?



2. Structure of the braid?



How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
