Product Overview

Description



Product Description

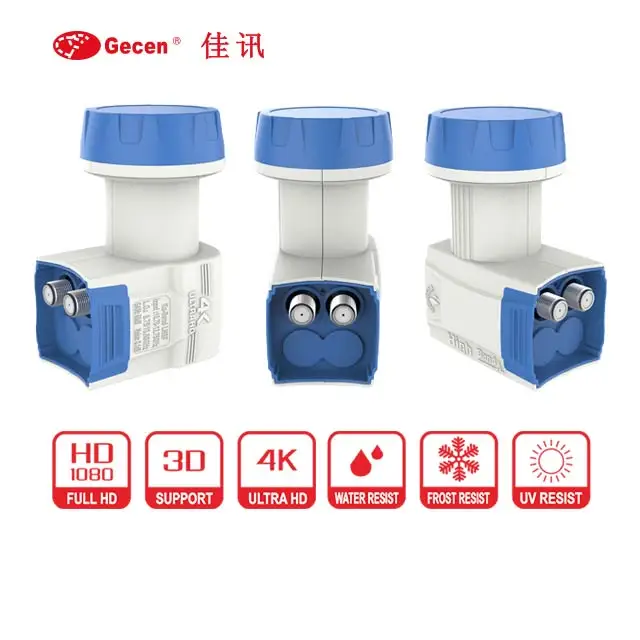

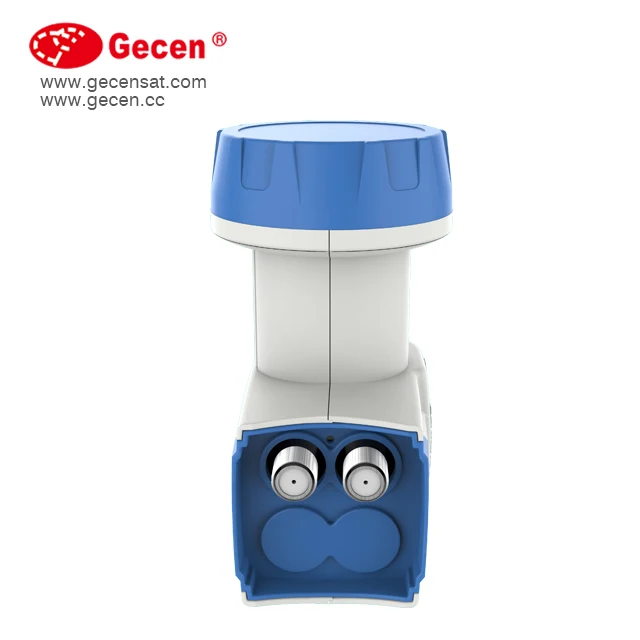

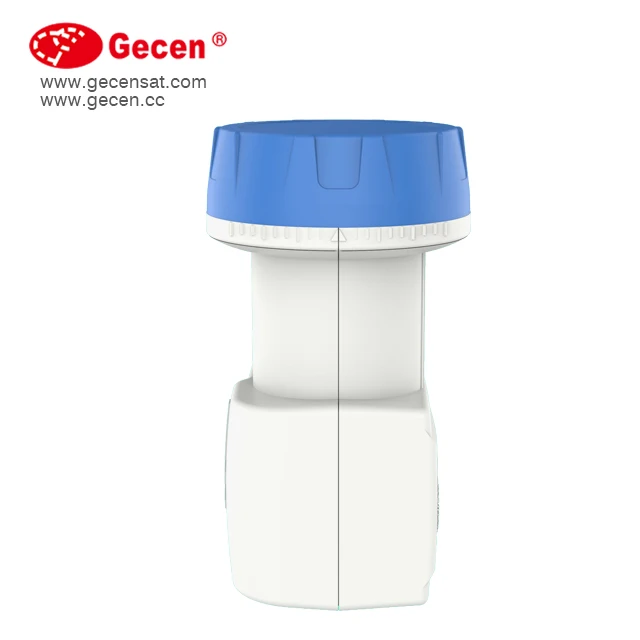

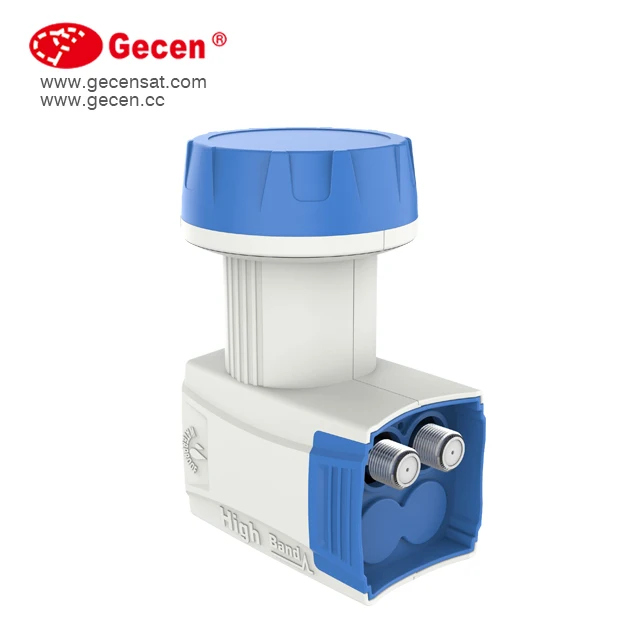

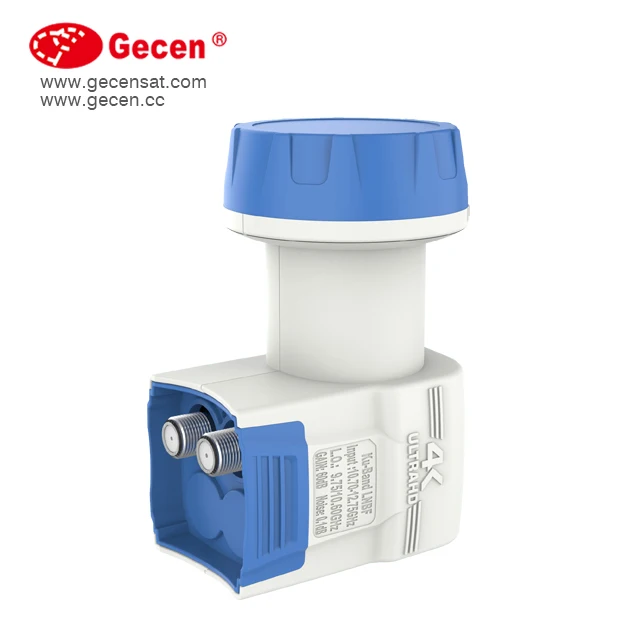

Product Name： Universal Ku-Band Twin LNBF
Model：GKF-2502
Features： Full coverage of Ku-Band for Analog and Digital reception
Low noise figure
Easy installation
Low power consumption
High quality weather protection




Item
Specification
Item
Specification
Input Frequency Range
Low Band:10.70~11.70GHz
Gain Flatness
±0.5dB/26MHz
High Band:11.70~12.75GHz
Cross POL. Isolation
25dB(Typ.)
Output Frequency Range
Low Band:950~1950MHz
Image Rejection
40dB(Min.)
High Band:1100~2150MHz
Output VSWR
2.0:1(Max.)
L.O. Frequency
Low Band:9.75GHz
P1dB
0dBm (Min.)
High Band:10.60GHz
DC Current Consumption
80mA(Typ.)
L.O. Frequency Stability
±1.0MHz (Max.)@+25℃
Low/High Band Switching
Low Band:0Hz
±2.0 MHz (Max.)@-30℃~+70℃
High Band:22KHz±4KHz
L.O. Phase Noise
-60dBc/Hz@1KHz
POL. Switching Voltage
10.5~14.0V @Vertical
-80dBc/Hz@10KHz
16.0~20.0V @Horizontal
-100dBc/Hz@100KHz
Relative Humidity
0%~95%
Conversion Gain
60dB(Typ.)
Operating Temperature
-30℃~+70℃
Noise Figure
0.1dB(Typ.)
Connector Type
75Ω Female Connector
