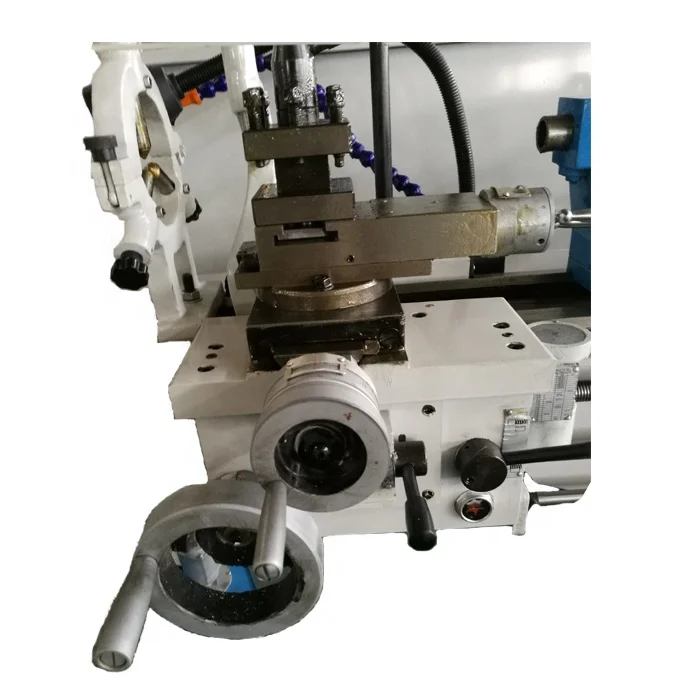

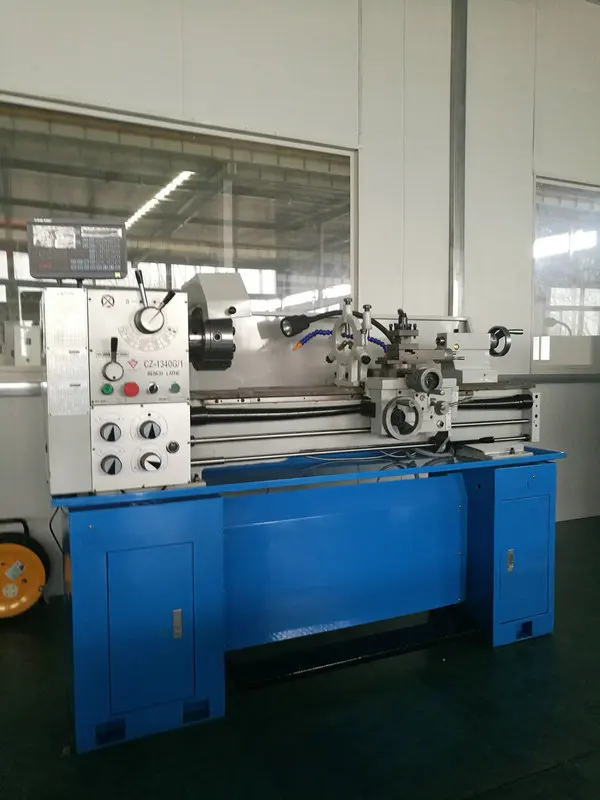

Small Mini Hobby Bench Lathe Machine GH1440G/1
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60671604244):
Product Overview
Description
Small Mini Hobby Bench Lathe Machine
Product Description
Features
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gearbox
Enough strong power motor
ASA D4 camlock spindle nose
Various threads cutting function available
| MODEL | GH1340G/1 | GH1440G/1 | |
| Swing over bed | mm | φ330 | φ355 |
| Swing over carriage | mm | φ195 | φ220 |
| Swing over gap | mm | φ476 | φ500 |
| Width of bed-way | mm | 186 | 186 |
| Distance between centers | mm | 1000 | 1000 |
| Taper of spindle | M.T.5 | M.T.5 | |
| Spindle diameter | mm | φ38 | φ38 |
| Step of speed | 8 | 8 | |
| Range of speed | rpm | 70~2000 | 70~2000 |
| Head | D1-4 | D1-4 | |
| Metric thread | 26kinds (0.4~7mm) | 26kinds (0.4~7mm) | |
| Inch thread | 34kinds(4~56T.P.I) | 34kinds(4~56T.P.I) | |
| Moulder thread | 16 kinds(0.35~5M.P) | 16 kinds(0.35~5M.P) | |
| Diametral thread | 36 kinds(6~104D.P) | 36 kinds(6~104D.P) | |
| Longitudinal feeds | mm/r | 0.052~1.392 (0.002”~0.0548”) | 0.052~1.392 (0.002”~0.0548”) |
| Cross feeds | mm/r | 0.014~0.38 (0.00055”~0.015”) | 0.014~0.38 (0.00055”~0.015”) |
| Diameter of lead screw | mm | φ22(7/8”) | φ22(7/8”) |
| Pitch of lead screw | 3mm or 8T.P.I | 3mm or 8T.P.I | |
| Saddle travel | mm | 1000 | 1000 |
| Cross travel | mm | 170 | 170 |
| Compound travel | mm | 74 | 74 |
| Barrel travel | mm | 95 | 95 |
| Barrel diameter | mm | φ32 | φ32 |
| Taper of center | mm | M.T.3 | M.T.3 |
| Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
| Motor for coolant system’s power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1920×750×760 | 1920×750×760 |
| Stand(left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
| Stand(right) (L×W×H) | mm | 370×410×700 | 370×410×700 |
| Machine | Kg | 500/560 | 505/565 |
| Stand | Kg | 70/75 | 70/75 |
| Loading amount | 22pcs/20’container | 22pcs/20’container |
Standard accessory
Tool box
Tool post wrench
Allen wrench
Change gears set

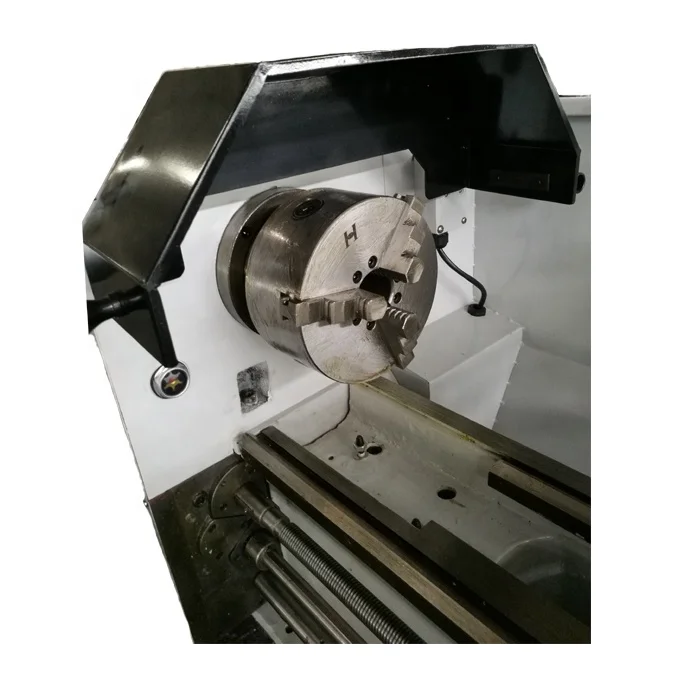

3 jaw chuck and 4 jaw chuck
wrench
Coolant system
Working lamp
Foot brake
Machine stand
Face plate
Following rest
Steady rest
Optional accessory
Splash guard
Face plate
Back plate
Live center
Quick change toolpost
Lathe tool
Chuck cover
Tool post cover
Lead screw cover
2-axis DRO

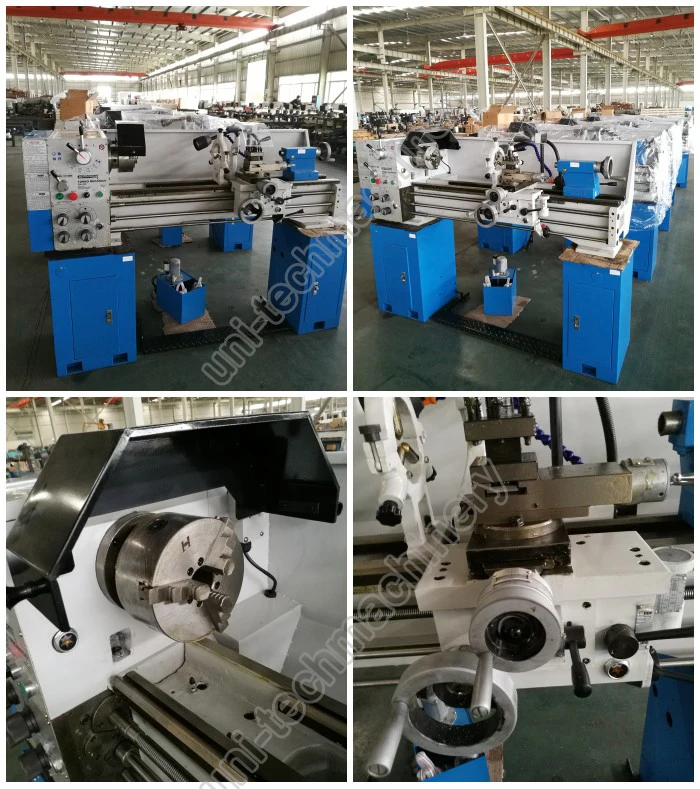

workshop show
