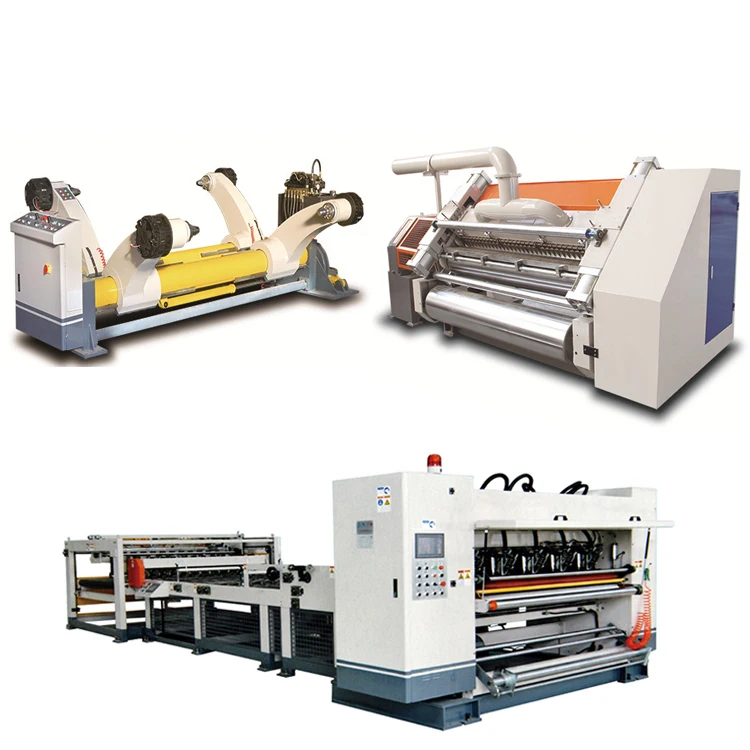

Good price  single facer corrugated paperboard production line carton box making machine

 » Introduction:

 1, Mechanical configuration: NC Slitter & NC helical cutter & and stacker.
2, Single facer line is also called 2ply/layer corrugated paperboard/cardboard production line.

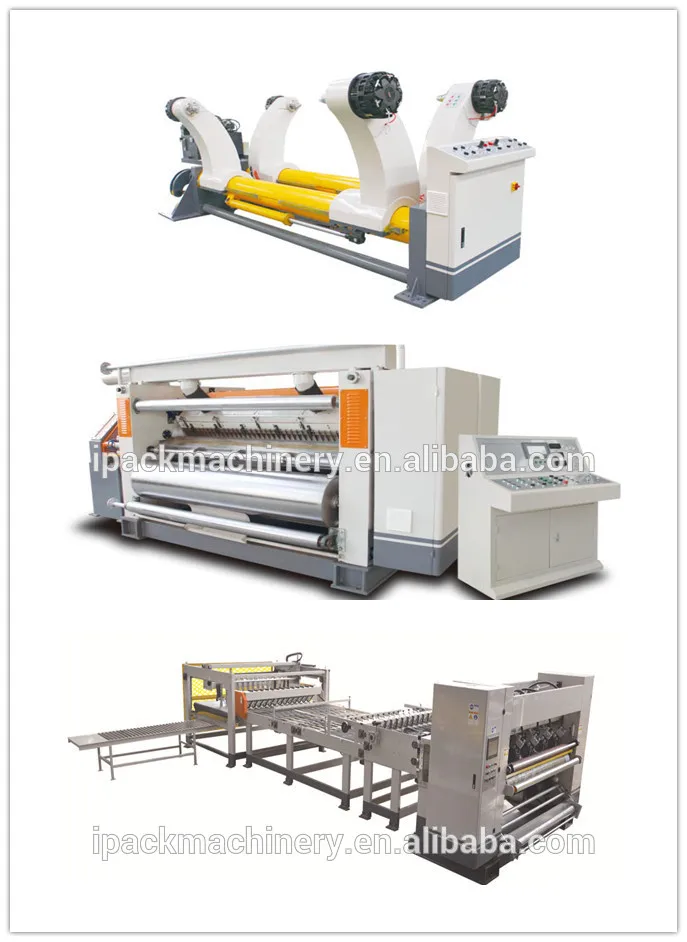

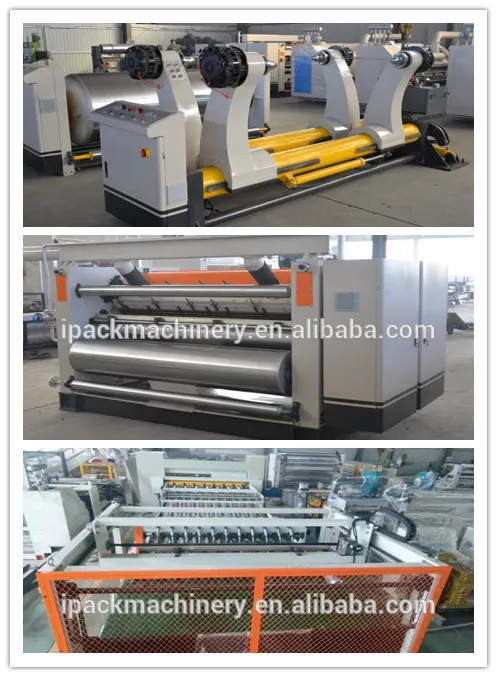

3, The Single facer Line is composed of Mill Roll Stand, Single facer machine, pre-heater, conveying bridge, paper cutting &slitting& stacking machines.
4, To use the paper material single face machine production line, producing and cutting single face corrugated paper as required sizes, it forms the corrugated board with no need drying.
5, This combination has the advantages of reasonable fabric, advanced technology, high quality of production, high efficiency, low workmanship, operation and maintenance easy.

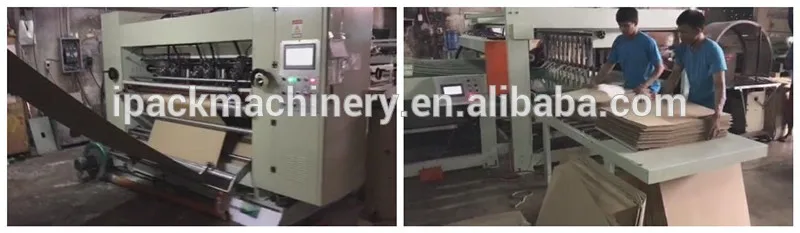

6, Function is to cut single facer paperboard produced from vacumme single facer machine.



» Technical Paramater:

Effective Width	1600mm - 2200mm
Design Speed	150m/min
Slitter QTY & Min. Slitting Width	5 & 180mm
Rowing Knife Time & Accuracy	3-8s & 0.5mm
Cutting Width & Accuracy	300-9999mm & 1mm(stablized speed)
Stacking Height & Max. Length	250-600mm & 1600mm





» Feature:

1, Constant tension cardboard delivery, delivery speed and single-facer speed stric synchronization.

2, Alloy steel blade slitter, automatic sharpening, long blade life, high cutting quality.

3, Slitters row independent servo control, change over fast, accurate, reliable.

4, Slitter speed frequency motor, frequency control, follow cardboard speed aynchronous adjustment.

5, Cutter part box adopts quality castings, strictly agng treatment, precision maching, long-trem stable operation of equipment.

6, Alloy steel sprial cutter shaft, precision machining, balancing correction, high stiffness, low intertia.





» Machine Composition:







 »Machine Details:







»About Us:



We're professional manufacturer for corrugated paperboard production line together with carton box making machines in China.

Expecting your enquiries & visiting our factory!
