English Thai malt machine, malt factory, brewery and brewery malt machine.

Process description

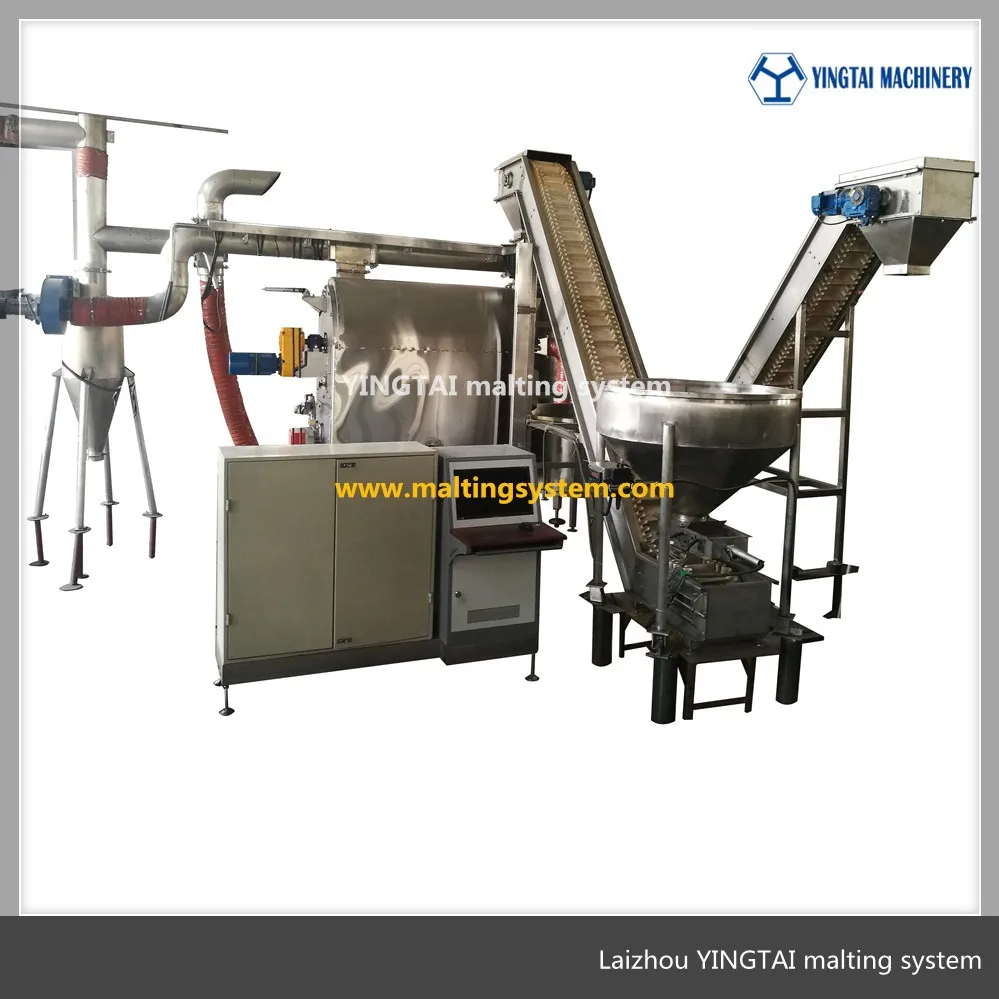

1. Barley into the hopper, raised by the conveyor to self-balancing vibrating screen (equipped with pulse dust collector dust). The screened barley and water are mixed by a non-blocking pump to the steeping tank.

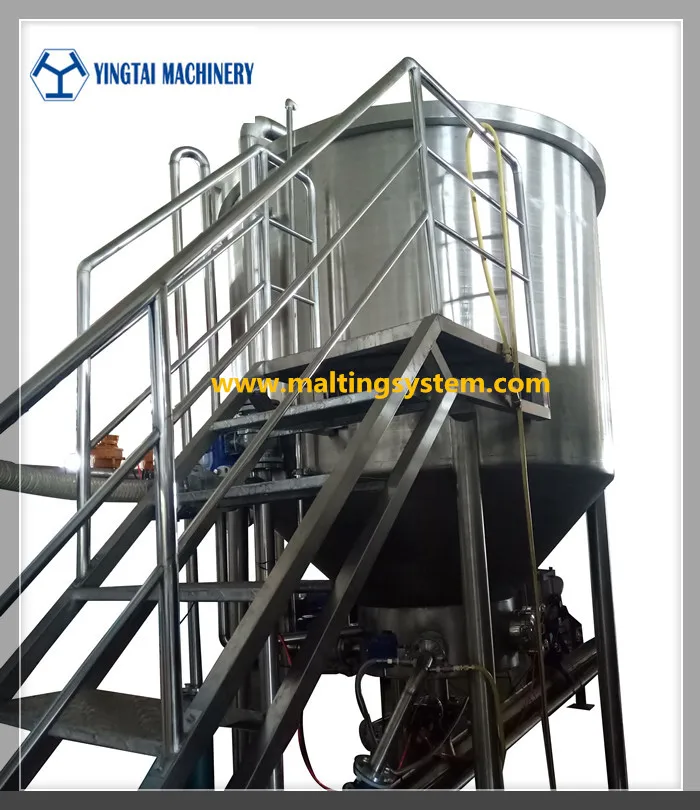

2. Steeping tank made of SUS 304 material, with air supply system, pumping CO2 system, water supply and drainage system. In accordance with the requirements of intermittent ventilation, water supply. The general steeping time is less than 48 hours. After the end of the steeping, the malt and water are transported together with a non-blocking pump to the Drum container. The whole process is fully automatic control.

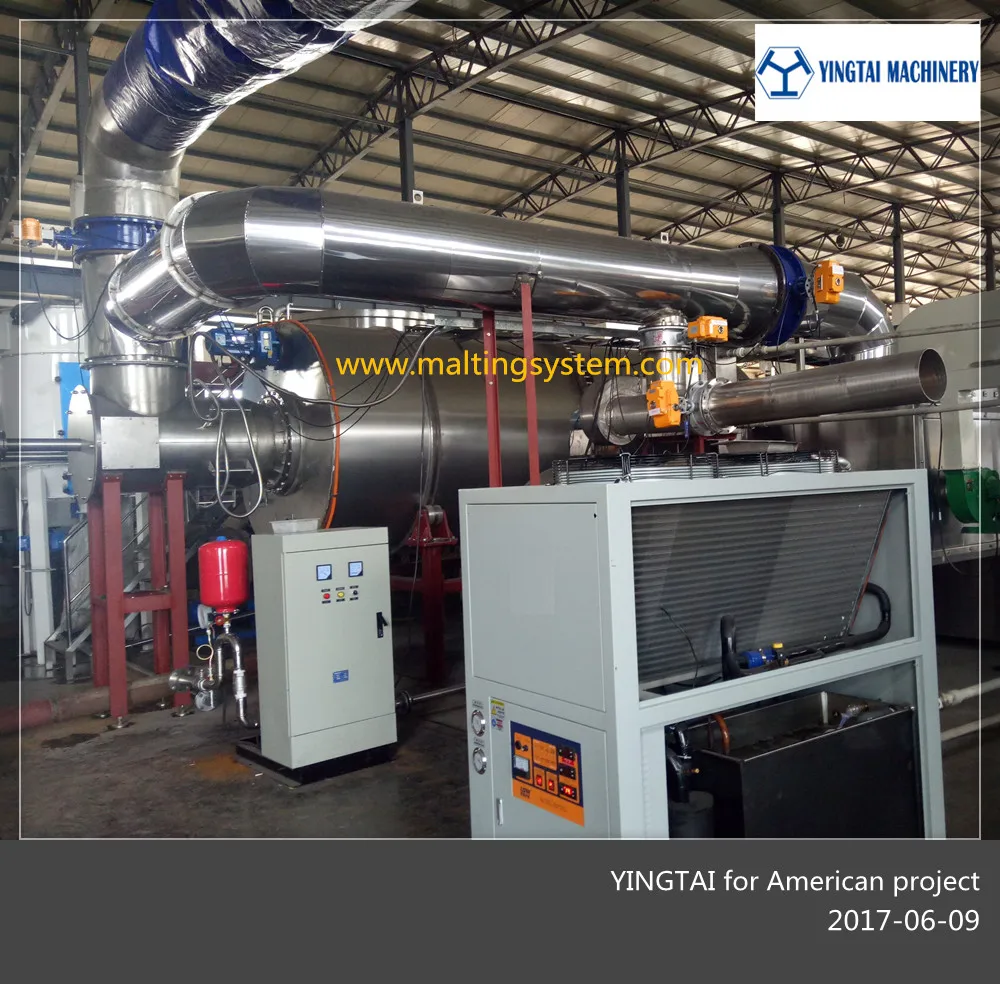

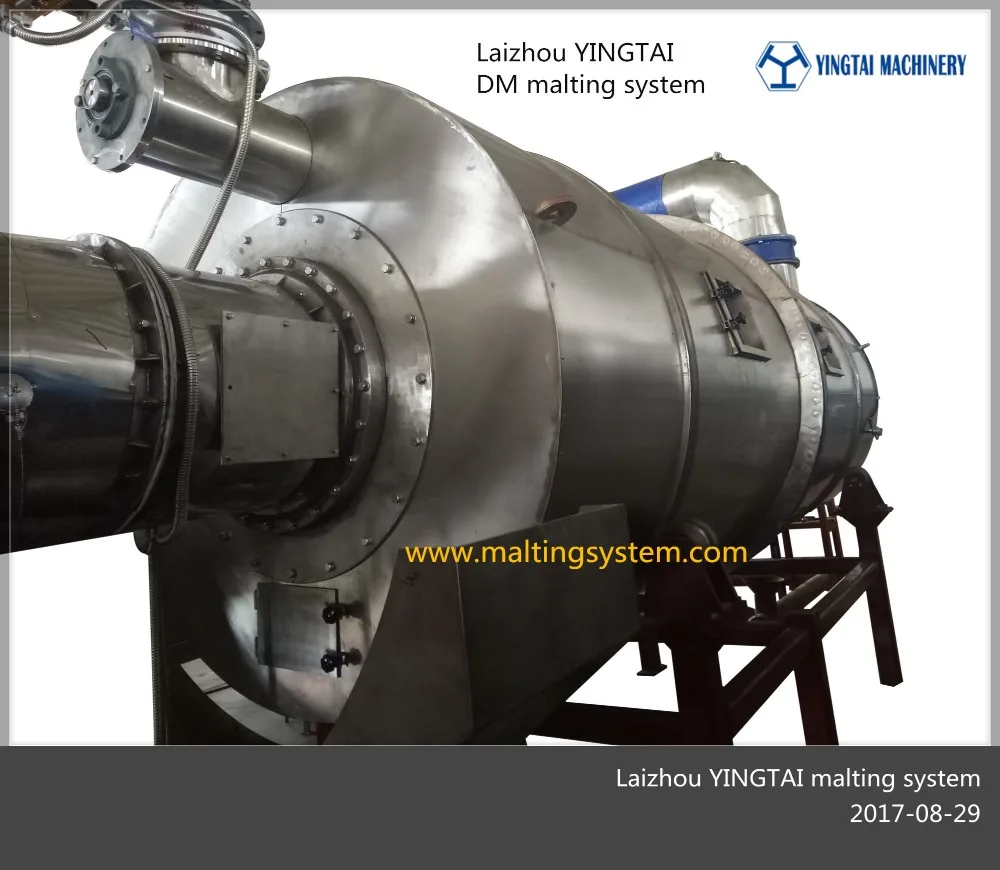

3.Micro Malt Plant Use YINGTAI Malt roasting Machine Price can complete the germination and drying. Malt into the container, according to the process requirements to ventilate, supply oxygen and cool. Until the index meets the process requirements, the germination stage ends. Into the drying section, with a hot air furnace to meet the needs of different temperatures. After reaching the desired process requirements, the drying ends. The whole process is fully automatic control.

1. Production structure is compact: The user only needs to provide the standard factory in accordance with the requirements of the process, without other construction sites.
2. Short On-site installation time: The production line will be tested very well before shipping; equipment arrived at the scene just need to be partly assembled and welded.
3. High automation: The entire production line is completely controlled by computer, So only need to patrol on it. Key components are using Siemens brand.
4. Low power consumption, uniform ventilation
5. Equipped with return air device, can effectively save energy. In the late drying can be used to return air.
6. Parts contacting with malt is made of stainless steel.

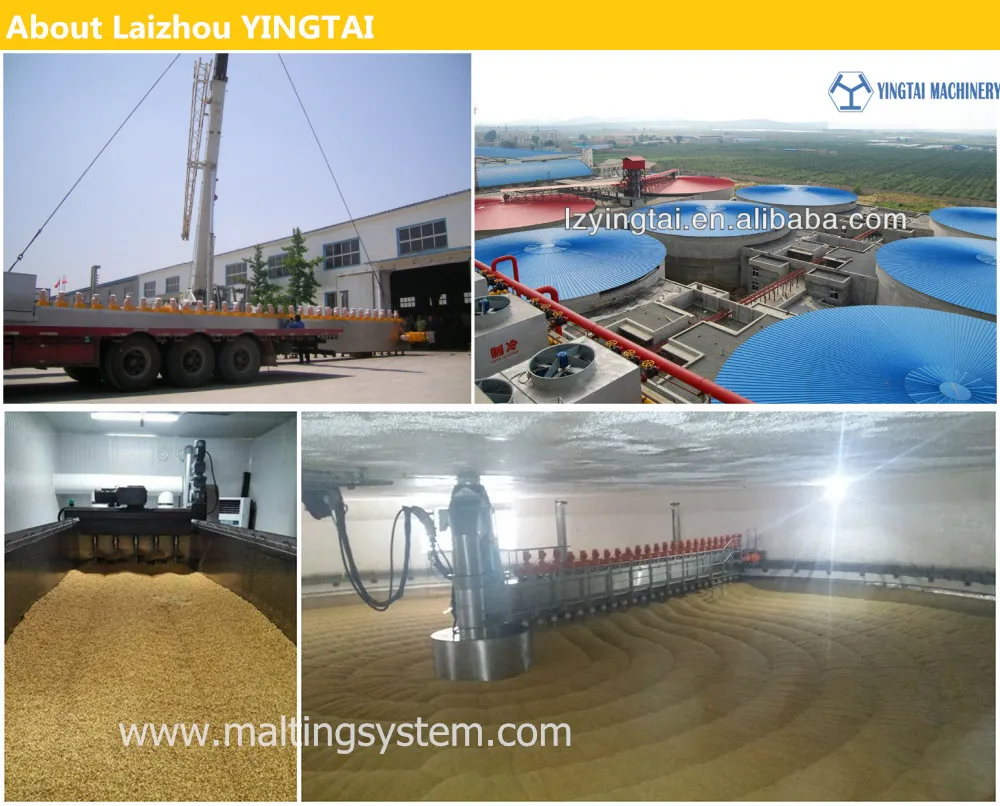

About Laizhou Yingtai

Laizhou Yingtai Machinery Equipment Co., Ltd. is located in Laizhou Economic Development Zone, known as the hometown of Chinese rose. It has more than 50 staffs and the annual production value is RMB 11 million. The company is a professional machinery manufacturer of YINGTAI malting system and craft malt roasting system. We offer comprehensive support and smart & safe technology to Malting companies, Craft brewers and distillers, Breweries, distilleries, Craft malt house, etc.
With more than 30 year's malting experience, we have designed three types of malting systems to meet various needs from major brewers, malting companies and larger universities, specialist craft maltsters, craft breweries, or farmers who wish to use their own grain to produce malt. The three different types, Drum type malting system, Saladin type malting system, and Tower type malting system, are different in designs and configurations. All systems can be fully automated and self-automated.
Combining tried and tested techniques used by the large malt distributors with rich malting and engineering experience, we designs, manufactures and constructs complete malting plants and install malting and roasting systems at home and abroad.Until now, we have designed and finished more than 200 malt production lines in China and exported to more than 10 countries, Such as the United State, Russia, UZ Uzbekistan, etc.

Experience

1.Steeping systems
2.Germination systems
3.Kilning systems
4.Ancillary equipment (eg. grain cleaner/pre-screen, deculmer, weighing and bagging machine, chillers,etc)

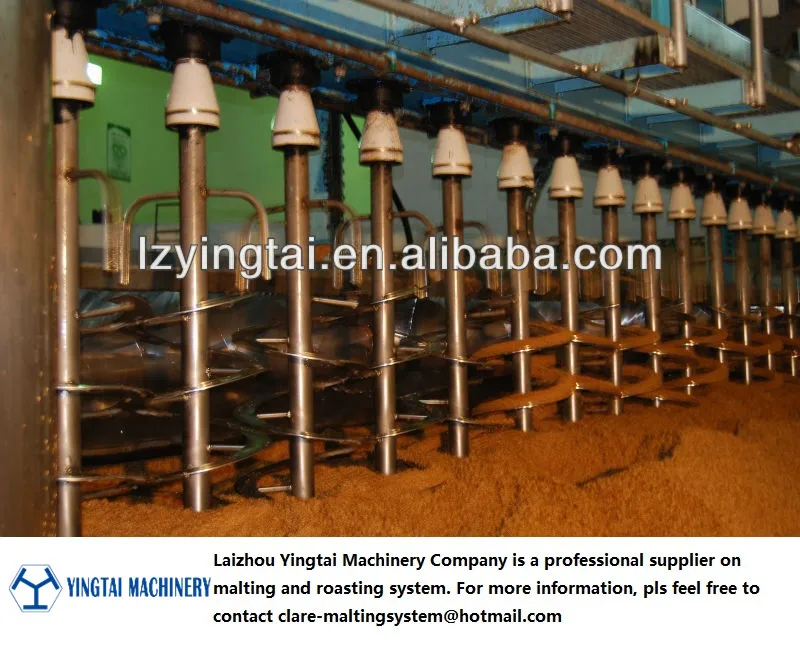

5.Traditional Saladin malting / Tower Malting: 15000kg-220000kg/batch
6.New type of Saladin malting system: 2000Kg-10000Kg/batch
7.Germination kilning COMBO Drum 300Kg-2000Kg/batch
8.Roasting Drums 100Kg-500Kg/batch
