Product Overview
Description

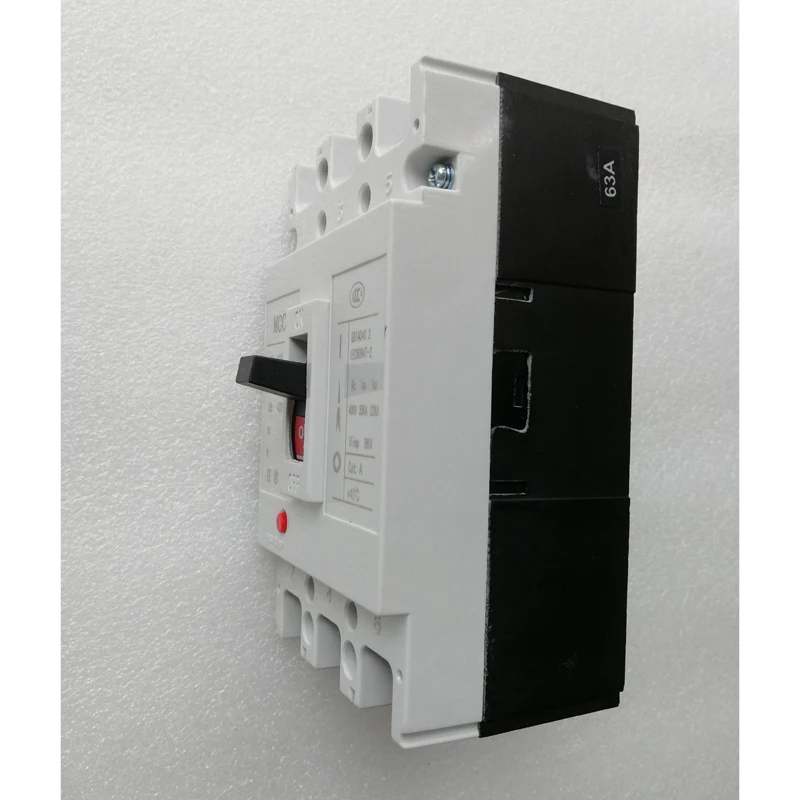

3P 400V 50hz 60hz MCCB for distributing network protect
Product Description

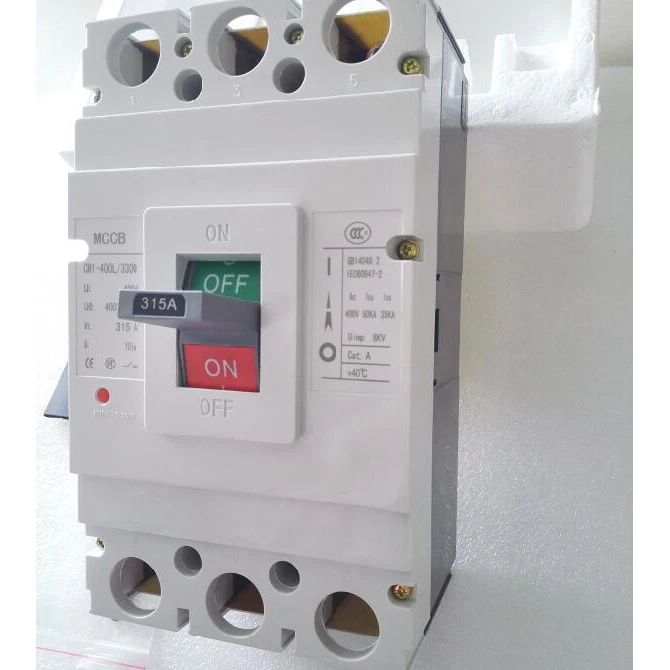

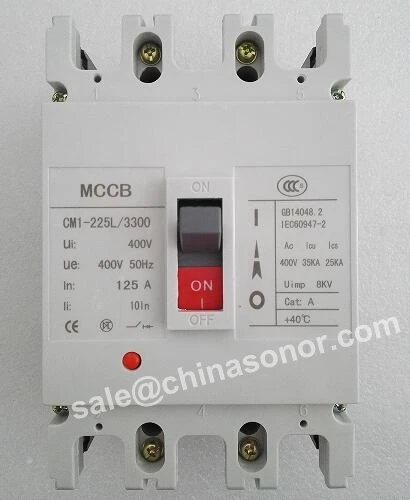

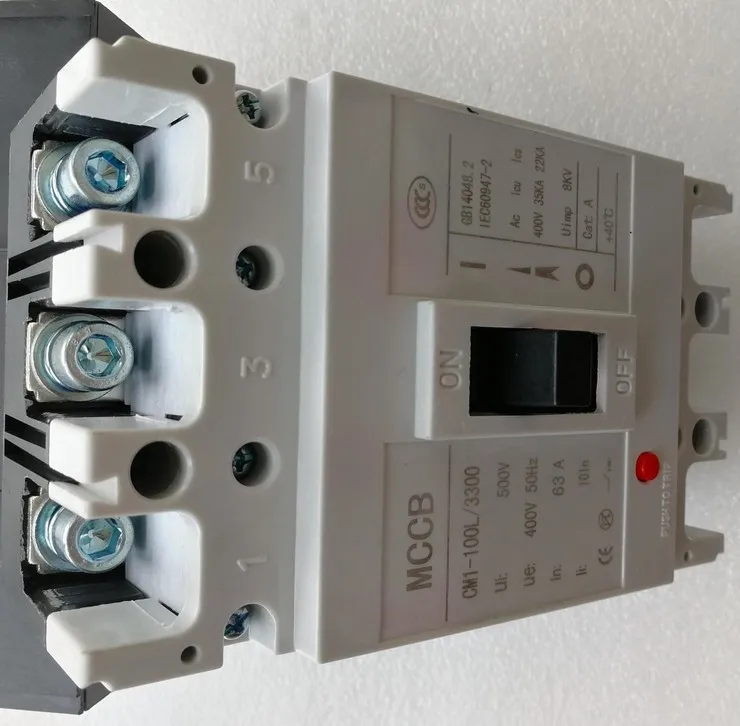

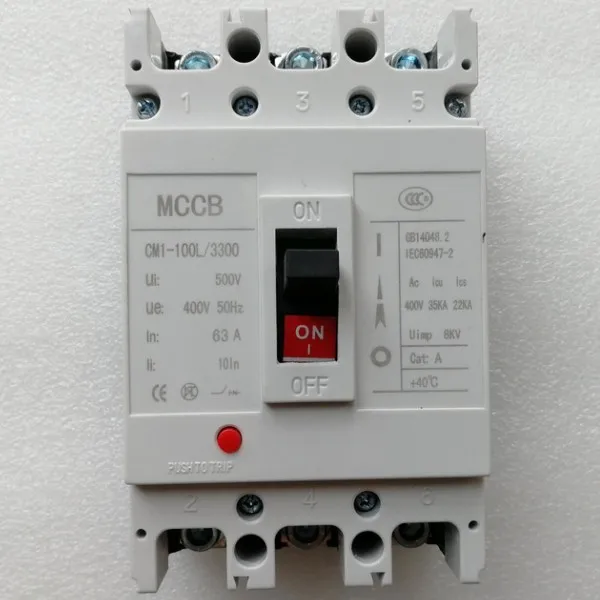

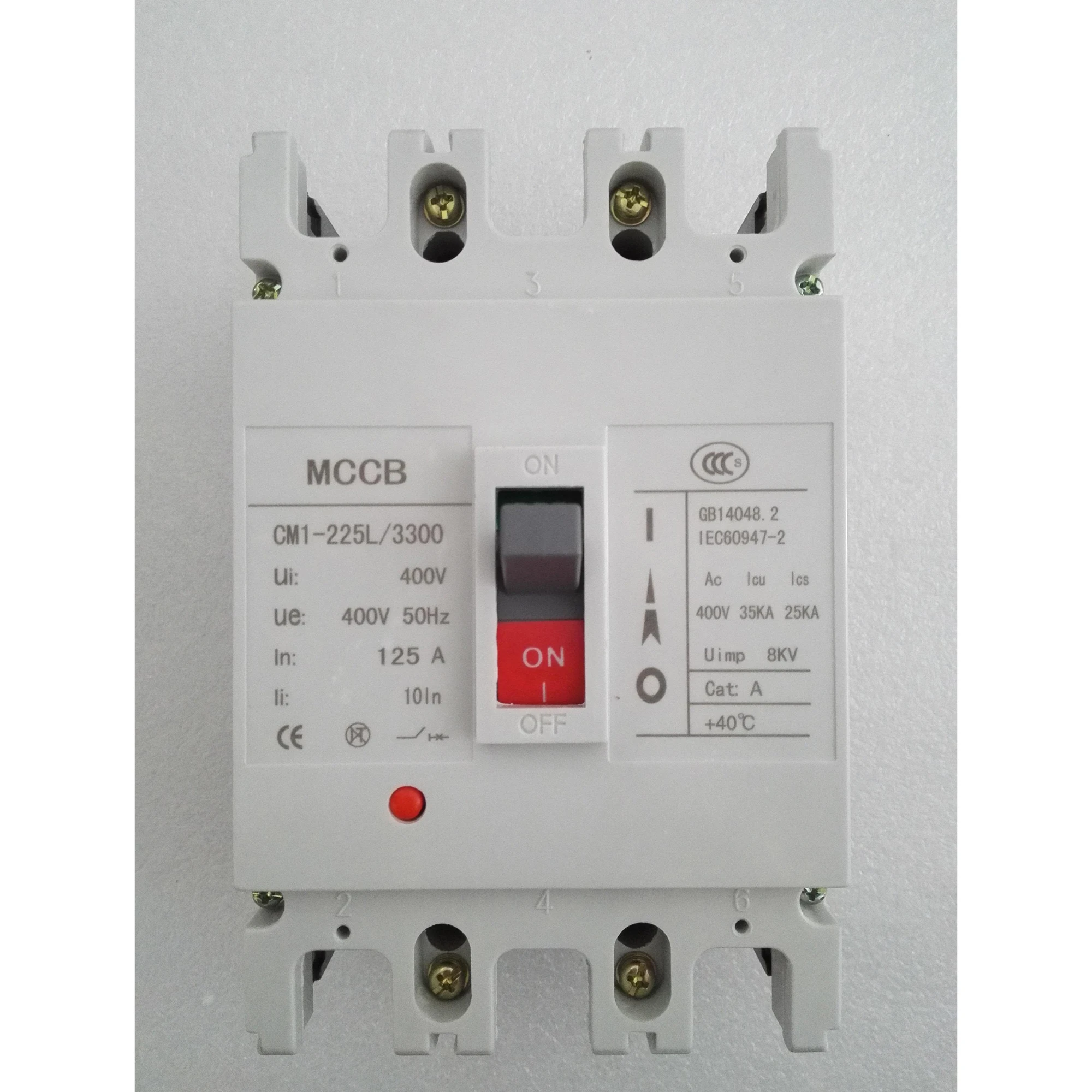

CM1 series moulded case circuit breaker is a new type product
developed and manufactured by Adopting international advanced
technology. It is supplied with rated insulation voltage 800V and
used for circuit of AC 50Hz, rated operation voltage AC 400V or
below rated operation current up to 1600A for infrequent changing
over and starting of the motors. Equipped with the protection
devices for over-current,short circuit and under voltage,the product
is capable of preventing damage of circuits and supply units. The
product conforms to IEC60947-2 standard.
Main Datasheet
| Type | Rated current (A) | No.of Poles | Rated insulation Voltage(V) | Rated Operating Voltage(V) | Arcing Over Distanc(mm) | Ultimate Short Circuit Breaking Capacity(kA) |
| CM1-63L | 6,10,16,20,25,32 40,50,53,63 | 3P, 4P | 690V | 380V | 0 | 25 |
| CM1-63M | 0 | 50 | ||||
| CM1-100C | 10,16,20,25,32 40,50,53,63,80,100 | 0 | 25 | |||
| CM1-100L | 0(0≤50) | 35 | ||||
| CM1-100M | 0(0≤50) | 50 | ||||
| CM1-100H | 0(0≤50) | 85 | ||||
| CM1-225C | 100,125,160,180 200,225 | 0≤50 | 25 | |||
| CM1-225L | 0≤50 | 35 | ||||
| CM1-225M | 0≤50 | 50 | ||||
| CM1-225H | 0≤50 | 85 | ||||
| CM1-400C | 225,250,315 350,400 | 0≤50 | 35 | |||
| CM1-400L | 0≤50 | 50 | ||||
| CM1-400M | 0≤50 | 65 | ||||
| CM1-400H | 0≤50 | 85 | ||||
| CM1-630C | 400,500,630 | 0≤50 | 35 | |||
| CM1-630L | 0≤100 | 50 | ||||
| CM1-630M | 0≤100 | 65 | ||||
| CM1-630H | 0≤100 | 100 | ||||
| CM1-800M | 630,700,800 | 0≤100 | 65 | |||
| CM1-800H | 0≤100 | 100 |

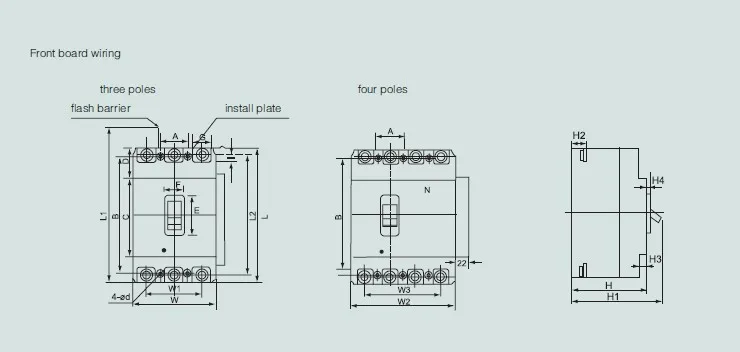

Outline Size

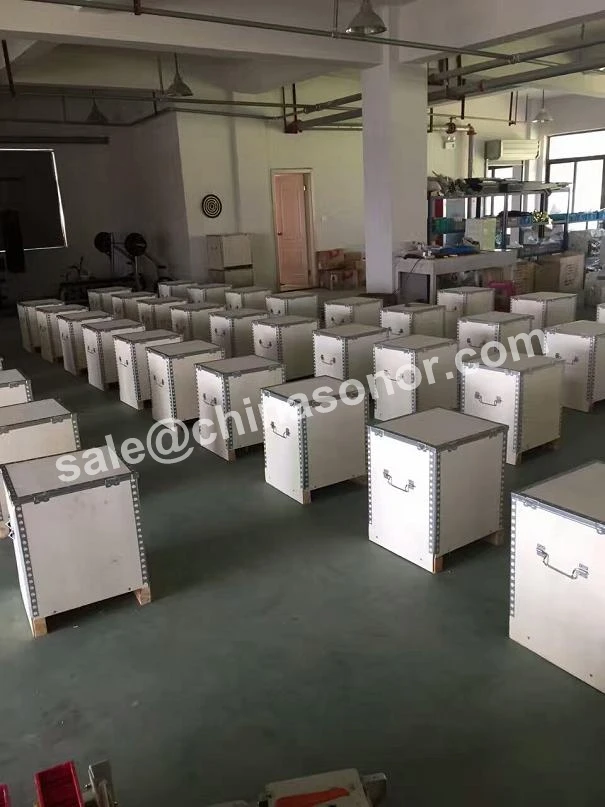

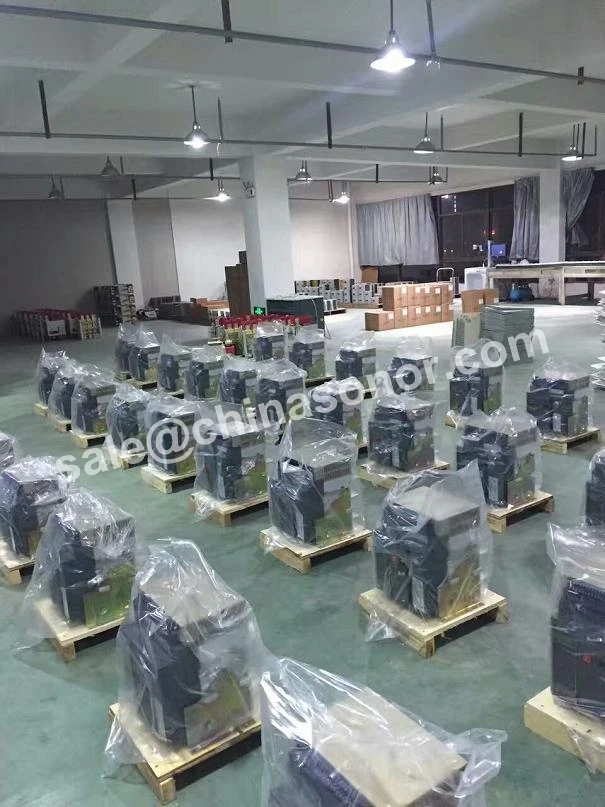

Packaging & Shipping
Company Information
Other Products
AC Application For Generators For Generators and Power

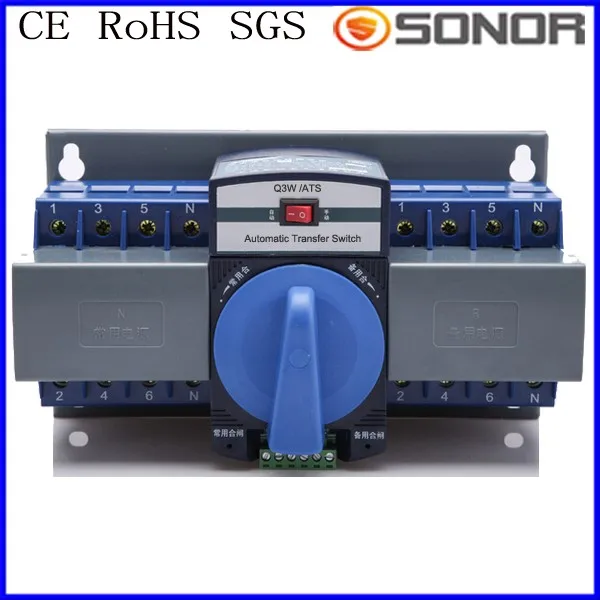

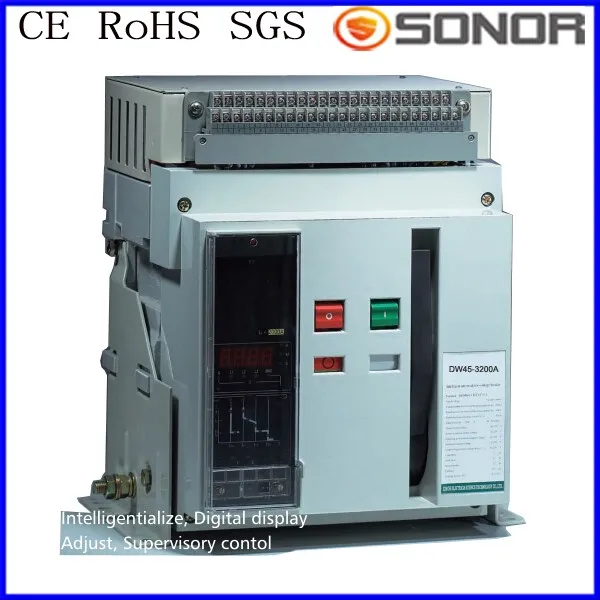

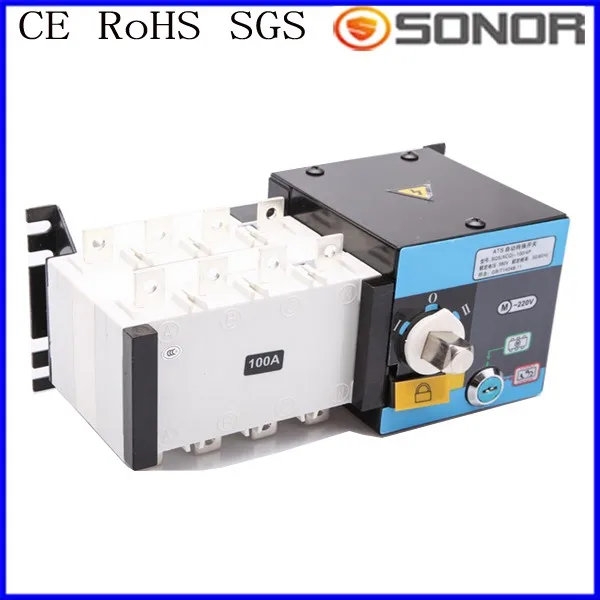

DW45 series intelligent breaker Q5W Type ATS Mini Type ATS

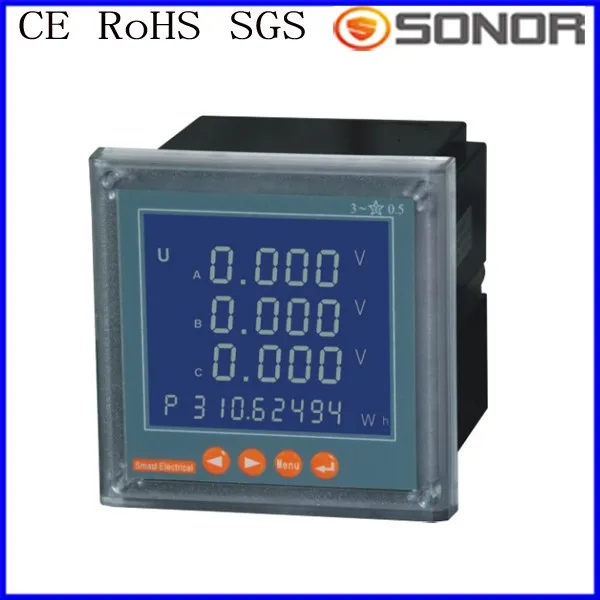

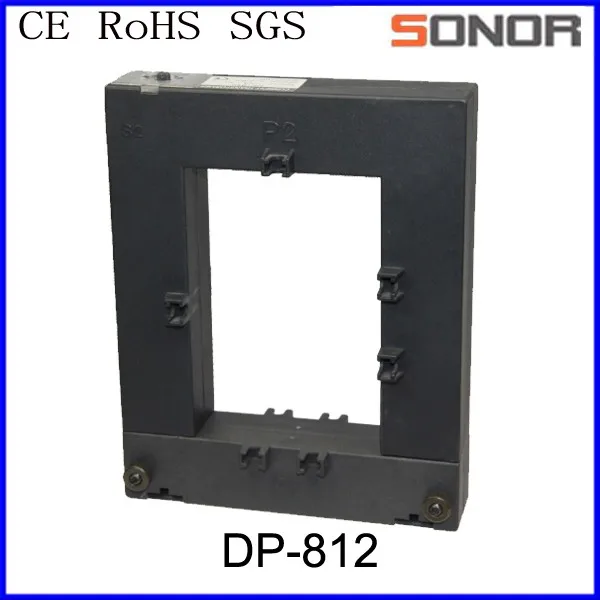

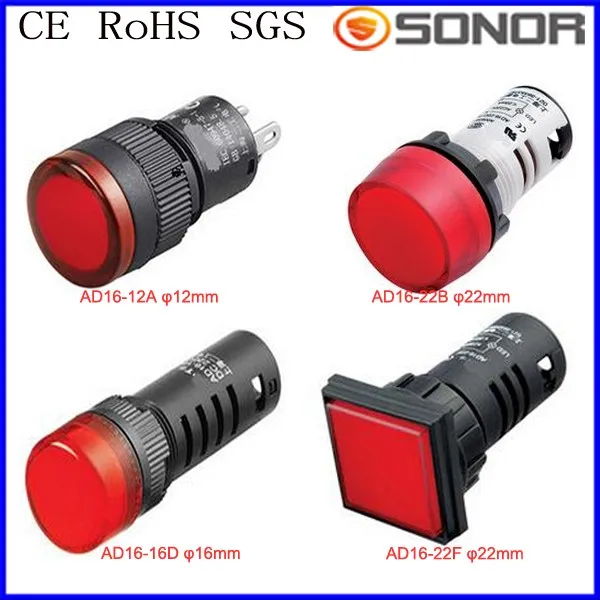

AC Low-Votlage Current Transformer Indicator Lamps Power Factor Meters
