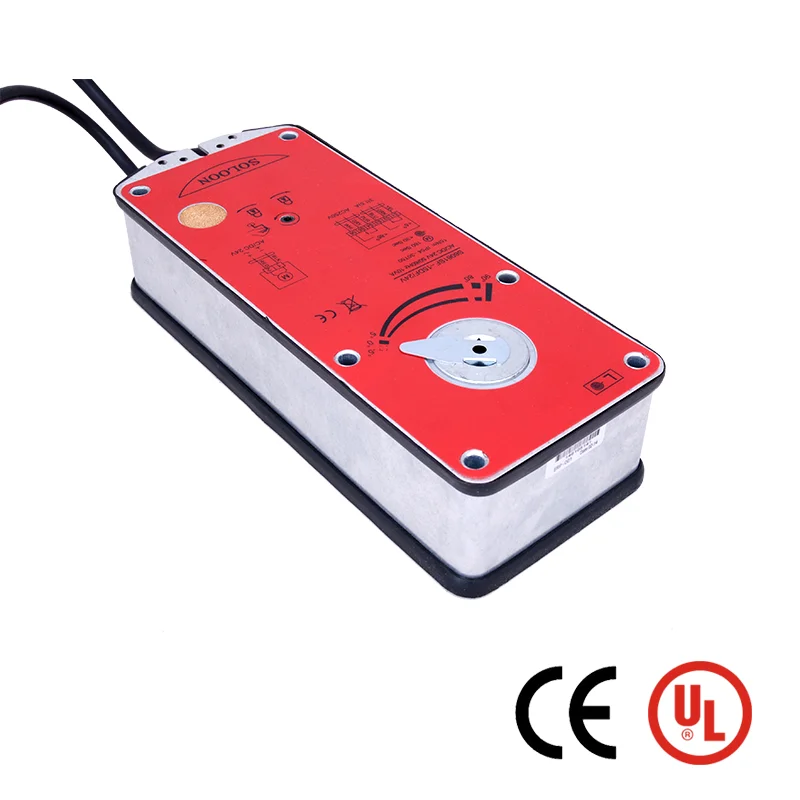

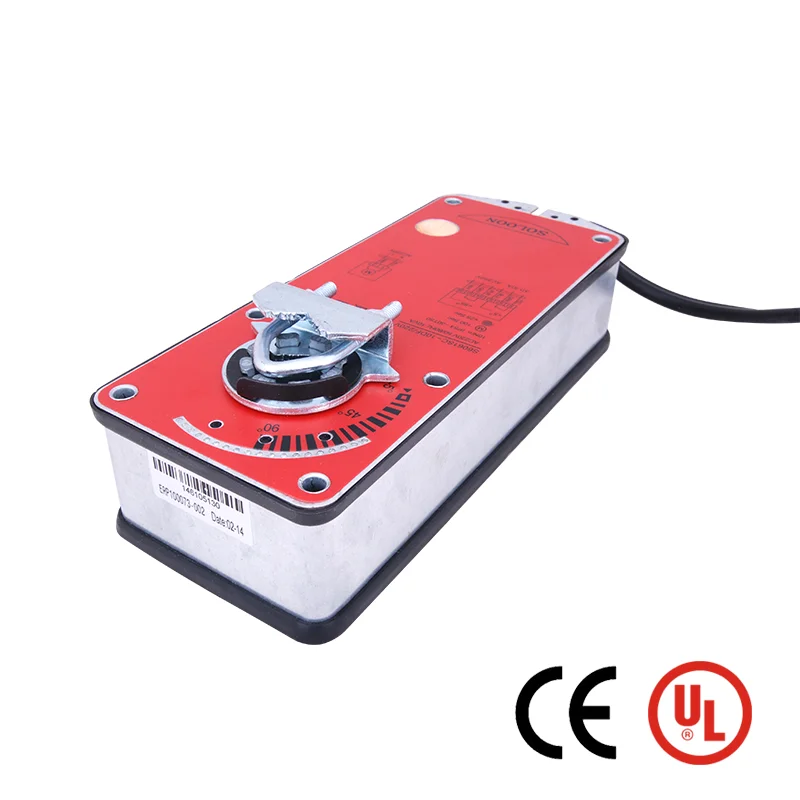

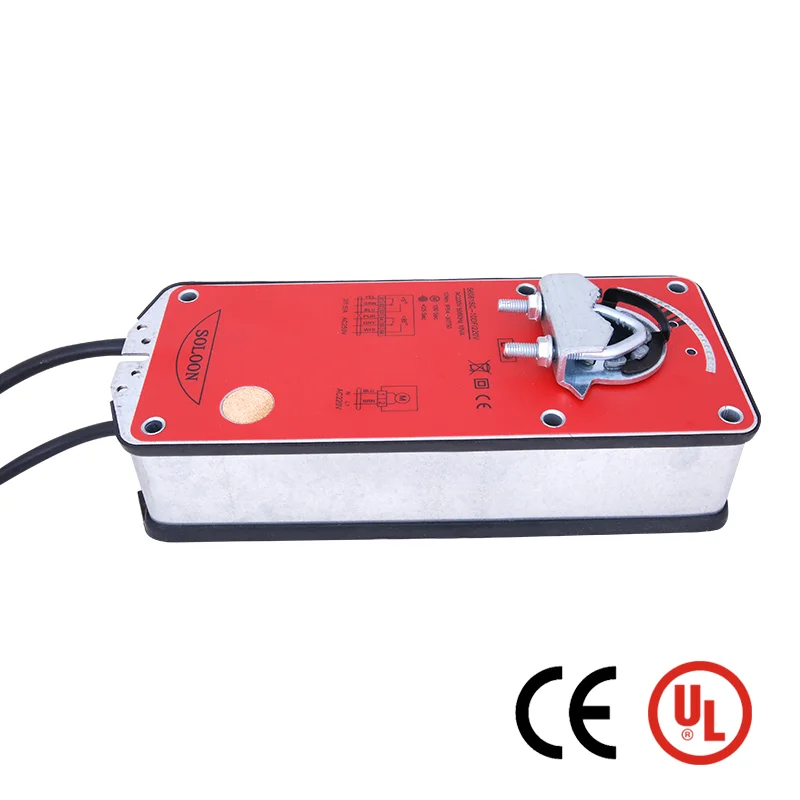

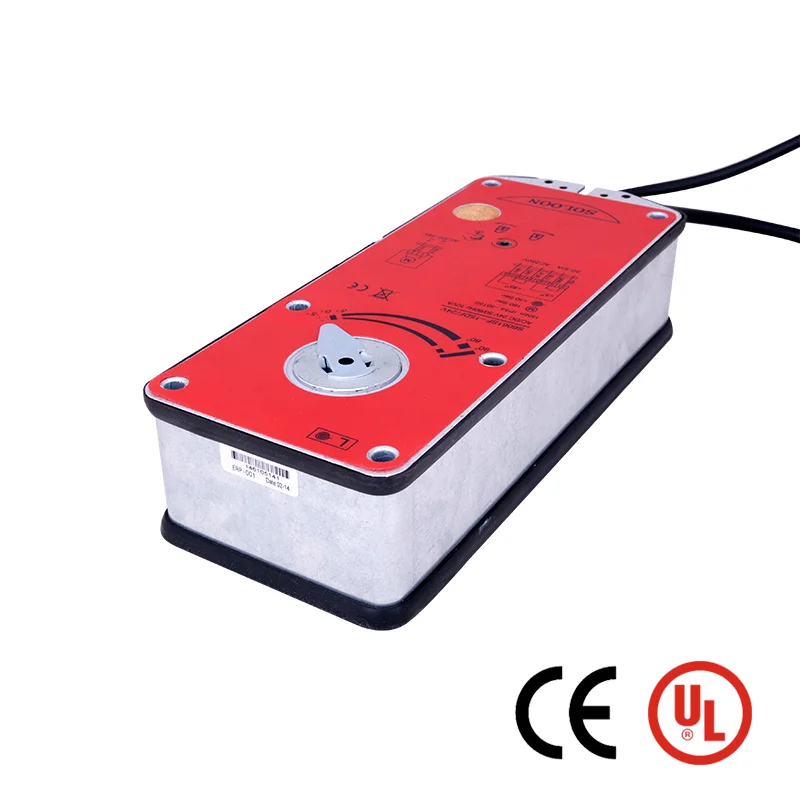

HVAC System 30NM 40NM ON/OFF Type without spring 24V 230V Fire Smoke Damper Actuator

Share on:


Price:$40.00 - $60.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Technical Specification


























































































Item S6061NS-30/40DF/24V S6061NS-30/40DF/230V


Torque


  30NM/40NM


Damper Area




5m




Running Time




Motor 100S-120S




Power Supply




24VAC/DC


50/60Hz




AC90~250V


50/60Hz




Operating Power Consumption




6W




Wire Size




10.5VA



Connection cable



1m cable  2*0.75 m2


 Auxiliary switch (F):1m cable  6*0.5 m2




Control Signal




2/3 point




Angle of Rotation




  0~90°(max 93º)



Auxiliary Switch Rating




3(1.5)Amp 250V



Life Cycle




>70000



Noise Level




50dB(A)



Electric level








IP Protection




IP54



Temperature




-20~+50



Humidity




5~95%RH



Storage Temperature




-40~+70




Certificate




CE & UL






 S6061SF-15D:





                         Wiring diagram:                                                        Auxiliary switch:










         Outline Size:
