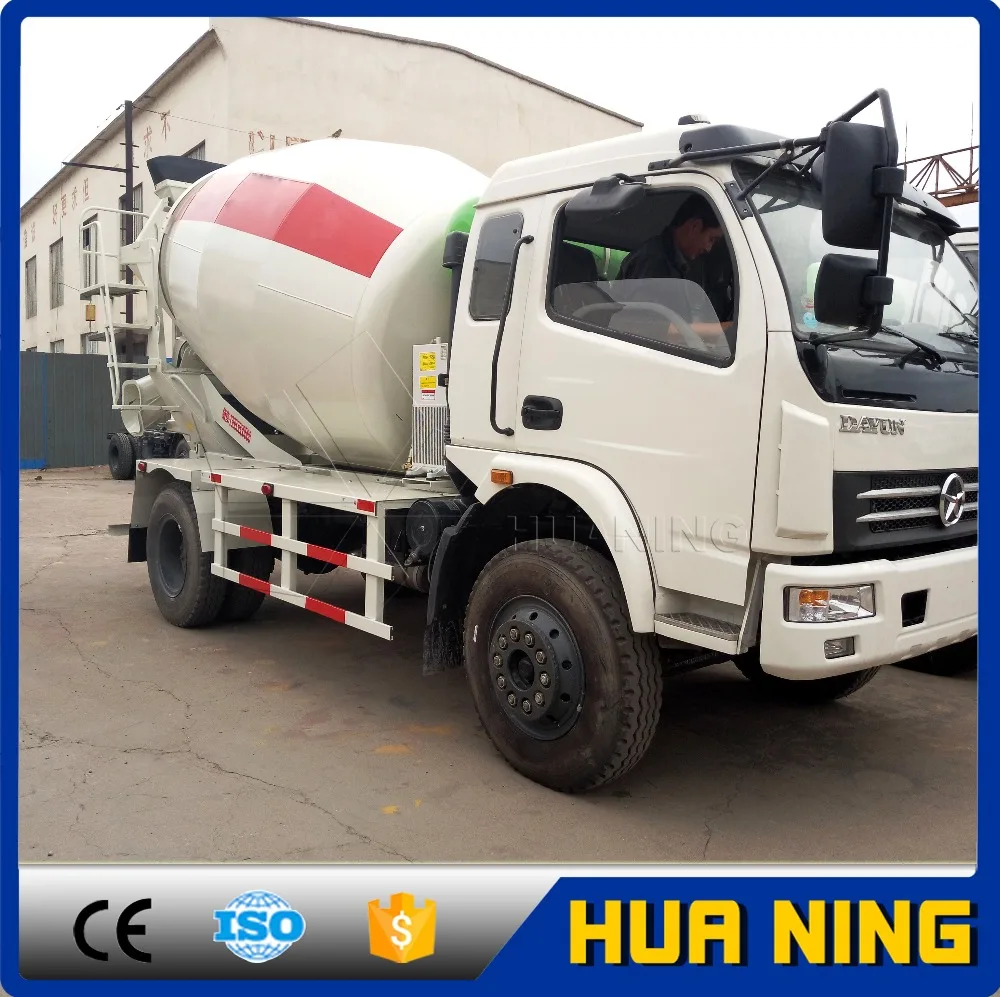

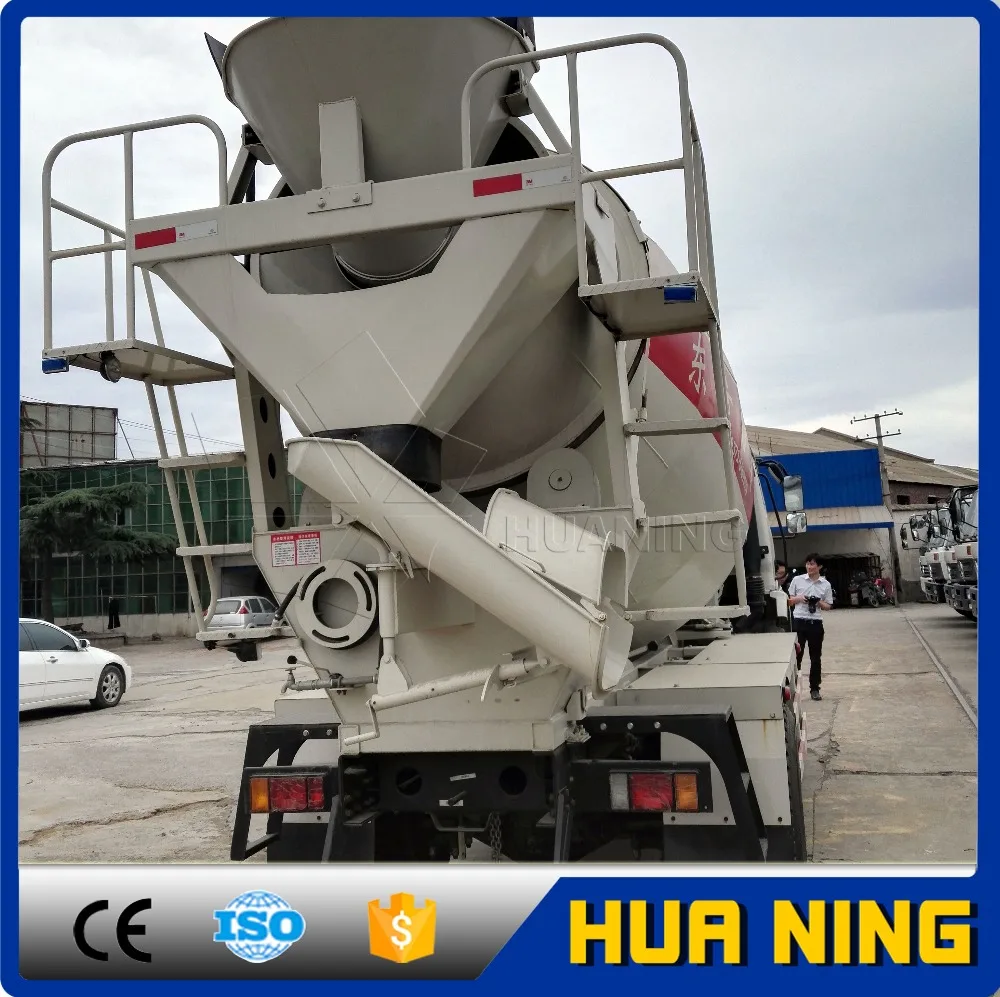

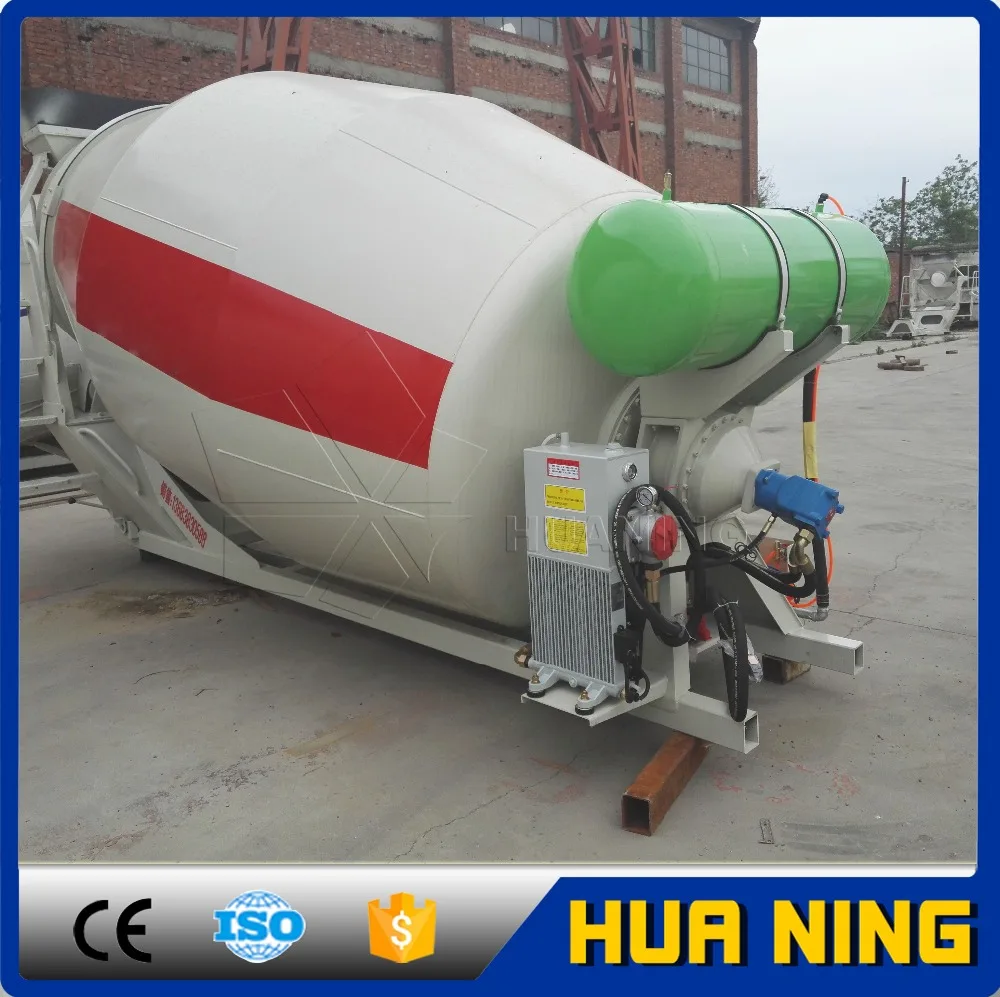

Small Portable Mixing Truck 4m3 Drum Concrete Truck Mixer for sale
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd. [Henan China]Henan
Share on (60671767067):
Product Overview
Description
1.Low energy consumption and environmental protection.
2.The hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
Concrete truck can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate and stone.
| Parameter | HJGY.3 | HJGY.4 | HJGY.6 |
| Mixing drum transmission capacity(m³) | 3 | 4 | 6 |
| Stir mixing tube geometry capacity(m³) | 5.05 | 6.5 | 9.1 |
| Filling ratio | 0.67 | 0.67 | 0.67 |
| Feed rate(m³/min) | 3 | 3 | 3 |
| The feed rate(m³/min) | 1 | 1 | 1 |
| Axis titl(r/min) | 16°±15′ | 16°±15′ | 16°±15′ |
| Mixing drum speed(r/min) | 0-12 | 0-12 | 0-12 |
| Inlet height(mm) | 3300 | 3300 | 3300 |
| The minimum height of the discharge port(mm) | 1000 | 1000 | 1000 |
| Mixing tube specifications(mm) | φ1750x2700 | φ1755x3000 | φ2000x3000 |
| Dimensions(LxWxH) | 4000x1750x2100 | 4200x1800x2100 | 5600x2000x2600 |
