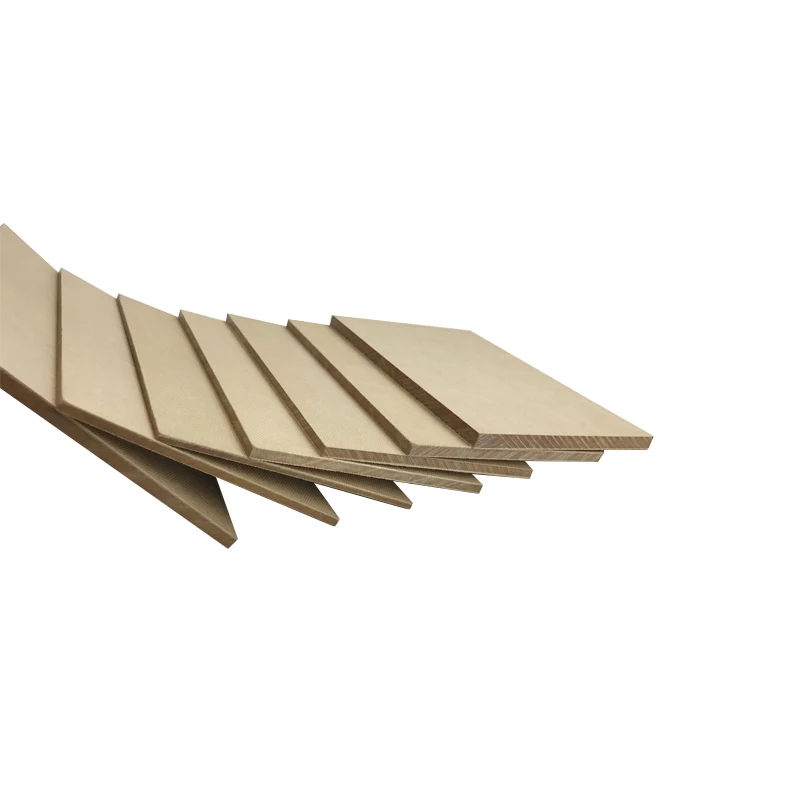

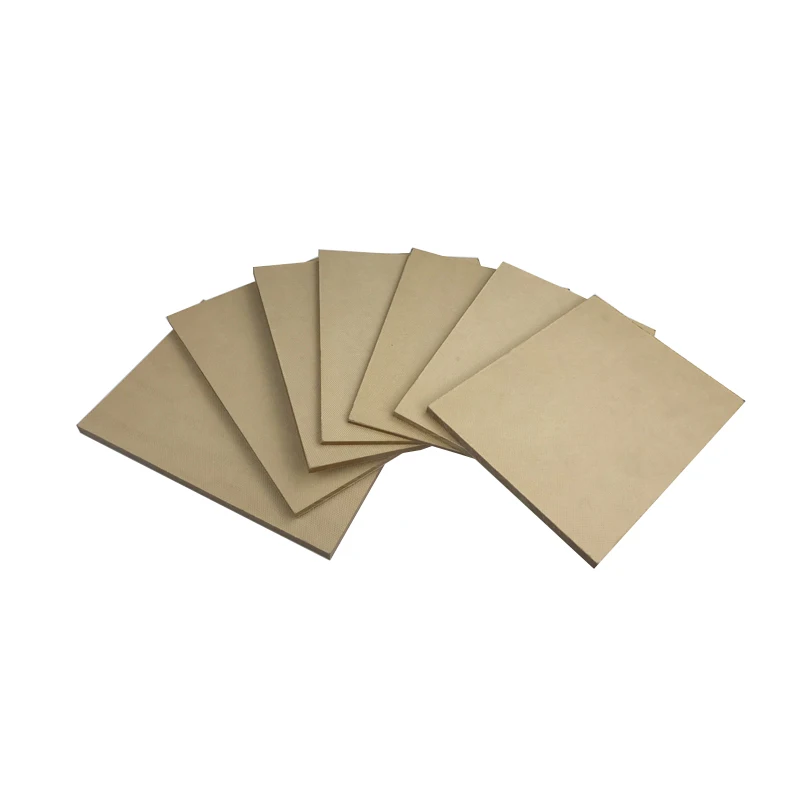

Transformer Parts Cardboard Paper Sheets Electrical Insulation Pressboard
- Category: >>>
- Supplier: Shenyang Youda Insulation Materials Co. Ltd.
Share on (60671777905):
Product Overview
Description
Product Description

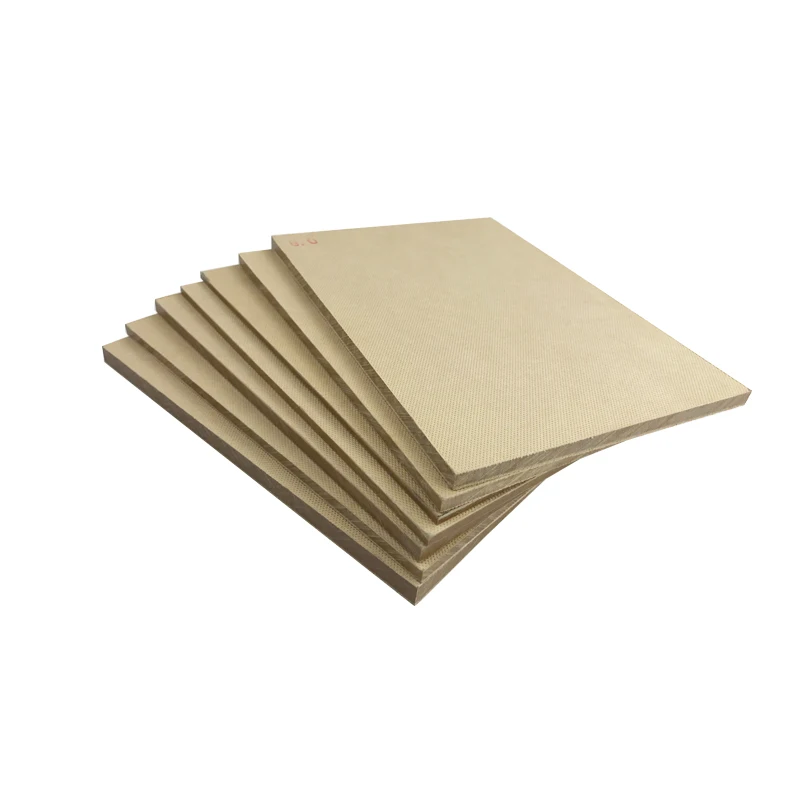

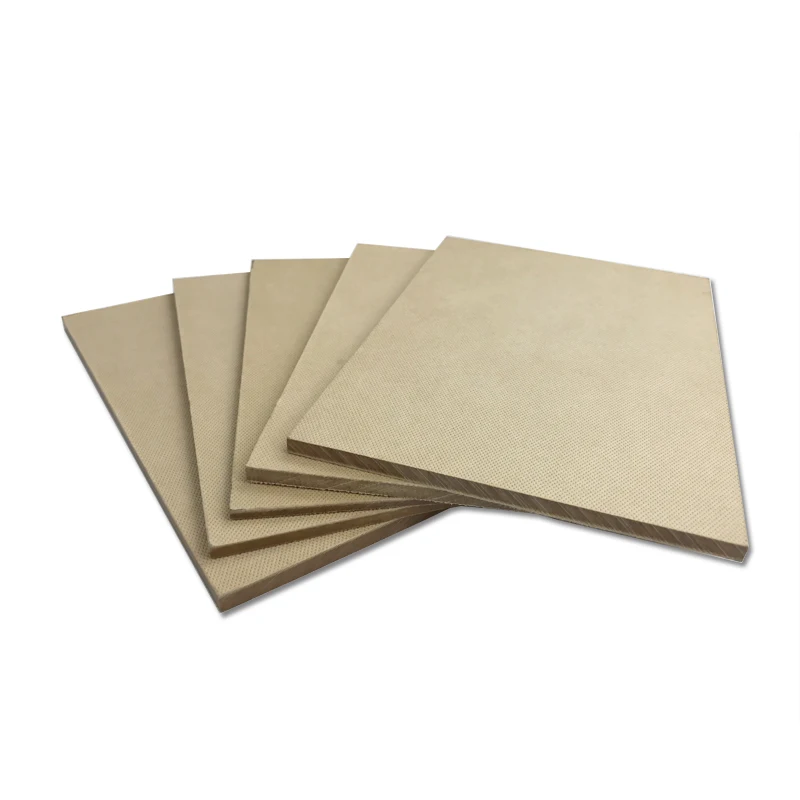

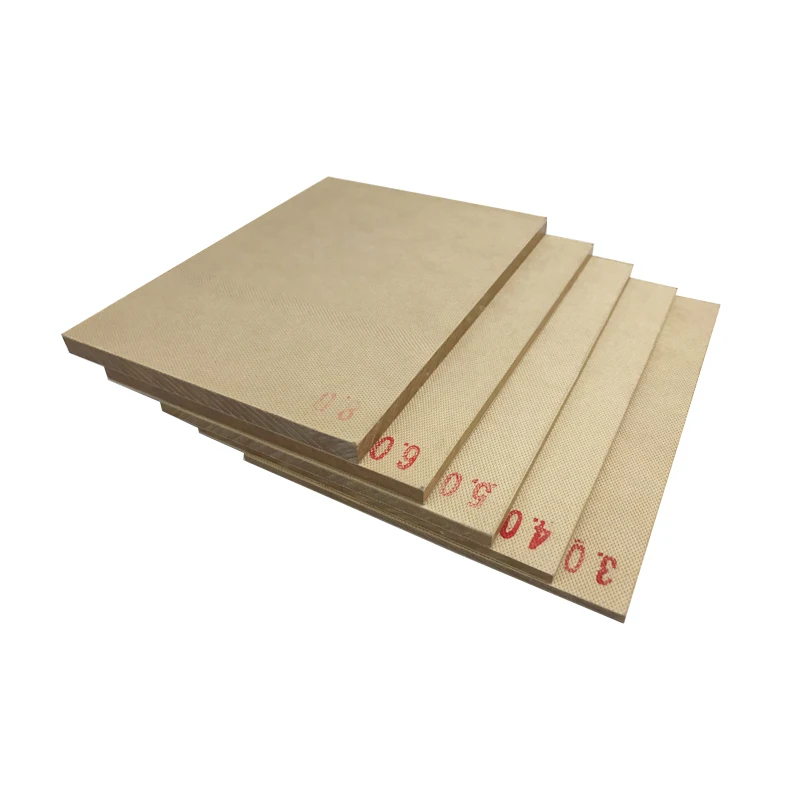

Insulation pressboard Presspaper Insulated Paper for transformer
Insulation grade: B class
Thickness: 0.2-60mm
Dimension: 1000×2000mm, 1600×3200mm, 2200x4400mm

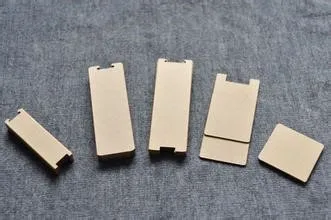

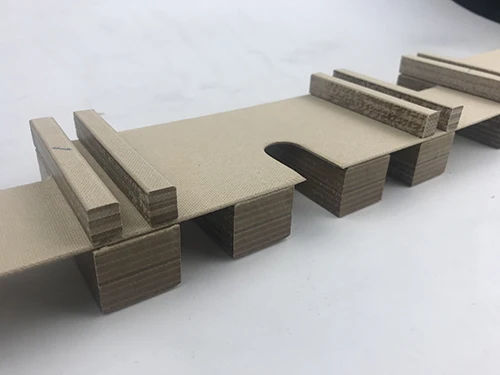

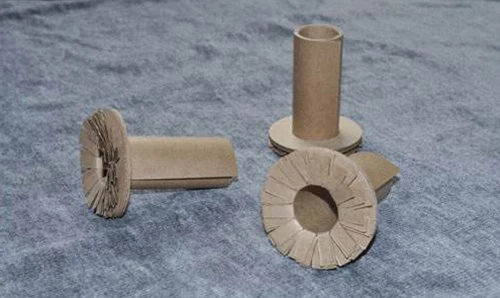

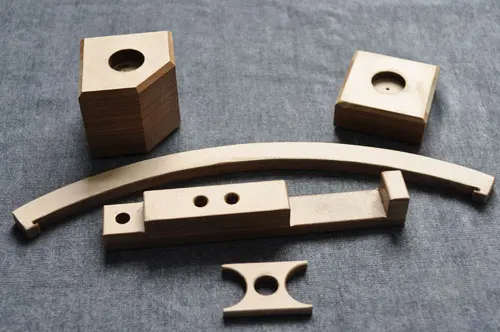

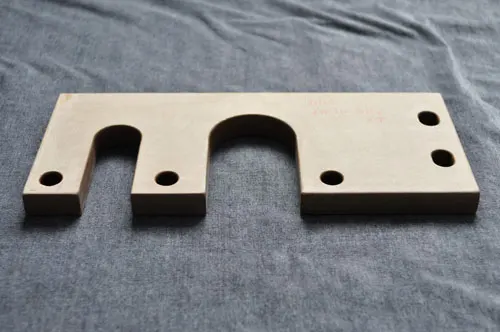

Customization: Processing based on Drawings
Thickness: 0.2-60mm
Dimension: 1000×2000mm, 1600×3200mm, 2200x4400mm
Customization: Processing based on Drawings

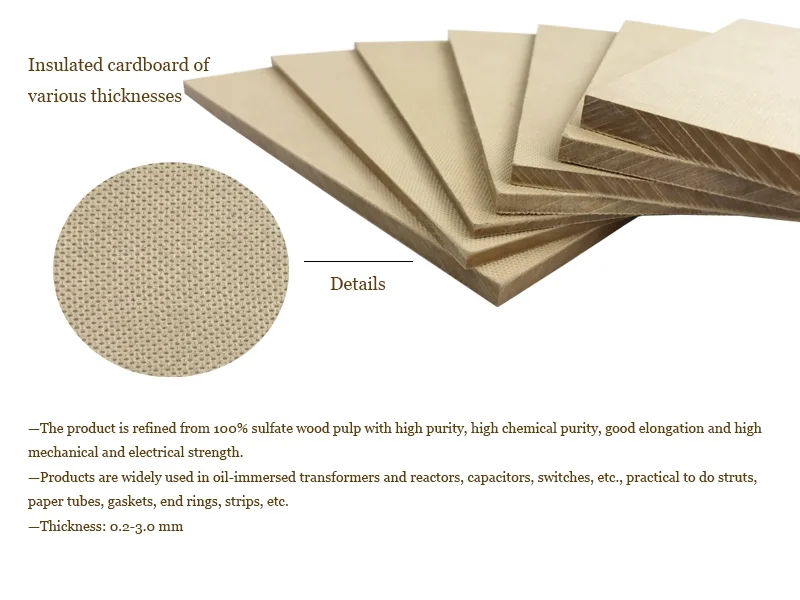

Electrical insulation pressboard is made of high-purity 100% sulphate wood pulp processed by high-pressure processing. This product has high chemical purity and high mechanical strength. After immersion, it has both mechanical and electrical properties.

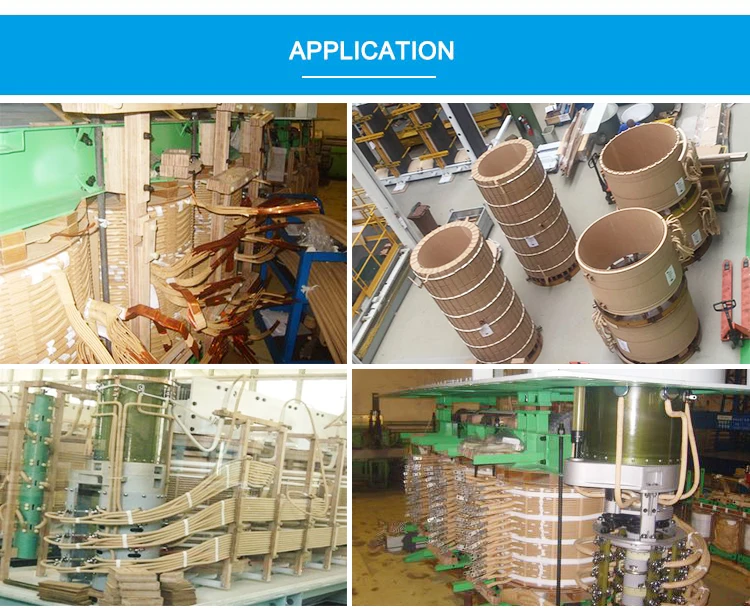

Electrical insulation pressboard is widely used in oil-immersed transformers and reactors, capacitors, switches, etc.
Electrical insulation pressboard is widely used in oil-immersed transformers and reactors, capacitors, switches, etc.

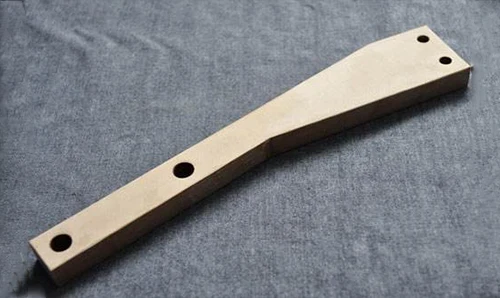

The production of CNC machined components as per drawings of our customers is our speciality. We utilize versatile modern CNC milling machines, special engraving machines and processing centers.
Application
1) digital cameras, computers, printers, audio products
2) home appliances, valve seals, membrane switch, air conditioners
3) communications products, mobile phones, nameplate, lighting, electret microphone
4) industrial raw material storage tank lining, toys, key switch, Sporting goods and other industries etc.
2) home appliances, valve seals, membrane switch, air conditioners
3) communications products, mobile phones, nameplate, lighting, electret microphone
4) industrial raw material storage tank lining, toys, key switch, Sporting goods and other industries etc.
Product Parameters
No. | Index Name | Unit | Index | ||||||
1 | Thickness | mm | ≤1.6 | >1.6-3.0 | >3.0-6.0 | ||||
2 | Thickness Deviation | % | ±7.5 | ±5.0 | ±5.0 | ||||
3 | Performance Density | g/cm3 | 1.0-1.2 | 1.1-1.12 | 1.15-1.3 | ||||
4 | Tensile Strength(Portrait) | MPa | ≥100 | ≥105 | ≥110 | ||||
5 | Tensile Strength(Transverse) | MPa | ≥75 | ≥80 | ≥85 | ||||
6 | Elongation | Portrait | % | ≥3.0 | ≥3.0 | ≥3.0 | |||
Transverse | ≥4.0 | ≥4.0 | ≥4.0 | ||||||
7 | Compressibility | % | ≤10.0 | ≤7.5 | ≤5.0 | ||||
8 | Shrinkage | Portrait | % | ≤0.5 | ≤0.5 | ≤0.5 | |||
Transverse | ≤0.7 | 0.7 | ≤0.7 | ||||||
9 | Thickness Direction | ≤0.5 | ≤0.5 | ≤0.5 | |||||
10 | Interlaminar Bonding | Check whether one or more layers of stripping surface rupture obviously rough or scared | |||||||
11 | Water Content | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
12 | Ash Content | % | ≤1.0 | ≤1.0 | ≤1.0 | ||||
13 | Water Extraction Conductivity | Ms/m | ≤5.0 | ≤6.0 | ≤8.0 | ||||
14 | Ph Of Aqueous Extract | 6.0-9.0 | 6.0-9.0 | 6.0-9.0 | |||||
15 | Oil Absorption | % | ≥11.0 | ≥9.0 | ≥7.0 | ||||
Cooperative Partner
Certifications
Packing & Shipping
Company Introduction
Youda Insulation was founded in 1990. It is a private high-tech enterprise integrating R&D, production, processing, sales and export, and mainly produces, processes and sells various laminated sheets, bars, pipes and diverted products, moulded products, composite materials, pre prepreg materials, various types of insulating paper, ribbons, paint, mica products, engineering plastics and other insulating materials.
For keeping the products high precision, small tolerance and short processing cycle, Youda Insulation is using professional equipment such as engraving machines, processing centers and CNC machine tools, which can customize products for turning, milling, drilling, engraving planer, grinding and die opening.
Our insulation materials are manufactured by drawings, and under ISO 9001 Quality Certified Program. That assures each one meets or exceeds your requirements.

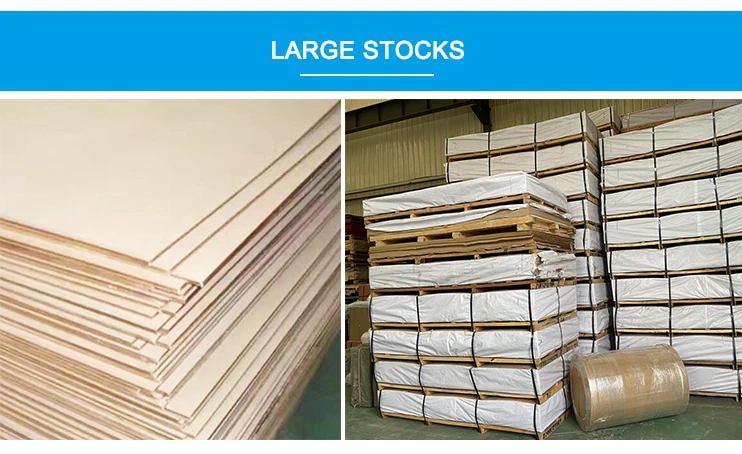

Youda’s insulation materials are cut and machined in consideration of the customer’s specifications, producing high performance and offering cost-effective savings. Coupled with large stock we are able to support you in the shortest possible time.
FAQ
Q1: How about providing samples?
Of course, we can sent you a sample for free. Customers just need to pay a little shipping charge.
Q2: How about the quality of mass production?
Our warehouse staff will leave another same sample as yours. The production process will be under your requirement.
Q3: How about the delivery time?
It depends on order quantity. Generally speaking, the delivery time will be within 3 to 7 days.
Q4: How about the packaging?
We will use professional craft paper to package on plywood pallet. If you have special packaging requirements, we will pack as your need.
Q5: How about the payment terms?
Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance, balance before shipment.
Of course, we can sent you a sample for free. Customers just need to pay a little shipping charge.
Q2: How about the quality of mass production?
Our warehouse staff will leave another same sample as yours. The production process will be under your requirement.
Q3: How about the delivery time?
It depends on order quantity. Generally speaking, the delivery time will be within 3 to 7 days.
Q4: How about the packaging?
We will use professional craft paper to package on plywood pallet. If you have special packaging requirements, we will pack as your need.
Q5: How about the payment terms?
Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance, balance before shipment.
