Product Type: oled display

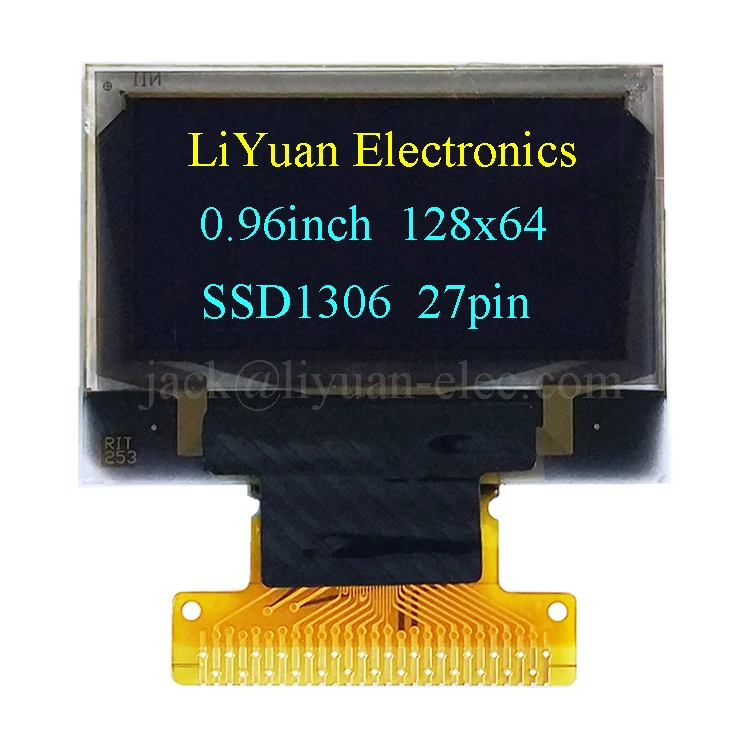

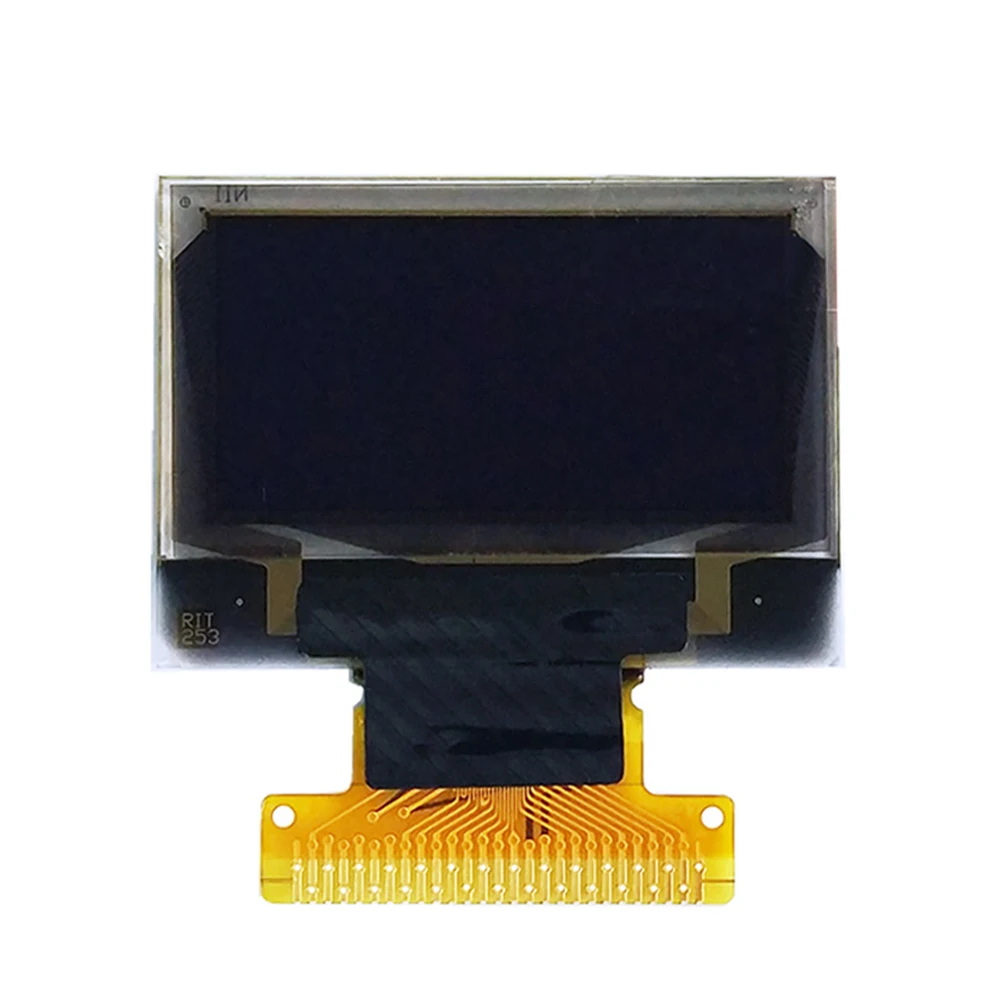

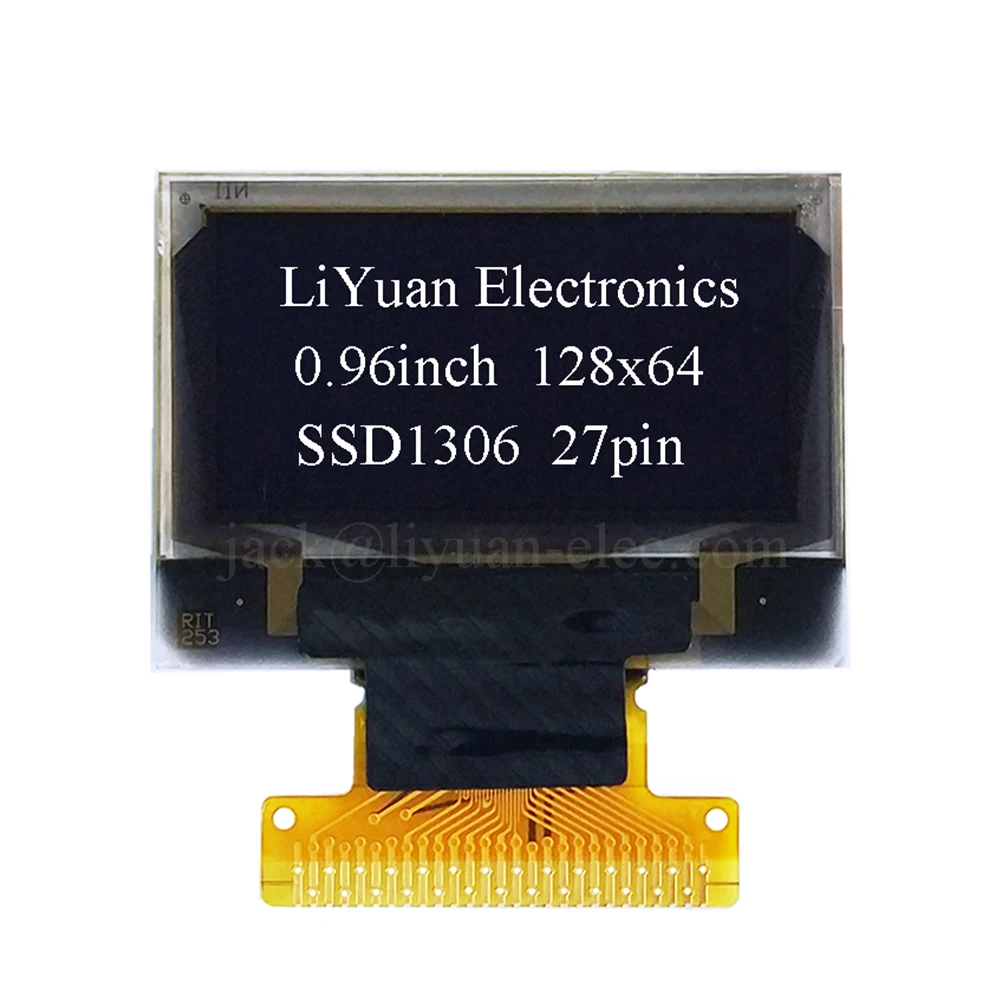

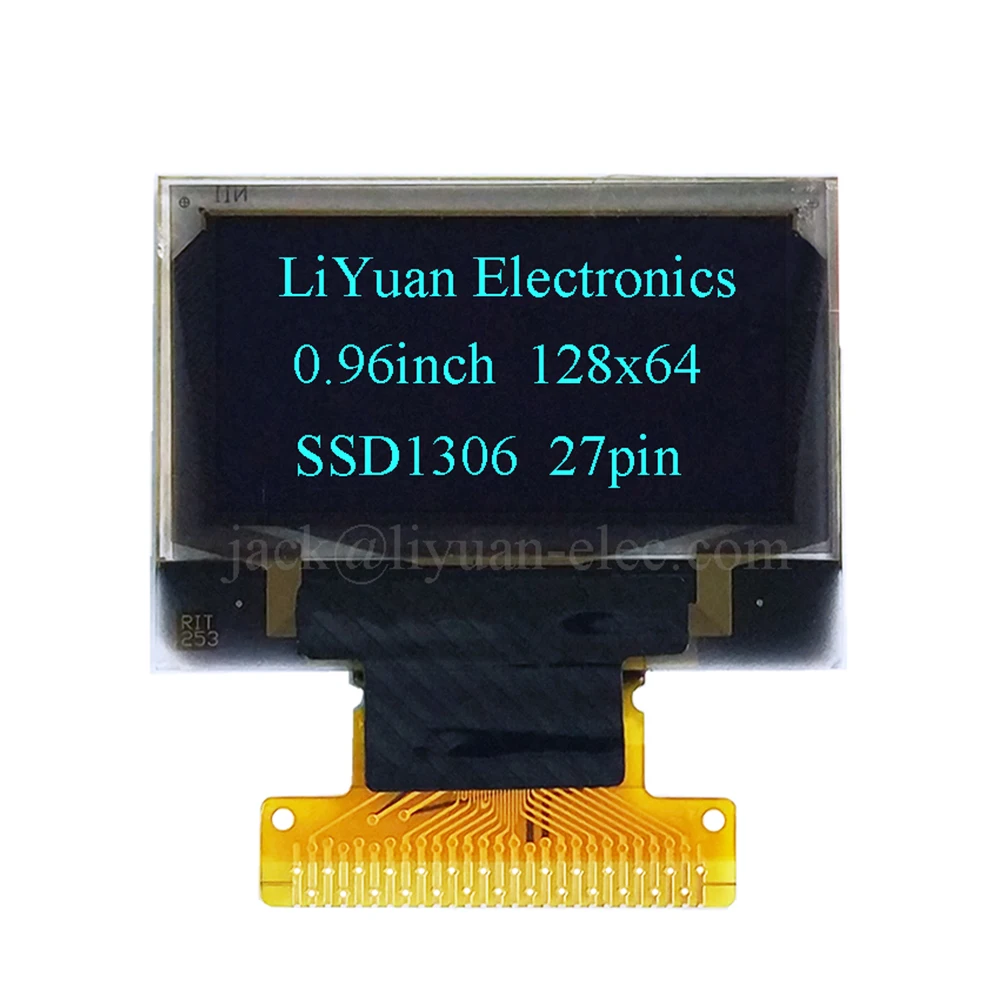

0.96 '' inch 128x64 12864 27pin mono micro oled display screen
0.96 '' inch 128x64 12864 27pin mono micro oled display screen
Products Description
Part Number: LY096YBG27-128064(Yellow-Blue)
Item | Contens |
Screen Size | 0.96 Inch |
Display Resolution | 128x64 |
Display Mode | Passive Matrix |
Display Color | Monochrome (Yellow-Blue) |
Panel Size | 26.7(W) x 19.26(H) x 1.45(T)(mm) |
Active Area | 21.744(W) x 10.864(H) (mm) |
Pixel Pitch | 0.17 x 0.17 (mm) |
Pixel Size | 0.154 x 0.154 (mm) |
Pin | 27 Pins |
Driver IC | SSD1306 with internal DC/DC circuit |
Interface | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C |
Weight | 1.54(g) |

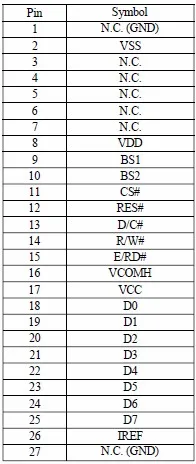

2. Pin Definition
3. Application Circuit

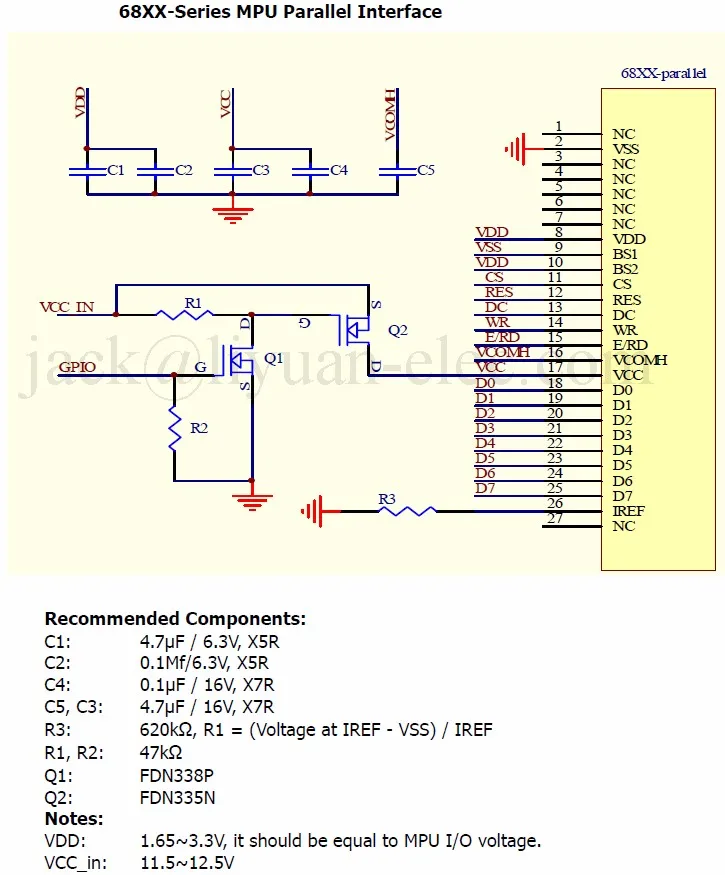

In 68xx interface mode, the application circuit as bellowing.

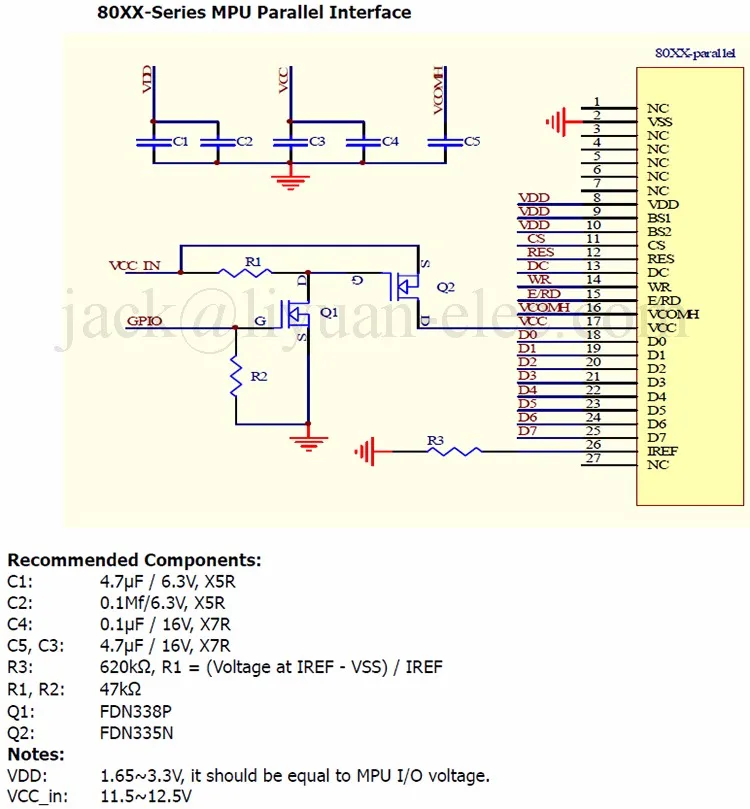

In 80xx interface mode, the application circuit as bellowing.

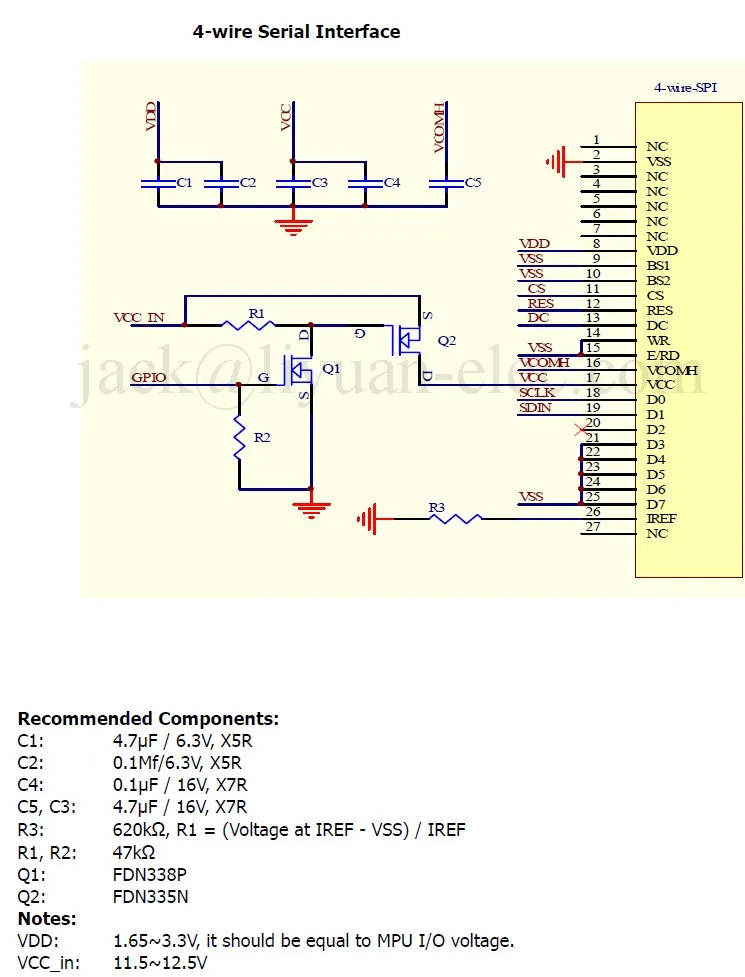

In 4-SPI interface mode, the application circuit as bellowing.

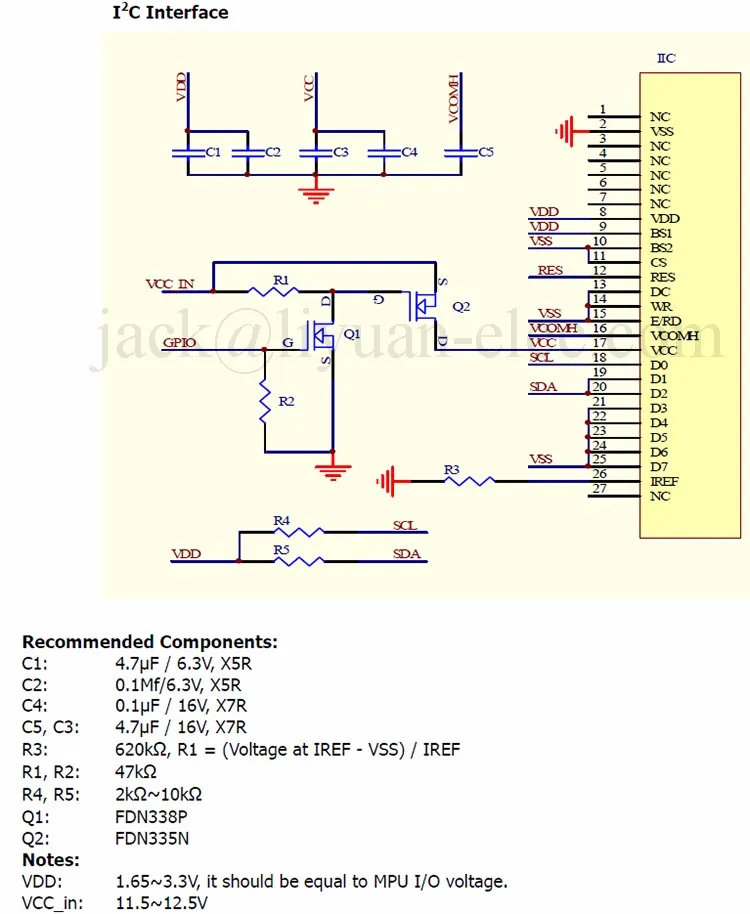

In IIC interface mode, the application circuit as bellowing.
If you have any questions in application circuit,we will provide detailed technical support.

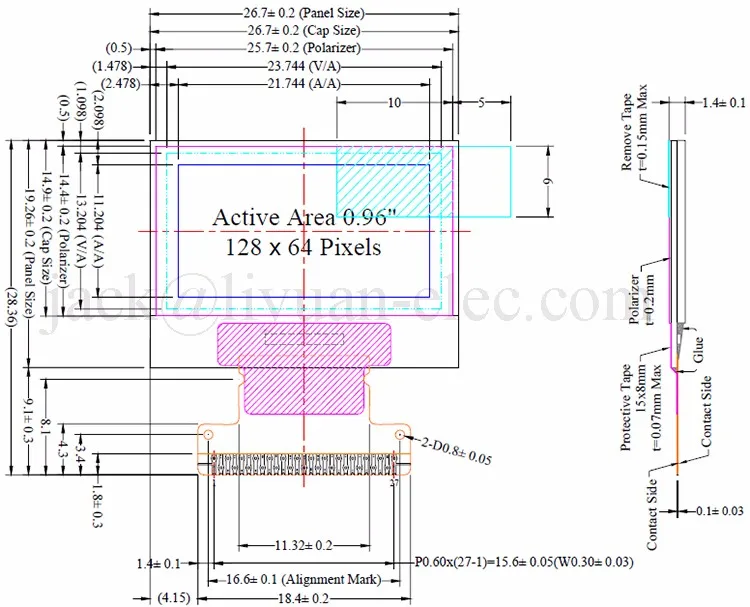

4.Mechanical Drawing
4.Mechanical Drawing

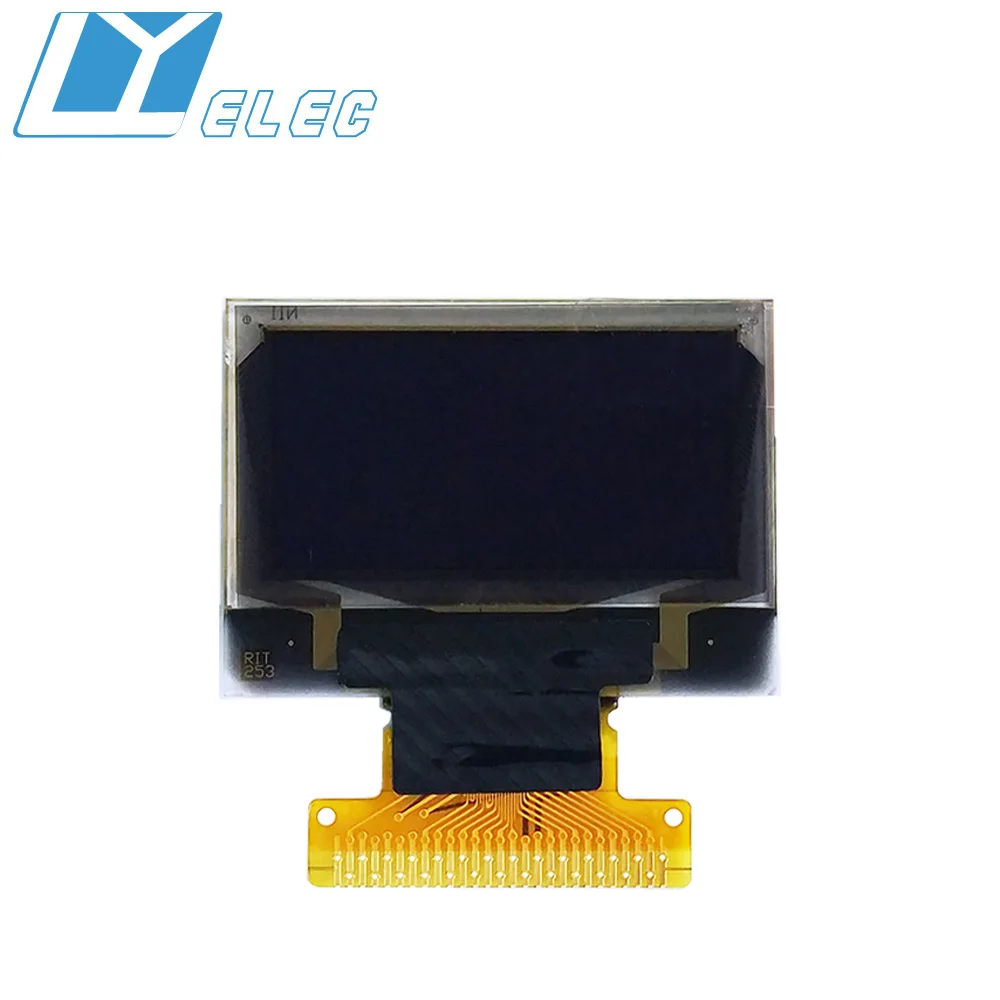

Details Images
Related Products
Size | Model No. | Resolution | Panel Size(mm) | Active Area(mm) | Driver IC | Interface |
0.42" | 72x40 | 12.0x11.0x1.2 | 9.196x5.180 | SSD1306 | SPI/I2C | |
0.49" | 64x32 | 14.5x11.6x1.2 | 11.18x5.58 | SSD1306 | IIC | |
0.5" | 48x88 | 8.928x17.1x1.227 | 6.124x11.244 | CH1115 | I2C | |
0.54" | 96x32 | 18.52x7.04x1.227 | 12.46x4.14 | CH1115 | I2C | |
0.63" | 120x28 | 21.54x6.62x1.22 | 15.58x3.62 | SSD1312 | I2C | |
0.66" | 128x32 | 18.46x18.1x1.45 | 13.42x10.06 | SSD1306 | SPI/I2C | |
0.69" | 96x16 | 26.3x8x1.3 | 17.26x3.18 | SSD1306 | IIC | |
0.78" | 80x128 | 12.13x23.6 | 9.68x17.26 | SH1107 | SPI/I2C | |
0.84" | 96x16 | 29.10x9.20x1.60 | 21.104x3.504 | SSD1306 | IIC | |
0.87" | 128x32 | 29.0x8.7x1.2 | 21.356x5.324 | SSD1316 | SPI | |
0.91" | 128x32 | 30.0x11.5x1.45 | 22.384x5.584 | SSD1306 | SPI | |
0.91" | 96x64 | 30.0x11.5x1.45 | 22.384x5.584 | SSD1306 | IIC | |
0.95" | 128x64 | 25.7x22.2x1.5 | 20.14x13.42 | SSD1331Z | SPI | |
0.96" | 128x64 | 24.74x16.9x1.42 | 21.74x10.86 | SSD1315 | SPI/I2C | |
0.96" | 128x64 | 26.7x19.26x1.45 | 21.744x10.864 | SSD1306 | SPI/I2C | |
0.96" | 128x64 | 26.7x19.26x1.45 | 21.744x10.864 | SSD1306 | SPI/I2C | |
0.96" | 128x64 | 18.0x31.0x1.1 | 10.86x21.74 | SSD1327Z | SPI/I2C | |
0.96" | 128x64 | 18.0x31.0x1.05 | 10.86x21.74 | SSD1327Z | 8-bit 8080 Parallel | |
1.04" | 128x32 | 29.8x14.5x1.3 | 25.58x6.38 | SSD1306 | SPI/I2C | |
1.09" | 128x64 | 14x31.96x1.22 | 10.86x25.58 | CH1115 | SPI | |
1.12" | 128x128 | 27.00x30.10x1.25 | 20.14x20.14 | SH1107G | SPI/I2C | |
1.3" | 128x64 | 34.50x23.00x1.4 | 29.42x14.70 | SSD1106 | SPI/I2C | |
1.3" | 128x64 | 34.50x23.00x1.45 | 29.42x14.70 | SSD1306 | SPI/I2C | |
1.3" | 128x64 | 34.50x23.00x1.4 | 29.42x14.70 | SH1106 | SPI/I2C | |
1.3” | 128x64 | 34.50x23.00x1.4 | 29.42x14.70 | SSD1306 | SPI/I2C | |
1.32" | 128x96 | 32.5x29.2x1.61 | 26.86x20.14 | SSD1327 | Parallel /I2C/ SPI | |
1.5" | 128x128 | 33.80x34.00x1.60 | 26.855x26.864 | SSD1351U3 | SPI | |
1.54" | 128x64 | 42.04x27.22x1.45 | 35.052x17.516 | SSD1309 | SPI/I2C | |
1.54" | 128x64 | 45.24x29.14x2.00 | 35.056x17.52 | SSD1305 | SPI/I2C | |
2.23" | 128x32 | 62.00x24.00x2.00 | 55.02x 13.10 | SSD1305 | SPI/I2C | |
2.36" | 128x22 | 63.30x20.80x2.15 | 58.85x11.85 | SSD1305 | SPI/I2C | |
2.42" | 128x64 | 60.50x37.00x2.00 | 55.01x27.49 | SSD1309 | SPI/I2C | |
2.42" | 128x64 | 60.50x37.00x1.80 | 55.01x27.49 | SSD1305Z | SPI/I2C | |
2.7" | 128x64 | 73x41.86x1.82 | 61.41x30.69 | SSD1305 | SPI/I2C | |
2.7" | 128x64 | 73.00x41.86x2.00 | 61.41x30.69 | SSD1305 | SPI | |
2.7" | 128x64 | 73.00x41.86x2.00 | 61.41x30.69 | SSD1325 | SPI | |
2.7" | 128x64 | 73x41.86x1.82 | 61.41x 30.69 | SSD1305 | SPI/I2C | |
2.7" | 128x64 | 73.00x41.86x2.00 | 61.41x30.69 | SSD1325 | SPI | |
2.8" | 256x64 | 84.00x25.80x2.00 | 69.104x17.264 | SSD1322 | SPI | |
3.12" | 256x64 | 88.00x27.80x2.00 | 76.78x19.18 | SSD1322 | SPI | |
3.37" | 240x128 | 89.52x54.41 | 75.58x40.30 | SSD1322Z2 | Parallel/Serial | |
5.5" | 256x64 | 46.00x45.00x2.00 | 135.65x33.89 | SSD1322 | SPI |
