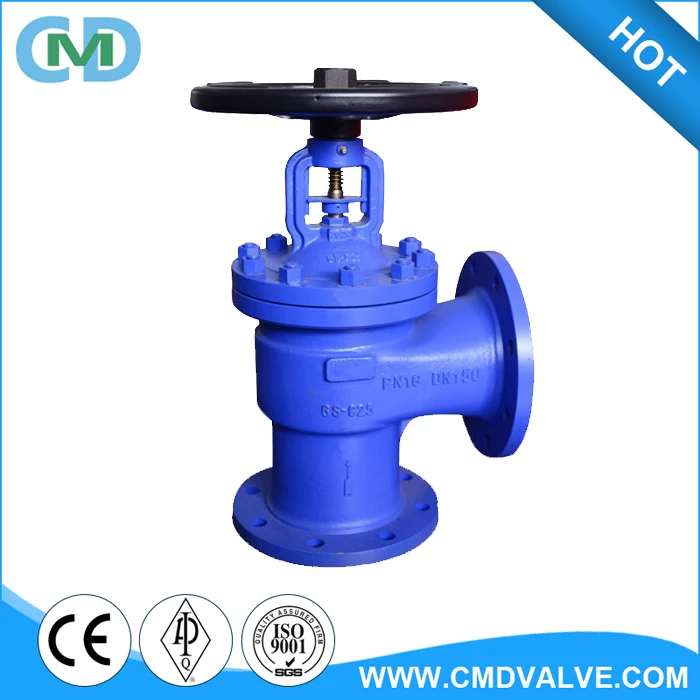

DIN Cast Steel GS C25 90 Degree Water Angle Globe Valve with Handwheel
DIN Cast Steel GS-C25 90 Degree Water Angle Globe Valve with Handwheel
DIN Cast Steel GS-C25 90 Degree Water Angle Globe Valve with Handwheel
DIN Cast Steel GS-C25 90 Degree Water Angle Globe Valve with Handwheel
DIN Cast Steel GS-C25 90 Degree Water Angle Globe Valve with Handwheel

DIN Cast Steel GS C25 90 Degree Water Angle Globe Valve with Handwheel

Share on (60671862834):


Price:

Quantity:


Product Overview

Description




angle GL.png

























































SPECIFICATIONS FOR ANGLE GLOBE VALVES










Pressure rating and size:



PN16,PN25,PN40


DN15 to DN400


1/2"~16"



Material:



Body :GS-C25, WCB, CF8, CF8M


Disc  : A105+13Cr, SS304,SS316


Stem : A182-F6a, SS304, SS316


Bonnet : GS-C25, WCB, CF8, CF8M


Operated type


Handwheel


Structure:


Outside screw and yoke:OS&Y:90 degree


Flange connection:


EN1092 PN16, PN25, PN40


Butt weld ends:


EN 16267


Medium:


Water


Temperature:


-20 to 425°C
