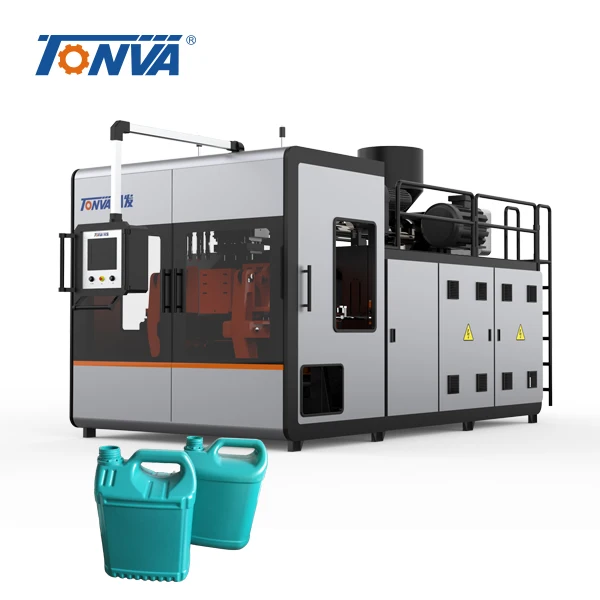

TONVA High Speed HDPE/PE/PP plastic Bottle Blow Molding Machine
- Category: Extrusion Blow Molding Machines >>>
- Supplier: Zhejiang,Tonva,Plastics,Machine,Co.,Ltd.
Share on:
Product Overview
Description
Quick Details
| Port: | NINGBO |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 Set/Sets per Year |
| Clamping Force (kN): | 100 |
| Die head number: | 1-6 |
| Output (kg/h): | 95 kg/h |
| Working Station: | Double |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Accumulator Capacity(L): | 0 L |
| Up&Down platen: | Optional |
| Die Head Heating Power(kW): | 3 kW |
| Dimension(L*W*H): | 4.3X3.5X2.2m |
| Product max capacity: | 5L |
| Screw Heating Power(kW): | 20 kW |
| Mold Platen Size(Height)(mm): | 380 |
| Warranty of core components: | 1 Year |
| Extruder Motor Power(kW): | 22 kW |
| Key Selling Points: | Long Service Life |
| Blow Moulding Type: | Extrusion Blow Moulding |
| Voltage: | Customized |
| Local Service Location: | Egypt |
| Machinery Test Report: | Provided |
| Contact me: | Let's discuss more. |
| No. of Screw Heating Zone: | 6 |
| Condition: | New |
| PLC Brand: | MITSUBISHI |
| Automation: | Automatic |
| Warranty: | 1 year |
| Place of Origin: | Zhejiang China |
| Weight (T): | 7.8 |
| Showroom Location: | Egypt |
| Mold Platen Size(Width)(mm): | 360 |
| Screw diameter (mm): | 80 |
| Certification: | ISO9001,CE,BV |
| Power (kW): | 5963 |
| Hollow part volume: | / |
| Brand Name: | TONVA |
| Parison controller: | Optional |
| Air Pressure(MPa): | 0.6 MPa |
| Video outgoing-inspection: | Provided |
| Applicable Industries: | Manufacturing Plant |
| Core Components: | PLC |
| Marketing Type: | New Product 2020 |
| Air Comsumption(m³/min): | 0.8 m³/min |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service |

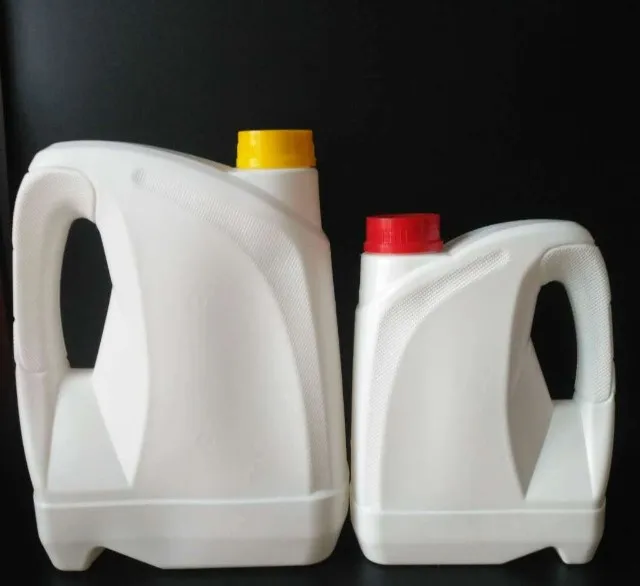

| Application: | bottle |
| Plastic Processed: | ABS,PVC,PE,HDPE/PP |
| Power: | Hydraulic,servo |
| Packaging Detail: | film packing; fix four feet of blow molding machine in the container; |
| Package Preview: | https://sc03.alicdn.com/kf/H122cba80043541d9b30d93ef2d0e5df2Z.jpg_640x640.jpg,https://sc03.alicdn.com/kf/H04987cd1c7e3488086386cd7187ead39b.jpg_640x640.jpg |
