MC 315B semi automatic pipe cutting machine/rotary pipe cutter/metal steel pipe cutting band saw machine

Product Overview

Description

MC-315B semi automatic pipe cutting machine rotary pipe cutter metal steel pipe cutting band saw machine



Main specification

1.Manual feeding, Automatic clamping and Cutting

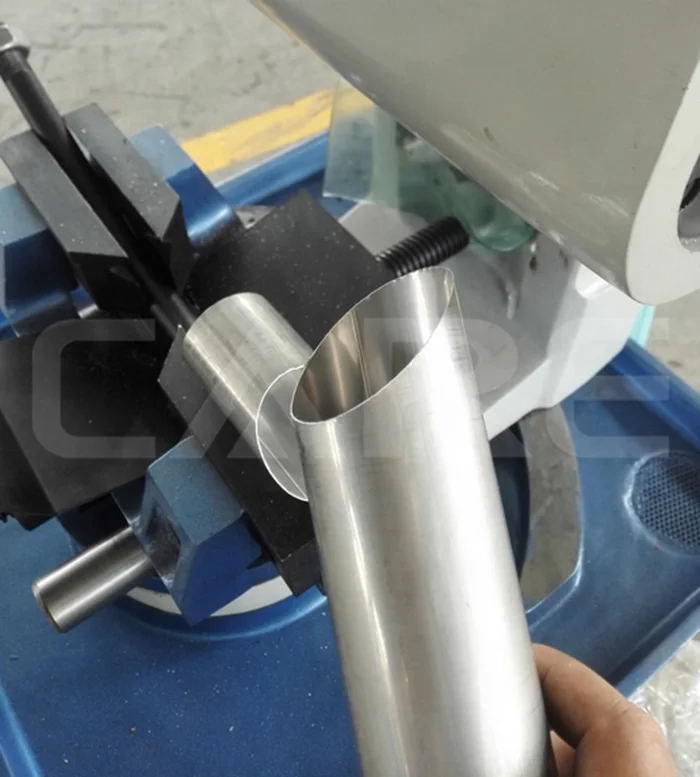

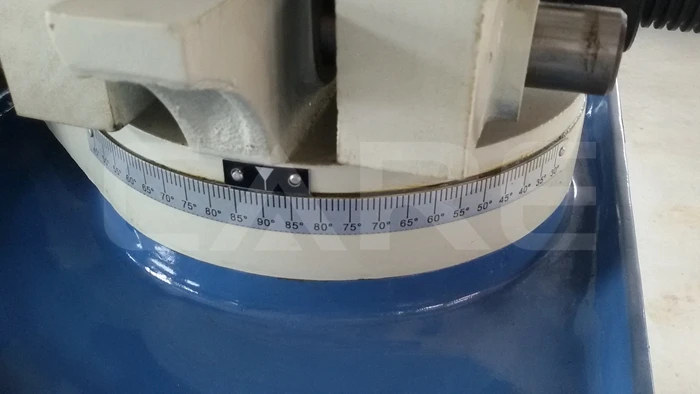

2.Can be realized angle cutting
3.Material Available: Carbon Steel,Stainless Steel,Copper etc.

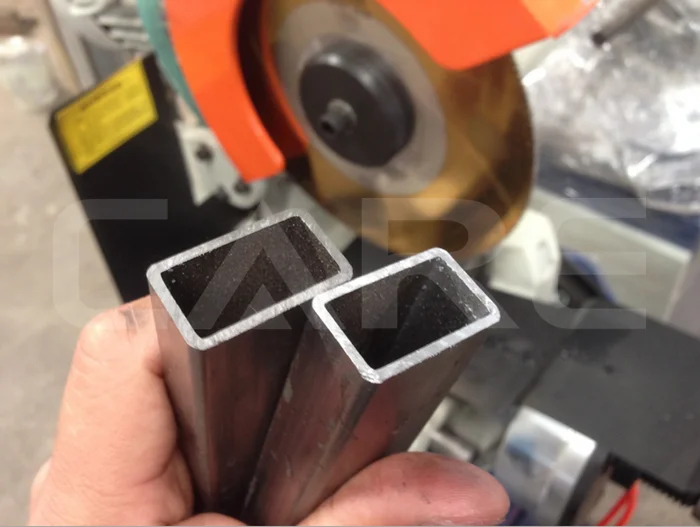

4.Cutting Shape Available: Round,Square,Rectangle,Solid bar,other profiles...
5.Small Noisy

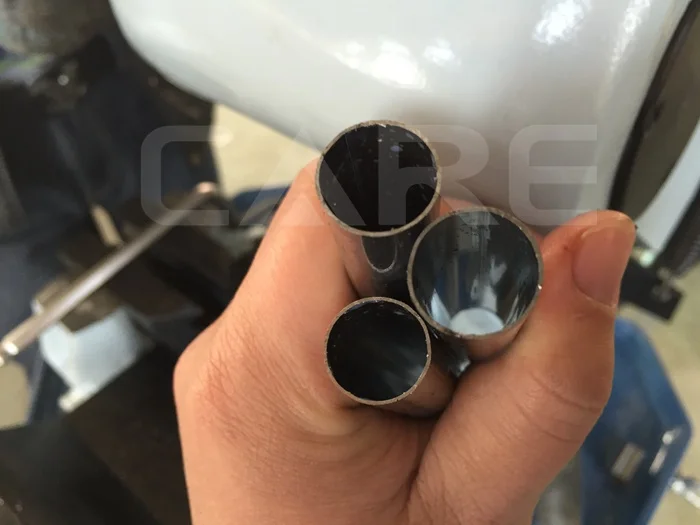

6.Good cutting quality for tube internal and external without burs.
7.Water cooling and lubricate system prolongs the life of machine and saw blade.
8.Good mechancial parts ensure machine runs in high stability.
9.CE, ISO9001 Certification



Max cutting and sawing capacity ( mild steel)

Machine model	MC-275 Series		MC-315 Series
Cutting direction	90 degree	45 degree	90 degree	45 degree
Hollow pipe	80	60	100	80
Hollow square steel	60×60	45×45	90×90	80×80
Hollow rectangular pipe	60×80	45×60	80×90	80×80
Solid rectangular steel	60×60	45×45	90×90	80×80
Solid shafting	38	25	55	45
Solid square steel	38	25	50	40

















Technical  parameters

Machine model	MC-275 Series		MC-315 Series
Main pump	two-speed electric motor 2/2.4kw		two-speed electric motor 2/2.4kw
Principle axis	RPM60/120		RPM60/120
Applicable saw blades	OD 250/275 mm		OD 250/275/315 mm
Cooling pump	90W		90W
Air compression	0.4~0.6MPa		0.4~0.6MPa
Machine weight	Type A	Type B	Type A	Type B
	180	190	200	210

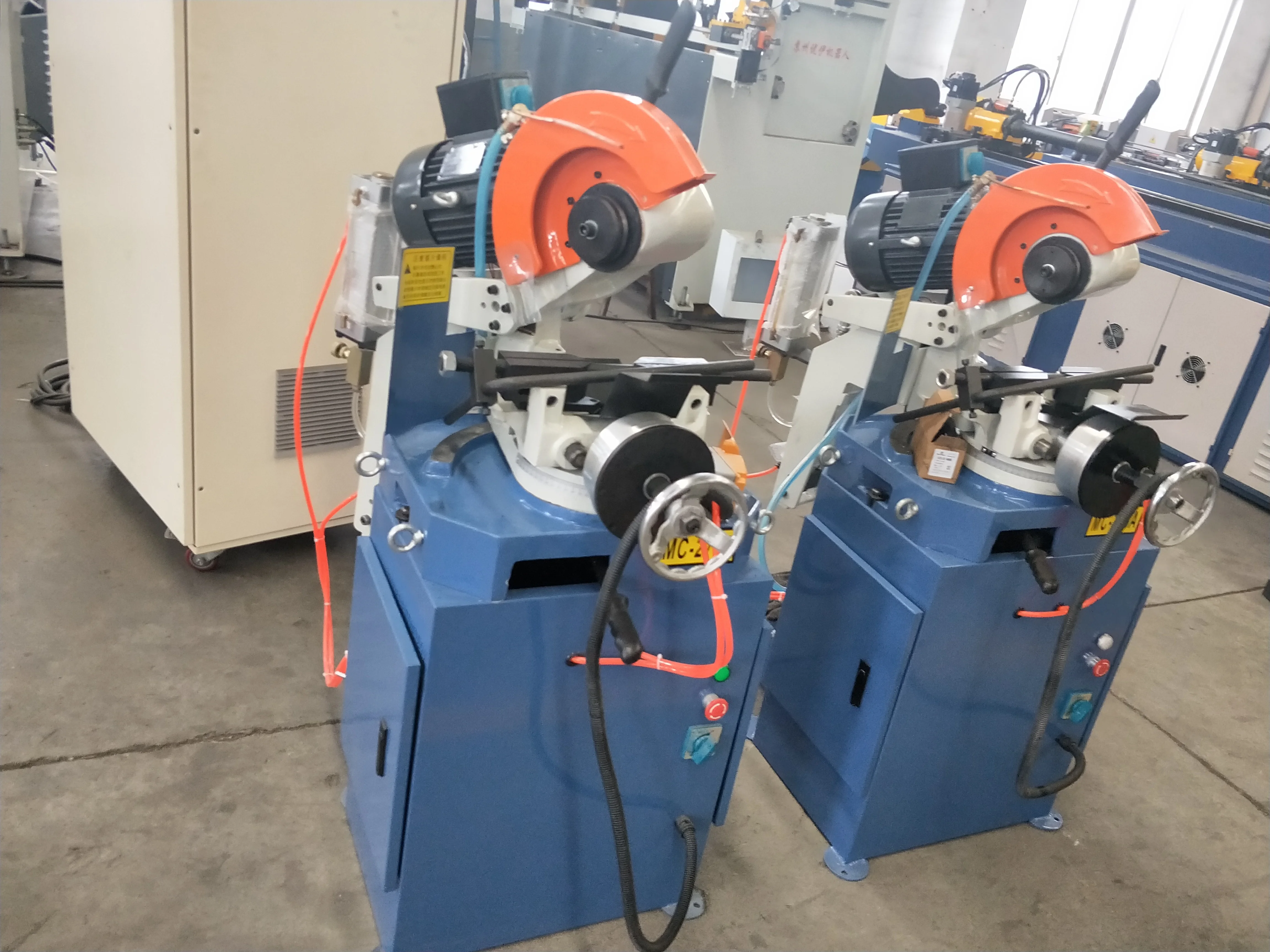

Machine photo
