600CC Two Stroke Engine

Product Overview

Description

600CC Two Stroke Engine



1.Gaokin mainly produce large displacement engine ( 300CC to 1100CC) and transmission system products(gear box, CVT, differential). Moreover, we can reserch and develop the products as per customers’ requirement, both forward-engineer and reverse-engineer.



2. Gaokin compliance TS16949, ISO9001, ISO14001, OHSAS18001 etc system certification, also bulit a complete quality operating system. Our engines after matched vehicle exhaust system reached and passed the EU IV emission certification.







S/N	Two cylinders integrated engine ( not including CVT & Gearbox)
1	Engine type	2 stroke,2 cylinders,Air cooling
2	Engine displacement	600(565)cc Engine
3	Bore dia. X Stroke mm*mm	74*66
4	Compression	10:01
5	Max. power & RPM kW(Hp)/rpm	40/6500
6	Max. torque & RPM  N.m/rpm	59/6500
7	Min. fuel consumption g /Kw.h	620
8	Min. Idling stable RPM  r/min	1500±100
9	Balance method
10	Electric Generator type	Permanent magnet AC type
11	Magnetor generated power W	>240
12	Engine wire harness	carburetor
13	Oil filter type
14	Gasoline grade	Above 92#
15	Lubrication oil grade	JASO FB grade or above
16	Lubrication oil total volume
17	Fuel pressure   bar
18	Lubrication type	Lubrication oil
19	Staring method
20	CVT type
21	Belt groove face angle
22	Speed adjusting range
23	Downhill auxiliary braking
24	Gearbox type
25	Drive ratio from input shaft to front output shaft(high speed)
26	Drive ratio from input shaft to front output shaft(Low speed)
27	Drive ratio from input shaft to front output shaft(reverse)
28	Output type
29	Outline dimension (a×b×h)  mm	See drawing
30	Mounting dimension	See drawing
31	Total N.W(Engine & Gearbox & CVT)	37.5
32	Applied to Vehicle

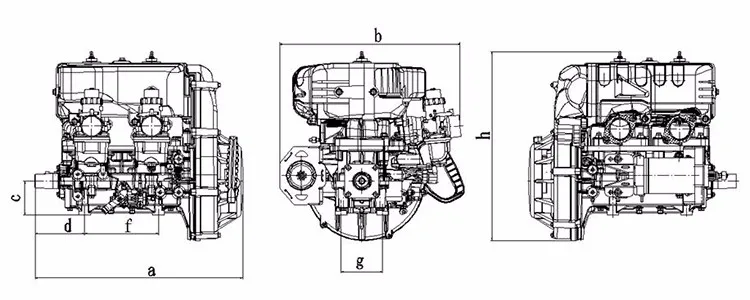

Engine Dimensions

4 stroke engine	a	b	h	c	d	f	g	i	j	m	n	t	s
	600cc engine	396	393	568	135	176	53	264	123	140	145	241	15°

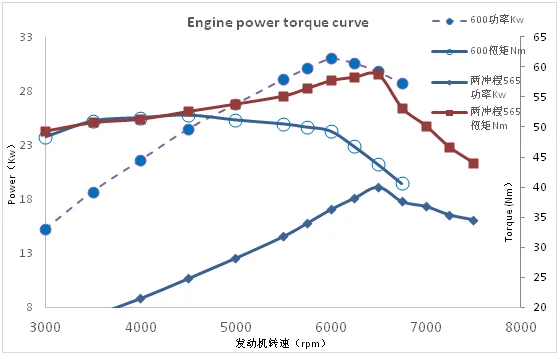

600cc power OR torque



rpm	2 stroke 565 power Kw	2 stroke 565 torque Nm
3000	15.5	49.34
3500	18.6	50.75
4000	21.5	51.33
4500	24.8	52.63
5000	28.2	53.86
5500	31.8	55.22
5750	34	56.47
6000	36.3	57.78
6250	38.2	58.37
6500	40	58.77
6750	37.6	53.2
7000	36.8	50.21
7250	35.4	46.63
7500	34.6	44.06
