4 20mA HART Protocol Industrial Monocrystalline Silicon Differential Pressure Transmitter
- Category: >>>
- Supplier: Shandong Friend Control System Co. Ltd.
Share on (60671969498):
Product Overview
Description
Products Description

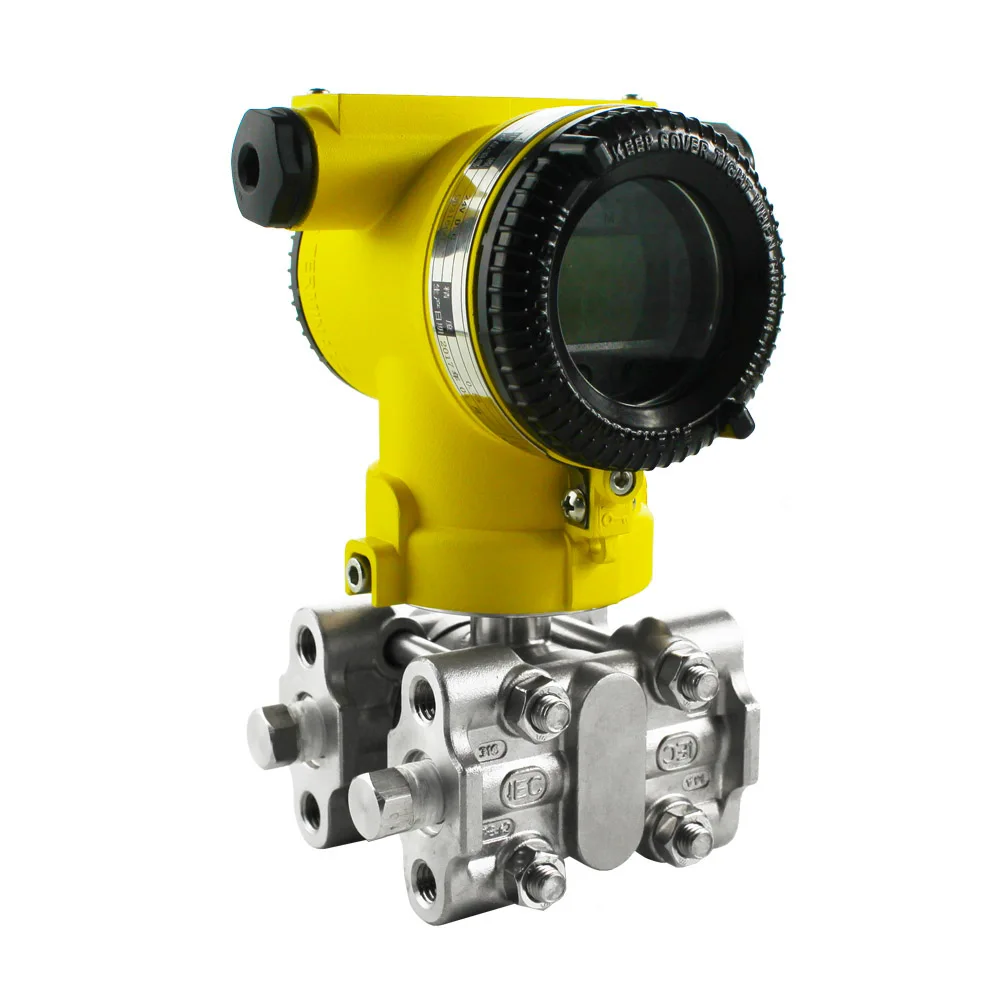

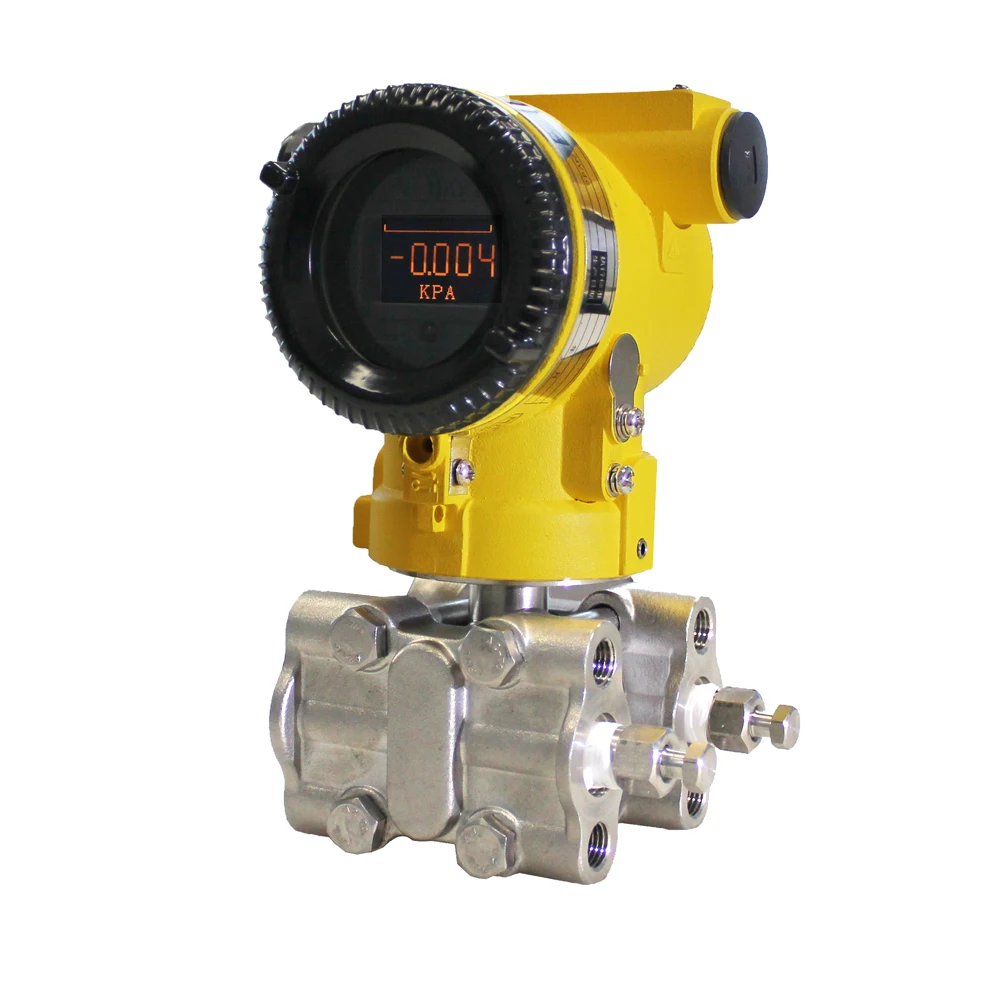

FD3051S DP-Differential Pressure Transmitter
FD3051S DP is suitable to measure liquid,gas,or steam flow as well as liquid level, density and pressure.FD3051S outputs a 4~20 mADC signal corresponding to the measured differential pressure.Its highly accurate and stable sensor can also measure the static pressure which can be shown on integral indicator or remotely monitored via HART communications. Key features include quick response, remote set-up using communications,self-diagnostics and optional status output for pressure high/low alarm.
1. The powerful 24-bit CPU realizes high-precision and fast response LCD display;
2. The low temperature can reach -30 ℃;
3. Key operation can rewrite the range on site.
2. The low temperature can reach -30 ℃;
3. Key operation can rewrite the range on site.
1. Powerful personal protection, transmitter security guard;
2. Despite the thunder and lightning, still working steadily.
Used in the requirements of strong corrosiveness to the chemical site and harsh environment.
1. Beautiful appearance, showing the beauty of fashion technology;
2. Inner thick and sturdy, meet the most demanding environment.
1. Precise liquid filling technology eliminates the influence of temperature and static pressure;
2. Double-diaphragm overload protection structure, easily deal with high overload test.
2. Double-diaphragm overload protection structure, easily deal with high overload test.
1. Super thick reinforced structure, indestructible;
2. Powerful guarantee of high static pressure and high overload.

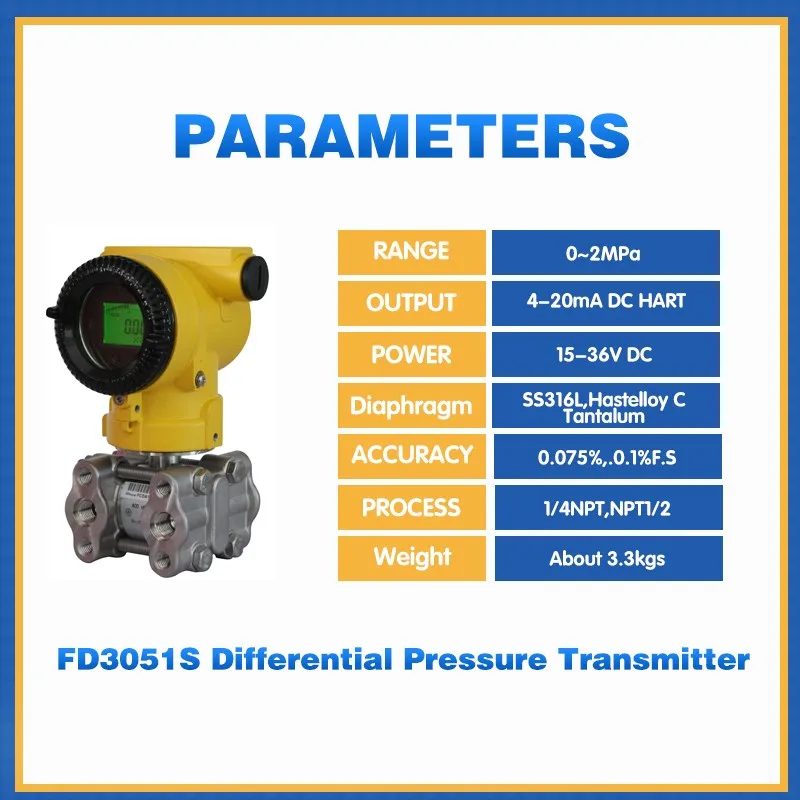

Model | FD3051S DP-Differential Pressure Transmitter |
Pressure Range | -1Bar...-0.06Bar...~0~0.002Bar...0.4Bar..2.5Bar....20Bar(optional). |
Pressure Type | Differential pressure |
Solating Diaphragm | SS316L, Hastelloy C, Tantalum, SS316L gold plated, SS 316L coated FEP |
Output Signal | Two Wire 4~20mADC, 4~20mADC with HART |
Output Signal | 15-36V DC,24V DC |
Accuracy | ≤ 0.075%, 0.1%F.S |
Working Temperature | -30 to 85°C Optional |
Overload/Burst pressure | 150% F.S/200% FS |
Long-term stability | ±0.1%* Span/3 years |
Temperature drift | 0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa) |
Insulation Resistance | >100M Ω @50V |
Electrical Connection | Standard product ISO M20 × 1.5 female thread; ANSI NPT1/2(F) female thread |
Process Connection | 1/4 inch NPT female thread on the splint; 1/2 inch NPT female thread stainless steel oval flange; M20x1.5 male thread stainless steel T-shaped joint with M20X1.5 to φ14 welded pipe; NPT1 / 4-M20 × 1.5 adapter, with φ14 welded pipe; NPT1 / 2-M20 × 1.5 adapter, with φ14 welded pipe |
Indicator | LCD Display |
Housing Material | Aluminum with Epoxy Resin Coat |
Process Material | 316 Stainless Steel |
Fill fluid | Silicone oil/Fluorinated oil |
Configuration | Digital communication or local key adjustment. |
Explosion Protection | NEPSI : Ex dⅡC T6, Ex iaⅡC T4 |
Protection Level | IP65,IP67 |
Weight | About 3.3kg |
