- Plastic Bulkhead IP65 Fire light 1H 7W 3.6V led exit lighting

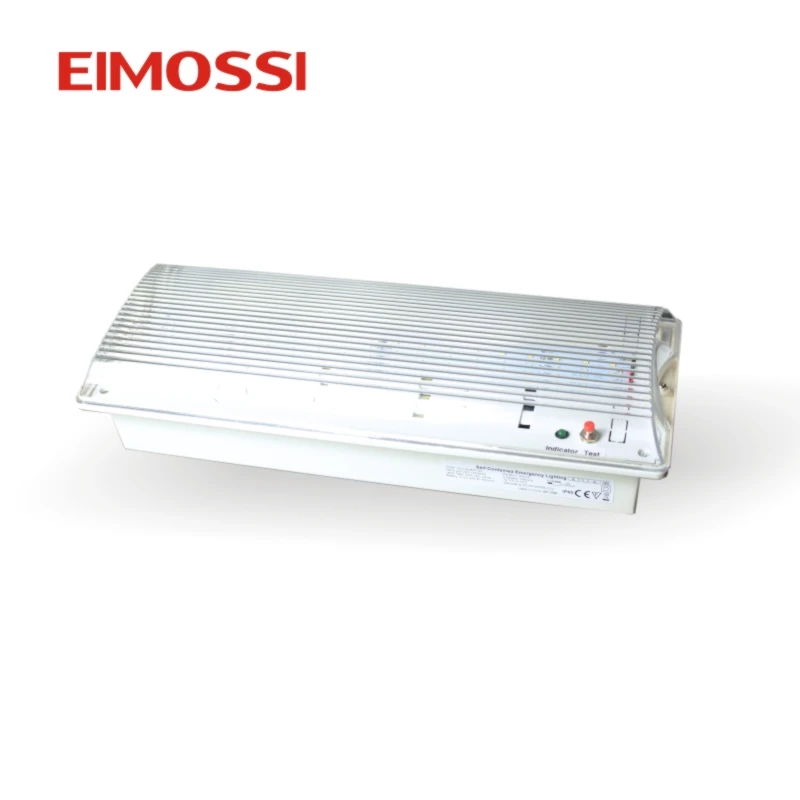

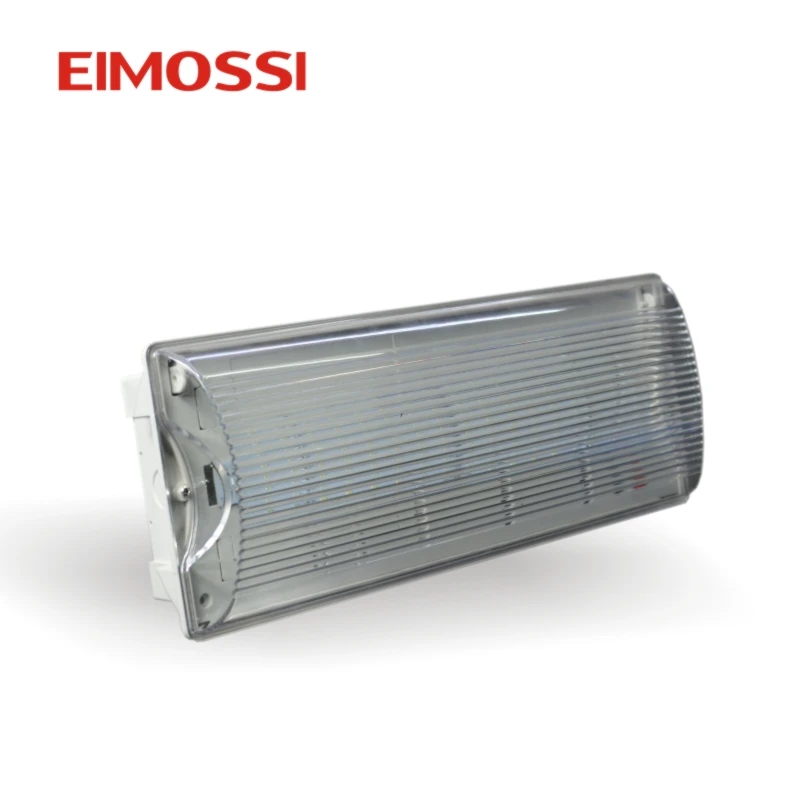

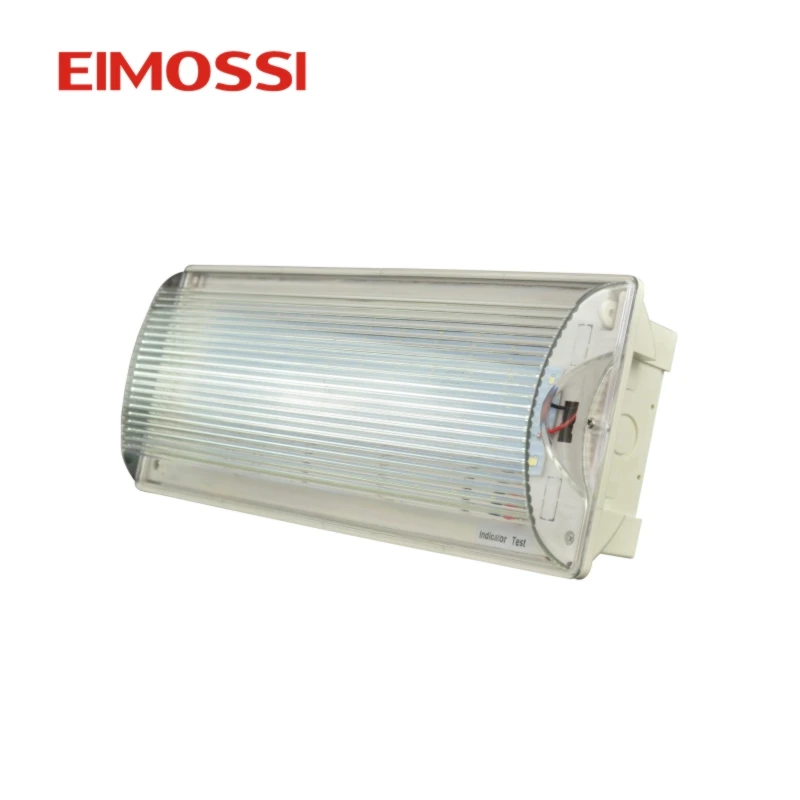

Plastic Bulkhead IP65 Fire light 1H 7W 3.6V led exit lighting
- Category: >>>
- Supplier: Zhongshan Aimoxi Electric Co. Ltd.
Share on (60672017207):
Product Overview
Description
Specification
| Information | |
| Plastic Bulkhead IP65 Firelight led exit lighting | |
| input voltage | 220-240VAC~50/60Hz |
| material | 7W |
| light color | White |
| light source | 33Pcs SMD LED |
| emergency time | 60min |
| Battery | Ni-Cd 3.6V AA 600Mah |
| warranty | 2 years |
Product Description
Packaging Information:
Product Details
Plastic Bulkhead IP65 Firelight led exit lighting.This waterproof bulkhead emergency light is sound water, wall/suspended mounting.PC clear diffuser with self-adhesive EXIT legend.Complete with a minimum 1 hours battery backup.
Product size: 355*135*85mm
Suited for: Indoor or outdoor
IP Rating: IP65
Product Details

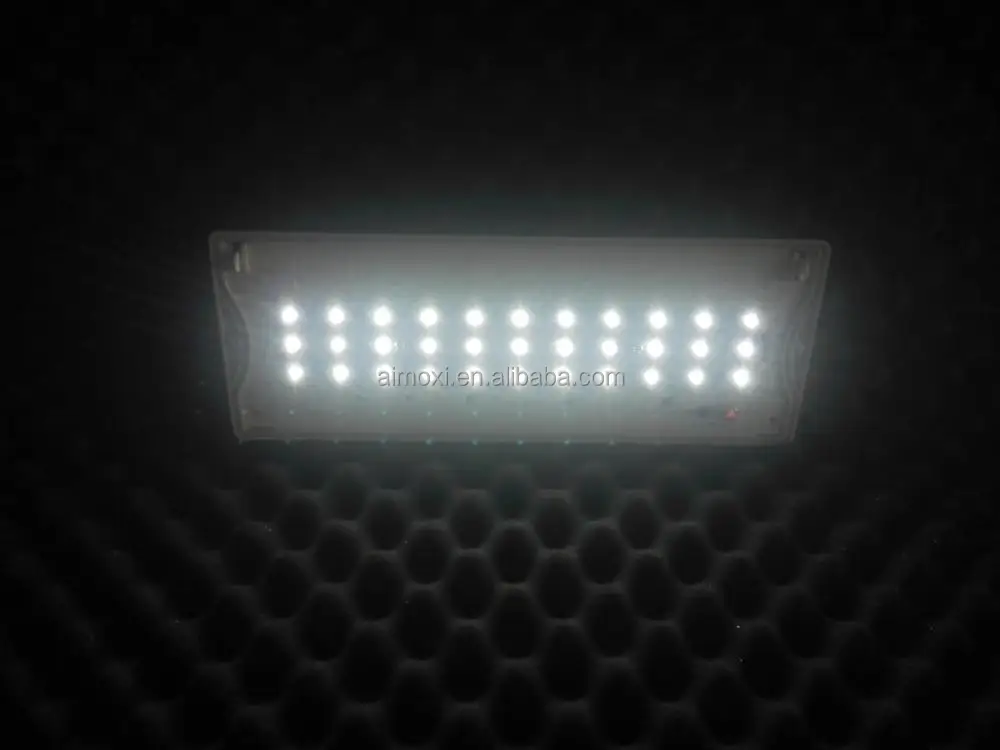

Advanced wide angle white 33 SMD LEDs as a light source.
Efficient driver circuit.
Color Temperature: White
LED lifetime: >50,000 Hrs
Provides excellent viewing distances of 24 meters
Product Details
Long-life, maintenance-free, rechargeable Ni-cd batteries;
Internal solid-state transfer switch automatically connects internal batteries to LED board and LED lamp heads for emergency illumination;
Over-charged and over-discharged protection;
Innovative,Snap-together design for fast and easy installation
Product Details
SELV classified(outputs LED,batteries,status LED,test switch)
Wall/Suspended mounting

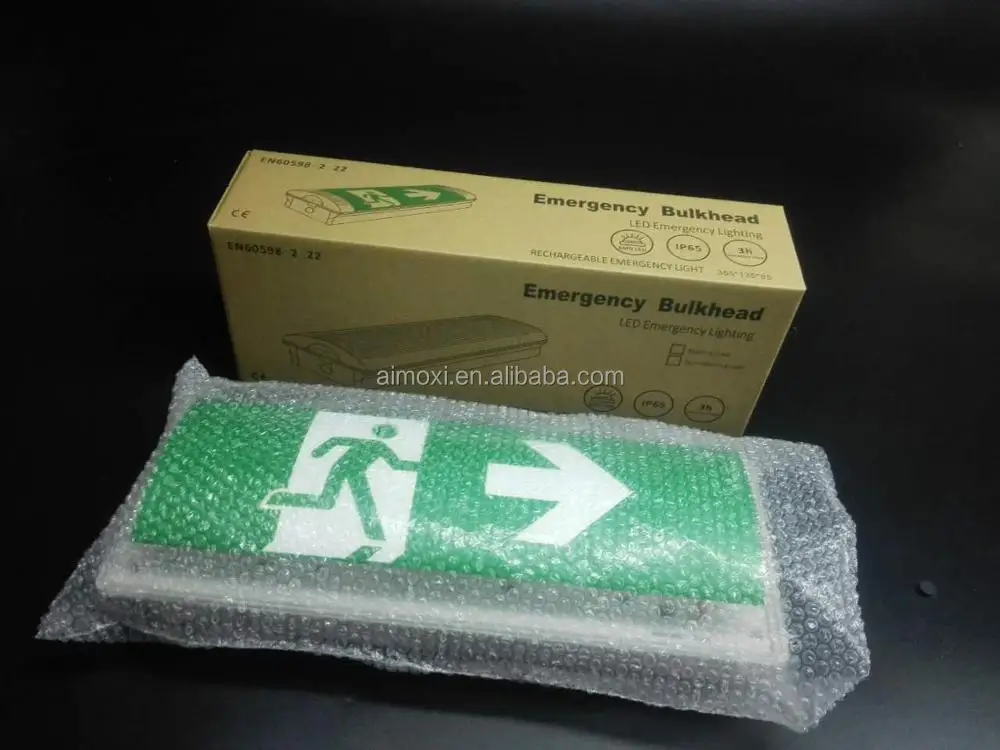

Packaging Information:
Product Dimension: 355*135*85mm
Package: a bag+inner box for per piece, 10 pcs put into an carton
Package size: 480*380*310mm(0.057CBM)
N.W.: 7.8KG
G.W.: 9.2KG
H.S.:94054090.00
| Plastic Bulkhead IP65 Fire light led exit lighting | ||||
| AMX-ELB3513/E/N/60 | AMX-ELB3513/E/M/60 | AMX-ELB3513/E/N/180 | AMX-ELB3513/E/M/180 | |
| Light source | 33 SMD LEDs | 33 SMD LEDs | 33 SMD LEDs | 33 SMD LEDs |
| Power | 7W | 7W | 7W | 7W |
| Input Voltage | 220-240VAC~50/60Hz | 220-240VAC~50/60Hz | 220-240VAC~50/60Hz | 220-240VAC~50/60Hz |
| Operation | Non-maintained | Maintained | Non-maintained | Maintained |
| Duration | 1 H | 1 H | 3 H | 3 H |
| Color Temperature | White | White | White | White |
| Recharge time | 24 H | 24 H | 24 H | 24 H |
| Battery | Ni-Cd 3.6V AA600mah | Ni-Cd 3.6V AA600mah | Ni-Cd 3.6V 1500mah | Ni-Cd 3.6V 1500mah |
| Test | M7 push on button | M7 push on button | M7 push on button | M7 push on button |
| Indicators | Φ5 LED Green:charge | Φ5 LED Green:charge | Φ5 LED Green:charge | Φ5 LED Green:charge |
| Dimension | 355*135*85mm | 355*135*85mm | 355*135*85mm | 355*135*85mm |
| Working temperature | 0°C~40°C | 0°C~40°C | 0°C~40°C | 0°C~40°C |
| Lifetime without any errors | >5,000 Hrs | >5,000 Hrs | >5,000 Hrs | >5,000 Hrs |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
Installation Process
More products
Certifications
Company Information
FAQQ4. How do you ship the goods and how long does it take to arrive?
Q5. How to proceed an order for led light?
Q6. Is it OK to print my logo on led light product?
Q7: Do you offer guarantee for the products?
Q1.Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 4-5 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
