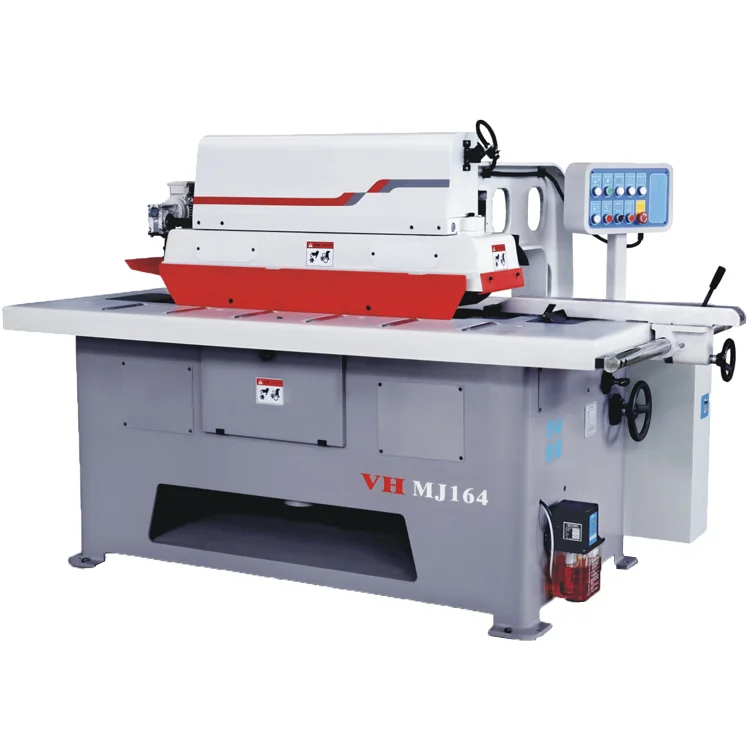

VH MJ164 Heavy Duty Electric Lifting High Safety Level Automatic Feeding System Woodworking Straight Line Rip Saw
- Category: >>>
- Supplier: Shanghai Fuma Woodworking Machinery & Equipment Co. Ltd.
Share on (60672054841):
Product Overview
Description

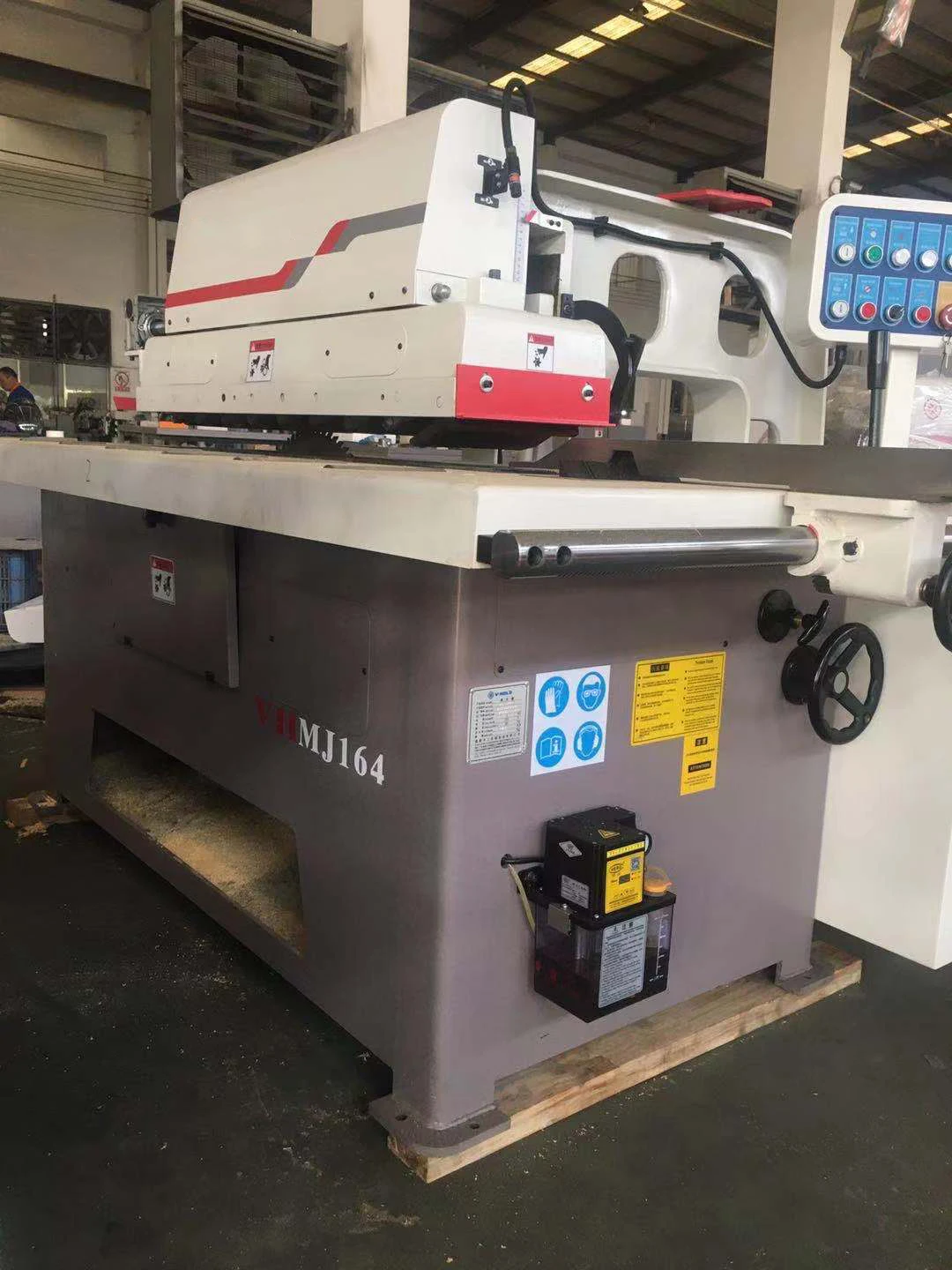

VH-MJ164 Heavy Duty Electric Lifting High Safety Level Automatic Feeding System Woodworking Straight Line Rip Saw
| SPECIFICATION AND MODEL | MJ164 |
| Max. Saw blade diameter (mm) | Φ 455 |
| Max. Working width (mm) | >Φ 355 |
| Max. working thickness (mm) | 120 |
| Cutting width (mm) | 660 |
| Main spindle revolution (r/min) | 3000 |
| Spindle diameter (mm) | Φ 50.8 |
| Feeding speed (m/min) | 11-26 |

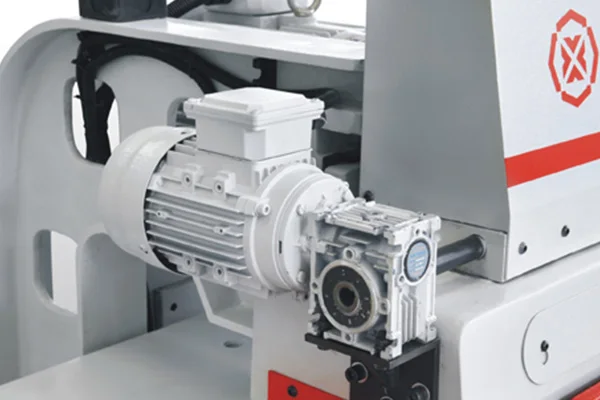

| Feeding motor power (kw) | 2.2 |
| Main motor power (kg) | 11 |
| Lubricate pump motor power (w) | 20 |
| Total power (kw) | 12.5 |
| Working tabie sizer (mm) | 2000>x1160 |
| Dimension (mm) | 2300x1200x1500 |
| Net weight (kg) | 1800 |

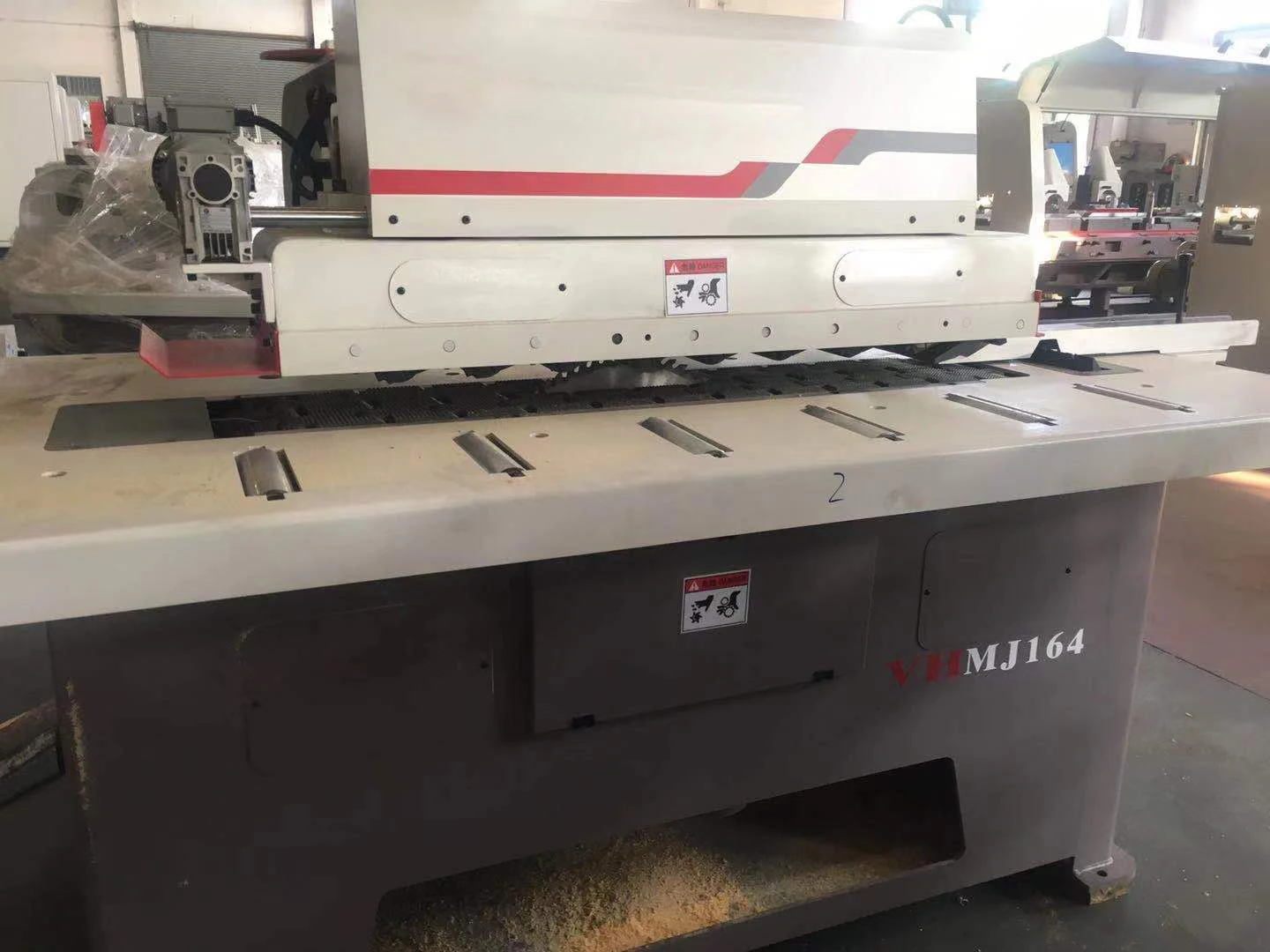

VH-MJ164 Full Automatic Heavy Wood Rip Saw Wood Cutting Machine

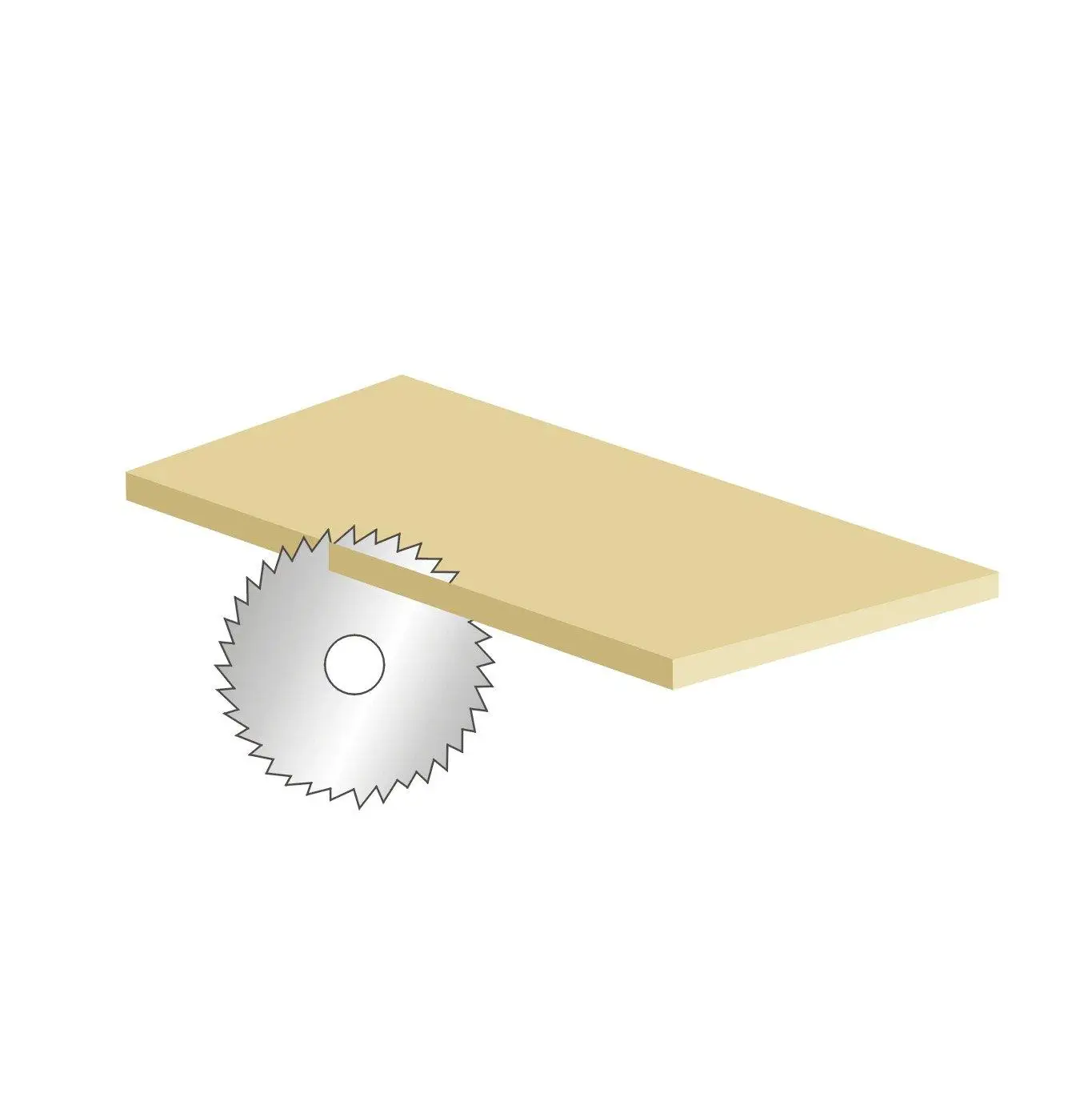

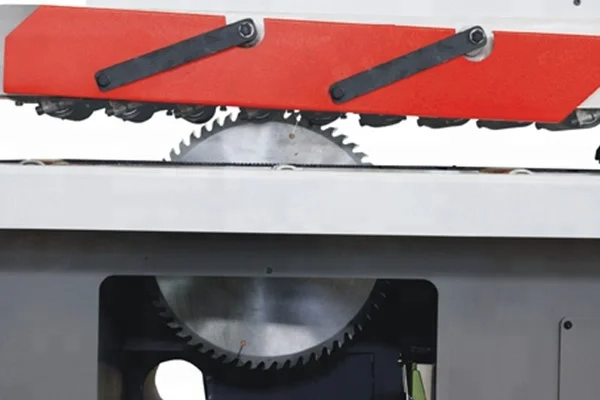

1.Saw blade under the working surface, so that the process of cutting more secure.

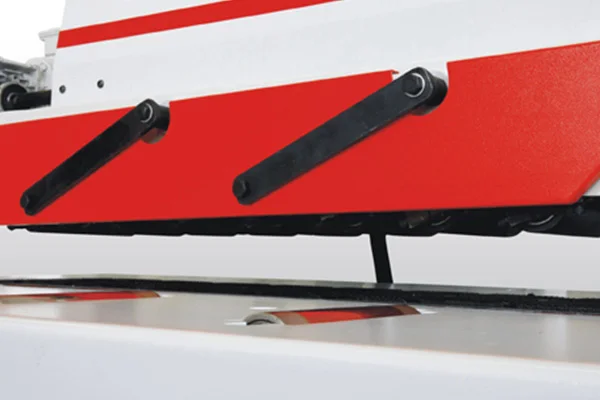

2,Auxiliary roller 8 sets of pressing wheel device to ensure the stability of the wood in the conveying process.

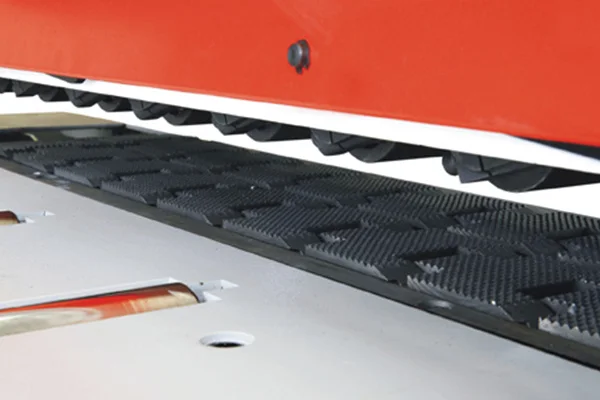

3,The DOUBLE-BRACK chain conveyer has wide working surface so that the material can be straightly, Precisely and smoothly.

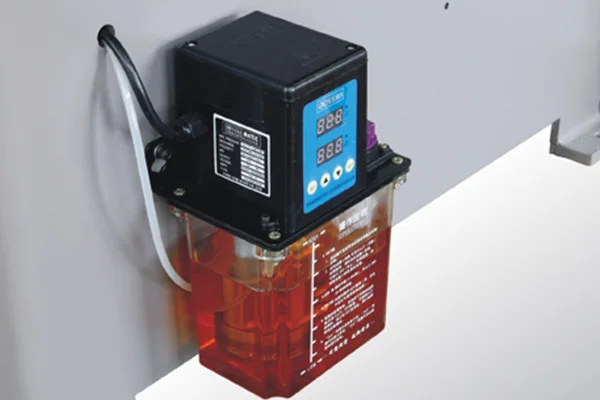

4,Automatic lubrication
Automatic controlled oil pump provides lubrication to all major parts to extend the machine service life.
5,Powered elevation device (OPtion)

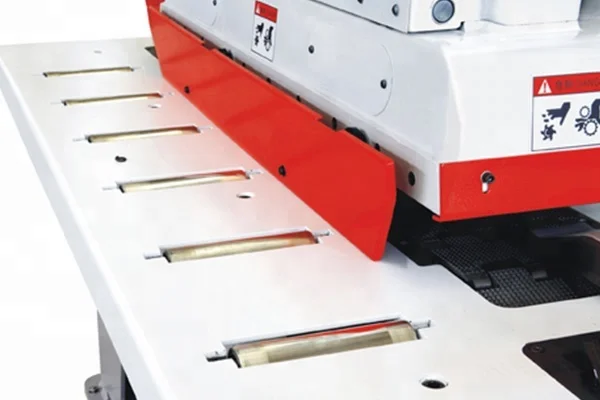

6,Worktable internal roller,convenience forprocessing and feeding back of big board.
7,Accurate fence and lock systemThe cast iron fence slide on the hard-chromium treatment round bar together with the lock system,that is providing accurate reading and position of the.

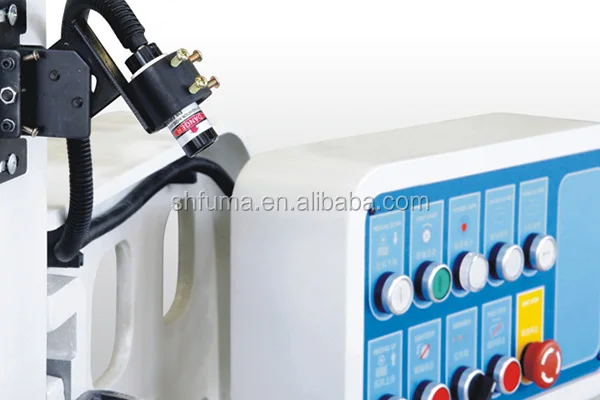

8,Lnfred alignm ent devince can enable the saw to find its accurate position effciency.

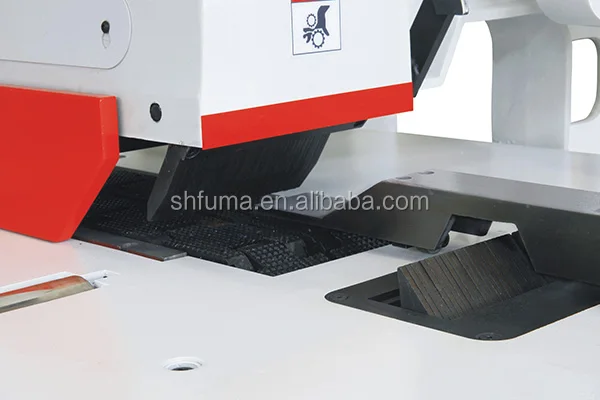

9,Rebound prevention device can protect operators thorughly.
Our Customers:
Our Big Family:
FAQ
Warranty?
Mechanical parts one year,Electrical parts three months
Any aftersale support available?
Yes we have, Engineers available to service machinery overseas
Payment:
TT 30% advanced payment,70% balance remitted before shipment.
Packaging & Shipping
Packing detail:
Shrink film,plywood case packing will have extra cost.
