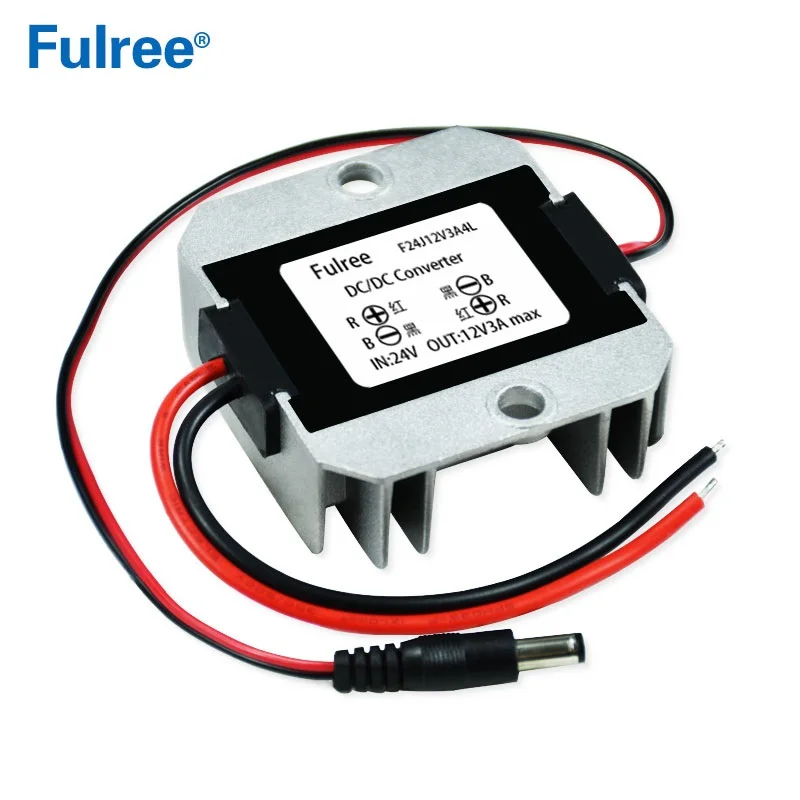

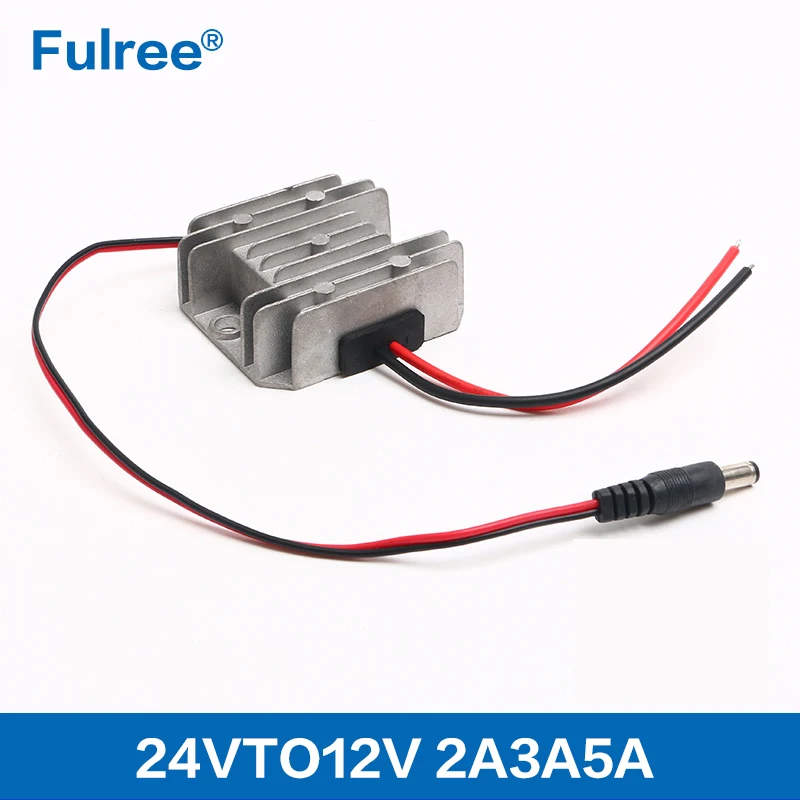

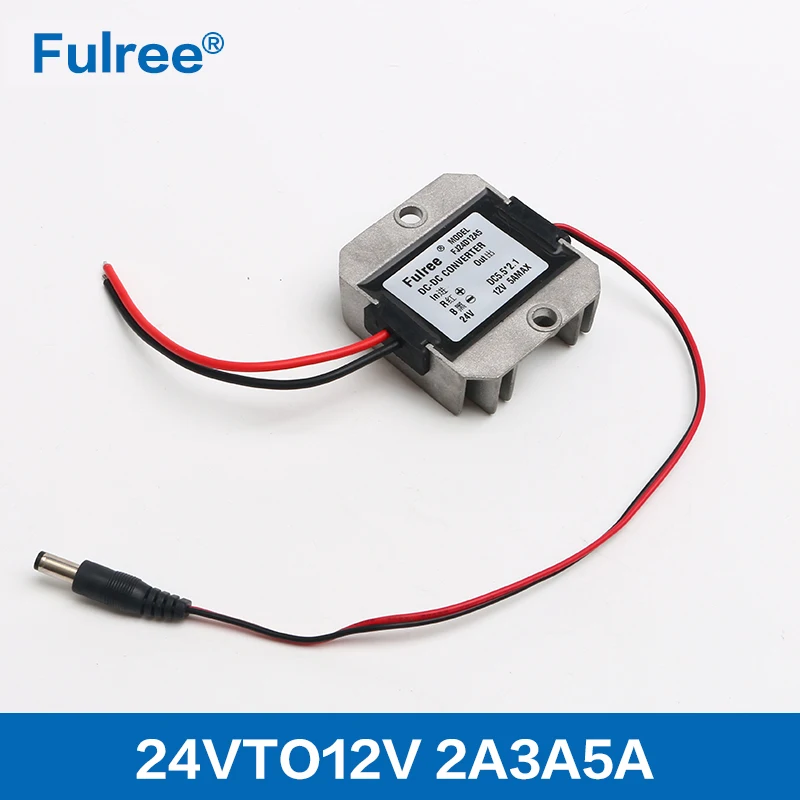

DC DC Step Down Power Converter 24V to 12V 3A 5A Output DC Jack 5.5*2.1mm Plug Car CCTV DVR Camera Monitoring Power Supply
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60672058083):
Product Overview
Description
DC DC Step Down Power Converter 24V to 12V 3A 5A Output DC Jack 5.5*2.1mm Plug Car CCTV DVR Camera Monitoring Power Supply
Click the right "Start Order“ button to order the product directly.
If any question, click the "Contact Supplier" button to check.
Product Description
Product Name | Fulree 24V DC TO 12V DC Converter Module | |
Brand | Fulree | |
Model No. | F24J12V2A4L / F24J12V3A4L / F24J12V5A4L (Old: FJ24D12A2 / FJ24D12A3 / FJ24D12A5) | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 24V | |
Input Voltage Range | DC 15-40V | |
Output | ||
Output Voltage | DC 12V | |
Output Current | 2A / 3A / 5A Max, auto-adaption | |
Output Power | 24W / 36W / 60W Max | |
Conversion Efficiency | 92% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 100mV | |
No-load current | < 100mA | |
Working Temperature | -20~65℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
| Overheat Protection | ||
Short circuit Protection | ||
Input/Output Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive | |
Application | GPS Navigation, Monitoring, Electrical appliances, industrial equipment and so on. | |
Certification | CE/RoHS | |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |
Product Size (L x W x H) | 66*60*22mm | |
Installation Cable Length | 13-14cm | |
Product Weight | 125g | |
Warranty | 12 months, lifetime >20,000 hours | |
Cooling Way | Free air convection | |
Customized Service | ||
