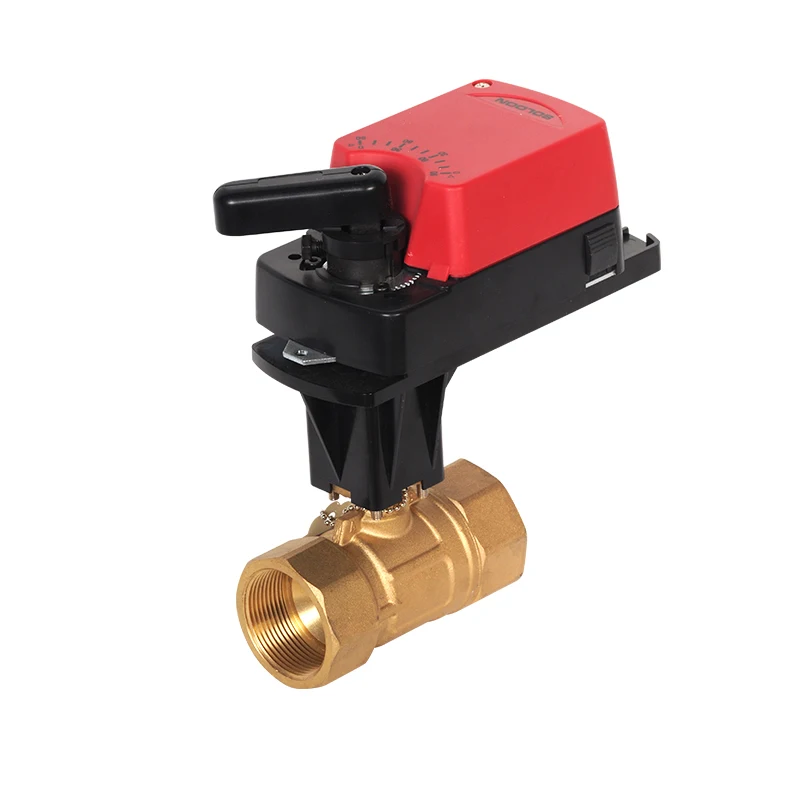

Three way Electric Control Ball Valve with damper actuator DN15 DN50
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60672100527):
Product Overview
Description
Product Description
Technical Specification
l Working temperature: -5 to 121 ºC
l Applicable to 50% water glycol
l Applicable to 100kPa saturated steam
l Applicable to water system
Valve Specification:

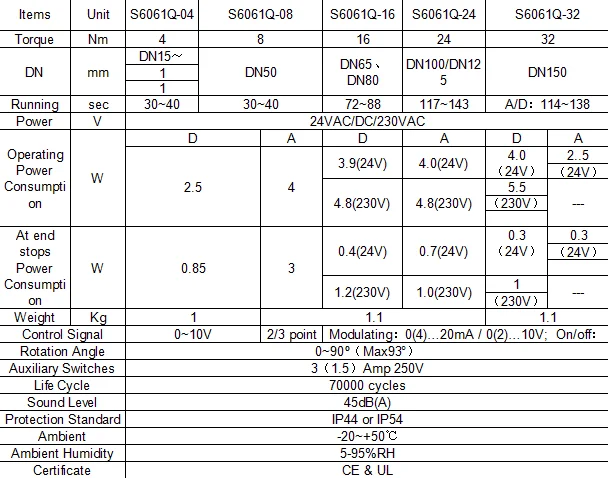

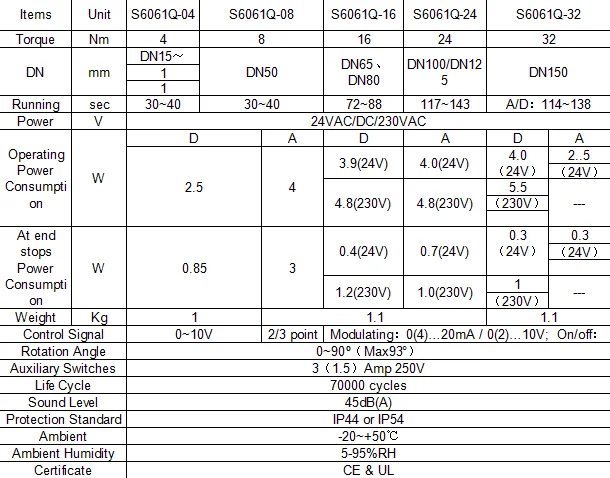

Actuator Specification:
Dimensions:Unit(mm)
Model | G | H(mm) | H1(mm) | L(mm) | S(mm) |
S6064-2015 | G1/2 | 184 | 37.5 | 60 | --- |
S6064-2020 | G3/4 | 184 | 44 | 73 | --- |
S6064-2025 | G1 | 189 | 47 | 89 | --- |
S6064-2032 | G1-1/4 | 199 | 52.5 | 102.5 | --- |
S6064-2040 | G1-1/2 | 208 | 57 | 113 | --- |
S6064-2050 | G2 | 219 | 62 | 127.5 | --- |
S6064-3015 | G1/2 | 184 | 39 | 60 | 30.5 |
S6064-3020 | G3/4 | 184 | 44 | 66 | 32 |
S6064-3025 | G1 | 189 | 47 | 89 | 46.5 |
S6064-3032 | G1-1/4 | 199 | 52.5 | 98.5 | 49 |
S6064-3040 | G1-1/2 | 208 | 57 | 106 | 52 |
S6064-3050 | G2 | 219 | 62 | 123 | 69 |
Model | Flange | L(mm) | D(mm) | H(mm) | n-d |
S6064-2065 | 145 | 97 | 105 | 136 | 4-18 |
S6064-2080 | 160 | 108 | 125 | 140 | 8-18 |
S6064-2100 | 175 | 120 | 145 | 104 | 8-18 |
S6064-2125 | 200 | 145 | 175 | 115 | 8-18 |
S6064-2150 | 230 | 165 | 205 | 138 | 8-18 |
