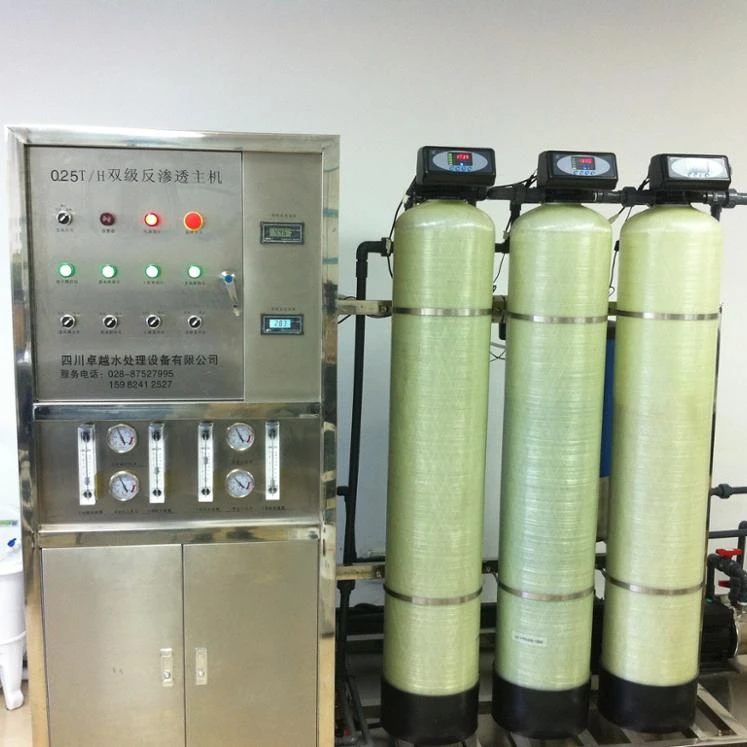

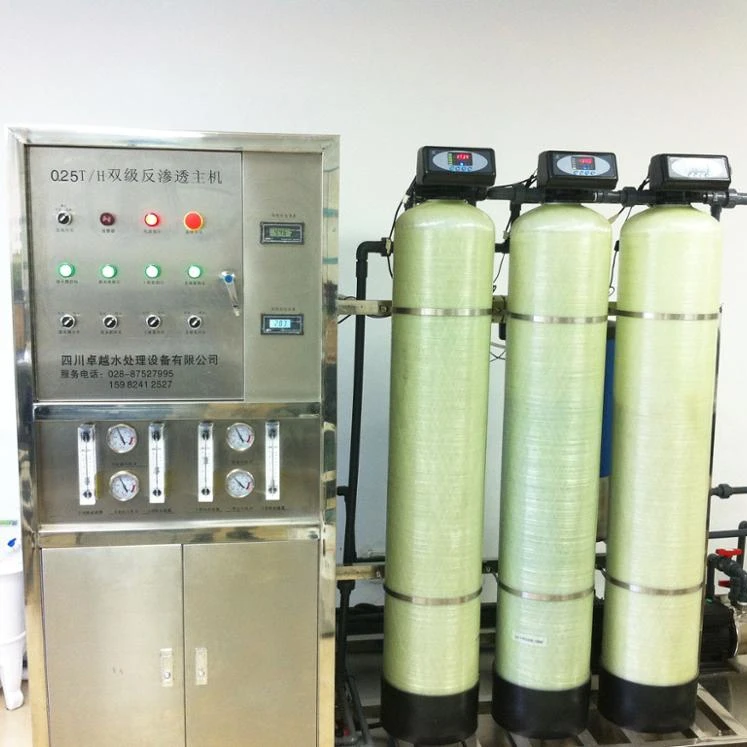

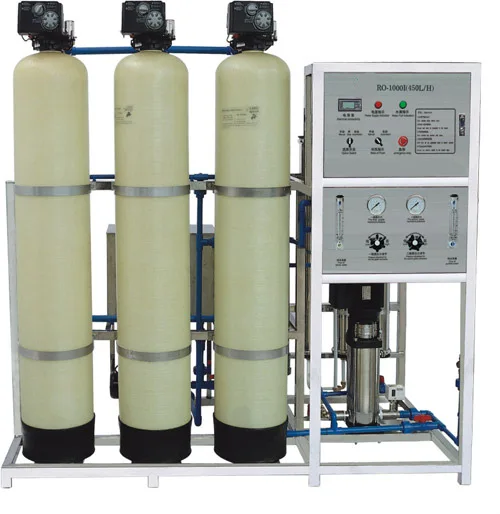

China CE Manufacturer Cheap Reverse Osmosis River Bottled Commercial Drinking Water Treatment Machine System
- Category: >>>
- Supplier: Sichuan Zhuoyue Water Treatment Equipment Co. Ltd.
Share on (60672111620):
Product Overview
Description
Hot Plant 1
SS RO Treatment Home usage pure water Deionized water system 2#RO water plant
Product Description

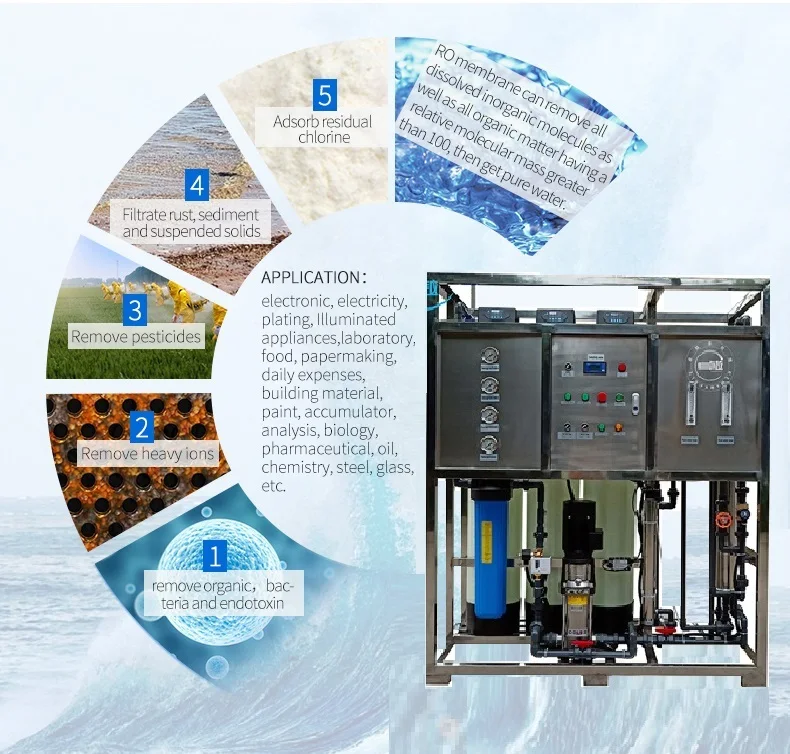

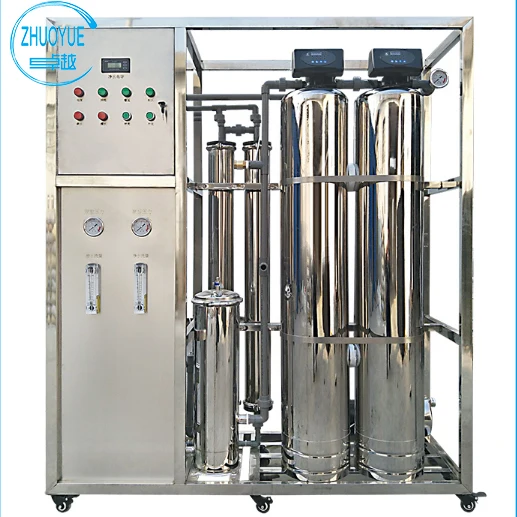

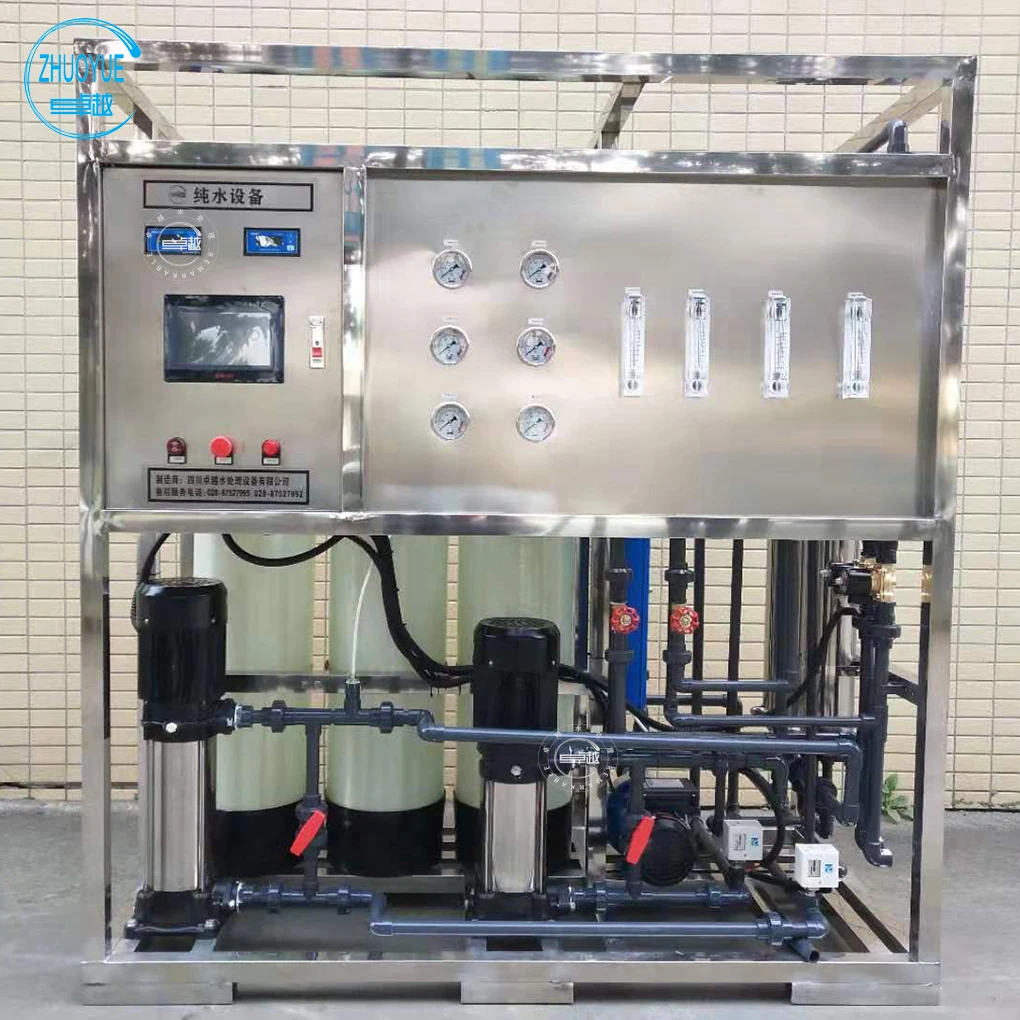

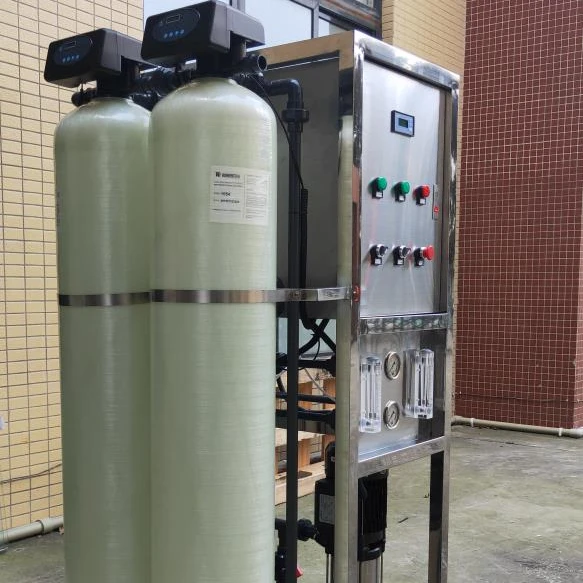

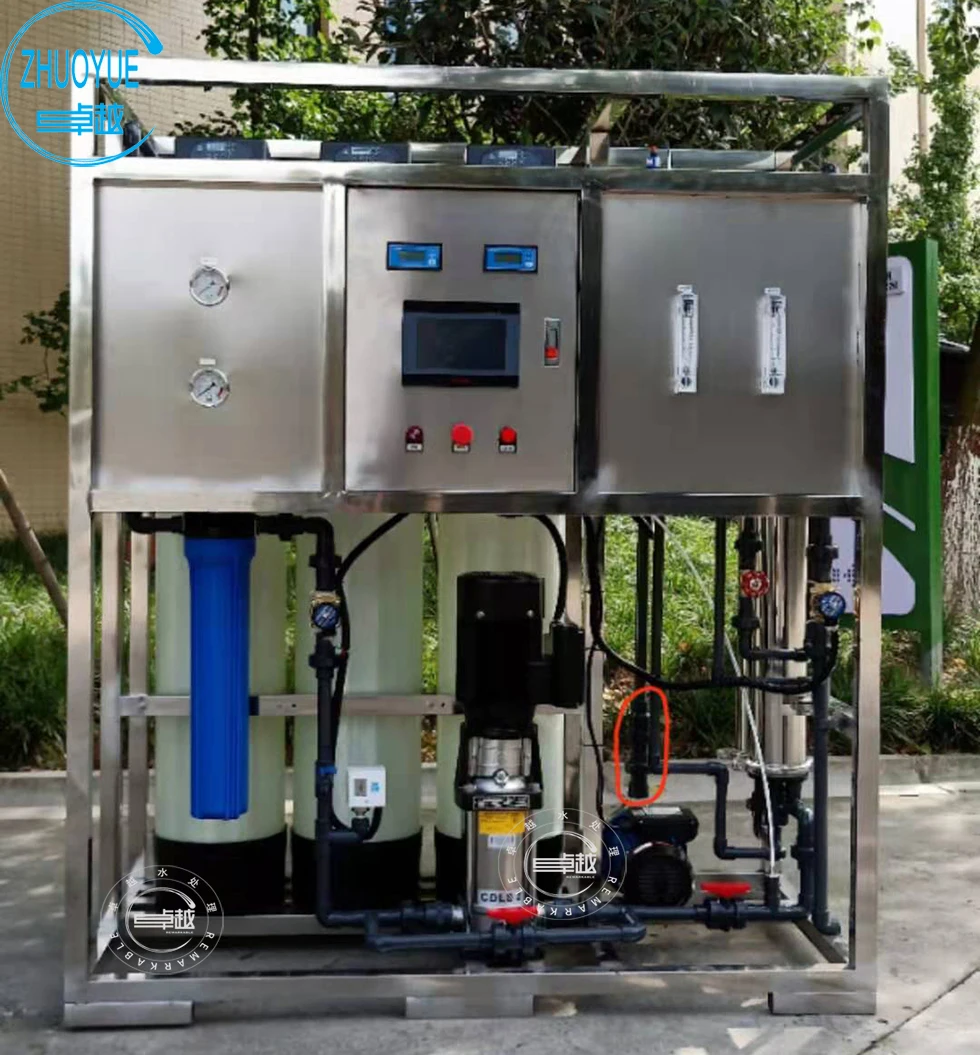

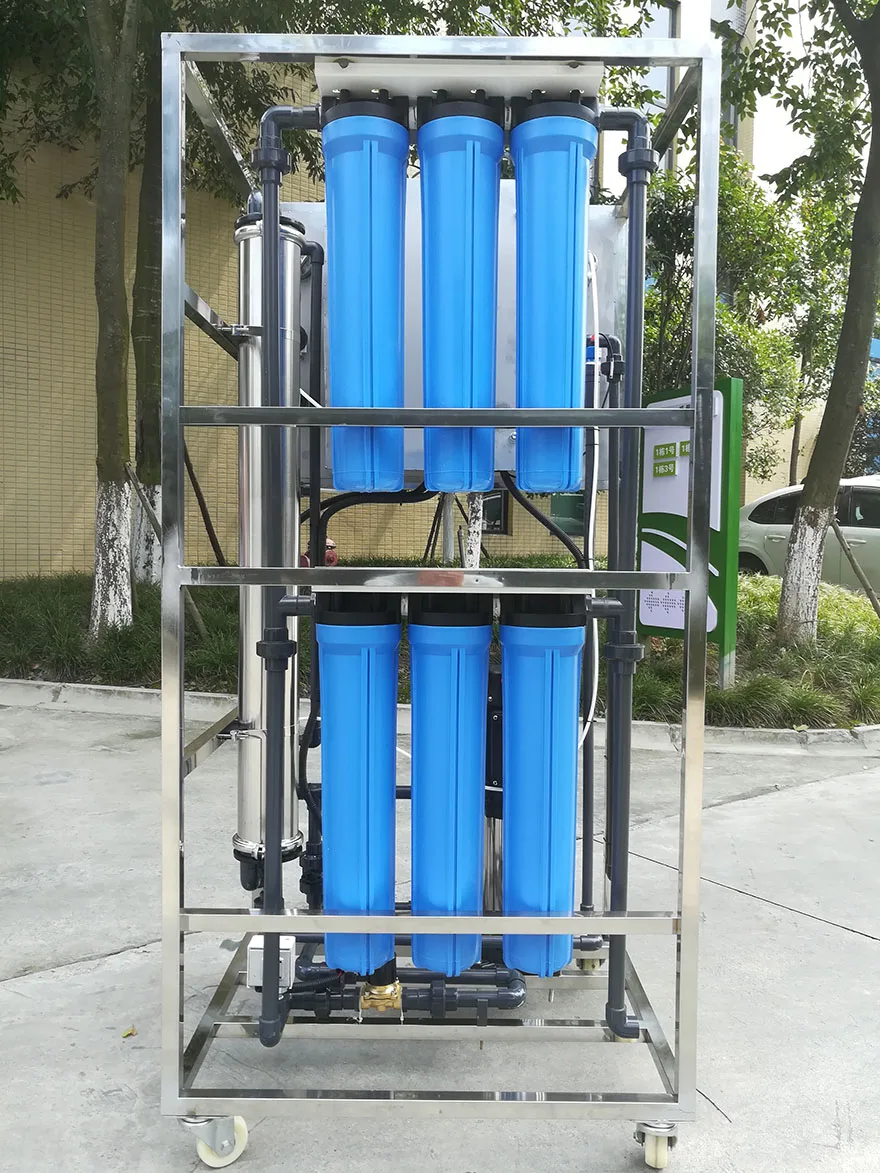

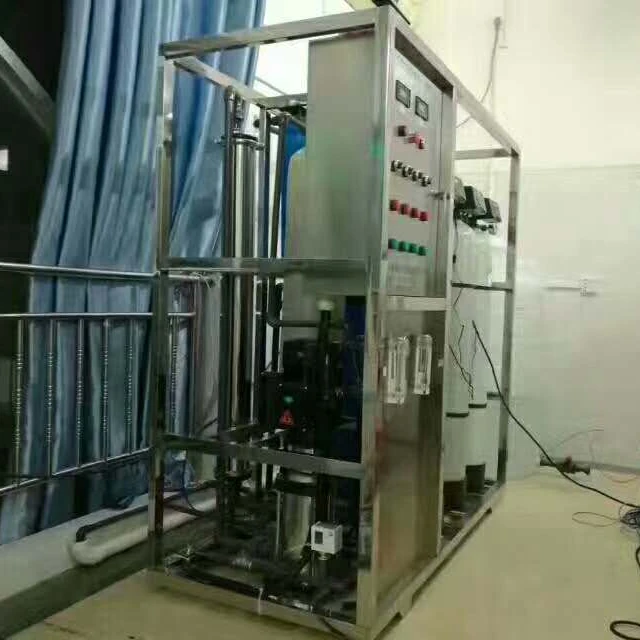

ZYRO series pure water machine is a single reverse osmosis or double stage reverse osmosis device, can be purified to meet the standard pure water for industrial water application. The high desalinization rate of the RO membrane can effeciently remove more than 99% salt ions, microorganism, bacteria, heavy metal ions, pollutant matters, etc.
| Water production | 0.25m3-100m3(according to customers' requirement) |
| RO membrane DN | 0.00001-0.0001um |
| Ion removal rate | ≥99%; |
| Endotoxin, bacterial removal rate | ≥99%; |
| Recovery | ≥75%; |
| Effluent conductivity | ≤ 15us / cm (source water quality TDS <200ppm) |
| Working pressure | 0.2-0.4 Mpa, |
| Water temperature | 5-40 ℃ |
| No. | Model | Water yield (L/H) | Voltage/Power (V/Kw) | Body Size (L*W*H mm) | Water Tank (L/Material) |
| 1 | ZYRO-250 | 250 | 380/2.5 | 1500*600*1600 | 250/stainless steel/PE |
| 2 | ZYRO-500 | 500 | 380/3.5 | 1500*600*1600 | 500/stainless steel/PE |
| 3 | ZYRO-750 | 750 | 380/4.5 | 1500*800*1800 | 750/stainless steel/PE |
| 4 | ZYRO-1000 | 1000 | 380/6.0 | 1500*800*1800 | 1000/stainless steel/PE |
| 5 | ZYRO-1500 | 1500 | 380/7.0 | 1500*800*1800 | 1500/stainless steel/PE |
| 6 | ZYRO-2000 | 2000 | 380/8.0 | 1500*800*1800 | 2000/stainless steel/PE |
| 7 | ZYRO-3000 | 3000 | 380/9.5 | 1800*800*2000 | 3000/stainless steel/PE |
| 8 | ZYRO-5000 | 5000 | 380/11.5 | 1800*800*2000 | 5000/stainless steel/PE |
Note: Customization is available.
1. High-precision filter, the aperture of nano-level, the best water quality
2. Manual / electric control system automatically switch;
3. With a self-test, water-free point automatically open the system of water, water full stop, no pressure protection and other safety devices;
4. With open RO membrane automatic washing and water tank full automatic double wash function, can extend the life of RO membrane;
5. With on-line monitoring of water quality (conductivity display), flow and pressure on-line display;
6. Equipment integration, installation is simple, simple operation, no special duty;
7. Equipment failure with automatic alarm function;
8.High water production, high desalination rate, long service life;
9. Core components (pumps, RO membrane, electronic control systems, etc.) imported / domestic joint venture brand;
10. Equipment rack with stainless steel, low-pressure pipe for the UPVC material, high-pressure pipe using SUS304 stainless steel.

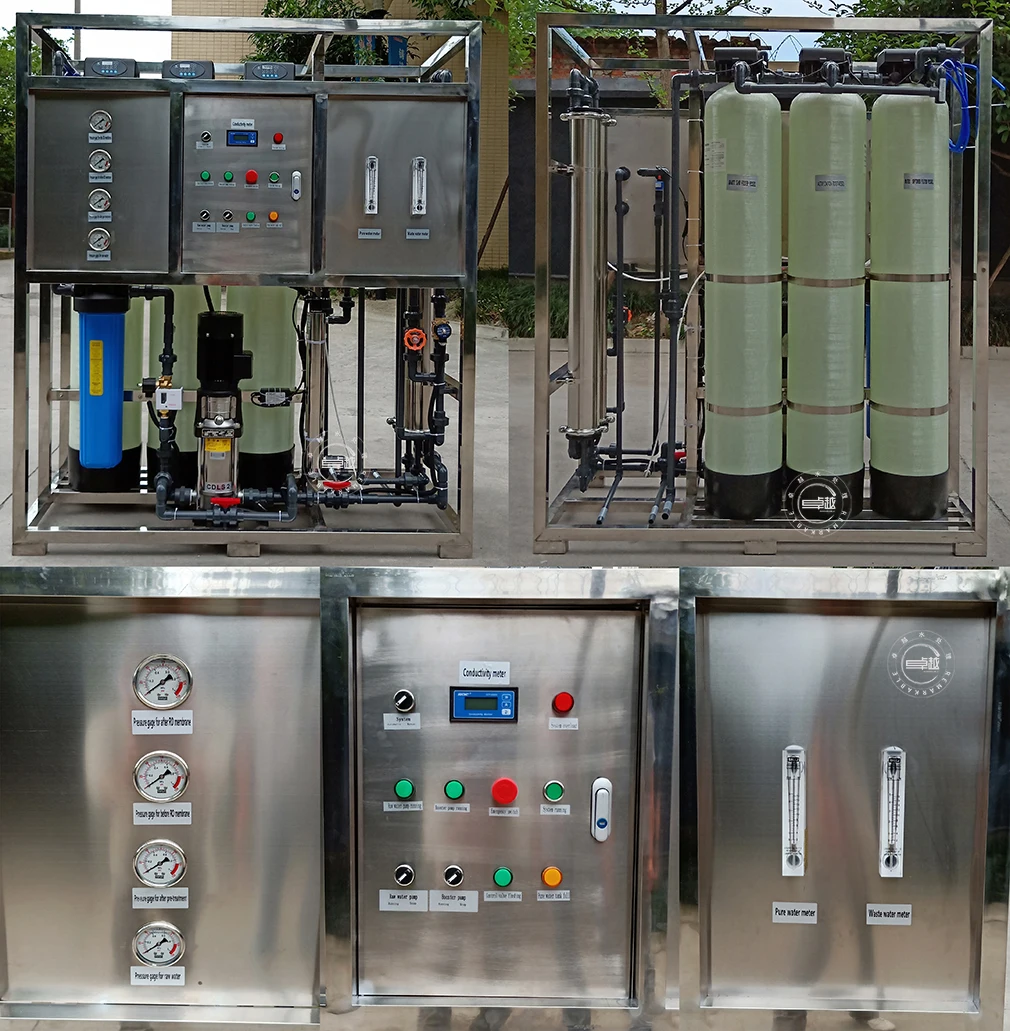

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter-- get rid of sediment, turbidity, suspended matter, organic matter, colloid, ect
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener filter--exchange "ions" of calcium and magnesium with the most common and easiest method.
4.1 Brine tank--use Na+ to exchange Mg2+ and Ca2+ to finish regenerating.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide high pressure to RO membrane.
7.RO system-- main part of the plant. The pore size only has 0.0001um. It can remove more than 99% salt ions, organics, microorganism, bacteria, etc..
Company Information

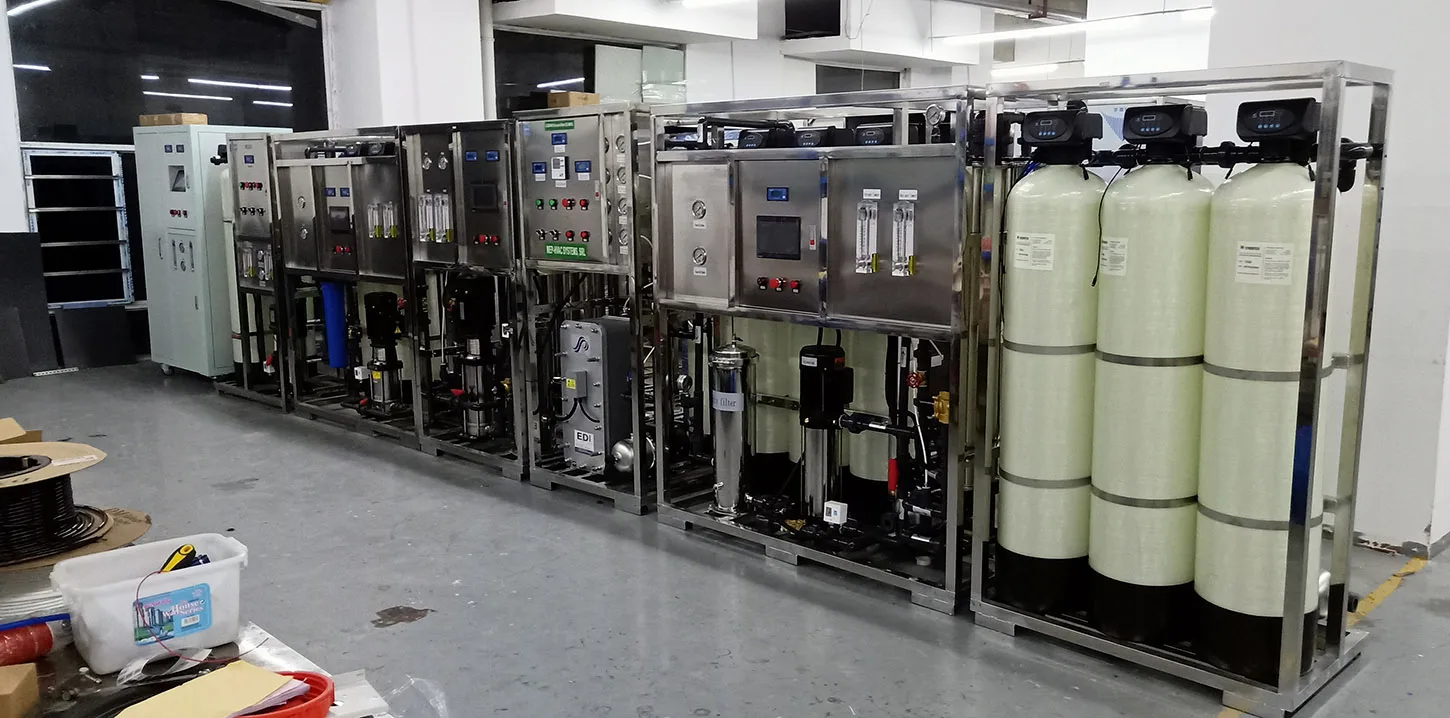

Sichuan Zhuoyue Water Treatment Equipment Co., Ltd. was established in 2009. It is a comprehensive water treatment manufacturer integrating R&D, production, sales and after-sales. It specializes in R&D and production of laboratory ultrapure water systems, medical pure water systems, and pharmacopoeia purified water systems. , industrial ultra-pure water system, commercial pure water system, waste water treatment system, membrane separation system and related water treatment system. At present, the company has a 4000M2 modern production base and marketing service center in Chengdu, Sichuan, and has established perfect after-sales service network.
Certifications
Packaging & Shipping
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
