L6.2-PT reel type 610008 connector alternate ket terminal
US $0.38-$0.75
6 10 16 24 32 сверхмощные многоконтактные разъемы/6 контактный ZJHK HDC
- Category: Connectors & Terminals >>>
- Supplier: Zhejiang Haoke Electric Co. Ltd.
Share on (60672128746):
Product Overview
Description
Product Description
Product Name | Heavy duty connector |
Model Number | HE-006-Male |
Specification | DIN EN60 664/61 984 |
Rated Current | 16A |
| Rated voltage | 500V |
Rated Impulse Voltage | 6KV |
Rated Pollution Degree | 3 |
Pollution Degree 2 Also | 16A 400/690V 6KV 2 |
Number Of Contacts | 3,6,10,16,24,32,(2*16),48,(2*24)+PE |
Rated voltage Acc.To UI Csa | 600V |
Material | Polycarbonate |
Limiting temperatures | -40℃...+125℃ |
Flammability Acc To UI94 | V0 |
MecHEnical working Life-mating cycles | ≥500 |
Contacts Specification(SCREW TERMINAL)
Material | Copper Alloy |
Surface | Hard-gold plated/Hard-silver Plated(most of products are silver |
Which Type | Screw Terminal |
Wire Gauge
AWG
Tightening Torque | 0.14--2.5mm2
26-12
0.5Nm
|
Stripping length | 7.0mm |
Picture S

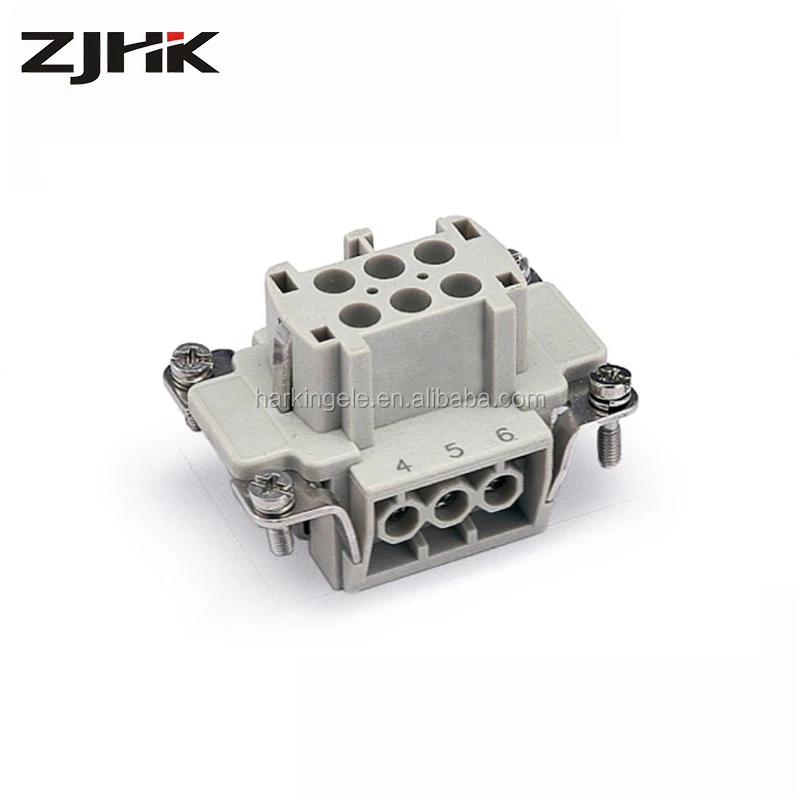

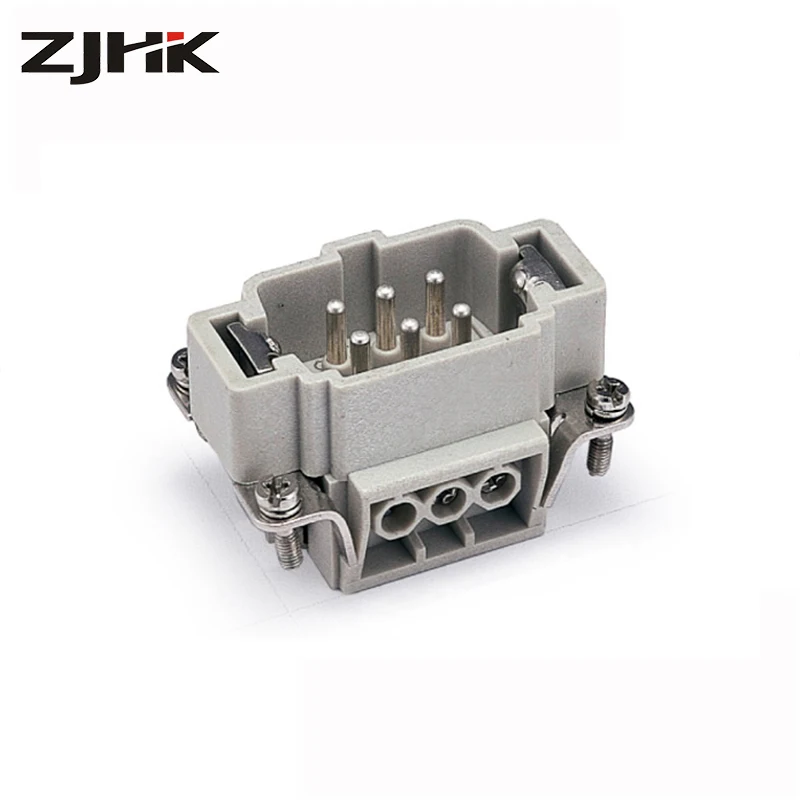

6 10 16 24 32 Heavy Duty Multipin Connectors/ 6 Pin ZJHK HDC
Brand:ZJHK Name:Heavy duty connector Model: HE-006 Rated Voltage:500V Rated Current:16A Material:polycarbonate Pollution Degree:3 Contacts Material:Copper Alloy
|  |
Heavy Duty Connector Application
ZJHK(Harking) heavy duty connector are extensively used in quipment that requires electrical and signal connections,such as mold,machinery,construction machinery, textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical electrical equipment.
Product Show
Advantage:
Company Information
Our Services
Haoke Characteristic service
1. We are professional supplier,so we provide Low MOQ: It can meet your business very well. |
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends. |
3. Inspections:100% test before delivery.Package will do after several discussions with you. |
4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost. |
| 5. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome. |
| 6. Fast door to door delivery service ,Trail order and small order are acceptable |
| Any questions please feel free to contact us, 7*24 hours for you !!! |
FAQ
1.Are you manufactory or trade company? A:We are the manufactory in Wenzhou,Zhejiang Province,China.
|
2.Can we have our logo or company name to be printed on your products or the package? A:Sure.OEM is welcomed.Your Logo can be puted on our products. And we can make package according to your design.
|
3.What is usual payment term for orders? A:We accept terms of T/T in advance,Western Union.It can be cccording to buyer requirement.
|
4. Warranty Time. A:12 month. Any problem of the quality is changed by your next order free
|
5.Free Sample.
|
 |
