Automatic pallet palletizer

Product Overview

Description

Automatic palletizer, Robot palletizer,

gantry palletizer,pallet palletizer

stacking robot, robot stacking machine,stacking machine for carton, box, bag, barrel, etc

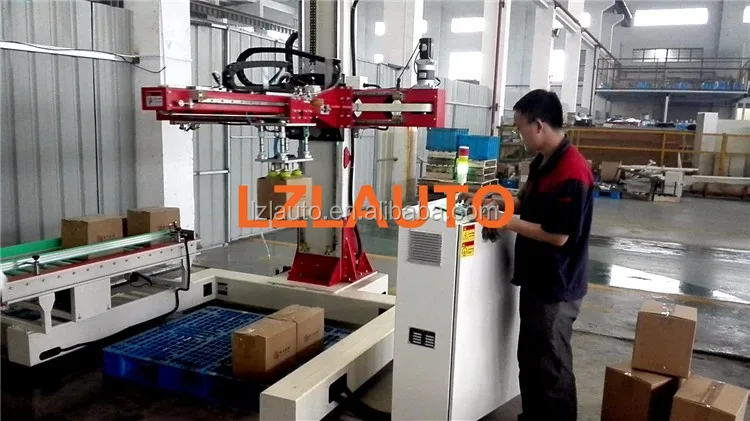

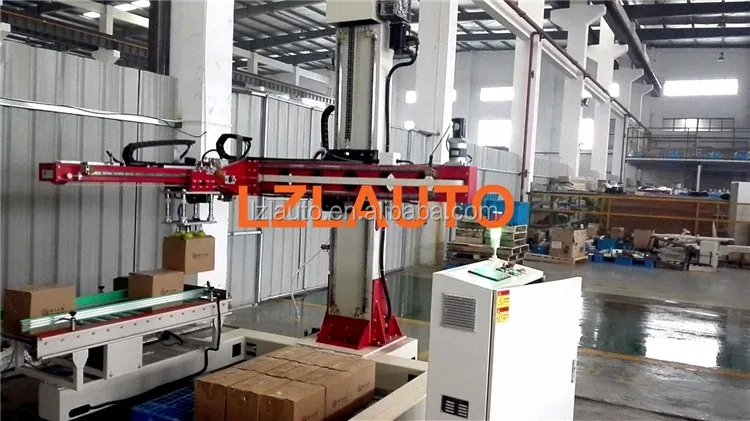

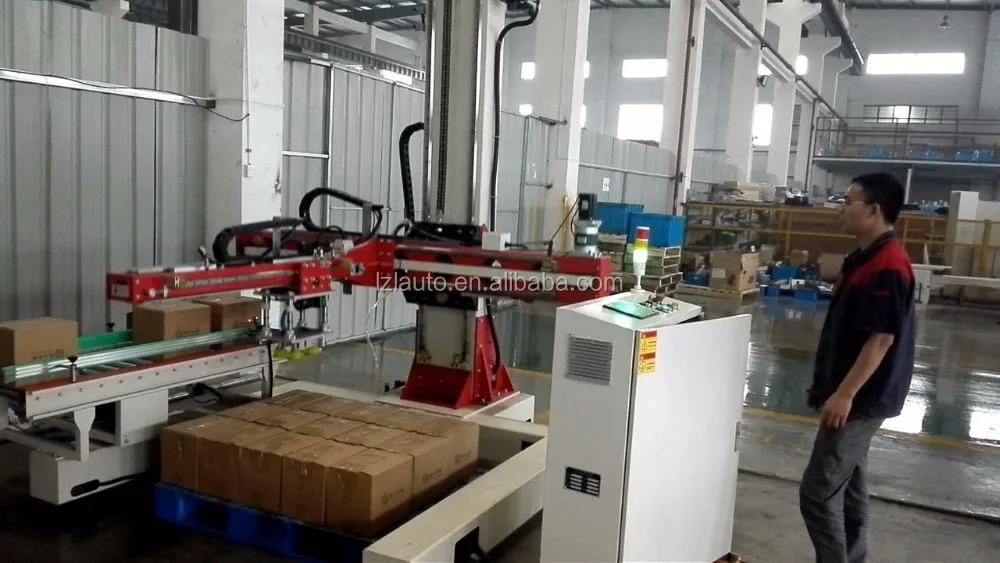

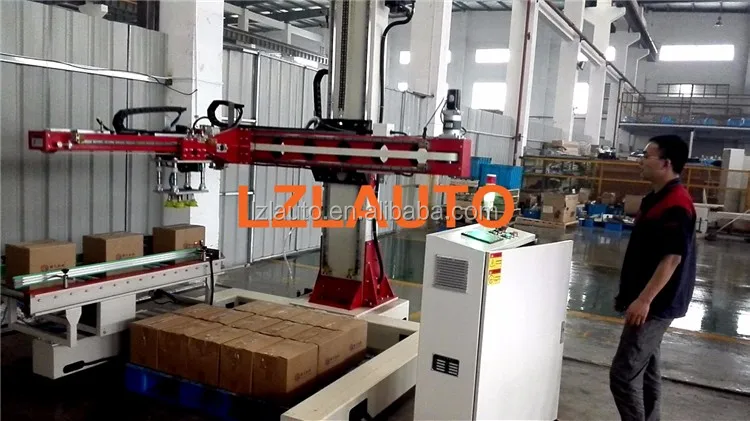

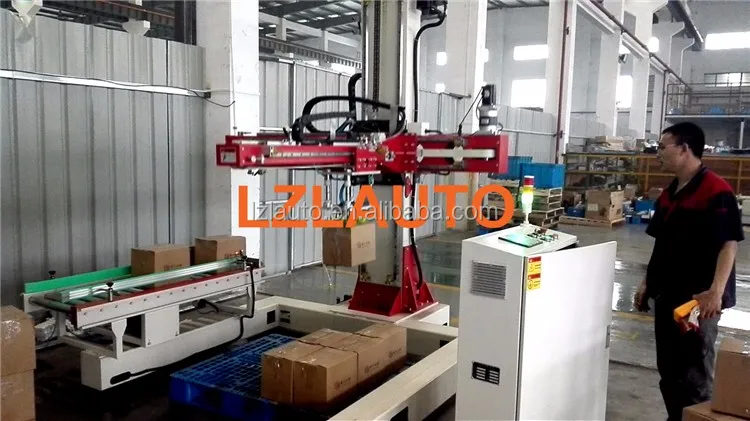

Rectangular coordinates robot palletizer ,

Include palletizer robot, pallet supplier , pallet conveyor,

carton conveyor, rotate table control cabinet,

use high quality Panasonic or Schneider servo motor,











Application:

     Servo palletizer / coordinate palletizer is generally integrated in the packaging production line at the end, it is widely used in chemical, beverage, milk powder, and other industries, its main function is the production line products such as: cartons, Plastic boxes, woven bags and other products according to set a good order and shape code on the pallet device.

product description:

      Servo palletizer / coordinate palletizing machine is to have a good product of the carton, film water, plastic frame, woven bags according to a certain arrangement on the tray (wood, plastic), the automatic stacking, stackable multi-layer , And then automatically lost to the real care station, easy to forklift truck to warehouse storage. The biggest feature of this palletizing machine is the small footprint, low cost and high flexibility for the packing line. More suitable for the latter part of the production speed requirements are not very fast on the production line, such as pharmaceutical companies.

Product advantages:

1. The device uses PLC + touch screen control, to achieve intelligent operation and management, to achieve man-machine dialogue, can display the production speed, fault reasons and location, a high degree of automation. Simple, easy to master, can greatly reduce the labor force and reduce labor intensity.

2. The use of high-speed, stable, space-saving concept design. Using a separate plate, faster, more space-saving. A machine with more, adjust quickly, can be used for a variety of specifications of the product palletizing.

3. Low-level stacking, the international advanced design concept, the structure is more advanced and reasonable, more light and smooth action, power consumption is also smaller.

4. Noise is small, the noise is 75db or less, in line with international standards.

5. Meet the food hygiene requirements: the use of oil-free pneumatic components, 60% of the moving parts are used between the life-free without oil lubrication of the user-friendly design for the user to reduce the use of a large number of costs.

6. Scope: bottled water, cartons, transit box and so on.

Full Automatic Robot Palletizer

Machine application

This Automatic Robot Palletizer is widely used in Chemical,beverage, food,beer, plastic,air conditioner industry ect . Automatically pack and stack the carton ,bagged  ,canned ,boxed and bottled products .The simple structure ,less components  make it easy maintenance

and low maintenance cost.The Robot Palletizer takes less space and more flexible and accurate .

All the control can be implemented on the touch screen of the control box , easy operation .The

robot can work continuously for a long time, reduce a lot of labor and labor cost, more productive.

Applicable scope

Corrugated cartons, plastic boxes, barrel packaging, packaging bags.

l. Adopt the touch screen making it easier and simple operation , the speed ,error reason and place

 can be shown on the touch screen ,high automation. Input the program of PLC to control the product

 orientation, stacking layer number, empty pallet dispenser and full pallet output.

2. Safety door and safety hood are equipped with sensor, when the door or hood opens. Robot stops

working in order to protect the staffs.

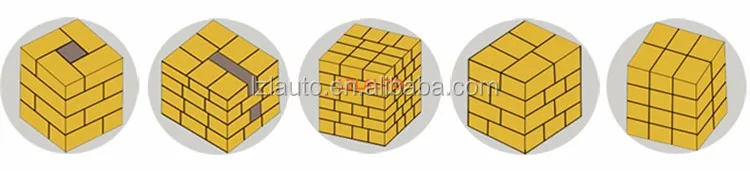

3. Stacking pattern can be adjusted conveniently and easily on the touch screen,stable and high-efficiently stacking save a lot of labor.

4. Product infeed system use the brake motor control, ensure the products can be conveyed to the pre-set

position.

5. Pallet database is big, can hold 12 to 15 empty pallet, which can realize automatic supply pallet.

6. Don't have to change the stacking parts which can complete several stacking mode.

The composition of the robot

The robot is composed by two parts ,one is Controller and another is the Manipulator.

The space of robot manipulator is composed of six axis of six bar open chain institutions, in theory to achieve space any movement.

Robot palletizer is use for packing bags, cartons even other kinds products on one by one pallet. No problem make program to realize different pallet type according to your requirements.The palletizer will pack 1-4 angle pallet if you set. One palltizer is ok working along with one conveyor line, 2 conveyor line and 3conveyor lines.Its optional.Mainly use in automotive, logistics, home appliances, pharmaceuticals, chemicals, food and beverages industries,etc.

Features:

First, the reliability of strong --- normal operation for a long time

Second, fast - short operating cycle time

Third, high precision - parts production quality and stability

Fourth, the function is strong - wide range of applications

5, durable - suitable for harsh production environment

Six, versatility good - flexible integration and production



Technical Parameters:

Product model	LZL  servo palletizer / coordinate palletizer
Palletizing speed	5-20 cartons / minute   customized
Applicable products	Plastic frame, film bag products, carton products, woven bags Plastic frames,  customized
Stacking height	1600mm    customized
Compressed air	0.4-0.6Mpa,30L/min
Equipment weight	1500kg
Applicable Pallet	1300*1100MM customized
Each layer load	more than 260KG
Each load weight	more than 1600KG
Voltage / power	phase five-wire, AC380V / 50HZ, 10KW, control voltage: DC24V
Machine size	L3940×W3300×H3550MM
